TECHNICAL SPECIFICATIONS
Radio
- Memory Presets: Preset Stations (FM: 12, MW: 6, LW: 6)
- Memory: Auto Memory
RDS
- RDS FUNCTIONS: AF, TA, TP, Pty, Eon
- PTY (Type Program) Display
DAB radio
- DAB + TUNER Built-in
- DAB + / DMB Supported
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (Where Available)
- PRESET SERVICE: 18 PRESET MEMORY
- Auto Set / Service Memory
- Search Function Service
- Pty Search Function
- ANTENNA POWER SUPPLY SELECTION
- A dab antenna compatible is required
BLUETOOTH®
- Built-in Bluetooth® Module
- Hands Free Calling: HFP (Hands Free Profile)
- Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
- Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.3 Compatible
- Phone Book Search
- VOICE DIAL OPERATION
- Auto Answer
- Call Waiting
- Call History Display: Phone Book Call, Dialled Call, Received Call
- Speech Volume Level Adjustment
- Hands-Free Phone Sound Setting
- UPDATABLE FIRMWARE
- Included microphone
Designed for iPhone® / iPod®
- Connection: USB Connection (KCU-445i Required)
- Made for iPod / iPhone
- M.I.X. (Shuffle) Play: Track
- REPEAT: ALL, TRACK
- Battery charging
USB
- Front USB Connection
- MP3, WMA, Flac, AAC Playback
- Folder Up / Down
- M.I.X. Random play
- Repeat: Track, Album, All
- USB AOA (Android Open Accessory) 2.0
SOUND TUNING
- Subwoofer Level Adjustment
- Bass Engine SQ: Level Control Off / 1-6
- Subwoofer Phase Select: 0 ° / 180 °
- Subwoofer System Select
- High Pass Filter
- Low Pass Filter
- 2V Voltage 3Prefits
- 10 Equalizer Presets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
- 3-band Parametric Equalizer
General
- Power Output: 4 x 50 W High Power Amplifier
- LCD Display: 14 White LCD Display 1Line segments
- Control Type: Rotary Encoder Knob
- RGB Variable Illumination Buttons
- 3 PREOUTS (2V, Front / Rear / Subwoofer)
- 24-bit DAC
- INPUT Front (3.5mm mini jack)
- Steering Wheel Remote Control Ready
- -20db mute
- Remote Control Ready
- Clock
- DETATIC DIN TRIM PLATE
- DeTachable flat face
- Dimmer
- Power Antenna Lead
- Remote Turn-On
- Auto Off Function (After 30 min)
Maximum power
- Max Power Output: 4 x 50W
DAB radio
- Tuning Range Band III: 174.928 - 239.2 MHz
FM radio
- Tuning Range: 87.5 - 108.0 MHz
MW radio
- Tuning Range: 531 - 1,602 kHz
LW radio
- Tuning Range: 153 - 279 kHz
USB
- USB Requirements: USB 1.1 / 2.0
- Max. POWER Consumption: 1000 mA
- File System: FAT 16/32
SOUND TUNING
- Subwoofer Level Adjustment: 0 to 15 dB
- Subwoofer Phase Setting: 0 ° Or 180 °
- High Pass Filter: Off, 80/100/120 Hz
- Low Pass Filter: Off, 80/100/120 Hz
- Bass Level Control Range: ± 7 dB at 100Hz
- Bass Center Frequency: 60/80/100/120 Hz
- Bass band width adjustment (q): 4 choices (0.5 = Wide, 1.0 = medium, 1.5 = medium, 2 = narrow)
- Treble Level Control Range: ± 7 DB AT 10 KHz
- Treble Center Frequency: 7.5K / 10k / 12.5k / 15k Hz
- TREBLE BAND WIDTH AJUSTMENT (Q): 2 Choices (0.75 = Wide, 1.25 = Narrow)
- MID LEVEL CONTROL RANGE: ± 7 dB
- Mid Center Frequency: 500 / 1k / 1.5k / 2.5k Hz
- MID Band Width Adjustment (Q): 4 Choices (0.75 = Wide, 1.0 = Medium, 1.25 = Medium, 1.5 = Narrow)
General
- Power Requirement: 12V.dc
- Pre Output Voltage (Before Clipping): 2V / 10k ohms
- In: 1.4v / 10k ohms
- MAXIMUM Angle Mounting: 30 °
- Weight: 0.8 kg
Dimensions
- DIN SIZE: 1 DIN
- Chassis Size (W x H x D) MM: 178 x 50 x 177 mm
Overview

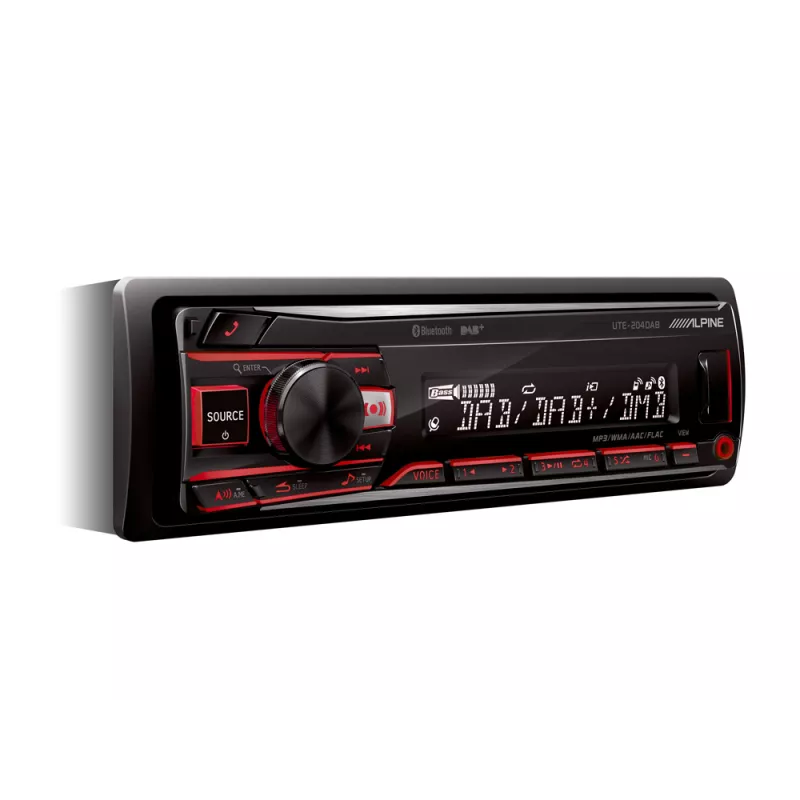

UTE-204DAB is a single affordable DAB + digital radio that improves alpine quality and offers many connectivity functions to entertain you on the road.
Connect your iPhone or iPod to enjoy all your stored audio content and Apple Music, broadcast Spotify or Internet radio via Bluetooth audio technology, or simply connect a USB key - there are many possible connectivity solutions with this Alpine head unit.
The included microphone allows clear telephone conversations thanks to the built-in Hands-Free Bluetooth function. You can even adjust the button and the light lighting color separately into the complete RGB spectrum, to match your preferences and dashboard.
DAB + Integrated Digital Radio
The integrated DAB + tuner uses the most advanced digital technology to provide a radio reception with exceptional sound quality and noiseless. DAB + also offers many other advantages over the traditional FM radio: Choose from a much wider range of radio stations and after the initial stations scan, easily select the desired channels in an alphabetic list or kind of stations available
Make calls
The UTE-204DAB has a high quality built-in Bluetooth module, allowing you to make phone calls in a legal and economical way while driving. A separate microphone is included in the box.
Designed for iPhone
You can connect your iPhone or iPod via a USB cable (not supplied) to enjoy the recorded audio content or Apple Music (requires a subscription to Apple Music and an Internet connection) in your car. Simply select songs, albums, or playlists on your iPhone / iPod or directly via your Alpine car radio while driving. Compatible with all iPhone and iPod models in recent years, including new iPhone X and iPhone 8 models.
Connect your Android phone
If you have a phone or tablet under Android, you can connect via USB (cable not supplied) to your Alpine car radio to enjoy audio content via the speakers of your car. You can select songs on your phone / tablet or using the rotary encoder of your main unit. This feature is available for all main Alpine units with Android Open Accessory 2.0 (including ute-204dab.)
Internet radio streaming
There are many Internet radio applications available for your smartphone. Just start your Internet radio application on the phone and connect it via Bluetooth or the input connector to your Alpine car radio (requires an optional cable.)
Enjoy Spotify Streaming
Spotify is a great way to discover new music and enjoy all your favorite songs and playlists. Why not use it on the road? Start your playlist, genre list or album on your phone before starting driving and wireless broadcast via Bluetooth to your main Alpine unit and enjoy music through the audio system of your car.
USB drive
The UTE-204DAB front USB port is ready for USB keys and USB hard drives with power requirements up to 1000 mA. Bring your music to your USB key and enjoy MP3, AAC, WMA and FLAC files with convenient search features.
Compatible FLAC file
The high quality audio compression of Flac becomes more and more popular because it offers a much better sound quality than ordinary MP3 files. This alpine product can read FLAC files stored on USB storage devices.
Customize the sound
Adjust the sound of your Alpine car radio to your personal preferences, using Bass Engine SQ to get impressive bass, as well as the equalizer functions (10 pre-sets or parametric equalizer 3 bands) Connect the external amplifiers to 3 Presets (2 volts) or simply enjoy a direct connection with the 4 x 50 watt amplifier of high quality built-in.
Personalize the color of the post
You can fully adjust the lighting color of your UTE-204DAB buttons and display in the complete RGB spectrum to match the color of your dashboard light or personal preferences.
Antenna ApAlély Dab Antenna Available
We recommend the KAB-242DA antenna active separately available for this product.
Optional remote control
The new Alpine Head units work seamlessly with the optional Alpine Alpine Alpine Wireless Remote Control.
