A five-channel active amplifier, in discrete Class AB, delivers 180 W in total. It drives two 28 mm silk dome tweeters, two 100 mm NS+ mid-bass drivers and a 200 mm long-throw subwoofer. The subwoofer works in an infinite baffle arrangement, beneath two bass-reflex compartments. Typical in-room frequency response extends from 30 Hz to 22 kHz, with bass, treble and subwoofer adjustable from -6 dB to +6 dB.
Apple AirPlay, Google Cast, Spotify Connect, TIDAL Connect and Qobuz Connect are built into the radiogram. Radio covers internet, DAB/DAB+ and FM with RDS. Wi-Fi 802.11ax and 10/100 Mbps Ethernet connect the unit to the network, and both AirPlay and Google Cast handle multiroom. A 32-bit/192 kHz Burr-Brown converter decodes FLAC, AIFF, ALAC and WAV files up to 32-bit/192 kHz.
The HDMI input accepts ARC and eARC, for TV sound. The MM phono input has adjustable gain from 2 to 7 mV, the RCA line input takes up to 2.3 Vrms and the optical input plays up to 24-bit/96 kHz PCM. Bluetooth 5.1 supports aptX HD, SBC and AAC, and also works with Bluetooth headphones. The USB-C port reads drives formatted in FAT, exFAT, NTFS or ext4, and the optional R-CD100 player adds CD playback.

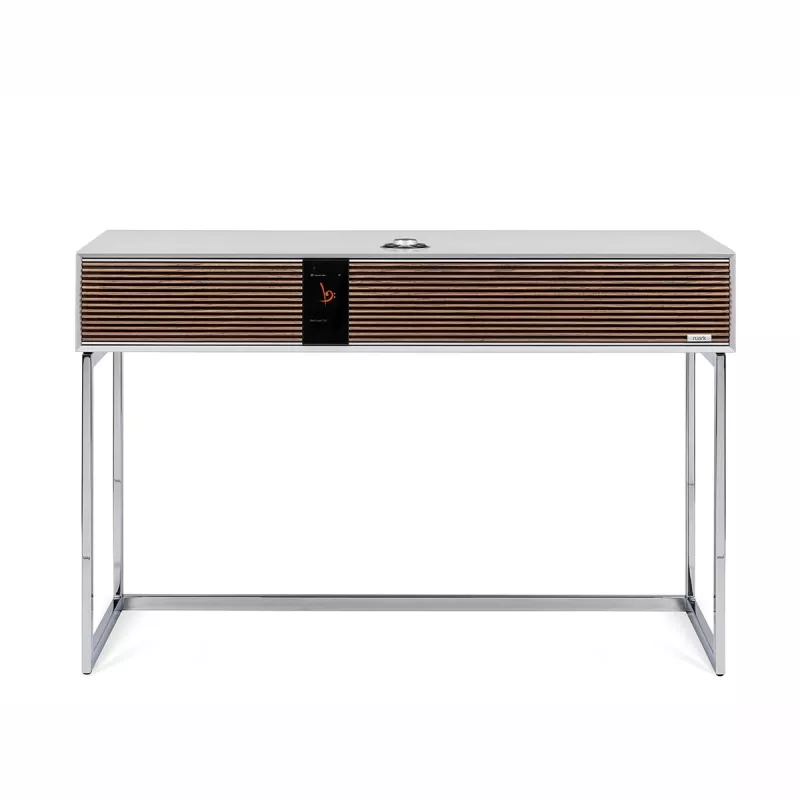

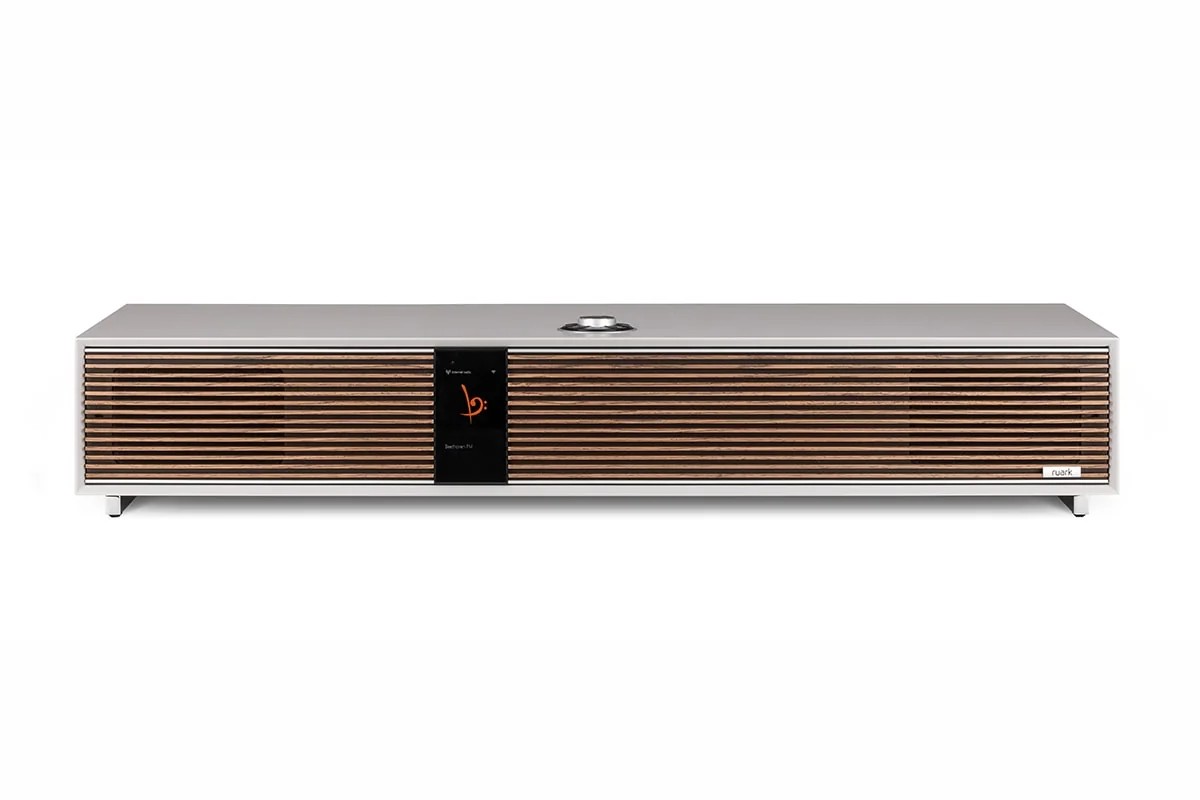

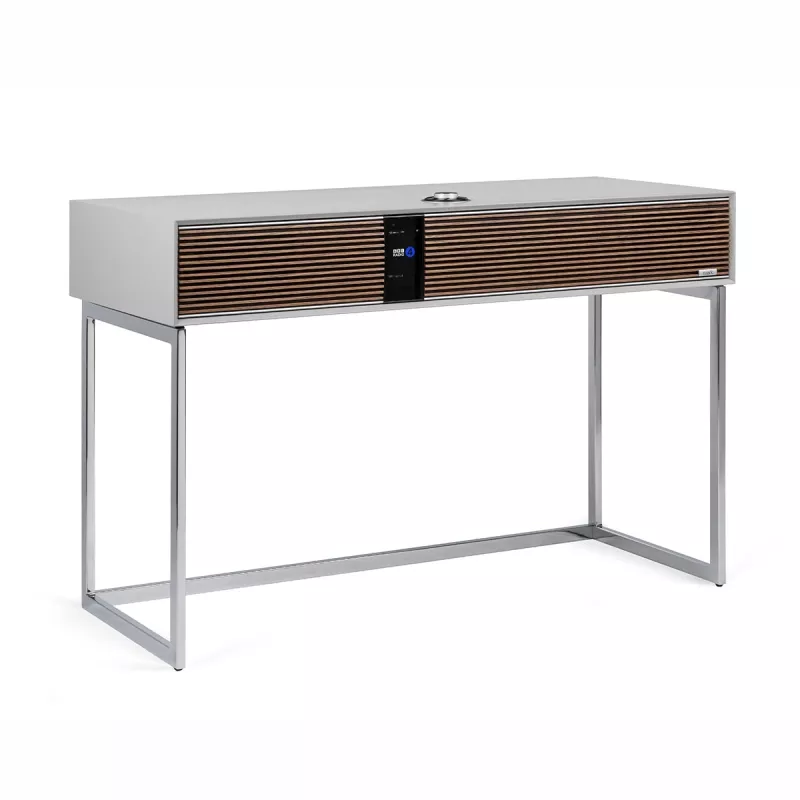

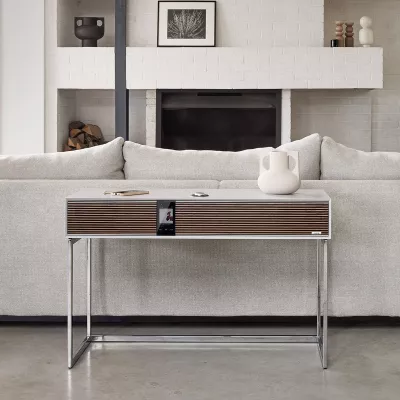

The cabinet is lacquered in Soft Grey, with a handcrafted Fused Walnut grille. A polished chrome stand, with a frame and bar legs, is supplied. The cabinet measures 1000 mm wide, 400 mm deep and 150 mm high. With the stand, the radiogram is 660 mm tall and weighs 27 kg.
Data sheet
