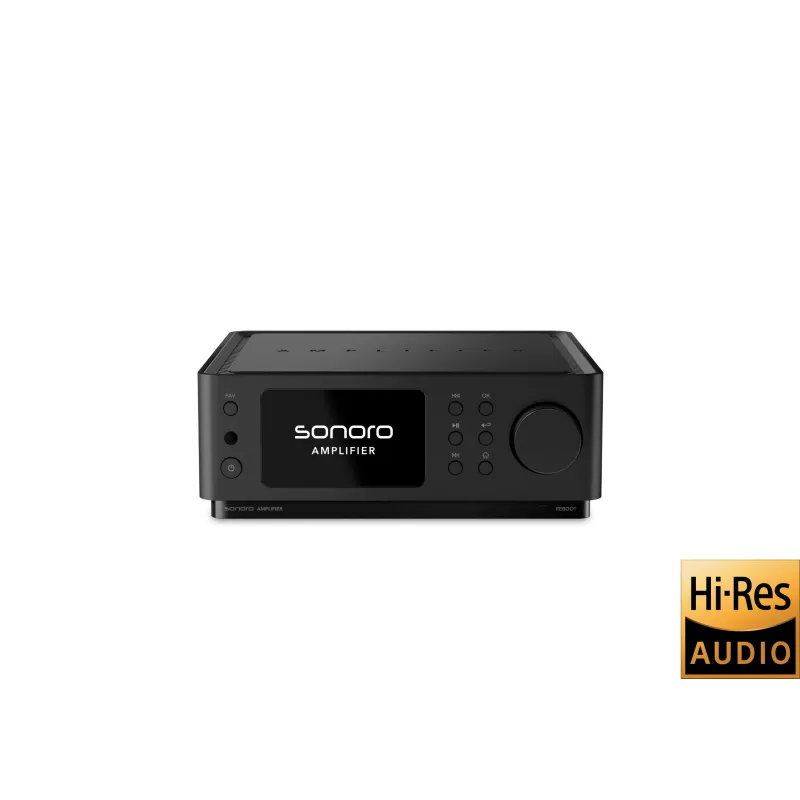

The Sonoro AMPLIFIER is a Hi-Res streaming amplifier for passive hi-fi or in-ceiling speakers, designed for 19-inch rack mounting. Its 2 x 250 W Hypex Class D module and ESS SABRE converter combine amplification, streaming and TV sound in a 217 mm wide chassis.

Description
Product Details

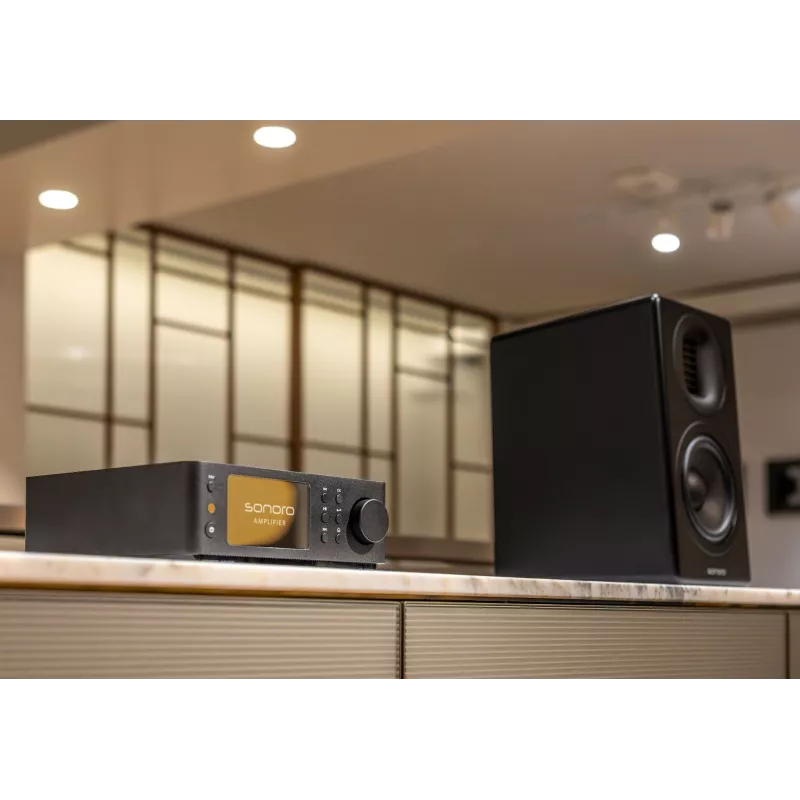

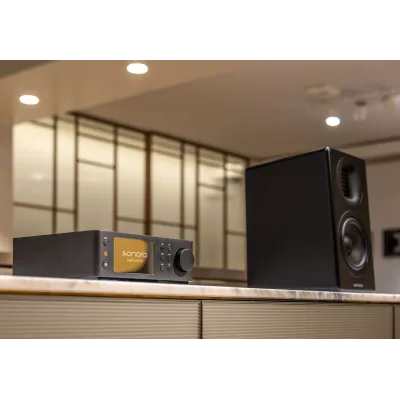

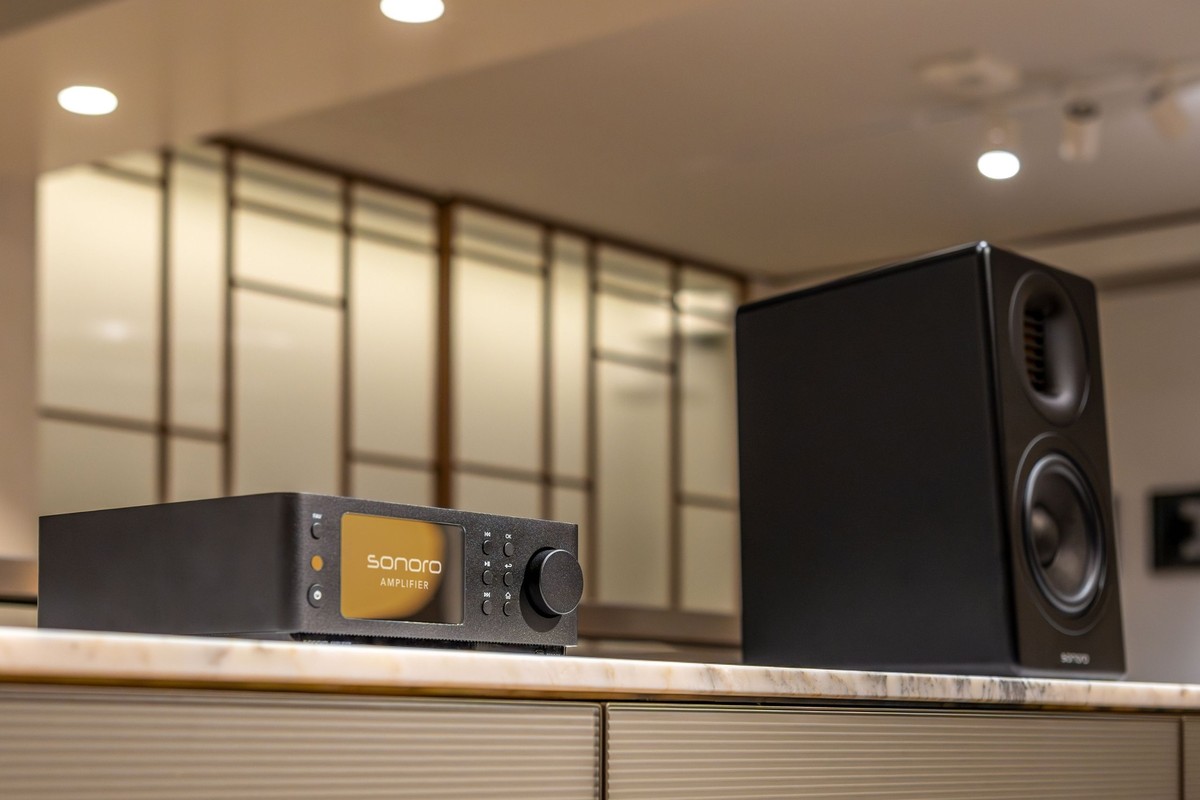

Black amplifier on a marble worktop next to a black bookshelf speaker

Hypex Class D amplification

The output stage is built on a Hypex Class D module delivering 2 x 250 W into 4 ohms. It drives passive speakers from 4 to 16 ohms, from living-room floorstanders to in-ceiling speakers. A fan that only runs when needed draws heat out of the chassis.

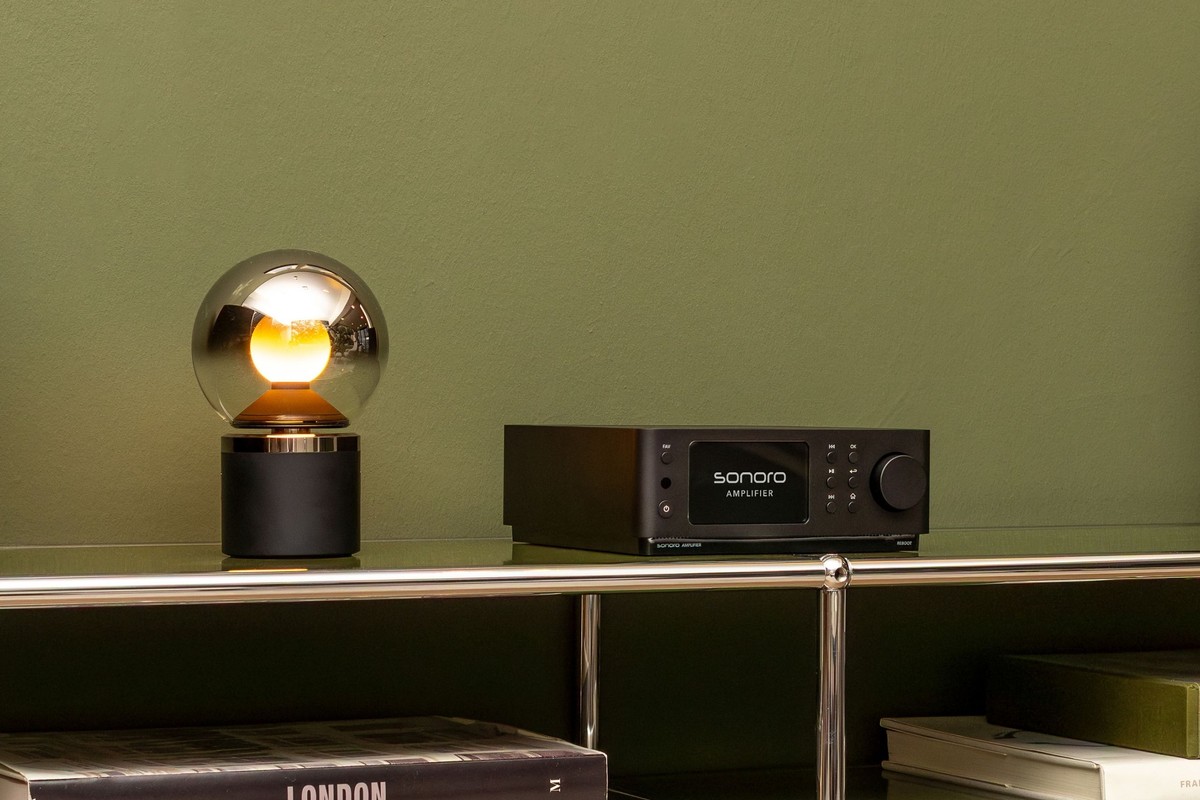

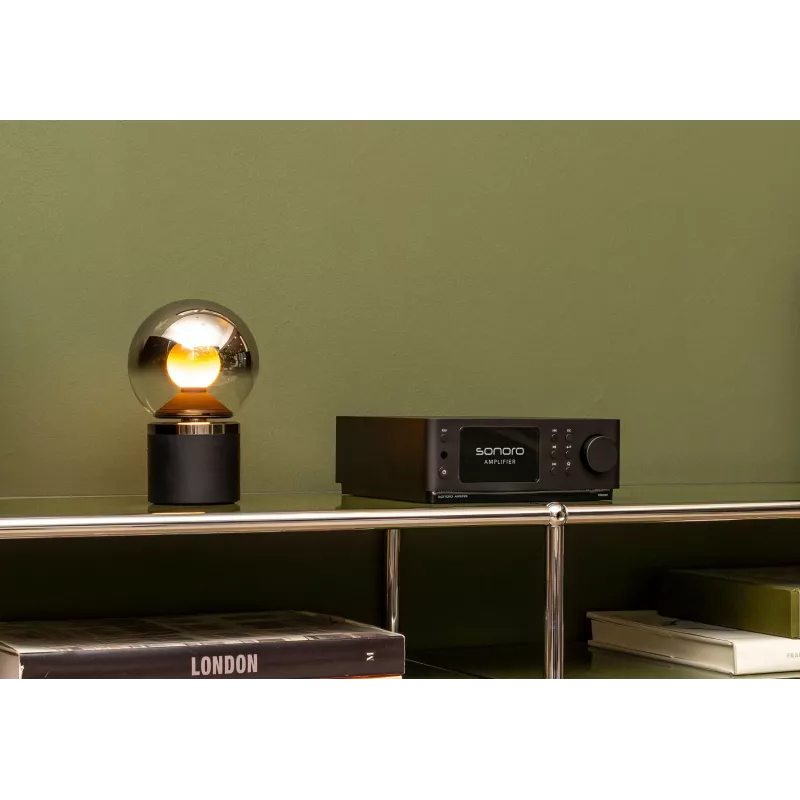

Black streaming amplifier on a chrome shelf beside a mirrored globe lamp

ESS SABRE converter, PureGain volume

Every analogue output is fed by an ESS SABRE digital-to-analogue converter. PureGain, the volume control developed by sonoro, lowers background noise by 20 dB compared with a conventional digital volume control. Bass, treble and balance are adjusted directly, and Advance mode adds a 7-band equaliser with bass management up to a 2.2 setup. The sound signature was tuned with audio expert Rainer Finck.

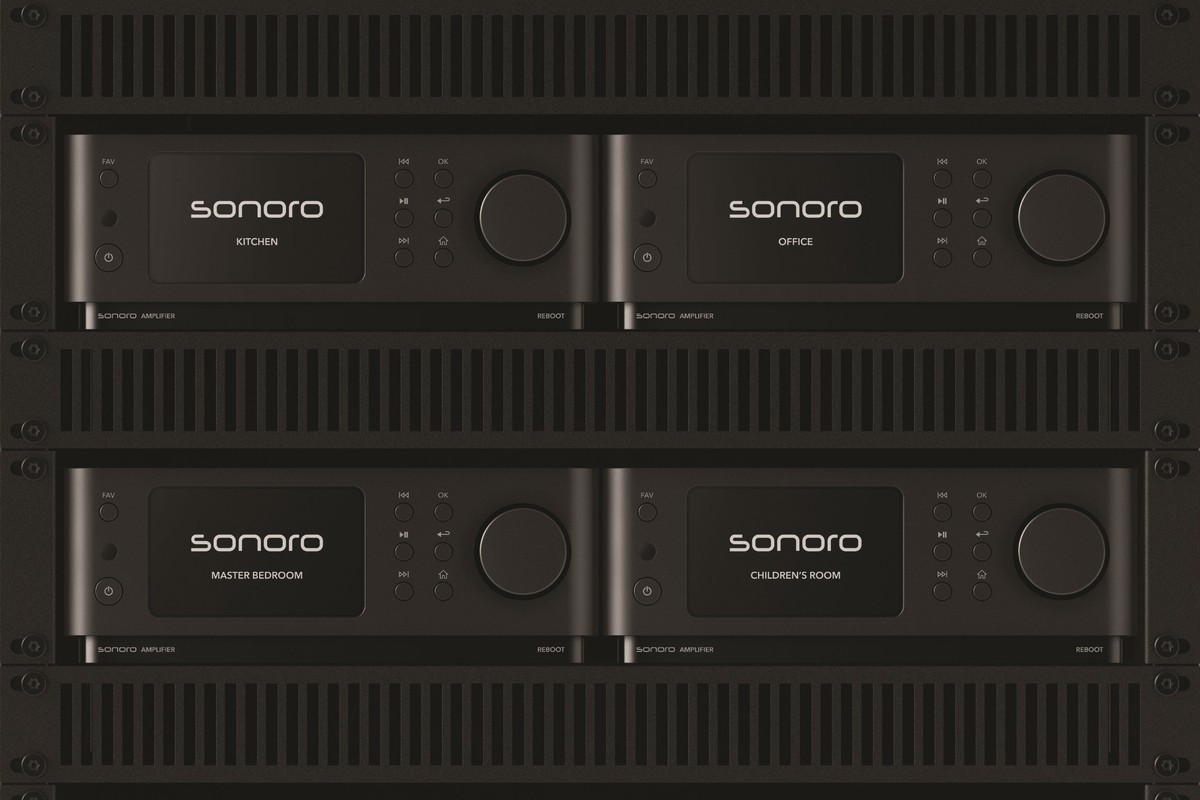

Four sonoro AMPLIFIER units in a 19-inch rack, each showing its room name

19-inch rack mounting

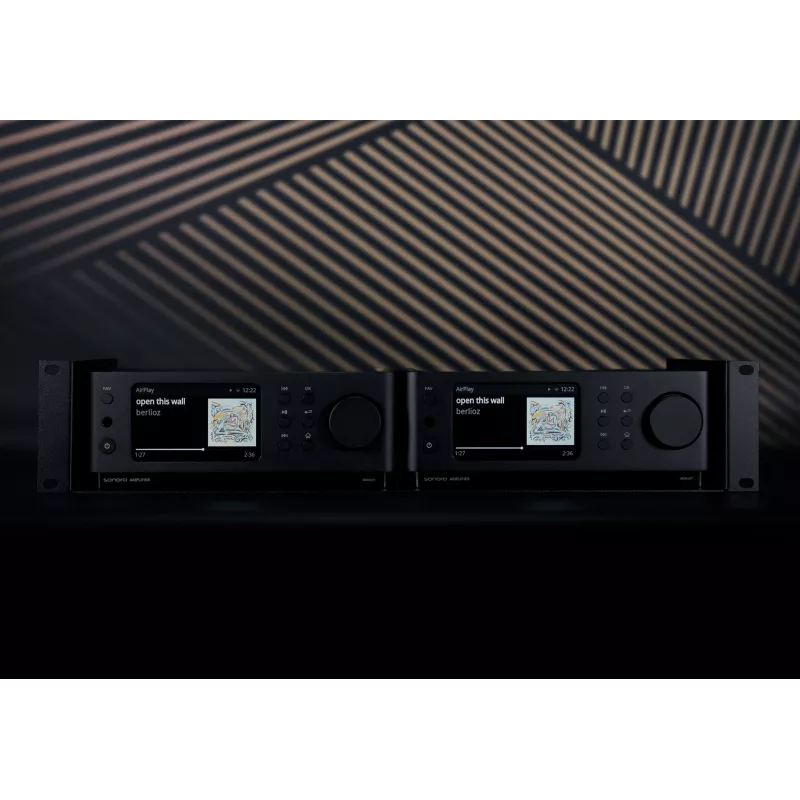

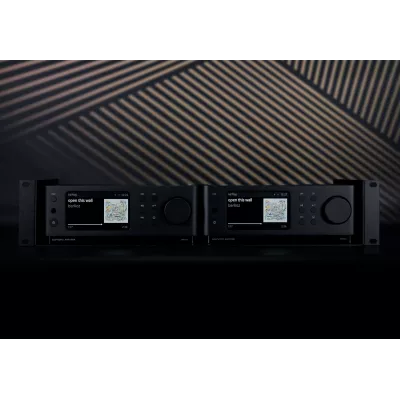

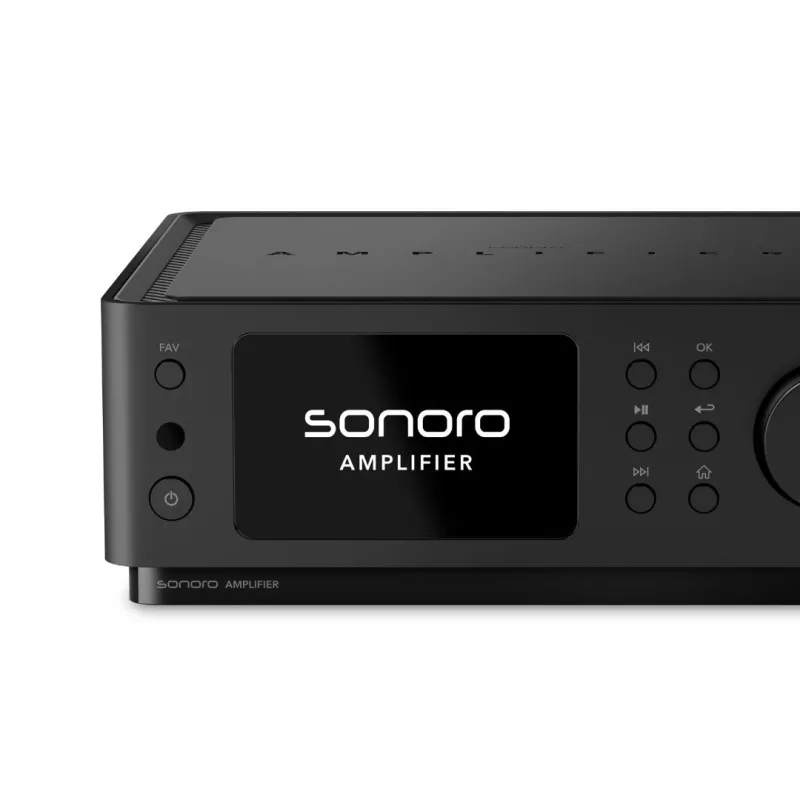

Two AMPLIFIER units, or one AMPLIFIER and one STREAMER, mount side by side in a 19-inch rack. The 4-inch colour display shows the name of the room it serves, even in standby, so the front panel needs no label. A reboot button on the front restarts the unit without taking it out of the rack. Control runs through the remote, the sonoro audio app or Busch-Jaeger and KNX home automation from Gira or Jung.

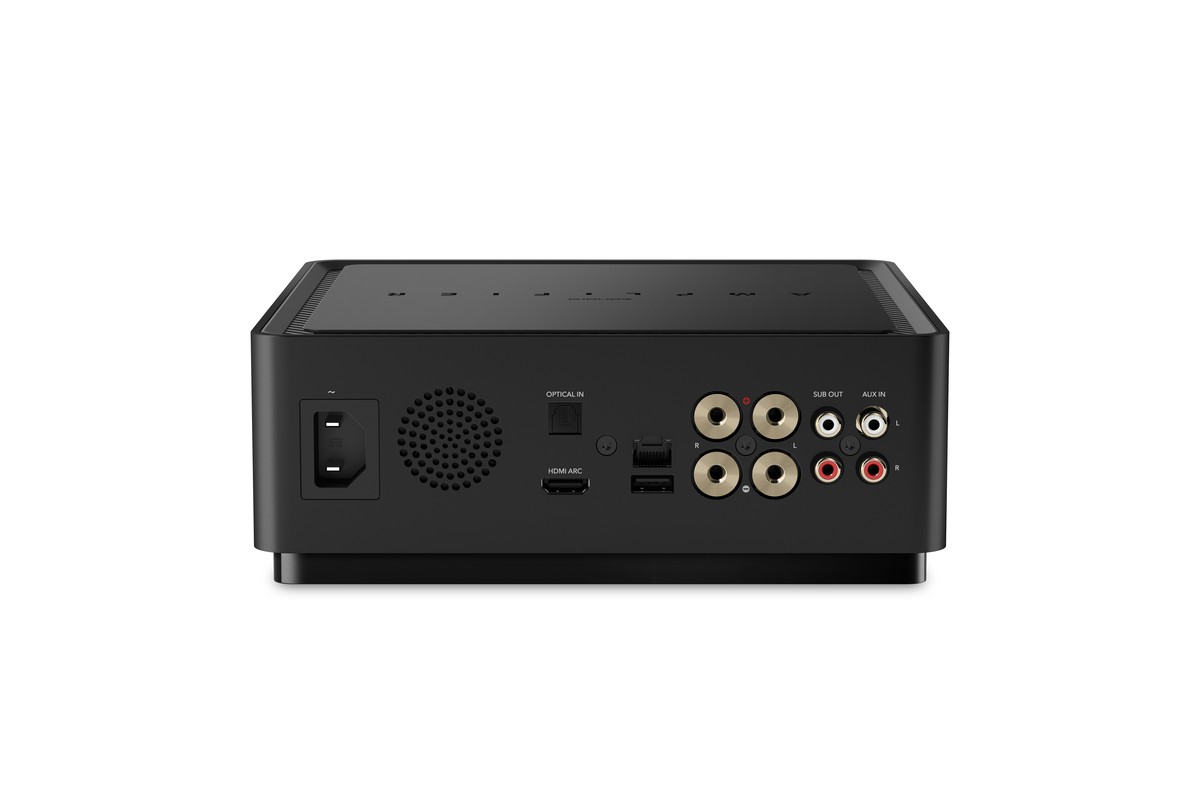

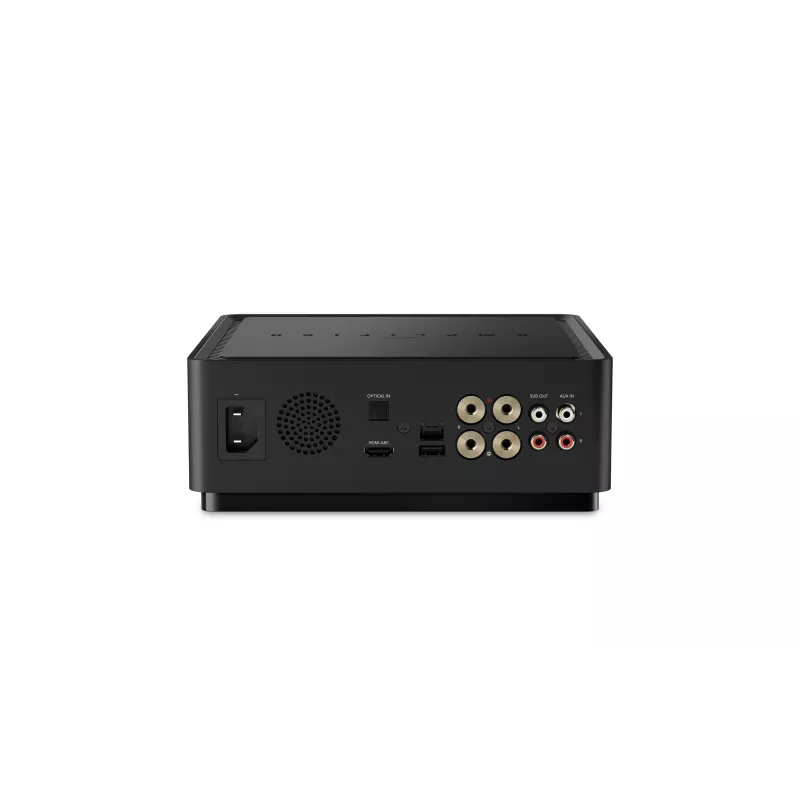

Rear panel with HDMI ARC socket, optical input, LAN port and speaker terminals

TV and streaming connections

Connected to the TV over HDMI ARC with CEC, the amplifier switches on, switches off and follows the volume set with the TV remote. An optical input, an RCA AUX input, a USB-A port and a subwoofer output complete the connections, with binding posts that take the four supplied banana plugs. Over dual-band 802.11ax Wi-Fi or the LAN port, the unit receives Spotify Connect, Qobuz Connect, TIDAL Connect, Amazon Music, Deezer, AirPlay and Google Cast. The wired sonoro multiroom system, announced for the fourth quarter, will link up to 32 of the brand's systems depending on the network.

Reference 73743

Data sheet

Product Type: Streaming Amplifier
Features: 4-inch colour TFT display, high resolution, graphic
99 local favourite presets for all sources
Adaptive loudness and equaliser presets for sonoro speakers
Adjustable bass, treble and balance, 7-band equaliser in Advance mode
Advanced bass management for systems up to 2.2
Aluminium housing in sonoro's design language
Bluetooth headphone transmission
Control by remote, sonoro audio app or on the unit
Full-metal buttons and rotary knobs
Podcast source
Sleep timer in 5-minute steps (5 to 120 min)
Smart Home ready
Supplied: remote control, CR 2032 button battery, 2 m power cable, 4 banana plugs, quick start guide, safety instructions
Integrated tuner: Internet Radio
USB ports: USB-A (charging and playback)
Brand: Sonoro
Integrated DAC: ESS SABRE
WiFi: 802.11 a/b/g/n/ac/ax, 2.4 / 5 GHz
Digital inputs: HDMI ARC
Optical input
Analog inputs: RCA
Subwoofer output: Yes
Multiroom: Yes with Apple AirPlay and Google Cast
Output power: 2 x 250 W (4 Ω)
Color: Matte black
Streaming services: Spotify Connect, TIDAL Connect, Amazon Music HD, Qobuz Connect, Deezer
Wireless transfer: UPnPTM DLNA media server compatible
Network connectivity: LAN (RJ45)
WEP, WPA2 (PSK), WPA3, WPS encryption, HTTPS, TSL, Tofu
Nominal impedance: 4 to 16 Ω
Installation type: 19" rack mount
Bluetooth Profile: A2DP, AVRCP
Connections: Binding posts, banana-plug compatible
Amplification technology: Hypex Class D
Width: 21.7 cm
Depth: 23.1 cm
Height: 8.0 cm
Unit weight: 2.8 kg
