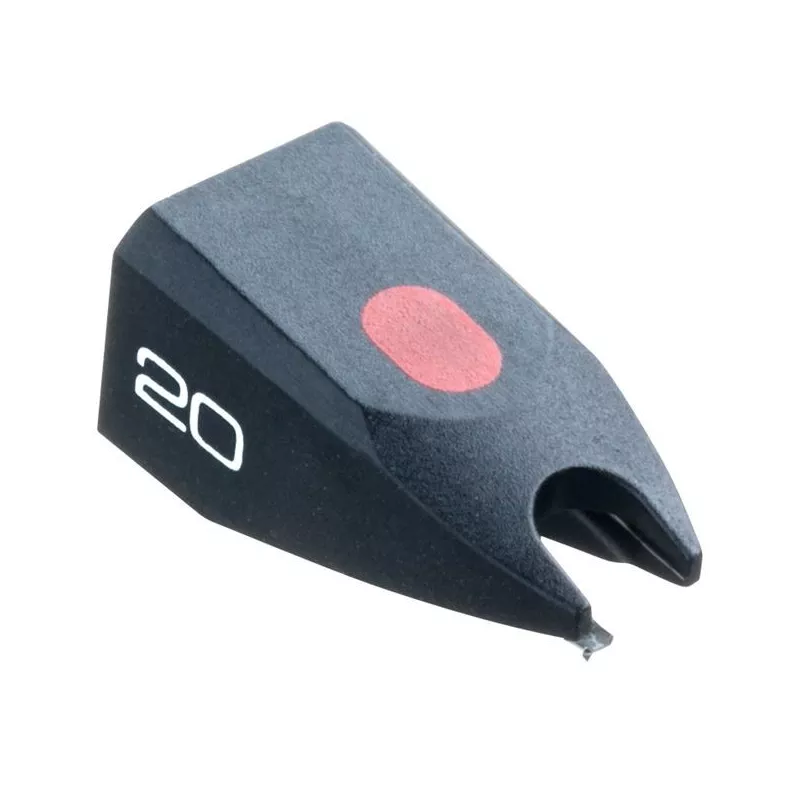

FREQUENCY RANGE - 20-27.000 Hz FREQUENCY Response - 20-20.000 Hz + 2 / - 3 dB Tracking Ability at 315Hz at Recommended Tracking Force *) - 80 μm Compliance, Dynamic, Lateral - 25 μm / mn Stylus Type - Nude Elliptical Stylus Tip Radius - R / R 8/18 μm
*) Typical Value
Equivalent Stylus Tip Mass - 0.4 mg Tracking Force Range - 1.25-1.75 G (12.5-17.5 min) Tracking Force, Recommended - 1.5 g (15 minutes) Angle Tracking - 20 ° Stylus Color - Black
Recommended for Following Cartridge: Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
55665
Data sheet
Compatible cartridge
Concorde 20
LM 8:00 p.m.
LM 20
OM 20
OMB 20
OMP 20
Super OM 20
TM 8:00 p.m.
TM 20U
