AVM PH 30.3 Préampli phono

Reference 72846

CHF743.07 Tax included

The pH 30.3 is a switchable phono preamplifier between mobile magnet cells and mobile coil. It brings a subsonic filter, a RIAA correction in class A and three charge adapters of 100, 200 and 1000 ohms.

Color : Black

Black
Silver

Quantity

Add to wishlist

Delivery time usually supplier between 4 and 7 days

Guarantee safe & secure checkout

Description
Product Details

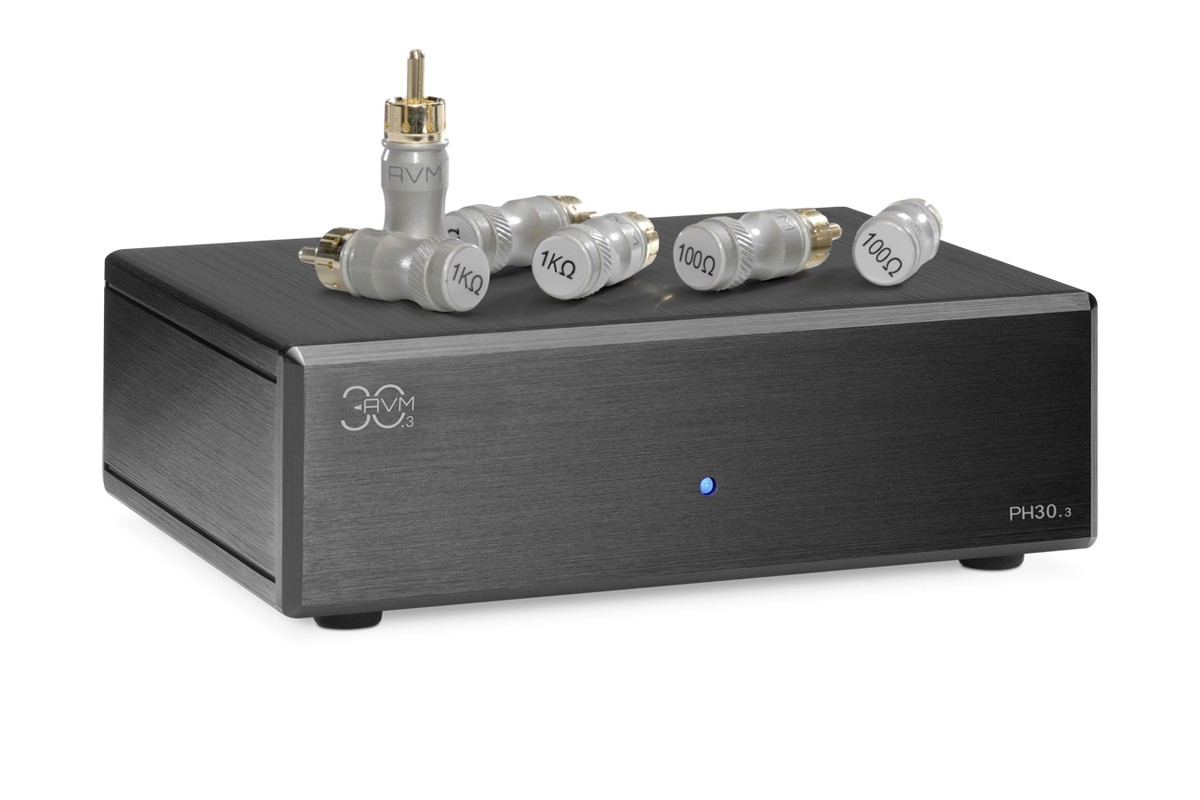

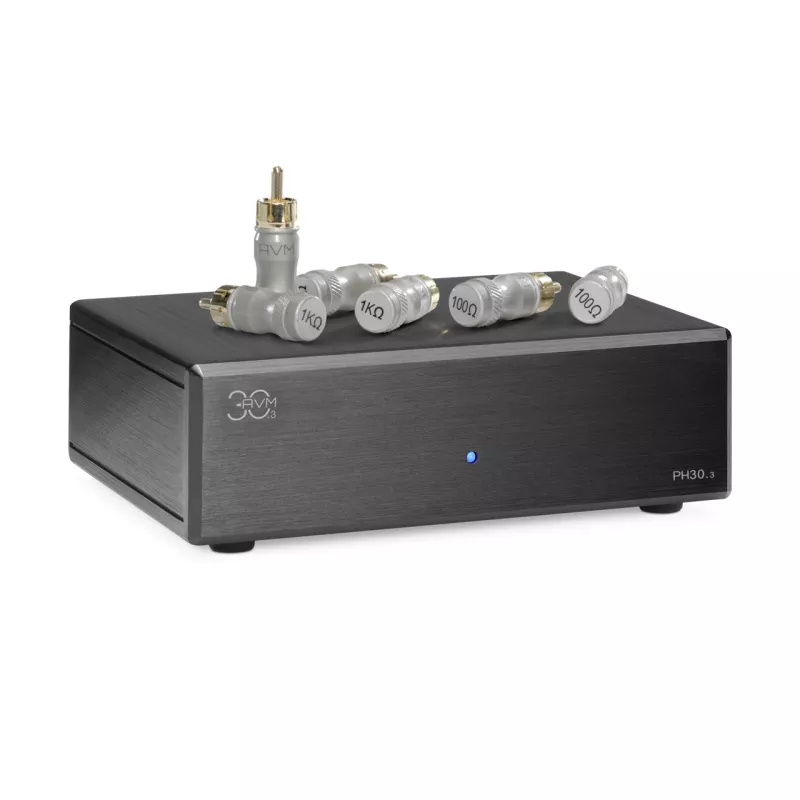

AVM pH 30.3 Face view, black aluminum housing and blue diode

Mobile magnet or mobile coil

A rear-face switch passes the MM mode to MM mode, without hidden adjustment. The gain reaches 40 dB moving magnet and 60 dB in mobile reel, 1 kHz. The corresponding input sensitivity is 5 mV in mm and 0.5 mV in MC, for 500 mV output.

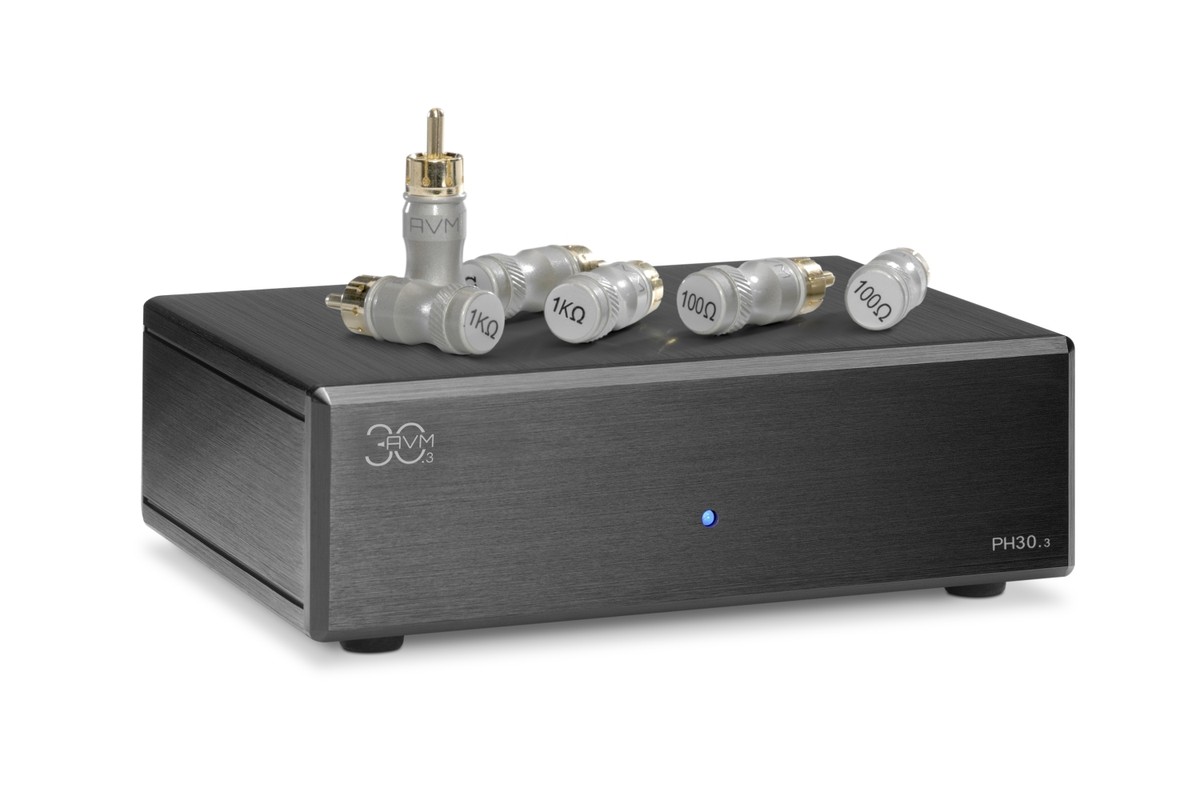

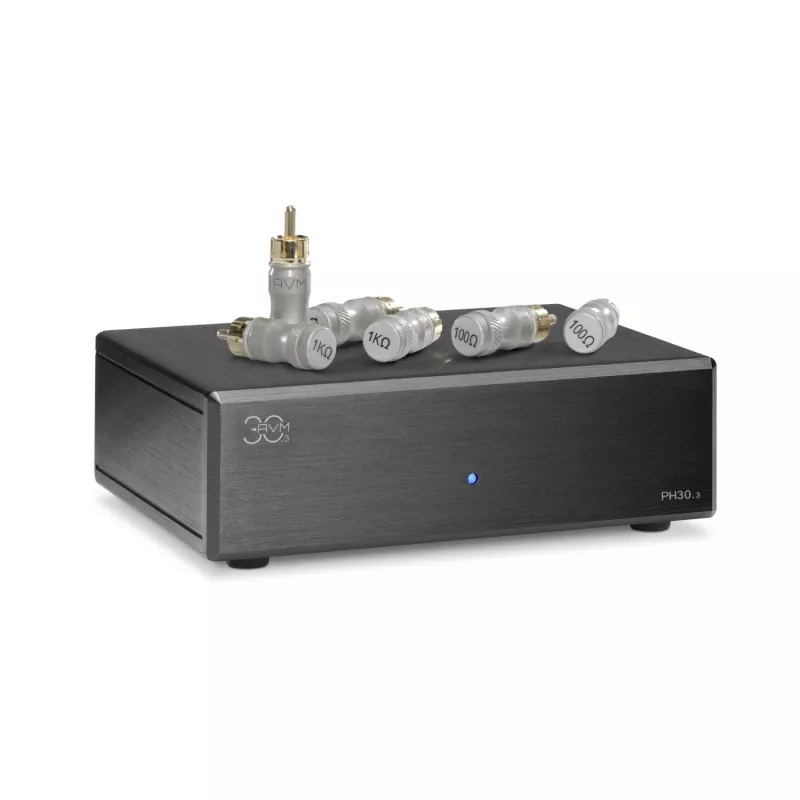

Three-quarter black housing, with load adapters placed on the cover

Charge adapters provided

Three pairs of load adapters, 100, 200 and 1000 ohms, accompany the device. They connect in parallel the cell to the MC load jacks provided for this purpose, to grant the input to the cell used. Their cards are golden, which protects them from corrosion.

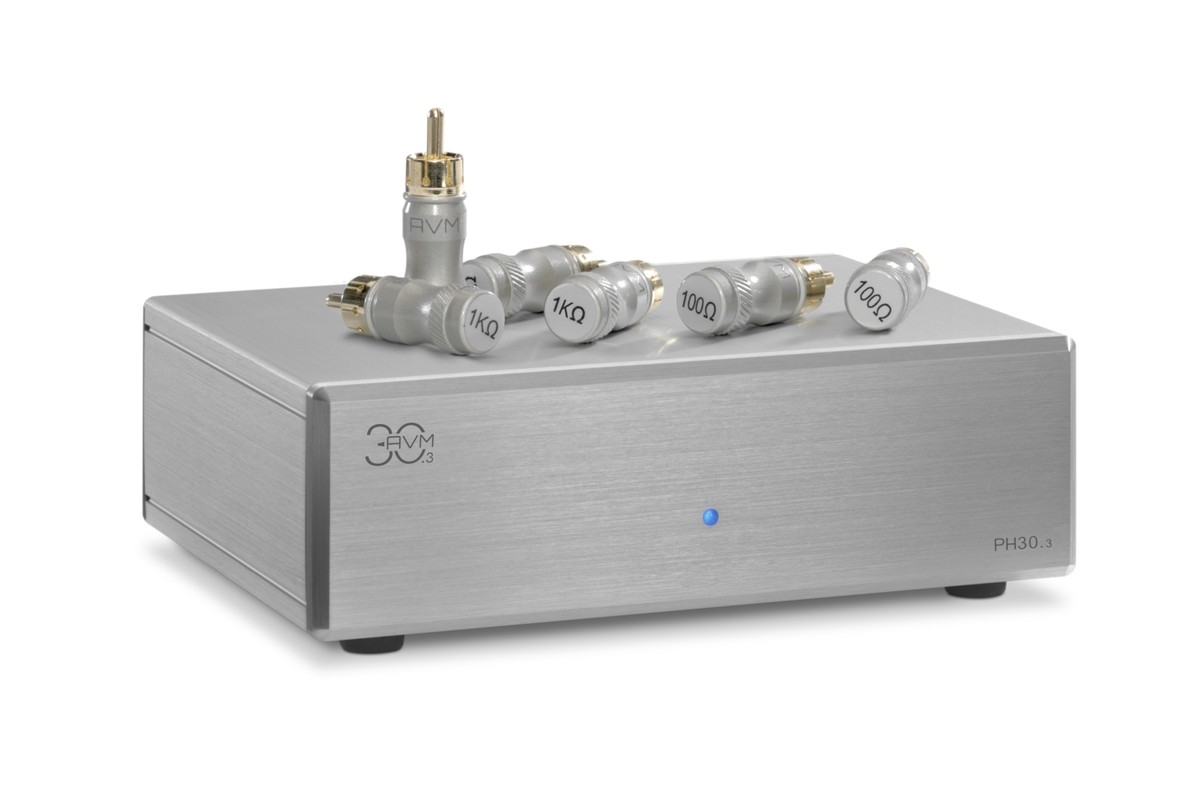

Same appliance in silver aluminum finish, three-quarters

Two aluminum finishes

The housing is offered in black or silver aluminum. Its aluminum mass also serves as a shielding on the input floors, which treat signals of a few microvolts only. The format remains compact: 15 centimeters wide for 500 grams.

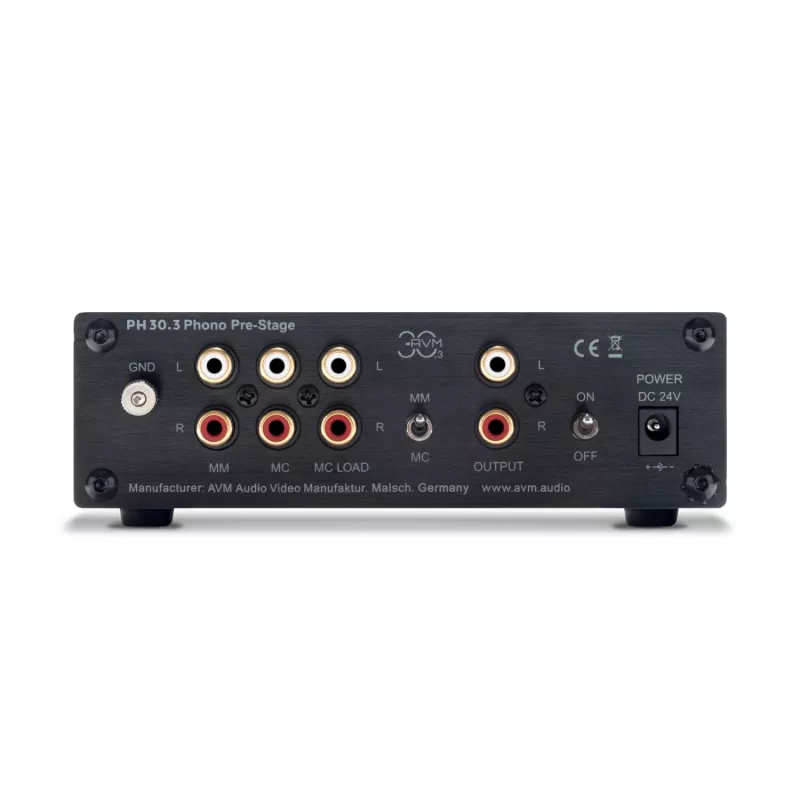

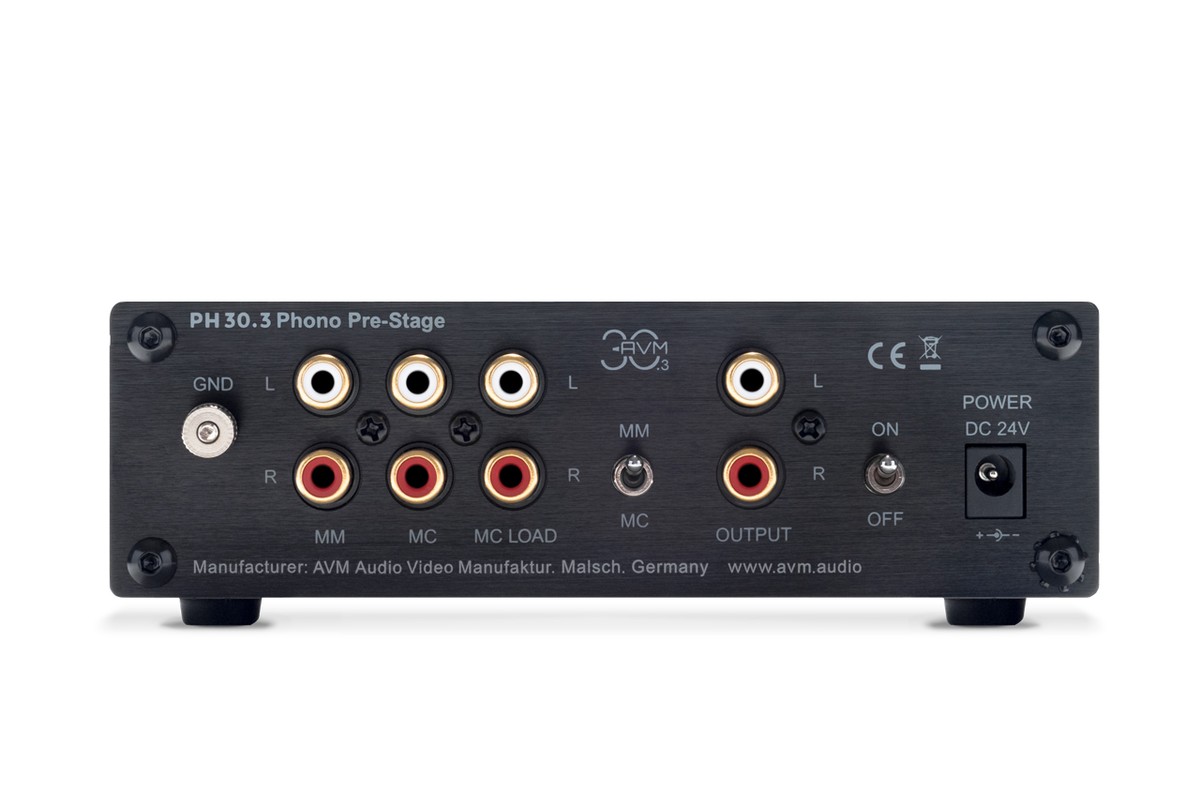

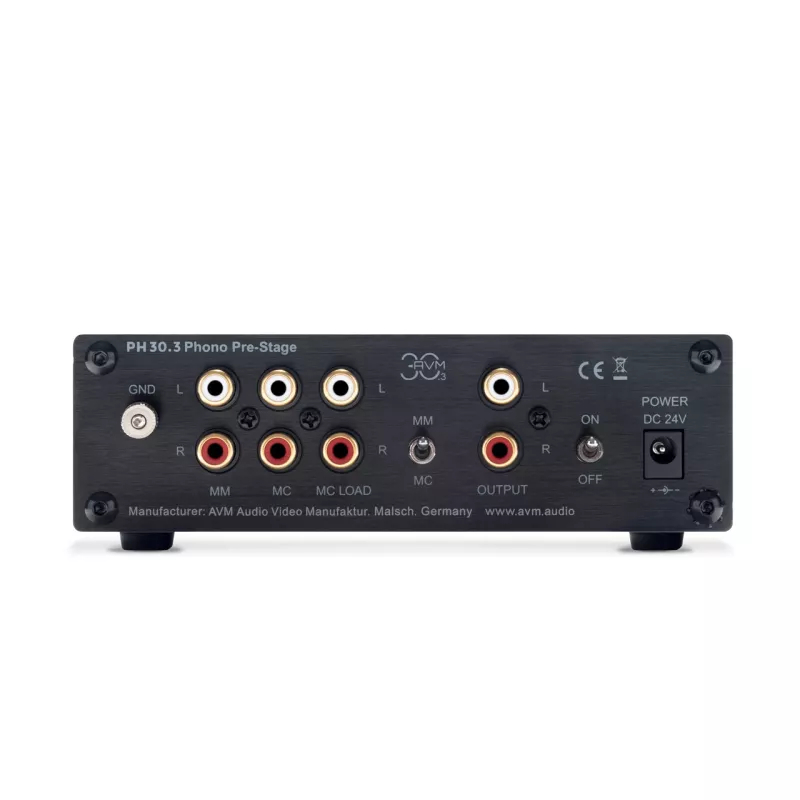

Rear face: Mass terminal, MM, MC and MC Load inputs, output and power supply

Correction riaa class a

The RIAA curve is respected at less than 0.3 dB, in class A. A subsonic filter spreads the infra-serious offs to the air veil. The distortion remains in 0.013% in mm and 0.055% in MC, for a signal-to-noise ratio of 82 dB (A) and 73.5 dB (A). The power supply is remote, in 24 volts continuous.

Black = Black Silver = Silver

Reference 72846

Data sheet
