Amina Cv300

Reference 56049

CHF155.00 Tax included

Backbox CV Recessed Hollow Wall Recessed Case

Guarantee safe & secure checkout

Description
Product Details

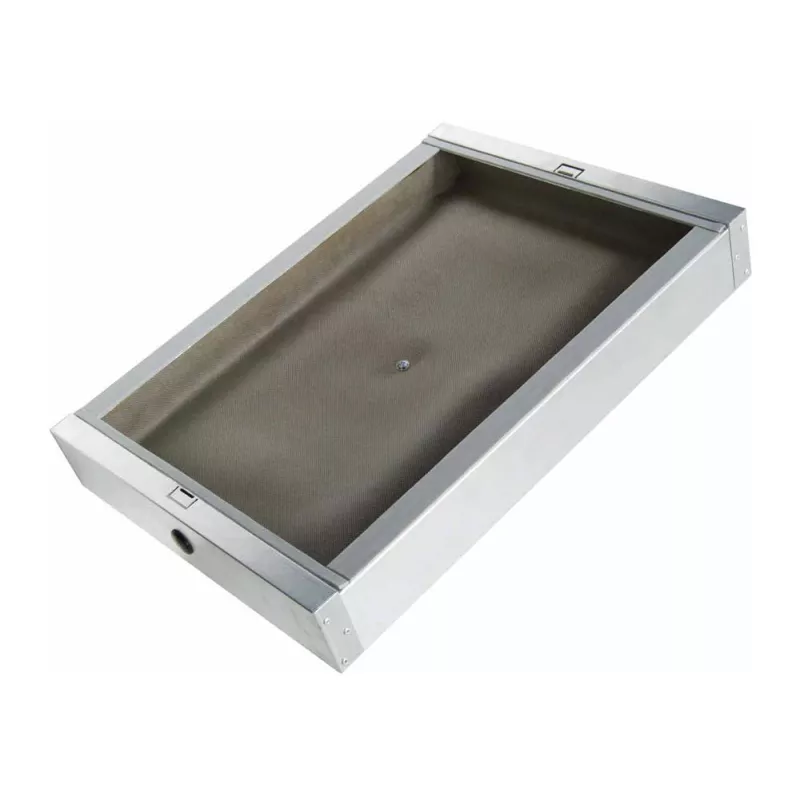

This aluminum embedding box makes it possible to fix theAmina In a wall or ceiling by bringing it a mounting surface. It also increases sound insulation by significantly decreasing the sound from the back of the speaker. For more soundproofing, Amina Recommends adding into the recessed case a layer of 25mm rock wool.

Strengths
- Ideal complement of the speakers Amina AIW series
- If you do not use this box, consider using PVC mounting calles

Technical characteristics
Trimming recessed box for hollow walls & ceilings (BA13, Placoplatre, Staff, Wood panels, ceiling slabs ...)

Dimensions (LXHXP) & Weight:
CV-345: 500 x 349 x 71 mm / 1.9 kg
CV-300: 500 x 304 x 71 mm / 1.5 kg
CV-200: 500 x 204 x 71 mm / 1.3 kg

Different version of this box
According to the speakers Amina that you will integrate, you will need to use recesses compatible with the dimensions of the different speaker models Amina used.

Backbox CV345
- 345mm wide embedding case for hollow walls and ceilings.
- Use with AIW150E, AIW350E, AIW550E models and the AIW750E LF (low frequencies) panel.
- Formerly backboxfs.

Backbox CV300
- 300mm wide embedding box for hollow walls and ceilings.
- Use with the IQ1, IQ3, LFI2 and LFI4ET models.

Backbox CV200
- Wide 200mm recess box for hollow walls and ceilings.
- Use with the AIW150E / S200, AIW350E / S200 models and the HF (high frequency) panel of the AIW750E.
- Formerly BackBoxFs-200.

Reference 56049

Data sheet
