TECHNICAL SPECIFICATIONS:
| POWER AMPLIFY |
| Impedance |
8Ω |
4Ω |
2Ω |
Power Output (Per Channel)
(Continuous, 20 Hz - 20 kHz, |
400 W |
600 W |
800 W * |
|
| * Maximum 3 seconds due to high current draw. |
| THD (400 W) |
0.0007% (1 kHz), 0.004% (20 kHz) |
| IMD (300 W) |
|
| ITU-R (19 kHz + 20 kHz) |
0.0006% |
| SMPTE (60 Hz + 7 kHz) |
0.0016% |
| SNR (IEC-A, Ref. 400 W) |
121 dB |
| FREQUENCY RESPONSE (20 Hz - 20 kHz) |
± 0.1 dB |
| Power Bandwidth (-3 db at 400 W INTO 8 OHMS) |
91 kHz |
| Slew Rate |
30 V / μs |
| Damping Factor (20 Hz - 1 kHz) |
360 |
| Channel separation |
101 dB (100 Hz), 98 dB (10 kHz) |
| INPUT IMPEDANCE |
10kΩ (RCA), 15kΩ (XLR) |
| INPUT SENSITISTIVITY (for 400W Into 8Ω) |
2.1 VRMS |
| Voltage GAIN |
29 dB |
| POWER REQUIREMENT |
| 120 V Version: |
In Countries Where The Line Voltage is 120 V, This Product Operates from A Single Phase AC Power Source That Supplies Between 108 V and 132 V AT FREQUENCY OF 60 Hz. |
| 220-240 V Version: |
In Countries Where The Line Voltage is 220, 230, Gold 240 V, This Product Operates from A Single Phase AC Power Source That Supplies Between 198 V and 264 V AT FREQUENCY OF 50 Hz. |
| POWER CONSUMPTION |
| Standby |
310 mW |
| Idle |
65 W |
| Typical Playback Levels |
150 W - 300 W |
| High Playback Levels |
600 W - 1100 W |
| DIMENSIONS |
| Height |
6-3 / 4 "(17.2 cm) |
| Width |
17 "(43.2 cm) |
| Depth (Not Including Power Cord) |
18-1 / 2 "(47 cm) |
| Weight (UNPACKED) |
60 lb (27.3 kg) |
OVERVIEW

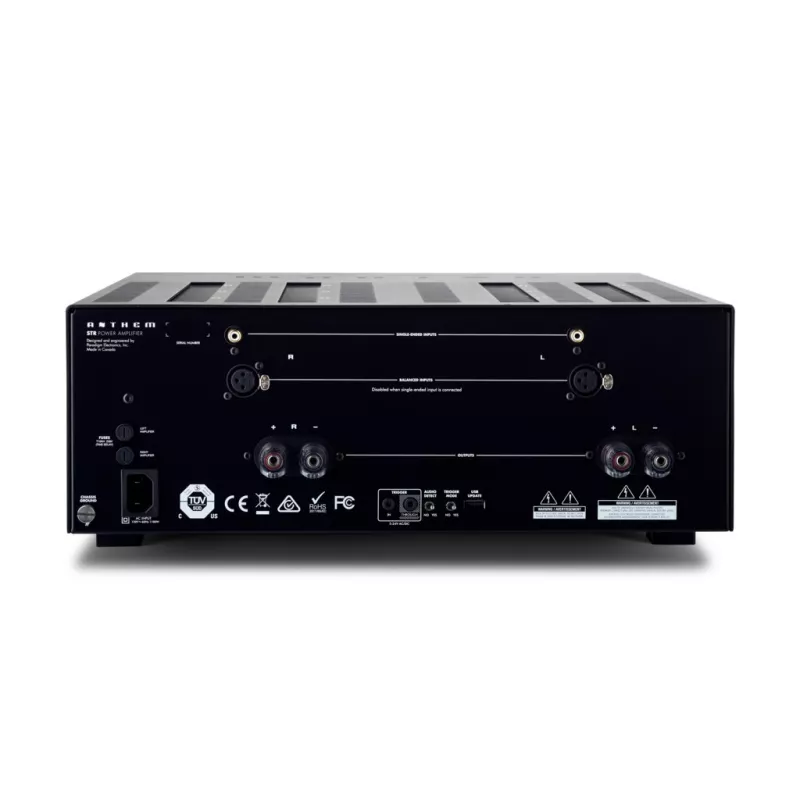

The St Power Amplifier is the being heart of a world-class 2-cANNEL SOUND SYSTEM. IT Delivers Massive Power Generation, with audiophile-quality output in a smartly designed component.
Designed, Engineered, and Crafted in Canada, the St Power Amplifier Delivers 400 Watts / channel Into 8 Ohms With Both Channels Driven, A Massive 600 Watts / channel Into 4 Ohms (Both Channels Driven) and 800W in 2 OHMS, for true no-holds-barred performance.
Inside, The St Power Amplifier USES Two Colossal Transformers and Multiple High-current Output Devices So The Most Subtle Details and Dynamic Peaks are Handled Equally Well. Outside, ITS Beautifully Designed Cosmetics, Including a 7-inch Graphic Control Display and Secure, Highly Conductive Audiophile Connectors Provide A Perfect Match to The Streamplifier.
