REL Arrow Wireless | Wireless kit for subwoofers | 3 YEAR WARRANTY

73798
CHF250.00 Tax included
Supplier stock – typically 4 to 7 days

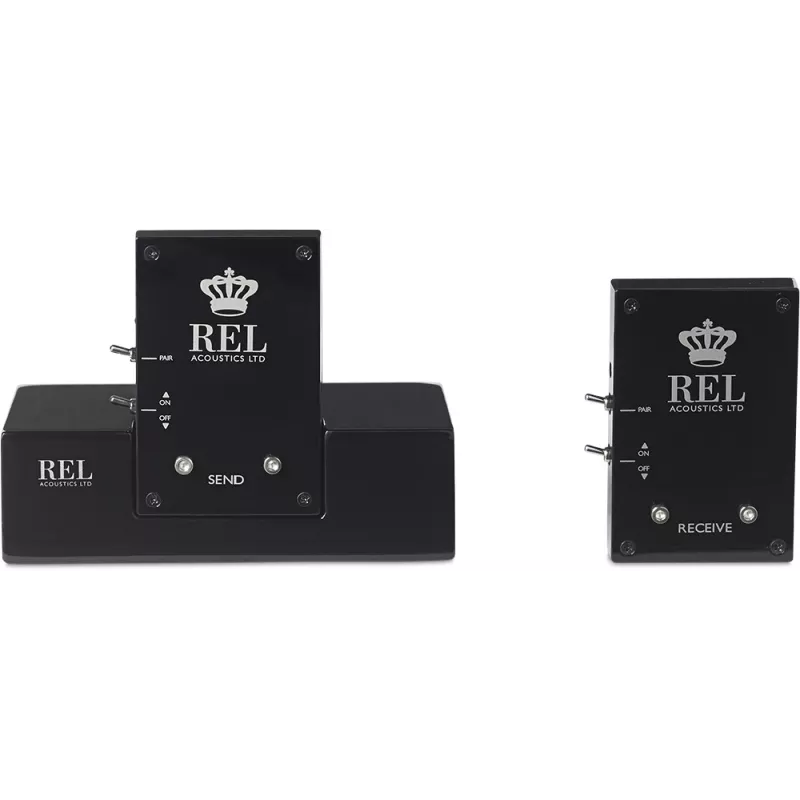

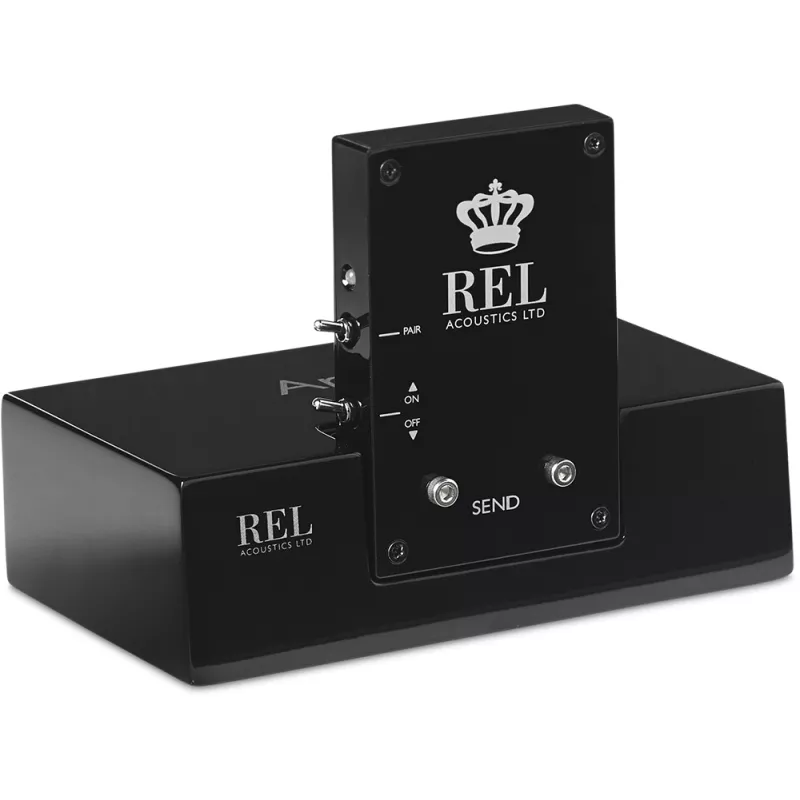

REL Arrow Wireless, a wireless transmission kit made up of a transmitter and a receiver for Serie T/x subwoofers. It transmits the High Level and .1/LFE signals uncompressed over the 2.4 GHz band, so the subwoofer can be placed without a cable.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

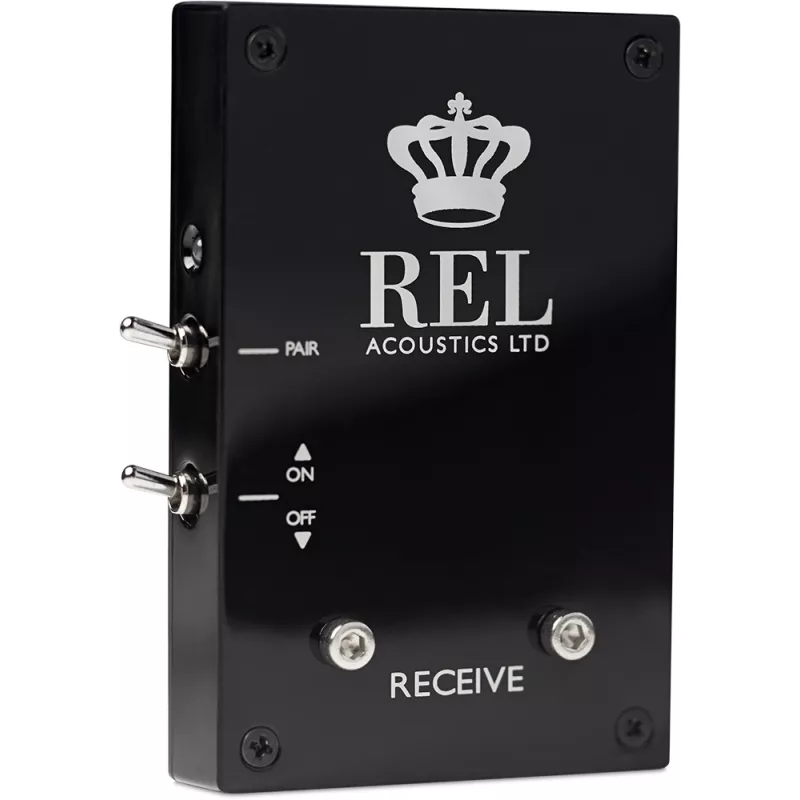

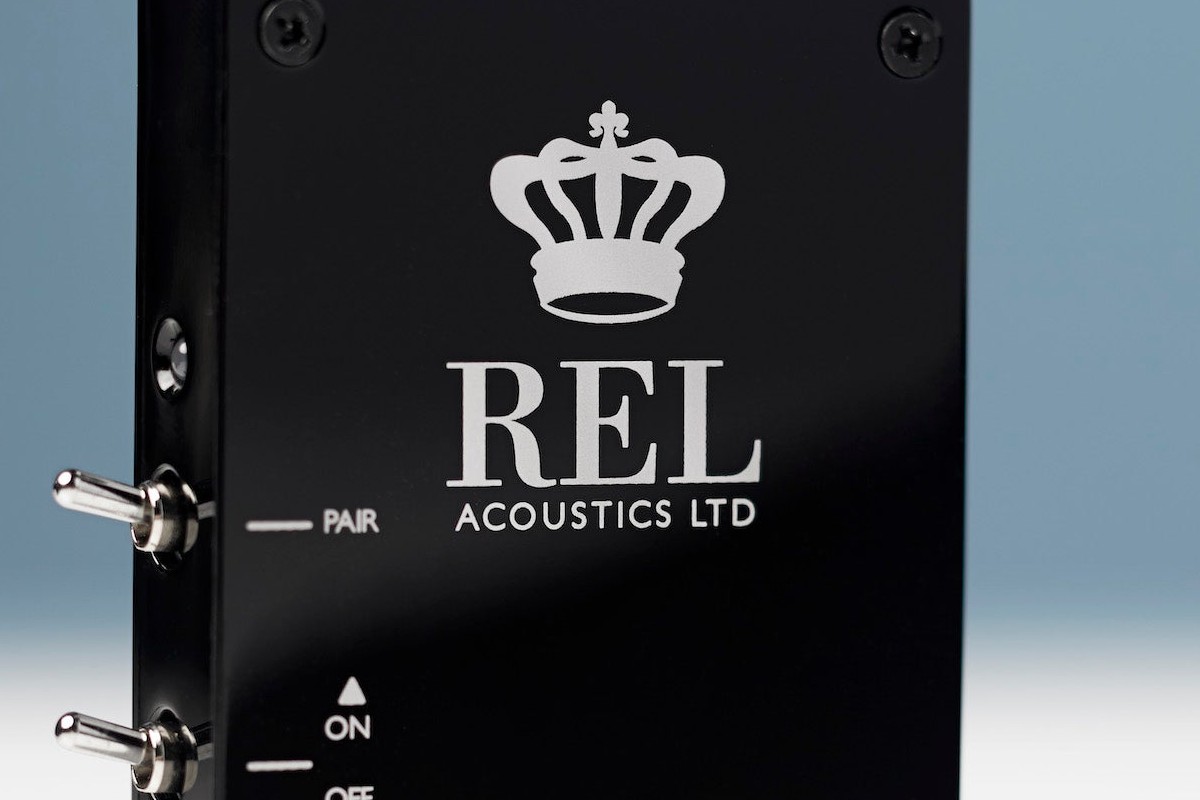

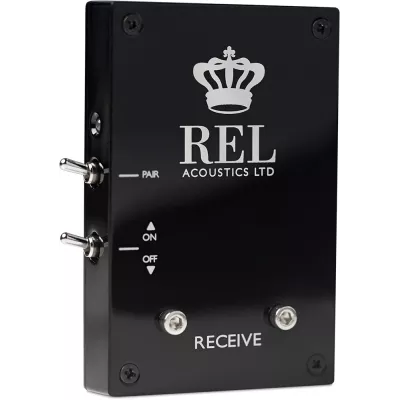

Gloss black receiver with the brand crown and logo, pairing switch

Receiver fixed to the subwoofer

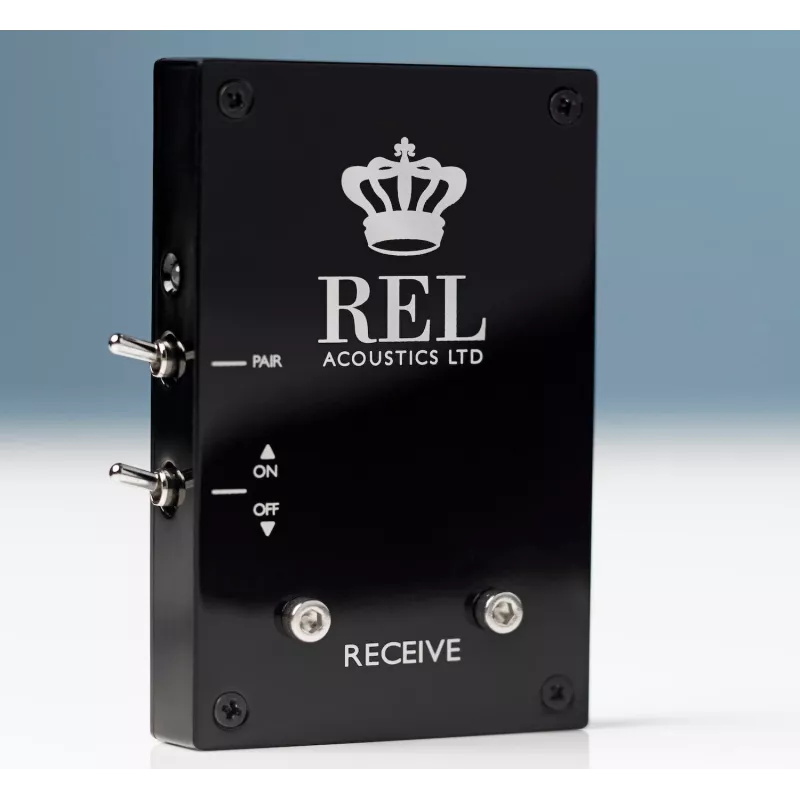

The receiver plugs into the rear of the REL subwoofer through a DB9 connector locked by two knurled screws, so vibration cannot work it loose. It draws its power from the subwoofer itself and needs no extra mains adaptor. Two switches are all it needs: on/off and pairing.

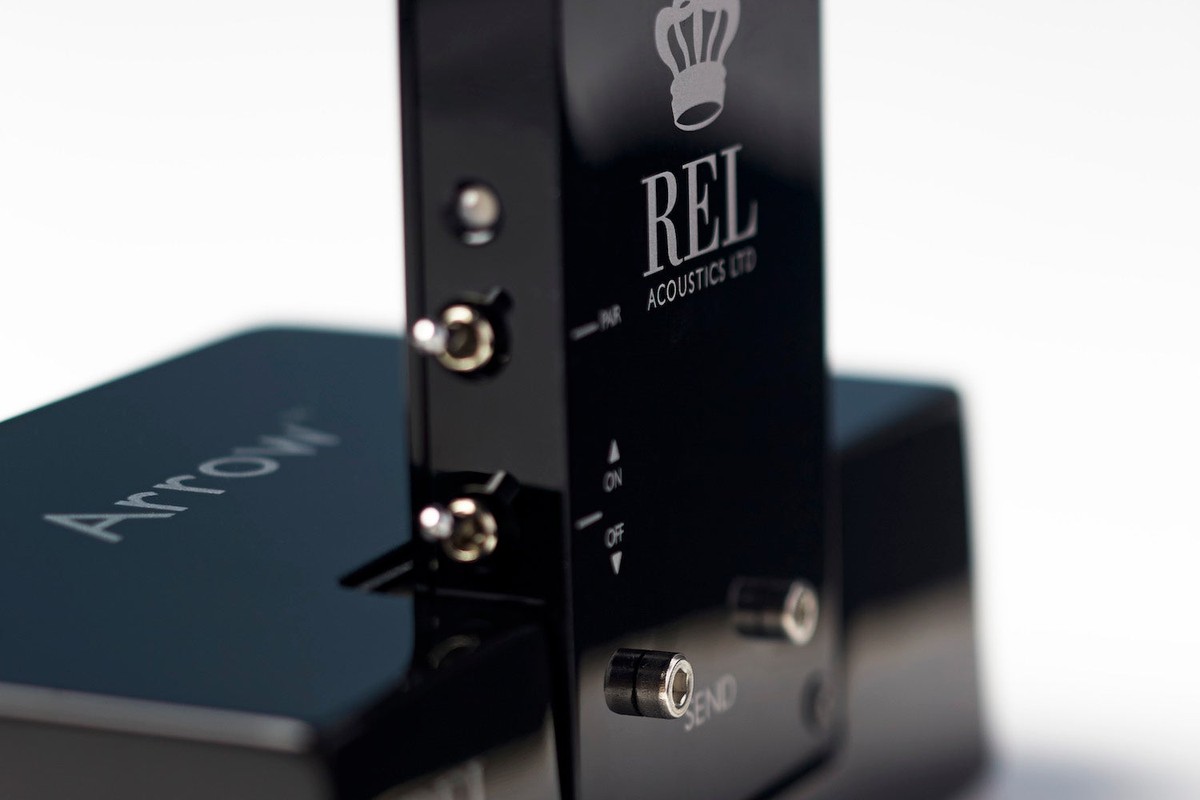

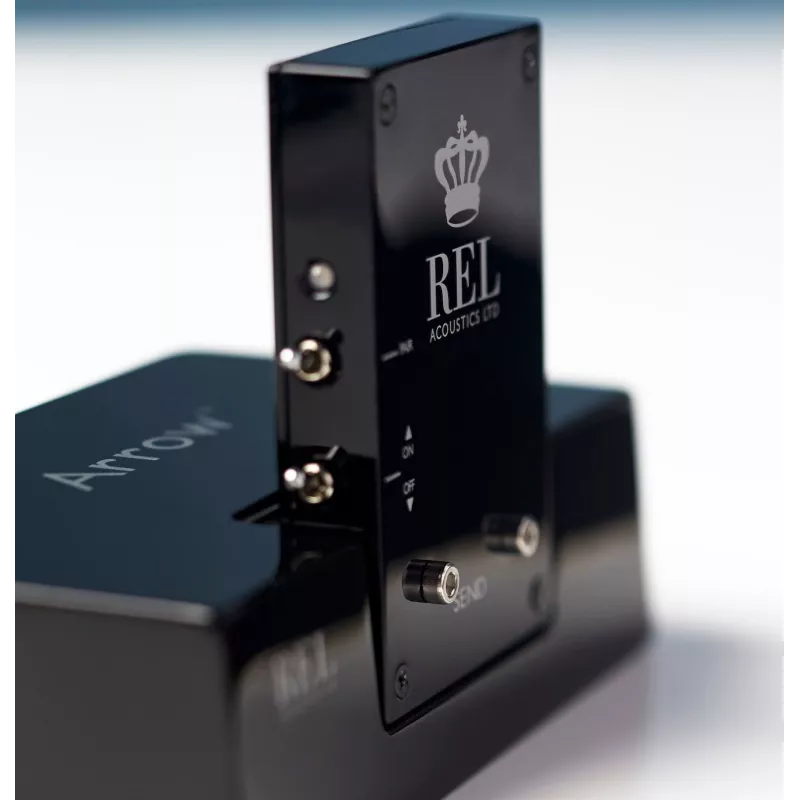

Receiver standing behind the transmitter engraved with its name, close up

Uncompressed 2.4 GHz link

Arrow uses neither Bluetooth nor Wi-Fi but a dedicated link on the 2.4 GHz band, less crowded than the 5.8 GHz band used by most devices in the home. The signal travels without digital compression and without noticeable delay, preserving the speed and musicality of a wired subwoofer. REL has produced it continuously for around a dozen years.

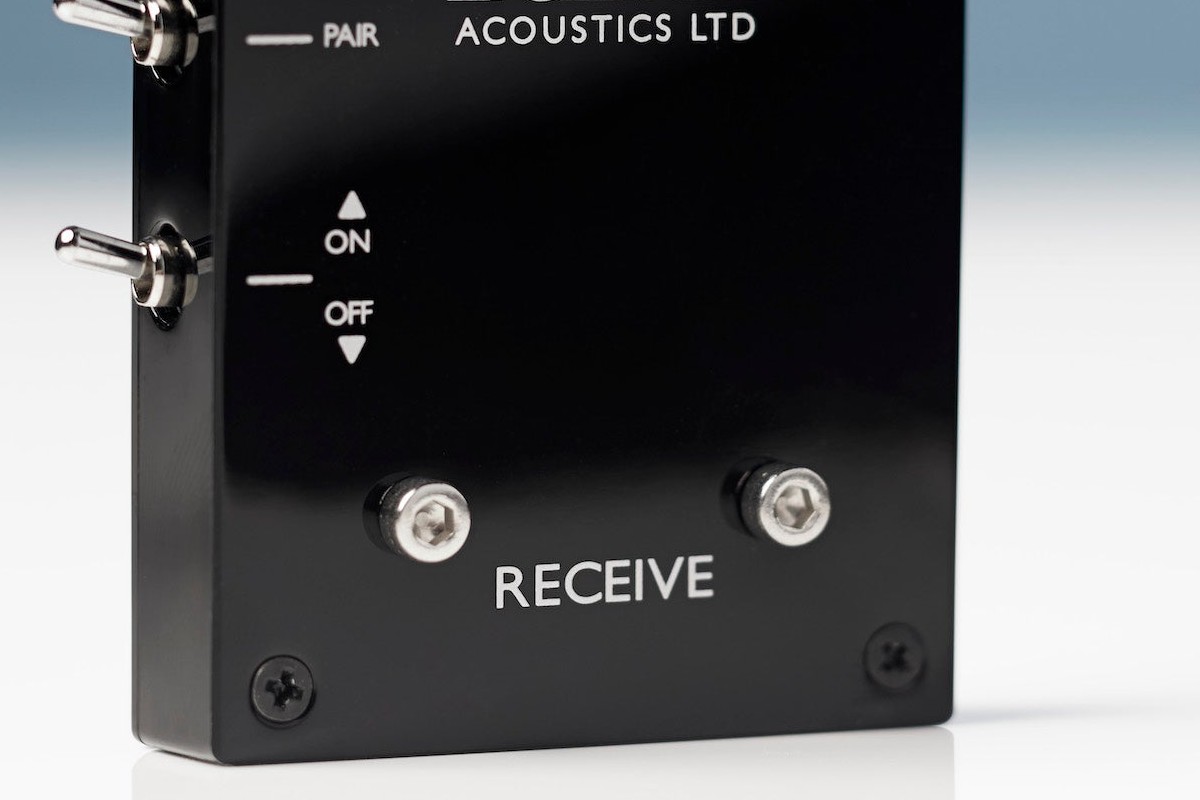

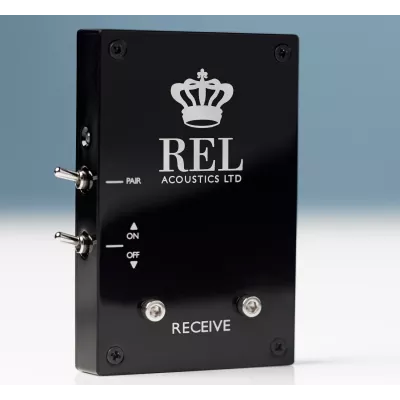

Lower part of the receiver with on/off switch and locking screws

High Level and .1/LFE together

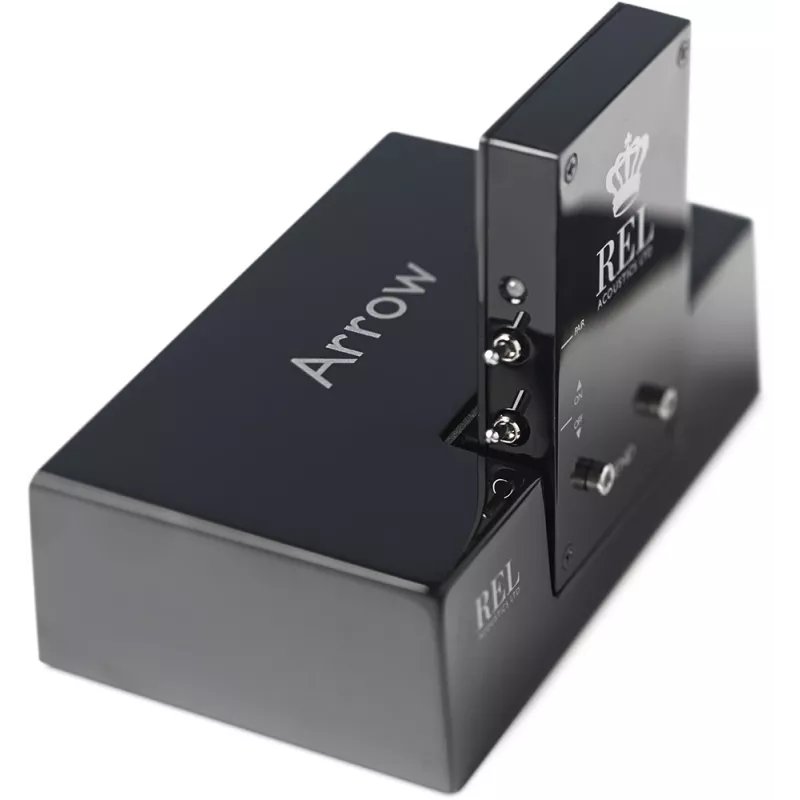

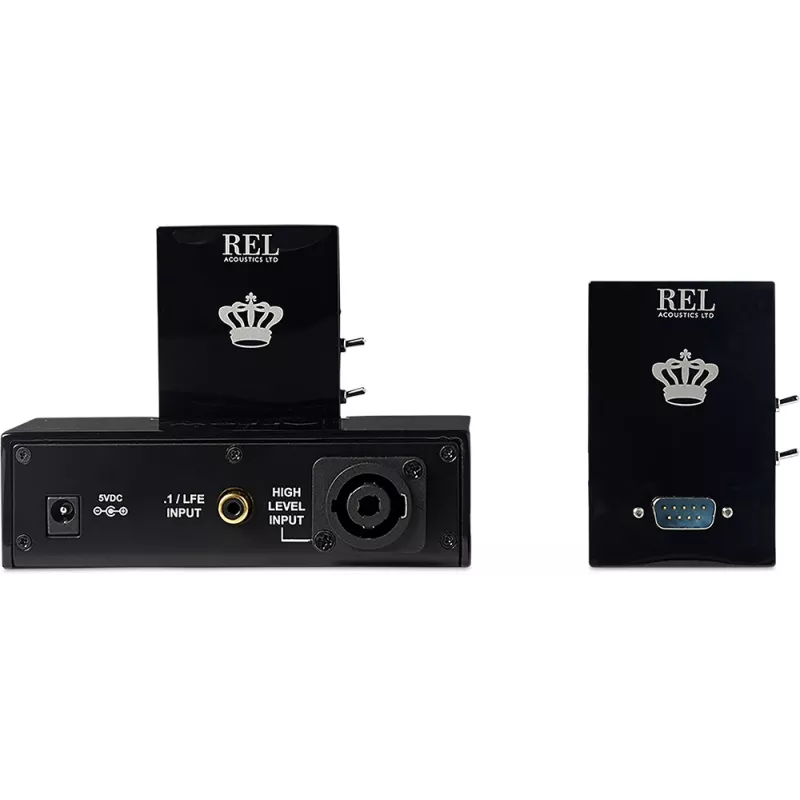

The transmitter takes the High Level cable on a locking Speakon socket and, at the same time, the home cinema .1/LFE signal. The subwoofer therefore keeps its High Level connection for music and its .1/LFE input for films, with REL's own Natural RollOff curve. The transmitter is powered by a supplied 5 V DC adaptor.

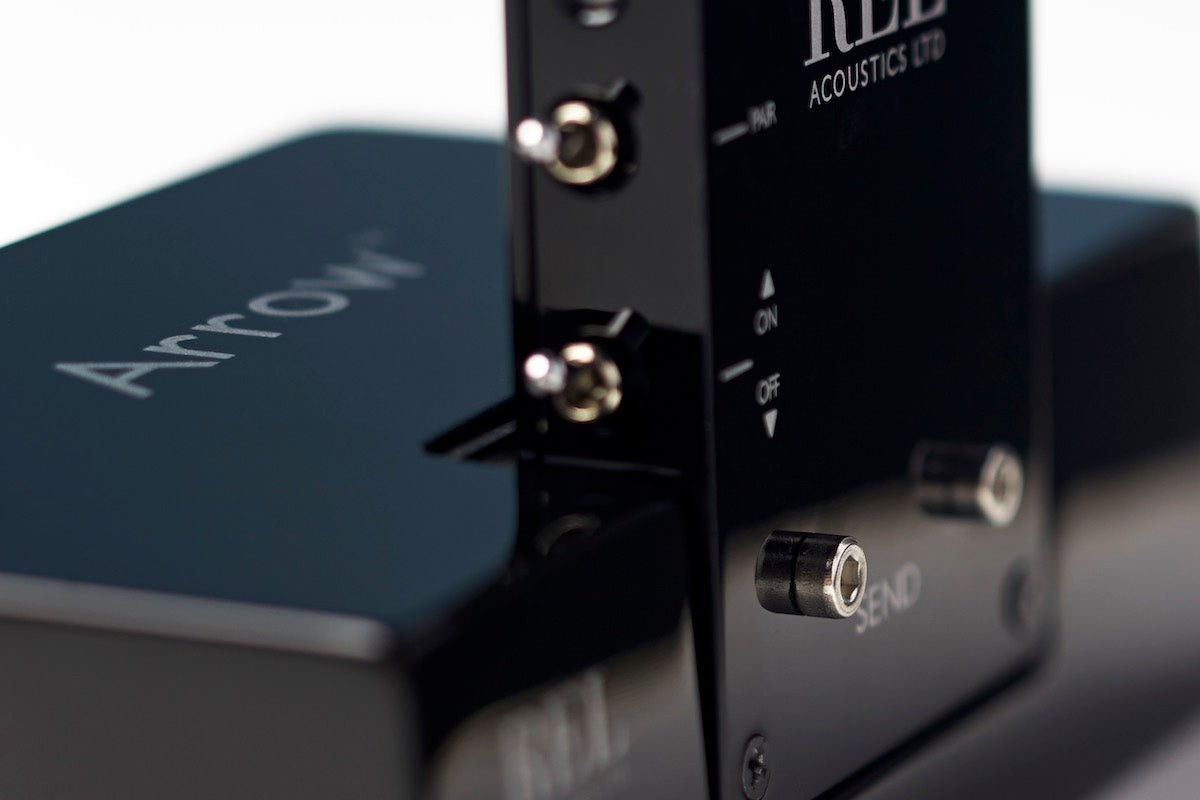

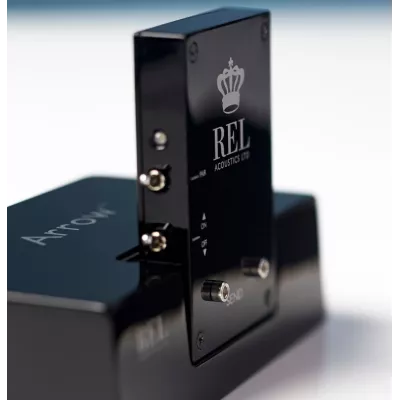

Gloss black transmitter engraved with its name, receiver blurred in the foreground

Designed for Serie T/x

Arrow is designed for Serie T/x and Serie T/i subwoofers, on whose rear panel the receiver sits flush; it is not compatible with the Tzero MKIII. It lets the subwoofer go where it sounds best, in a corner, against a glass wall or on a wooden floor, with no cable across the room and a range of 15.2 m with a clear line of sight. Installation comes down to plugging in both units and flipping two switches.

73798

Data sheet

Product Type
Wireless transmission kit
Features
5 V DC input, 5.5 mm circular connector, positive centre
Arrow version 2, not compatible with Arrow version 1
Compatible with Serie T/x and Serie T/i, not compatible with Tzero MKIII
Input impedance: High Level 150 kΩ, .1/LFE 10 kΩ
On/off and pairing switches
Transmitter powered by the supplied 5 V DC adaptor, receiver powered by the subwoofer
Wireless effective distance: 15.2 m (50 ft) with clear line of sight
Wireless output power: 10 dBm
Brand
REL Acoustics
Analog inputs
High Level (Speakon) and .1/LFE on the transmitter
Color
Black
Wireless transfer
2.4 GHz, uncompressed
Power consumption
600 mW
Connector
Locking DB9 to the subwoofer (receiver)
Width
13.0 cm
Depth
8.3 cm
Height
8.9 cm

Specific References

EAN13
7612245065213
