TECHNICAL SPECIFICATIONS:
Output Voltage at 1000 Hz, 5cm / sec. - 0.2 mV
Channel Balance at 1 kHz - 0.5 dB
Channel Separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 20 dB
Frequency Range AT - 3dB - 10 Hz - 50 kHz
Frequency Response - 20 Hz - 20 kHz +2 dB / - 1 dB
Tracking ABILITY AT 315HZ AT Recommended Tracking Force - 90 μm
Compliance, Dynamic, Lateral - 13 μm / mn
Stylus Type - Special Polished Nude Ortofon Replicant 100 on Boron Cantilever
Stylus Tip Radius - r / R 5/100 μm
Tracking Force Range - 2.0-2.5 g (20-25 mn)
Tracking Force, Recommended - 2.3 g (23 Mn)
Angle Tracking - 23 °
Internal Impedance, DC Resistance - 7 Ohm
Recommended Load Impedance -> 10 Ohm
Coil Wire Material - Ascurum
Cartridge Body Material - SLM Titanium and Stainless Steel
Cartridge Color - Titanium / Black
CARTRIDGE WEIGHT - 11 g
MC Cadenza Series' Accessories Included The Package
- 1 x Stylus Brush, Fiber
- 1 x screwdriver
- Leadwires, Pair LW-6N
- Screws, pair M2.5 x 3
- Screws, pair M2.5 x 5
- Screws, pair M2.5 x 6
OVERVIEW

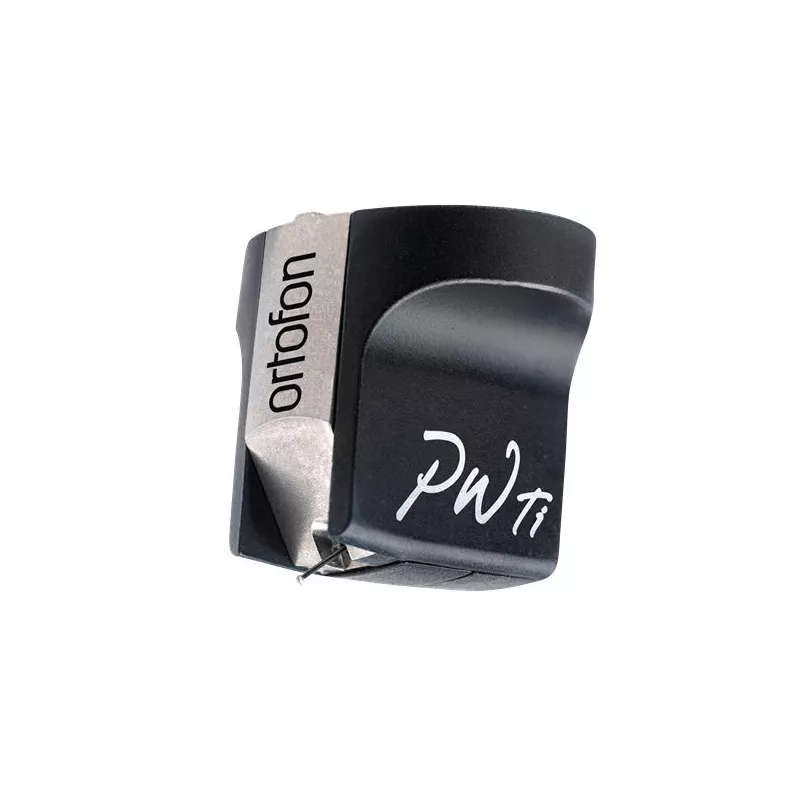

In continuation of the Ortofon tradition design and the New Paradigm in Engineering and Manufacturing, WE ARE Proud to Introduce The MC Windfeld Ti, a new Moving Coil Phono Cartridge in the Absolute High-end class.
At the Heart of the MC Windfeld Ti Lies A Revolutionary Customized Selective Laser Melting Manufacturing Technology Pioneered By Ortofon for Manufacturing of the Legendary ™ A90 in 2008. The Use of Titanium in The MC Windfeld Ti has Provided to Further Improvement to The Overall Rigidity of the Structure and The Cartridge Weight.
Our extensive Knowledge of Vibration Properties, Characteristics in Different Shapes and Materials, Competences in Magnetism, Mechanical Design and New Technologies Has Been Applied for Optimization of the MC Windfeld Model. The New MC Windfeld Ti Has Gone To The Next Level by Reducing Unwanted Vibrations and Increasing The Dynamic Capability of the Cartridge.
Those Who Choose To adopt The MC Windfeld Ti Will Experience The Lifeelike, Dynamic and Open Sound, with Excetedingly Clear Midrange. The MC Windfeld Ti Remains Extremely Musical While Paying Close Attention to Micro Dynamic Details, With Its Delicate, Purpose Also Analytical Nature.
Historically, Ortofon has always followed its own path with look to the mechanical design of the cartridge housing, because mechanical rigidity and total freedom from resonance in the audible range area a precondition for optimal sound quality.
In the MC Windfeld Ti The Cartridge's Contact With The Tonerram Takes Place Through Three Hard, Well-defined Contact Placent Points on the Fastening Section of the Cartridge. This Means That The Mechanical Integration of the Cartridge and the Tonearm Arm are Always Absolutely Perfect.
With Optimized Weight and Moderate Compliance to Suit The Majority of Modern TonaRMS, The MC Windfeld Ti Is Easy Compatible With An Endless Array of Contemporary High-end turntable equipment, including the Ortofon YOUR-210 and your-110 tonearms.
A low output impedance of 7 ohm and a medium output voltage of 0.2 mv makes the Ortofon MC Windfeld Ti A Perfect Partner for Most Mc Pre-amps as well as step-up transformers, including the Ortofon ST-80 SE.
When combined with Ortofon's world-class Knowledge in Analogue Sound Reproduction, The MC Windfeld Ti Will Undoubtedly Provide Sound Which is Literally Unsurpassd and Simply Has to Be Experienced.
Another PreCondition for Linear Reproduction with a Wide Frequency Range and Optimal Tracking Performance is a Diamond - the shape of which is as close as possible to the original cutting stylus.
AS Featured in The Entrusive Series, The MC Windfeld Ti Makes Use of Ortofon's Replicant 100 Diamond, KNOWN for ITS Thin and Light Profile and Extraordinarily Large Vertical Contact Surface. Sin The Replicant 100 is Closest To The Shape of the Cutting Stylus, IT Can Trace With Accuracy Unparalleled by Any Other Stylus in Existence. Special Polishing of the Diamond Along With The Use of a Boron Cantilever Offer Remarkable Transparency, Speed, and Responsiveness Beyond That of Any Other Combination.
With Proper Care We Find That Up to 1000 hours is possible without degradation of performance. The Stylus Does Begin to Exhibit Changes After 1,000 hours, Purpose The Stylus Life As a Whole is Expected to Top 2,000 hours.
Proper Care included The Following:
- Cleaning of Record by Means of Carbon Fiber Brush Before and After Every Use. Cleaning of Record by Using Record Cleaning Machine ounce in a while.
- Cleaning of Stylus by Means of a Fine Antistatic Brush. Please Remember to Remove Dust from the Diamond Tip Before and After Playback of Each Record.
- Proper Adjustment of Antiskating, Azimuth and Tracking Force.
The Stylus Guard Provided for the MC Windfeld Ti is Designed to Be Easily Replaced and Removed Without Risking Contact to The Fragile Stylus Assembly. To The Stylus Gold Cantilever Please Mount The Enclosed Stylus Guard on The Cartridge Whenever The Cartridge is not in use. The Stylus Guard Should Also Be Attached During Mounting Or Removal of the Cartridge.
Ortofon does not recommends the use of solvents of any kind for cleaning of either the record gold surface stylus. IF NECESSARY, MAY BE WASHED IN LUKEWARM DEMINERALIZED WATER WATHD WASHED IN LUKEWARM SULPHONIC SOAP. Remove Dust Carefully from Record Surfaces by Using A Fine Antistatic Brush Gold Cloth Before Every Use. The Use of Solvents on The Stylus and Cantilever May Damage Stylus Cement; INTERIOR PARTS OF THE CARTRIDGE CAN BE AFFECTED SERIOUSLY by the intrusion of solvents. The Ortofon warranty will not be valid in cases where such treatment has caused malfunction.
For Cleaning The Stylus, Use The Enclosed Fiber Brush A FEW Times Along The Cantilever in the direction of the Stylus, Whenever You Play A New Record Gold Change Sides. Record Care Should Also Be Performd Regularly and Is of Paramount Importance to Prolong The Life and Condition of the Stylus. Because of this, a record cleaning machine may be considered for ease and quality of record cleaning.
