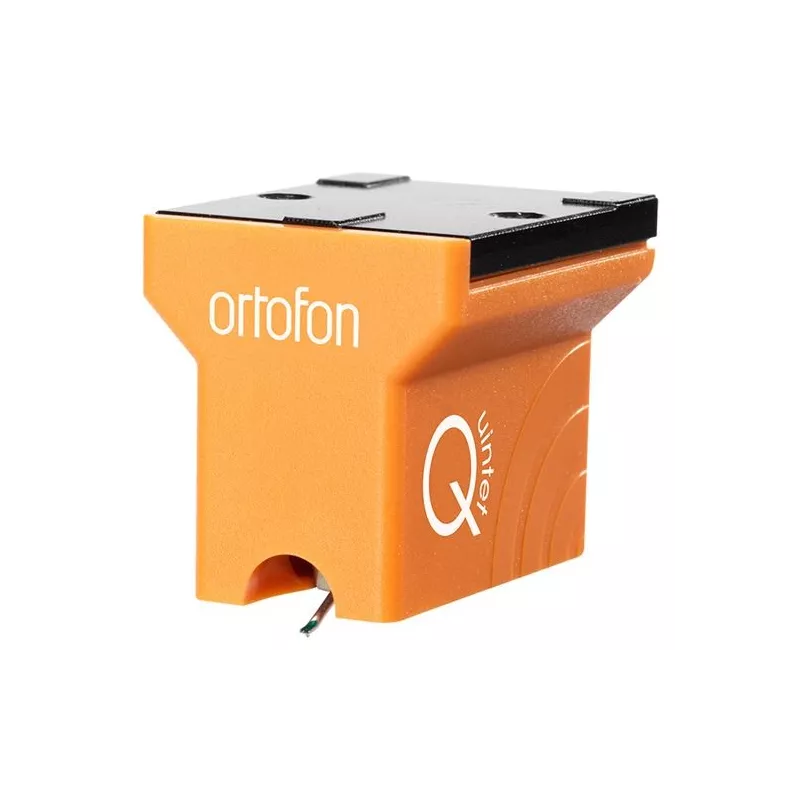

MC Quintet Bronze Adds Even More Details and Resolution But in A Very Evenhanded Way That Country Respect to All Elements
Guarantee safe & secure checkout
Output Voltage at 1000 Hz, 5cm / sec. - 0.3 mV
Channel Balance at 1 KHz - Channel Separation at 1 KHz -> 23 dB
Channel separation at 15 kHz -> 15 dB
FREQUENCY RANGE AT - 3DB - 20-25.000 Hz
FREQUENCY Response 20-20.000 Hz - +/- 1.5 dB
Tracking Ability at 315Hz at Recommended Tracking Force *) - 80 μm
Compliance, Dynamic, Lateral - 15 μm / mn
Stylus Type - Nude Fine Line
Stylus Tip Radius - R / R 8/40 μm
Tracking Force Range - 2.1-2.5 G (21-25 mn)
Tracking Force, Recommended - 2.3 G (23 Mn)
*) Typical Value
Angle Tracking - 20 °
Internal Impedance, DC Resistance - 5 Ohm
Recommended Load Impedance -> 20 Ohm
Cartridge Body Material - ABS / Aluminum
Coil Wire Material - Pure 4-Nine Copper
Cartridge Color - Bronze
CARTRIDGE WEIGHT - 9 GRAM
MC Quintet Bronze Accessories Included The Package
The Slim Profile of ITS Nude Fine Line Diamond Stylus Will Track Even The Highest Frequency Information, Making It has a must for discerning listeners.
Additionally ITS Larger Footprint Ensoir Red Distortion and Record Wear.
The Sound Will Be Very Evenhanded with respect to all aspects. Classical Music Will Be reproduced with power and open space around the instruments.
Top-Mounting of the Quintet Cartridge is easy and secure using the screws supplied. The Aluminuim Frame Has Threaded Mounting Holes and Is Fitted Easily With the 5mm Gold 7mm Screws Depending on the Thickness of the Headshell.
The Quintet Series' Right Angles, Straight Lines, Stylus Visibility and Liberal Between The Record Surface and The Cartridge's Bottom Will Make It Easy To Mount and Align The Cartridge and Tonearm CORRECTLY. The Quintet Series Gives Excellent Results with Most Common Tonems.
NOTHING DEMONSTRATES Ortofon'S Long-Standing Resilience More Than Its Comment To The Refinement Of Analogue Sound Quality and ITS Domestic Development of New Cartridge Models. SINCE 1948 Ortofon HAS Introduced About 100 different Moving Coil Models. WE Believe The Cartridge in This New Series Are More Than Worthy Successors to The Long Line of Models That Has Made Ortofon The Global Leader in the Manufacture and Supply of Phono Cartridge.
The MC Quintet Series is congruent with Ortofon'S Unrelenting Commitment to Providing The Most Precise and Accurate Reproduction Possible Without Coloring:
It is Our Aim to Bring Our Customers Many Hours of New and Surprising Experiences in Listening to Their Precious Vinyl Collection.
