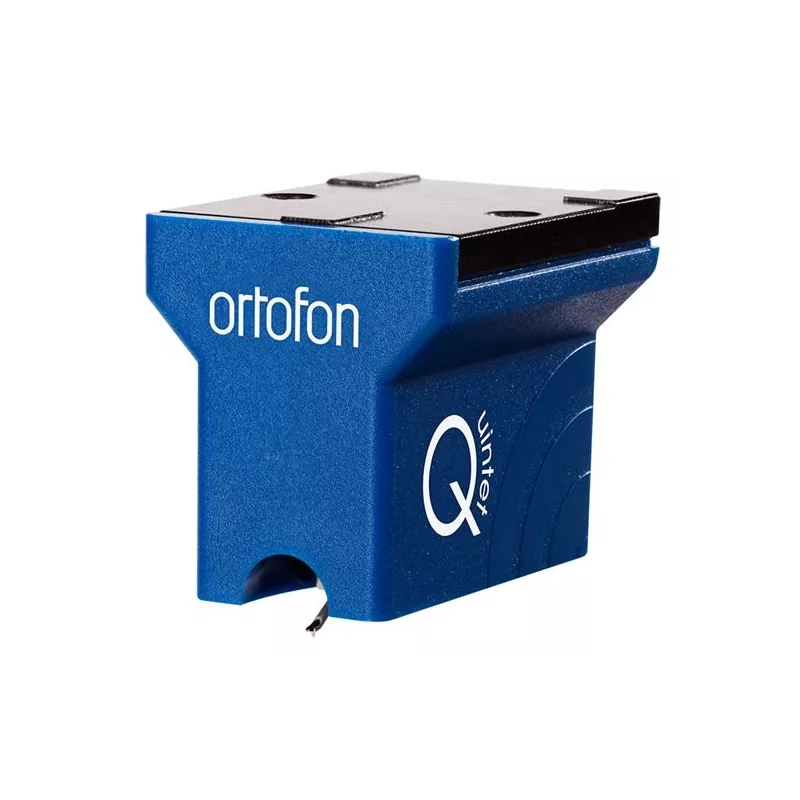

MC Quintet Blue Adds More Dynamics and Resolution, Sounds More Open and Reproduce More Details
Guarantee safe & secure checkout
Output Voltage at 1 kHz 5 cm / sec - 0.5 mV
Channel Balance - Channel Separation at 1 kHz -> 21 dB
Channel Separation at 15 kHz -> 14 dB
FREQUENCY RANGE AT -3 DB - 20-25.000 Hz
FREQUENCY Response 20-20.000 Hz - +/- 2.5 dB
Tracking ABILITY AT 315 Hz at Recommended Tracking Force *) - 70 μm
Compliance, Dynamic, Lateral - 15 μm / mn
Stylus Type - Nude Elliptical
Stylus Tip Radius - R / R 8/18 μm
Tracking Force Range - 2.1-2.5 G (21-25 mn)
Tracking Force recommended - 2.3 g (23 mn)
*) Typical Value
Angle Tracking - 20º
Internal Impedance, DC Resistance - 7 Ohm
Recommended Load Impedance -> 20 Ohm
Cartridge Body Material - ABS / Aluminum
Coil Wire Material - Pure 4-Nine Copper
Cartridge Color - Blue
CARTRIDGE WEIGHT - 9 g
MC Quintet Blue Accessories included The Package:
The Quintet Blue's Sound Image Will tends to more smooth reproduction Compared to quintet red and moderate dynamic strength compared to quintet bronze.
IT Features has nude elliptical diamond mounted on an aluminum cantilever.
The Quintet Blue Will Bring More Space, Depth and Detail Into The Sound and Is A Very Good Choice for Any Kind of Music, Especially Rhythmic.
Top-Mounting of the Quintet Cartridge is easy and secure using the screws supplied. The Aluminuim Frame Has Threaded Mounting Holes and Is Fitted Easily With the 5mm Gold 7mm Screws Depending on the Thickness of the Headshell.
The Quintet Series' Right Angles, Straight Lines, Stylus Visibility and Liberal Between The Record Surface and The Cartridge's Bottom Will Make It Easy To Mount and Align The Cartridge and Tonearm CORRECTLY. The Quintet Series Gives Excellent Results with Most Common Tonems.
NOTHING DEMONSTRATES Ortofon'S Long-Standing Resilience More Than Its Comment To The Refinement Of Analogue Sound Quality and ITS Domestic Development of New Cartridge Models. SINCE 1948 Ortofon HAS Introduced About 100 different Moving Coil Models. WE Believe The Cartridge in This New Series Are More Than Worthy Successors to The Long Line of Models That Has Made Ortofon The Global Leader in the Manufacture and Supply of Phono Cartridge.
The MC Quintet Series is congruent with Ortofon'S Unrelenting Commitment to Providing The Most Precise and Accurate Reproduction Possible Without Coloring:
It is Our Aim to Bring Our Customers Many Hours of New and Surprising Experiences in Listening to Their Precious Vinyl Collection.
