Unison Research Simply Italy Black Edition, a pure Class A valve integrated amplifier with two KT77 Gold Lion valves, 10 W into 6 ohms and a built-in Sabre DAC. It takes three analogue and three digital sources, including USB up to native DSD256.

Description
Product Details

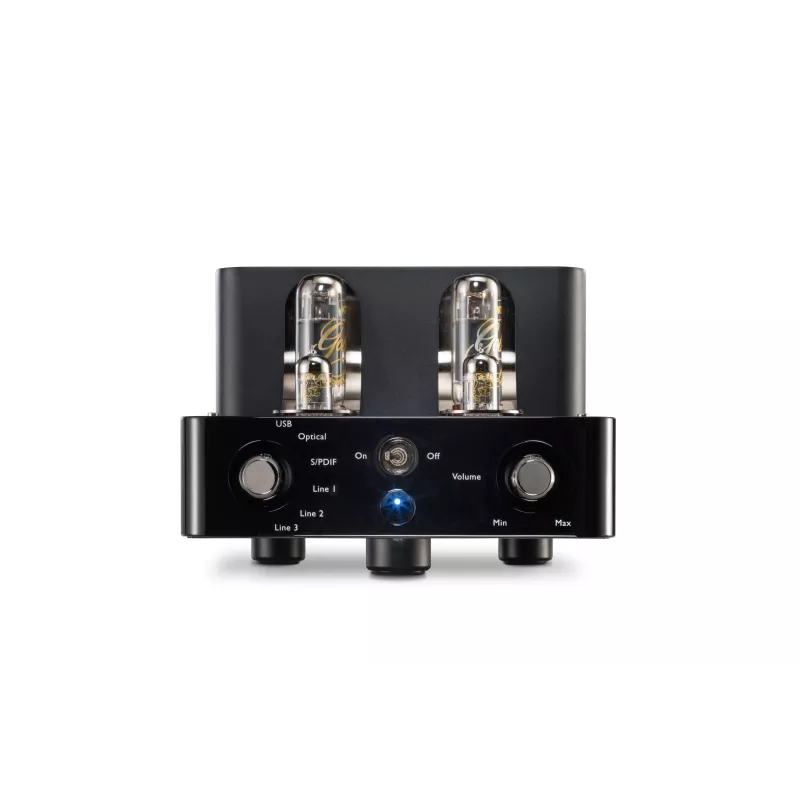

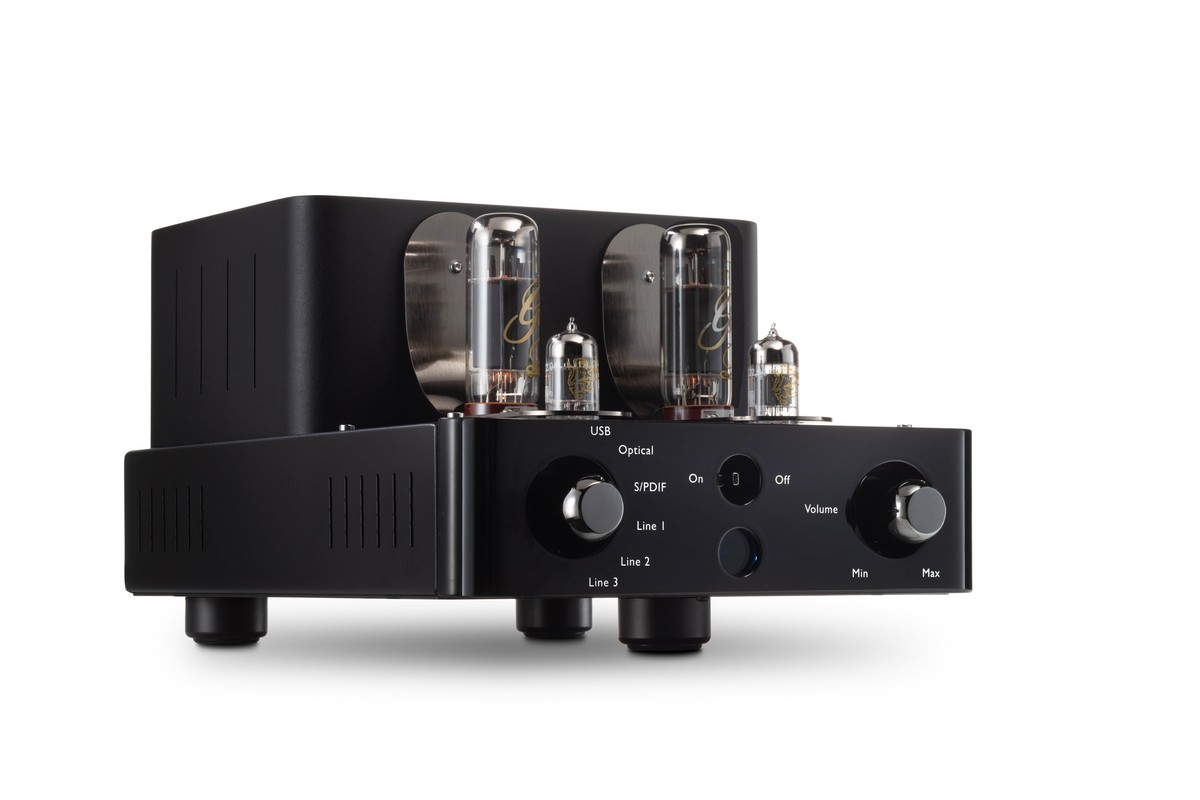

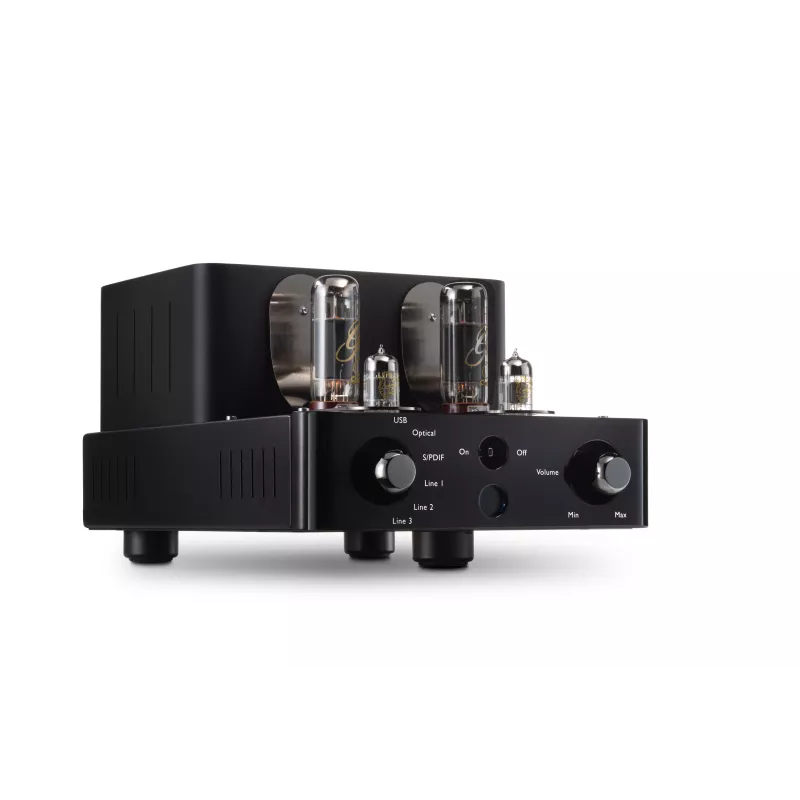

Black valve amplifier at three-quarter angle, piano black lacquered wood front panel

Simply Italy in black

The Black Edition celebrates the Simply Italy with a piano black wooden front panel, a black gun metal finish and updated lettering. The circuit has been revised in the signal path and power management, with particular care given to the ground paths and channel separation. The chassis measures 26 x 40 x 18 cm and weighs 15 kg, and an infrared remote control is supplied.

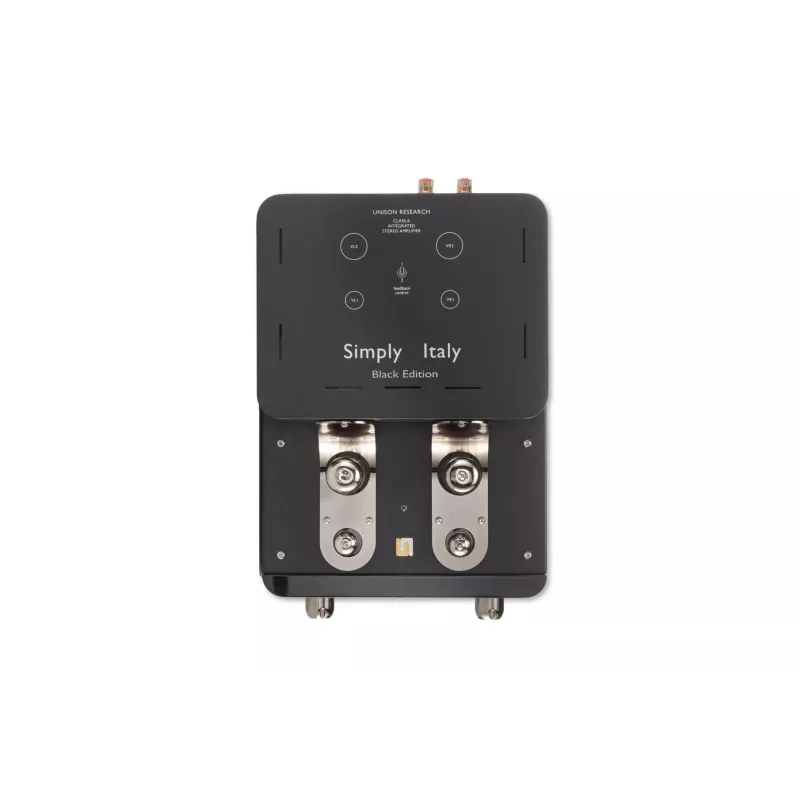

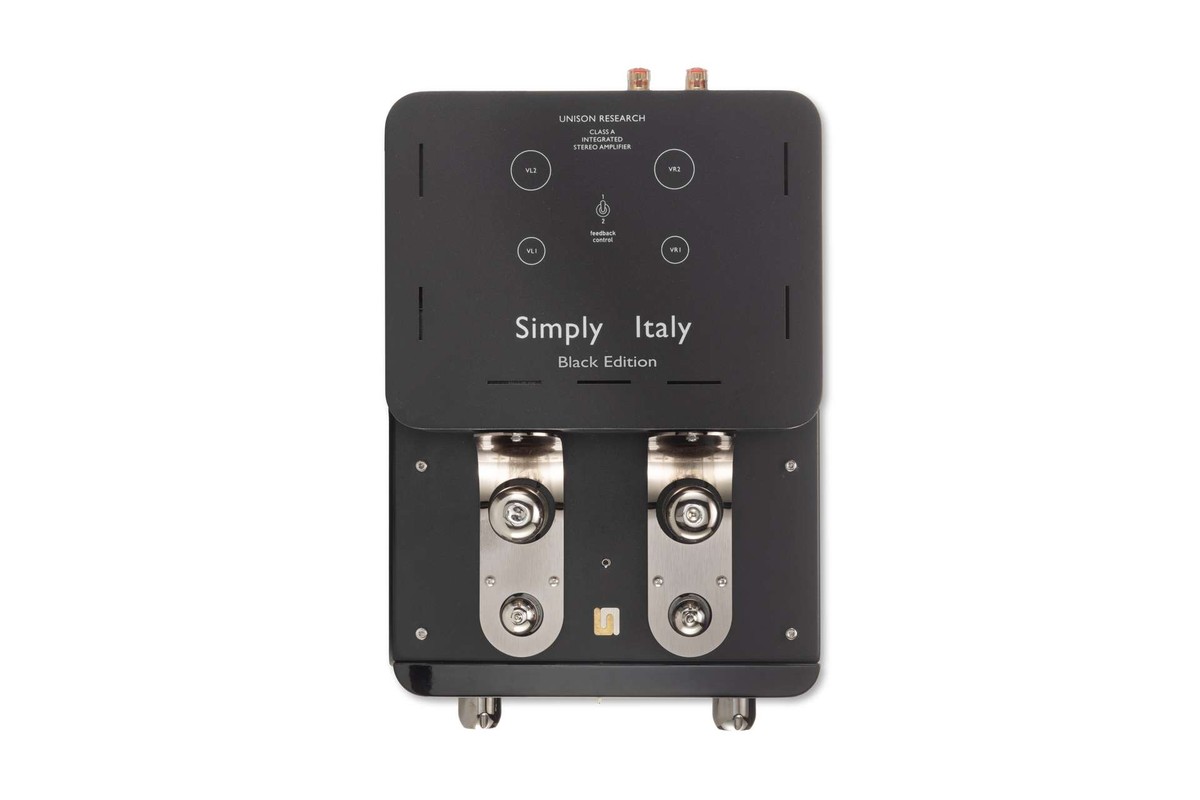

Top view with the transformer cover and the Gold Lion valves

Electronic bias for the KT77

The two KT77 Gold Lion valves run in pure Class A, in ultralinear mode with a 43% tap, and deliver 10 W into 6 ohms. Electronic biasing monitors the anode current and keeps the operating point stable throughout the valve's life, with no adjustment and no auto-bias. The output transformer, wound in five sections, is designed for maximum power transfer into 6 ohms.

Input triode without capacitors

The two ECC82 Gold Lion valves of the input stage run without feedback and are directly coupled to the driver stage, with no coupling capacitor. Along the whole signal path, only two high-quality capacitors remain in series. Global feedback can be set to 4 dB or 3 dB, and the bandwidth extends from 15 Hz to 50 kHz at -1 dB.

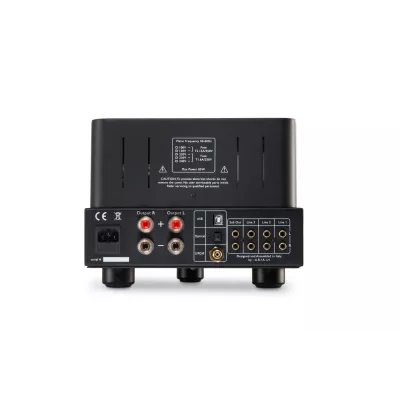

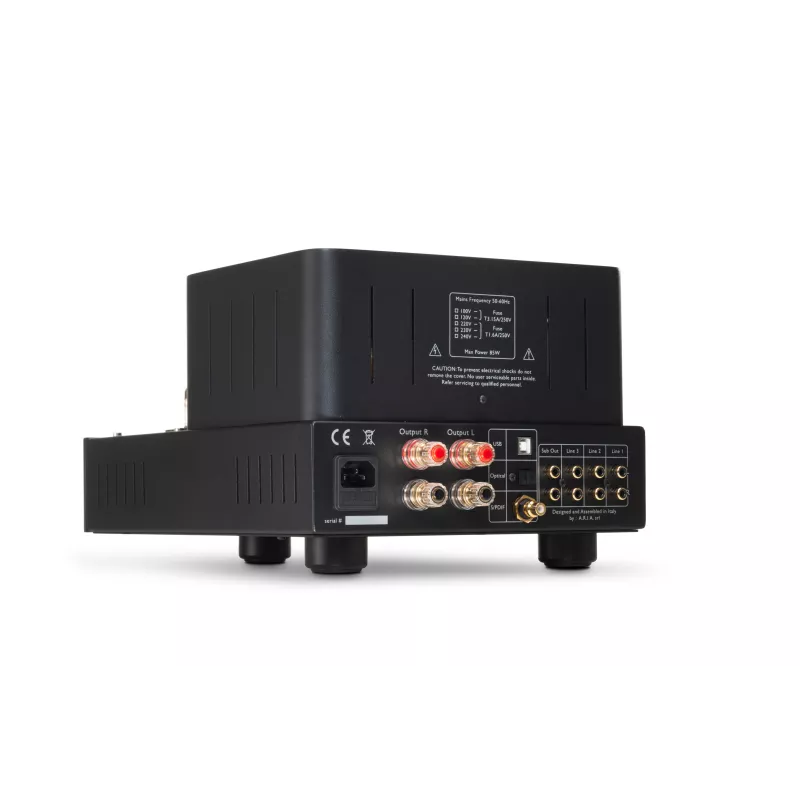

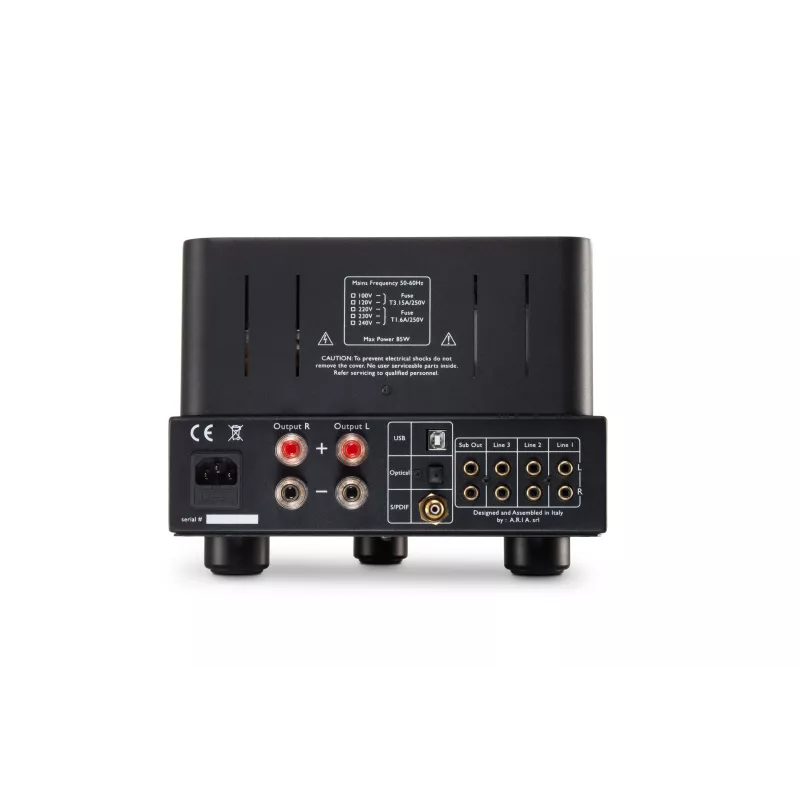

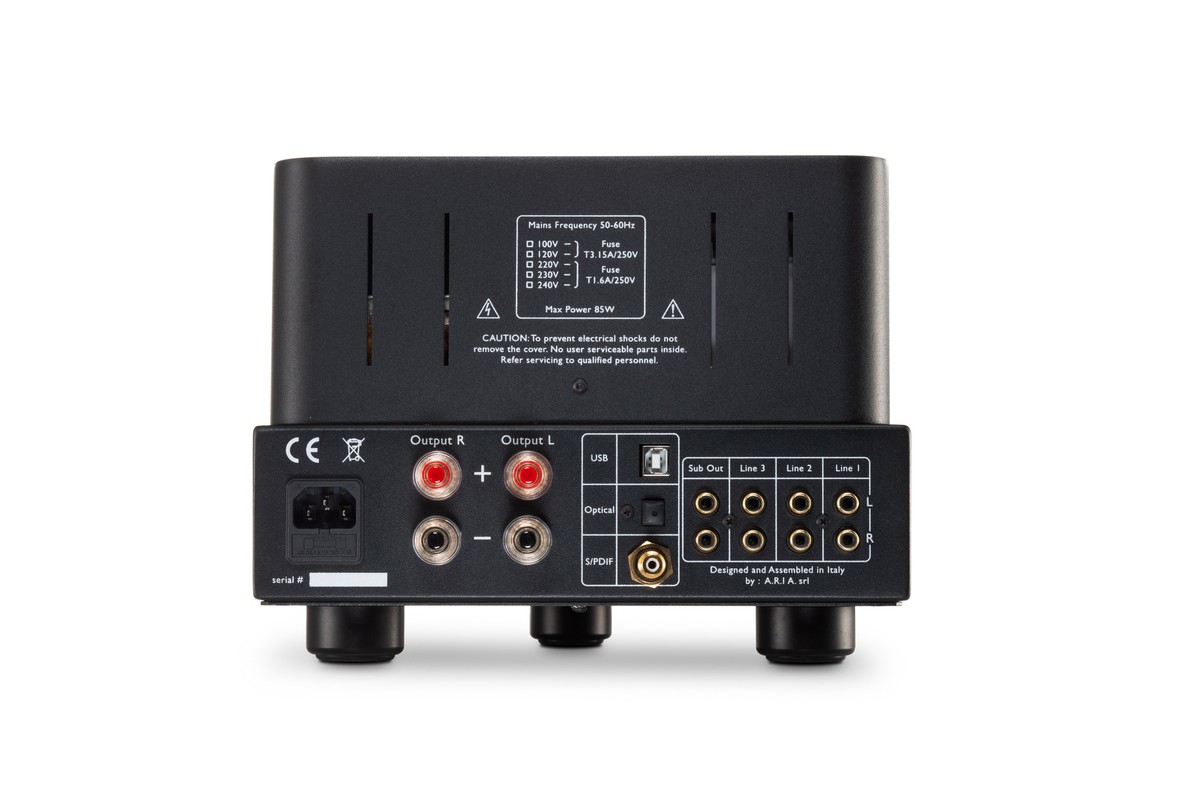

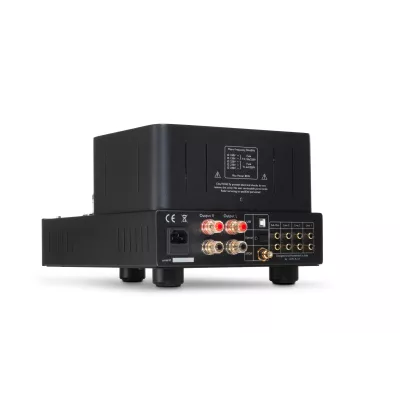

Rear panel with USB, optical and coaxial inputs next to the RCA sockets

DAC and relay inputs

The internal DAC3, based on a Sabre ES9018K2M, adds to the three RCA line inputs a USB input handling PCM up to 384 kHz, native DSD up to 256x and DoP up to 128x, plus Toslink and S/PDIF inputs up to 192 kHz. Inputs are switched by micro relays with gold-plated silver contacts, using Return GND technology. An unfiltered subwoofer output keeps the amplifier's tone, and the valves have a 3-month warranty.

Reference 73755

Data sheet

Product Type: Integrated amplifier
Tube amplifier
Features: 47 kΩ input impedance
Electronic bias, no adjustment required
Feedback selectable between 4 dB and 3 dB
Infrared remote control
Relay input selector with Return GND technology
Brand: Unison Research
Integrated DAC: ESS ES9018K2M
Audio outputs: 1 RCA subwoofer output (stereo)
Line-level Sub Out, unfiltered
Speaker outputs
Number of channels: 2
Digital inputs: 1 x USB, 1 x S/PDIF, 1 x Toslink
Analog inputs: 3 RCA line inputs
Output power: 10 W into 6 Ω
Color: Black
Technology: Output power valves: 2 x KT77 Gold Lion
Signal valves: 2 x ECC82 Gold Lion
Hi-Res Audio: Toslink and S/PDIF: up to 192 kHz
USB: PCM up to 384 kHz, native DSD up to 256x, DoP up to 128x
Series: Simply Italy Black Edition
Nominal impedance: 6 ohms
Amplification technology: Pure Class A, ultralinear (43% tap), electronically controlled bias
Pure class A
Single-ended output stage
Power consumption: Approx. 90 VA
Frequency response: 15 Hz - 50 kHz (-1 dB)
Width: 26.0 cm
Depth: 40.0 cm
Height: 18.0 cm
Unit weight: 15.0 kg
