Luxsin X9 | Desktop DAC and headphone amplifier

71859
CHF1,099.00 Tax included
Luxsin X9 desktop DAC and headphone amplifier: AK4499EX DAC, balanced R2R volume, 6.35 mm, 4.4 mm and XLR outputs, 4-inch touchscreen and DSD512 support.
Quantity
Add to wishlist
Last items in stock

Guarantee safe & secure checkout

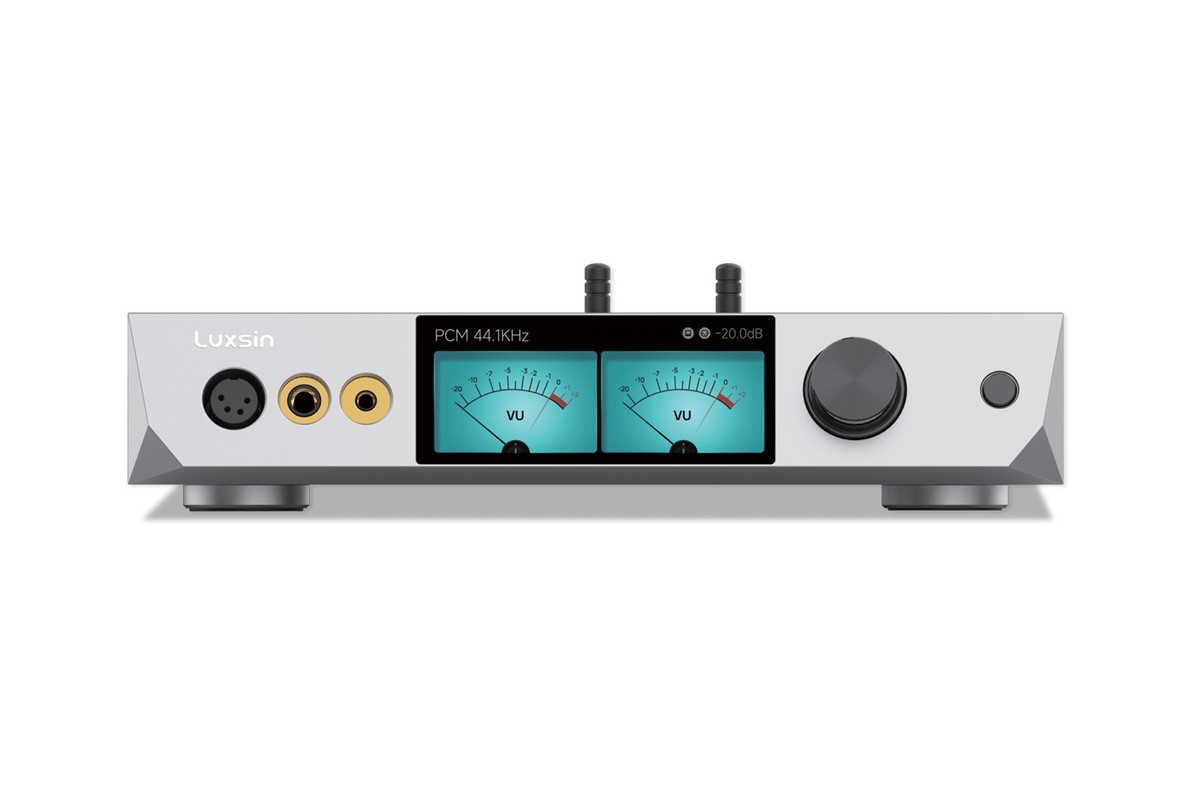

Luxsin X9 front view

Desktop DAC and amplifier

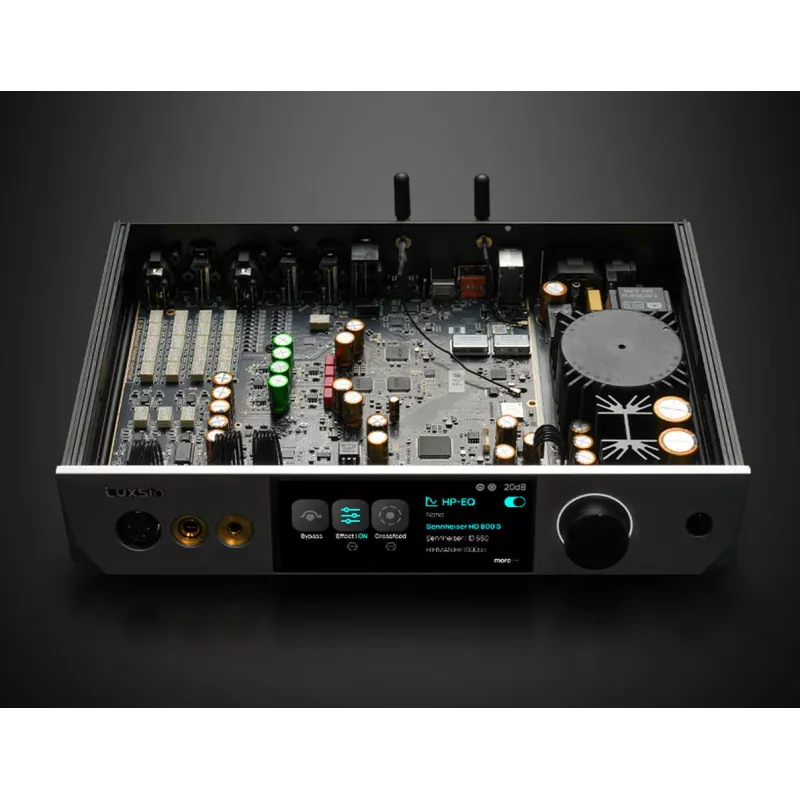

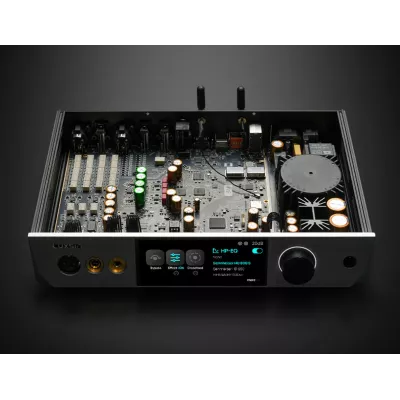

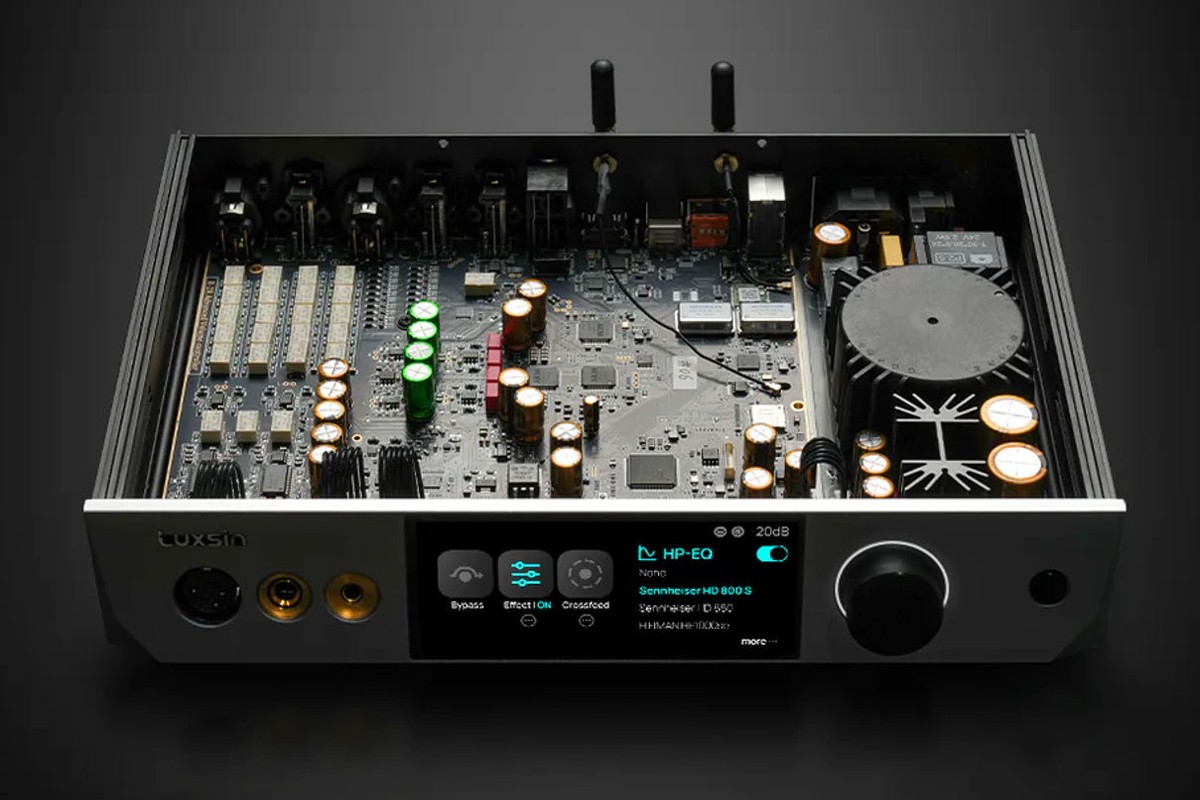

The Luxsin X9 is a desktop DAC and headphone amplifier with a preamplifier stage. Digital-to-analogue conversion uses an AKM AK4499EX DAC paired with the AK4191EQ, while USB reception is handled by an XMOS XU316. The chassis is CNC-machined from a solid aluminium block and carries a 4-inch touchscreen for control.

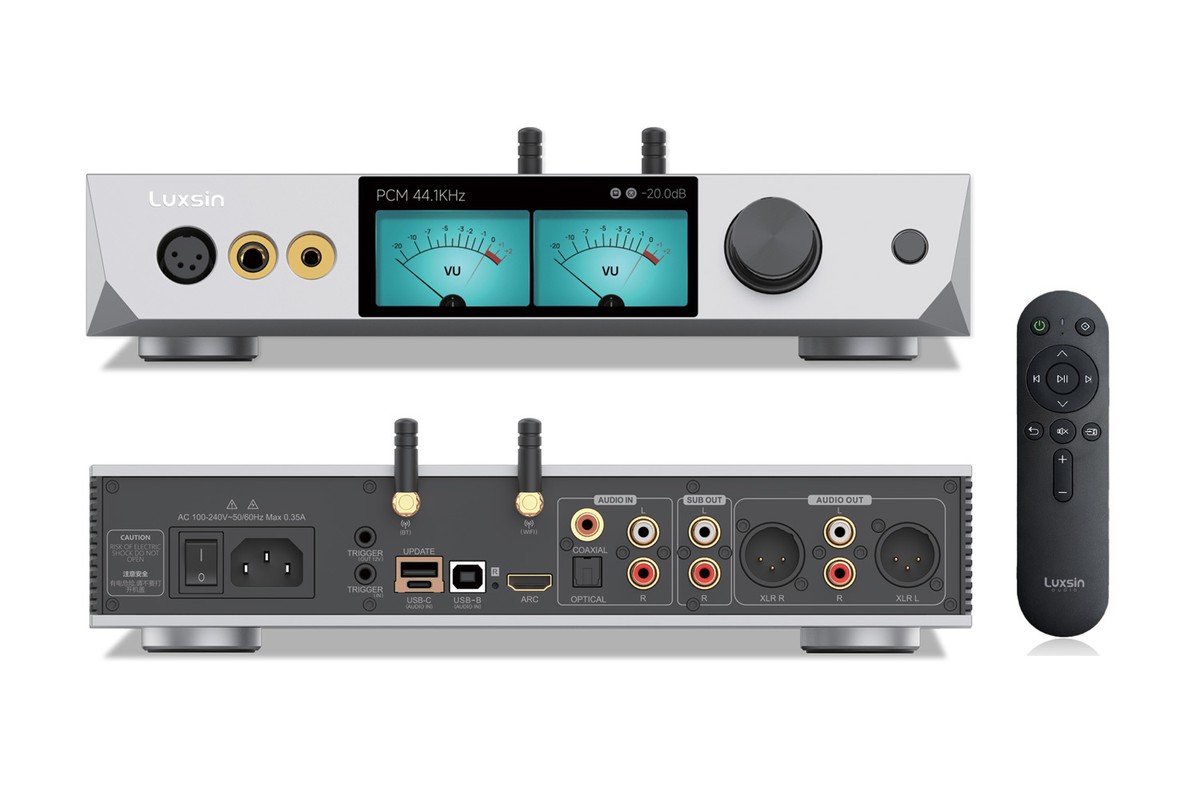

Volume knob and touchscreen

Balanced R2R volume

Volume control relies on a fully balanced R2R circuit, with left/right channel matching rated at 0.1 dB. The whole path, from conversion to the 6120A2 amplification module, stays in a differential balanced configuration. The maker quotes a THD+N of -120.3 dB on the balanced headphone output.

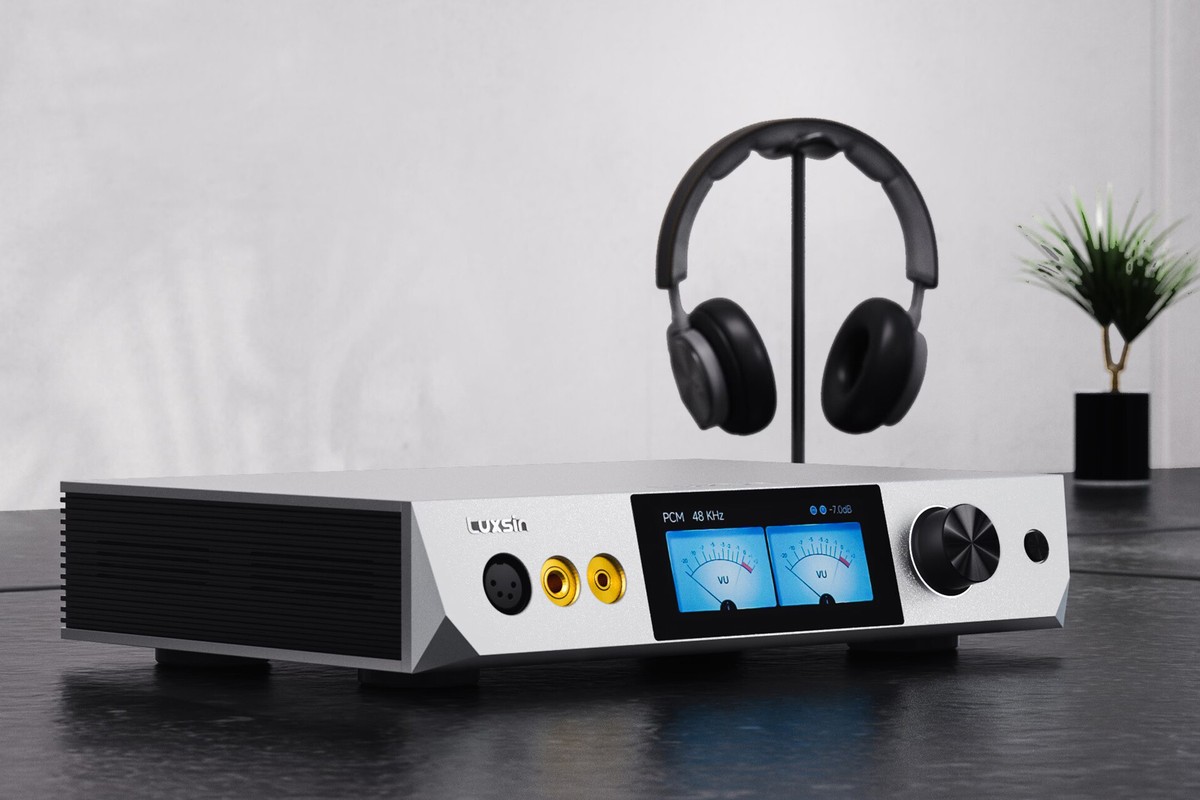

Front panel detail

HP-EQ and impedance

HP-EQ applies a hardware correction of the frequency response toward the Harman curve, drawing on a database of more than 2,500 headphone models updated regularly. On connection, the system measures headphone impedance and suggests a suitable output level. A crossfeed mode and soundstage adjustments round out the processing.

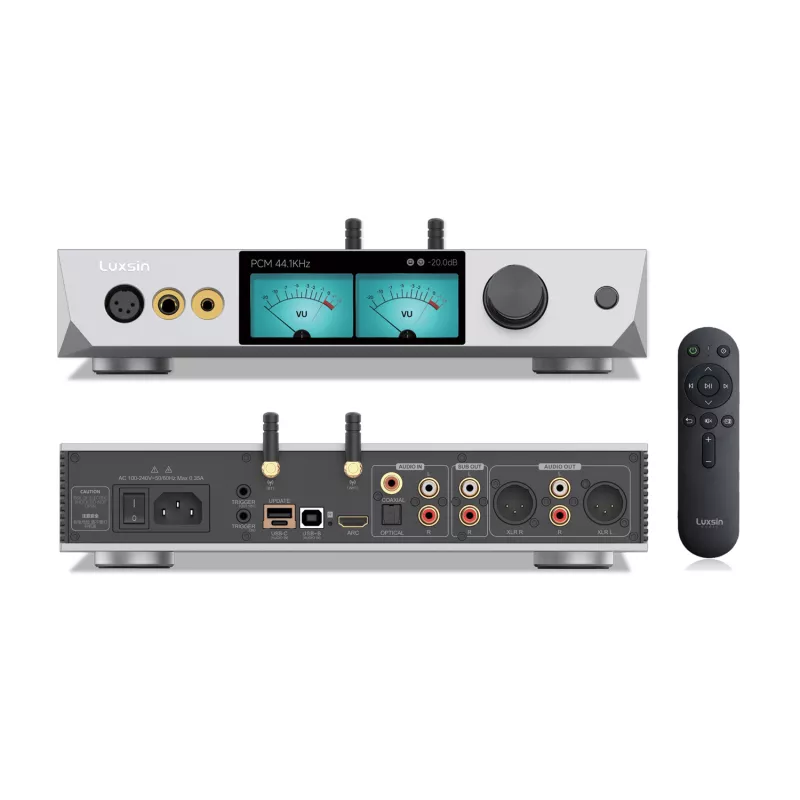

Rear connections

Connectivity and outputs

Inputs include USB-B, USB-C, optical, coaxial, HDMI ARC, an analogue RCA input, Bluetooth 5.0 and 2.4 GHz Wi-Fi. For headphones, the X9 offers 6.35 mm, 4.4 mm and XLR4 sockets, with output rated up to 6,000 mW per channel into 16 Ω. Preamp XLR, RCA and subwoofer outputs let it feed a wider system. Supported formats reach DSD512 and PCM 768 kHz / 32-bit over USB.

71859

Data sheet

Width
30.0 cm
Depth
20.6 cm
Height
6.5 cm
Unit weight
3.7 kg

Specific References

EAN13
6977843850007
