NAD CS1 | Network Streamer with AirPlay 2 and Chromecast | 3 YEAR WARRANTY

71647
CHF399.00 Tax included
Supplier stock – typically 4 to 7 days
The NAD CS1 is a compact Classic Series network streamer that adds AirPlay 2, Google Cast, Spotify Connect and Tidal Connect to an existing system. Its RCA, optical and coaxial outputs connect it to an amplifier, an AV receiver or an external DAC.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

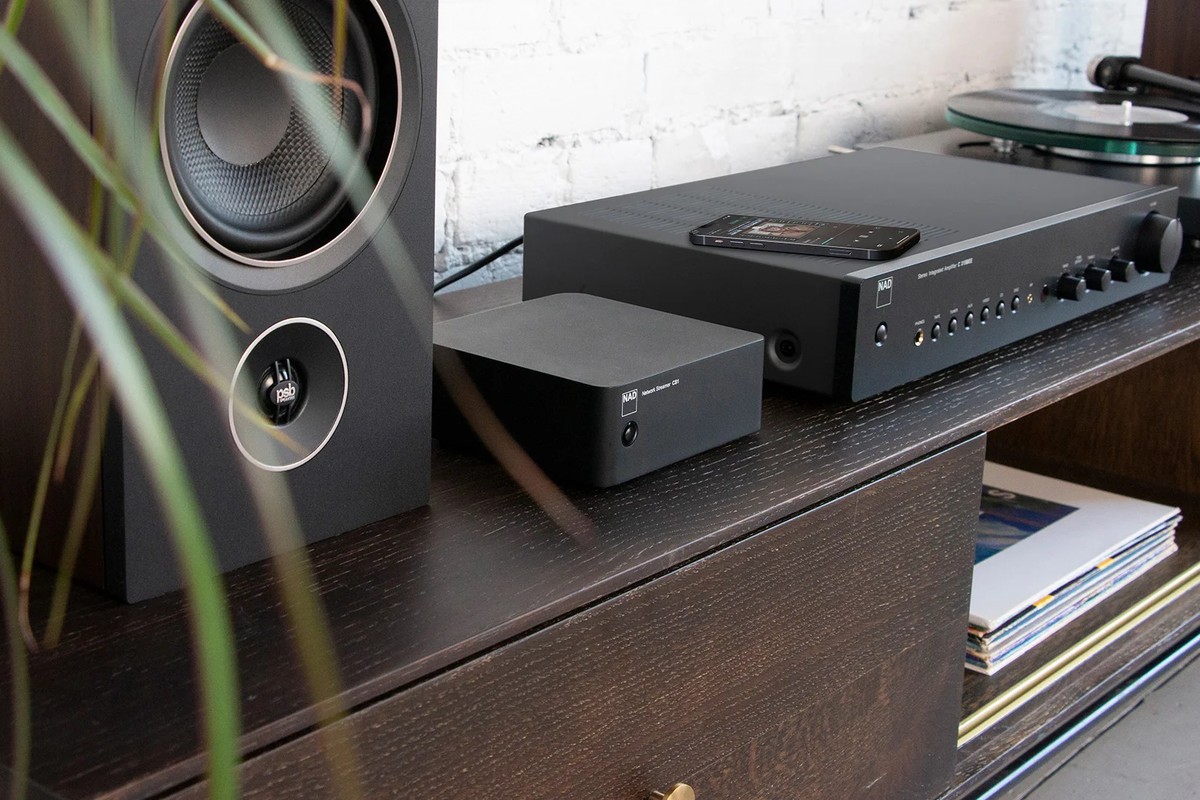

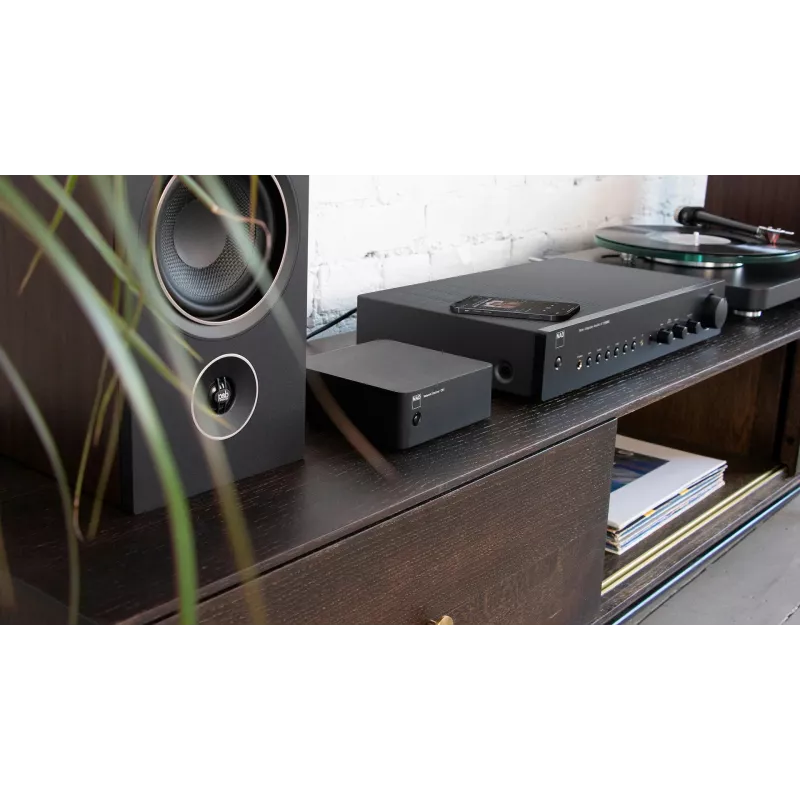

Streamer on a dark wooden cabinet between a speaker and an integrated amplifier

Streaming from your apps

The CS1 brings streaming to an existing hi-fi system with no dedicated app to install. AirPlay 2 sends audio from any app on an iPhone, iPad or Mac at CD resolution, while Google Cast takes over at up to 24-bit/96 kHz from compatible apps. Spotify and Tidal subscribers start playback in the service's own app and hand it over to the CS1, and Roon and DLNA round out the list.

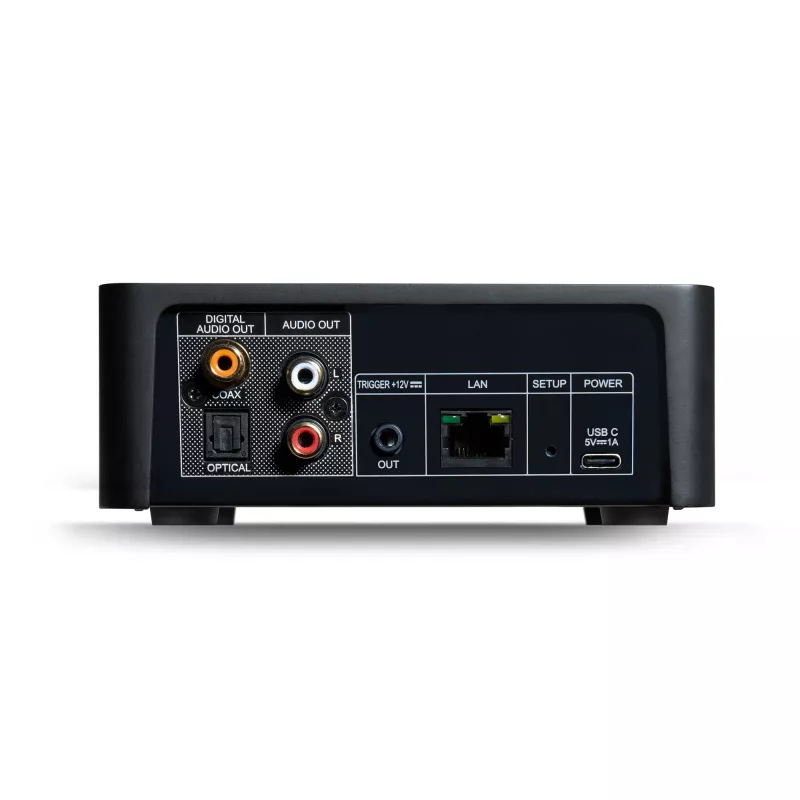

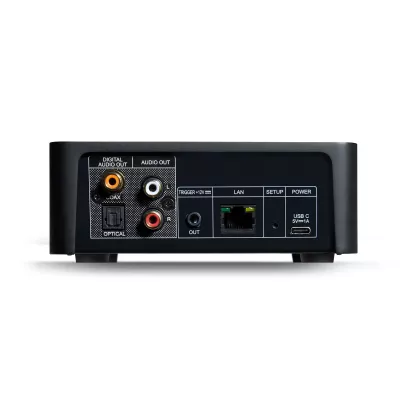

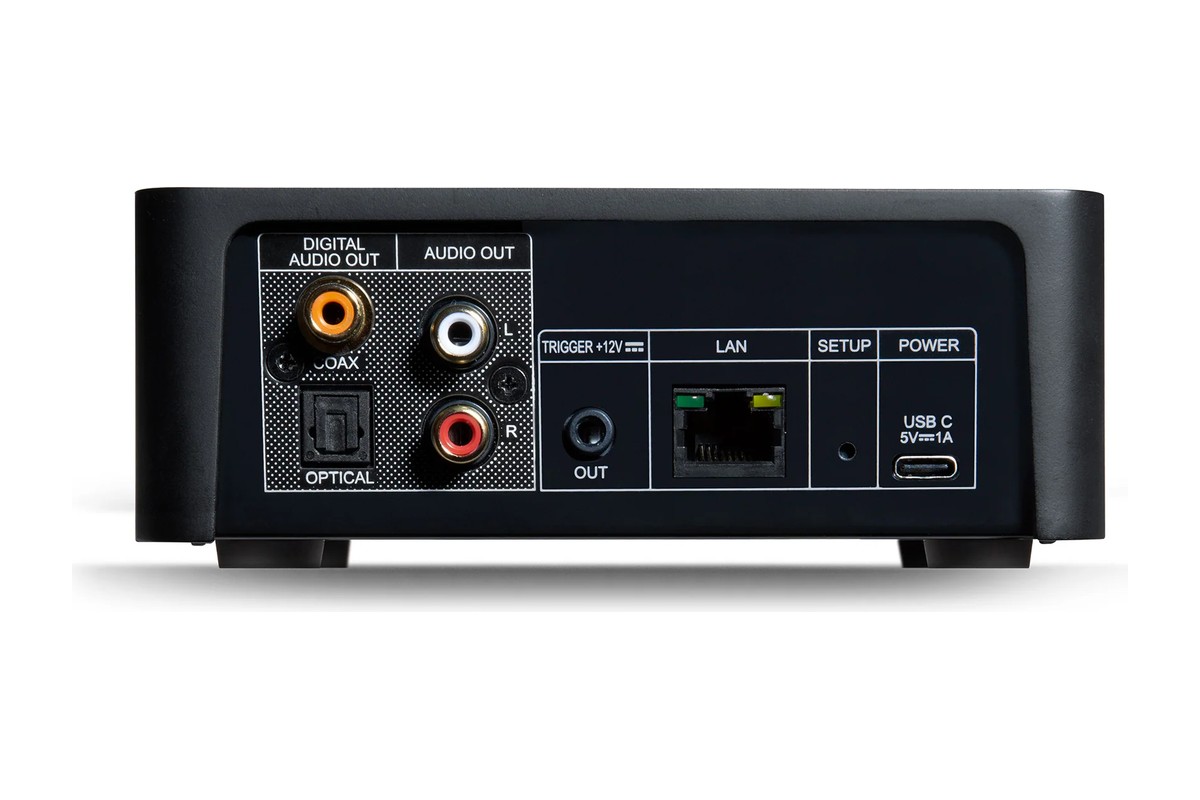

Rear panel with RCA, optical and coaxial outputs, 12 V trigger, LAN port and USB-C socket

Analogue and digital outputs

On the back, a pair of line-level RCA outputs feeds an integrated amplifier, a preamplifier, a receiver or powered speakers. The optical and coaxial outputs pass the digital signal at up to 24-bit/192 kHz to an AV receiver or an external DAC, and let MQA through to a compatible decoder. A 12 V trigger output on a 3.5 mm mini-jack completes the panel to switch an amplifier on.

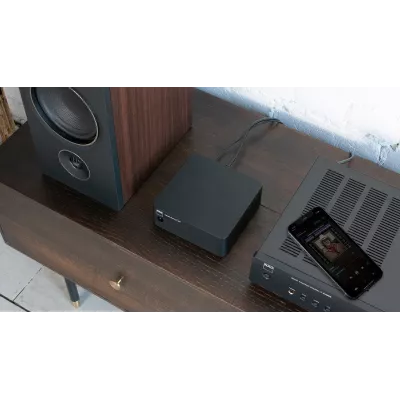

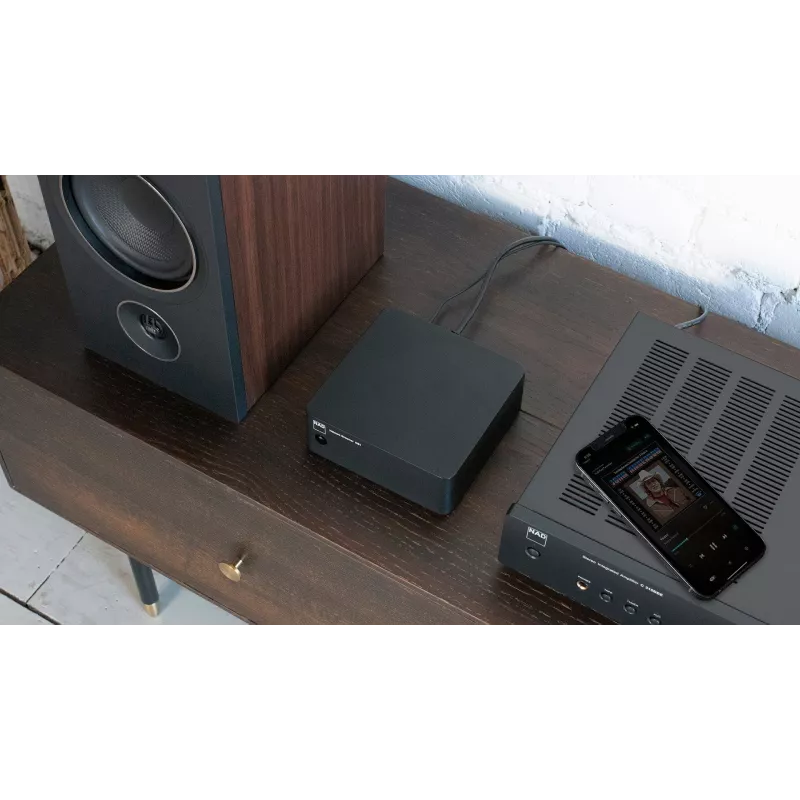

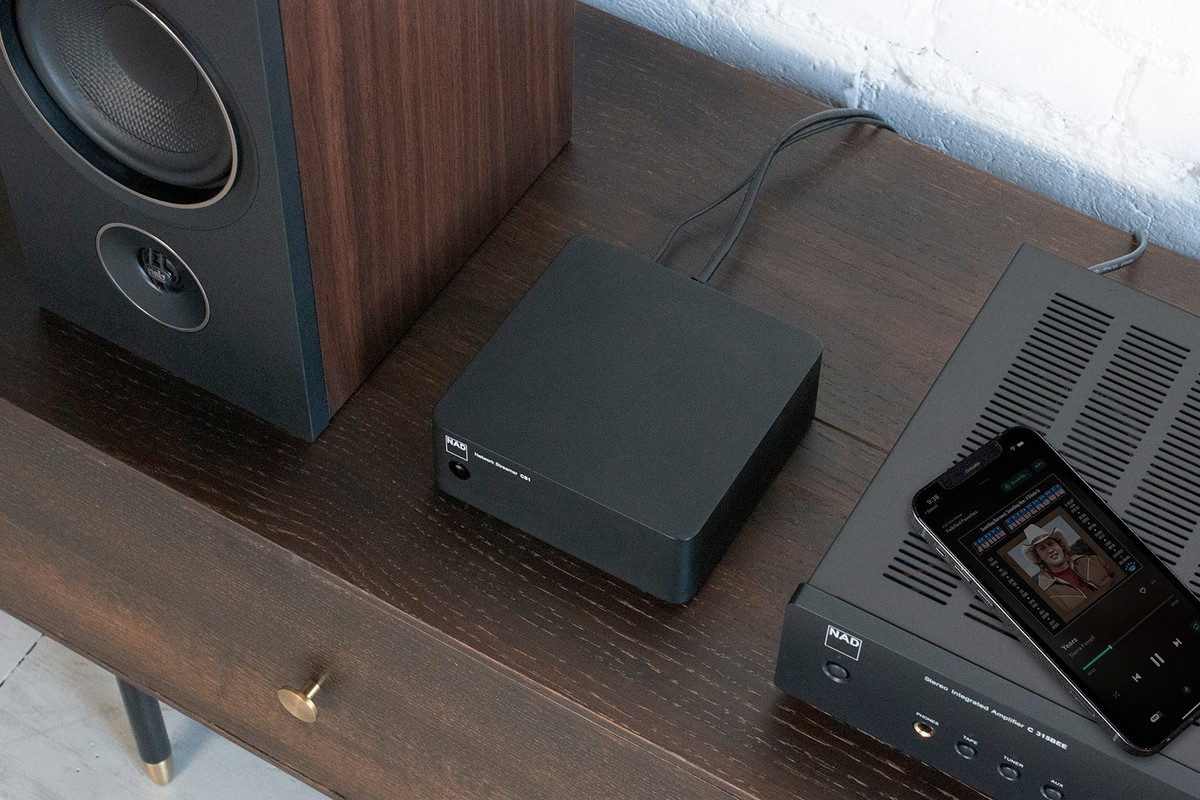

Streamer seen from above next to a speaker, with a smartphone resting on the amplifier beside it

Differential TI PCM5142 conversion

The digital section uses a differential architecture built around the Texas Instruments PCM5142 DAC, known for its wide dynamic range, low noise floor and resistance to clock jitter. It handles high-resolution audio up to 24-bit/192 kHz and quotes a frequency response of 20 Hz to 20 kHz within ±0.3 dB. Detail, dynamics and tonal balance are preserved all the way to the amplifier and speakers.

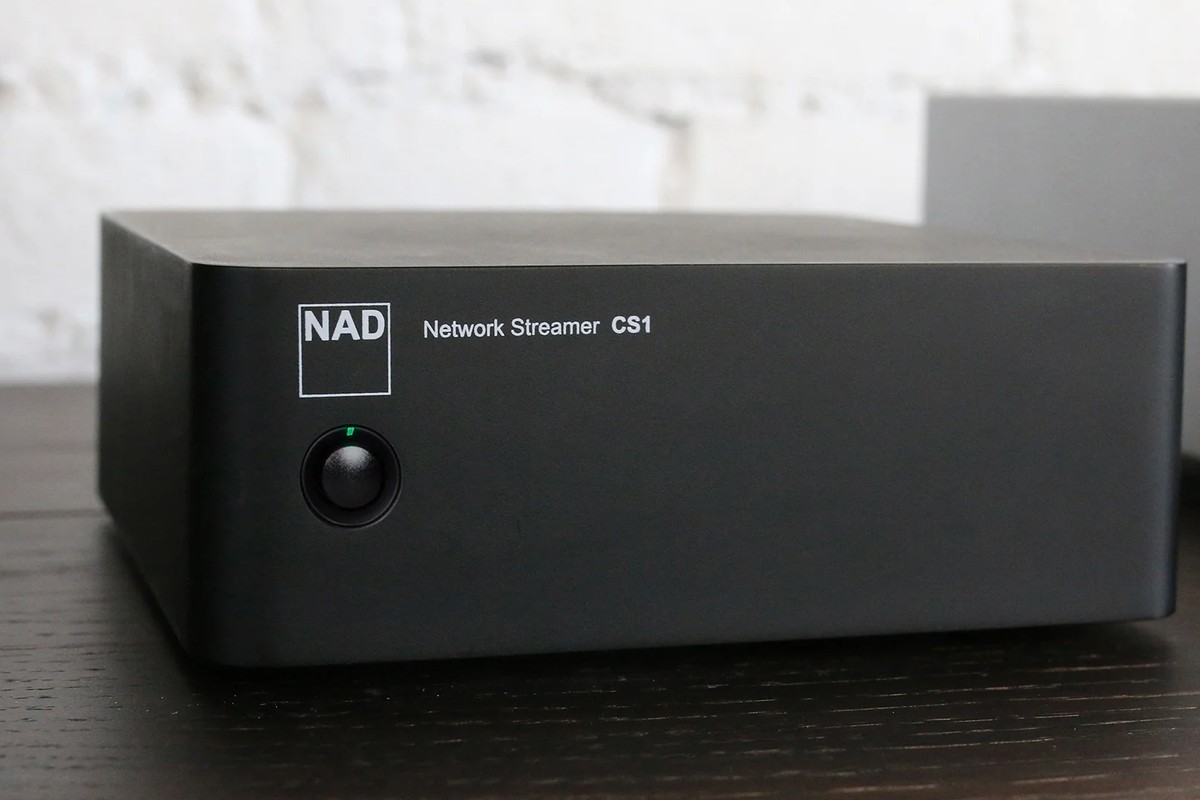

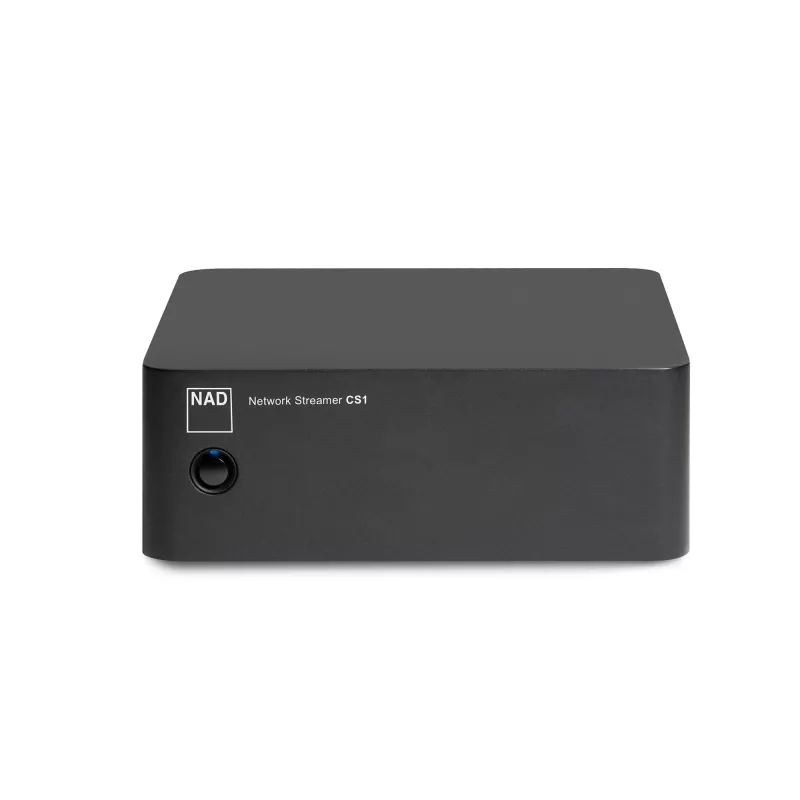

NAD CS1 from the front, with its front-panel button and green indicator lit

Compact, versatile enclosure

At 14 cm square and 5.5 cm high, the CS1 fits on a cabinet or in a rack next to the rest of the system. It joins the home network over dual-band Wi-Fi or through its Ethernet port, and Bluetooth 5.2 with NFC pairs a smartphone or tablet directly. In network standby it draws just 0.5 W.

71647

Data sheet

Product Type
Network Audio Streamer
Features
Front-panel LED indicator
Front-panel function button
NFC for Bluetooth pairing
USB ports
Rear USB power supply
Bluetooth
5.2
Brand
NAD
Integrated DAC
Texas Instruments PCM5142
WiFi
Dual band 2.4 GHz / 5 GHz
Wi-Fi 5
Audio outputs
Coaxial Output
Optical Output
RCA Output
Color
Black
Streaming services
AirPlay 2
Chromecast
DLNA
Roon
Spotify Connect
Spotify Lossless
TIDAL Connect
UPnP
Audio format
AC3
HE-AAC
Linear PCM
MP3
MQA
OGG
WMA
Hi-Res Audio
16 – 24-bit
Native sample rate up to 192 kHz
Series
Classic
Network connectivity
1x Ethernet LAN 100 Mbit
Bluetooth Profile
A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP
Processor
Quad-core ARM Cortex-A53, 1.5 GHz per core
Connections
1 trigger output 12 V
Signal-to-noise ratio
-94 dB (ref. 2 V)
Power consumption
0.5 W (network standby)
Power adapter: input 100-240 V AC 0.3 A, output 5 V DC 1 A
Frequency response
20 Hz – 20 kHz (±0.3 dB), 50 kHz (-3 dB)
Distortion (THD)
Less than 0.03 % (20 Hz – 20 kHz, output at -1 dBFS)
Width
14.0 cm
Depth
14.0 cm
Height
5.5 cm
Unit weight
1.5 kg

Specific References

EAN13
0786357002088
