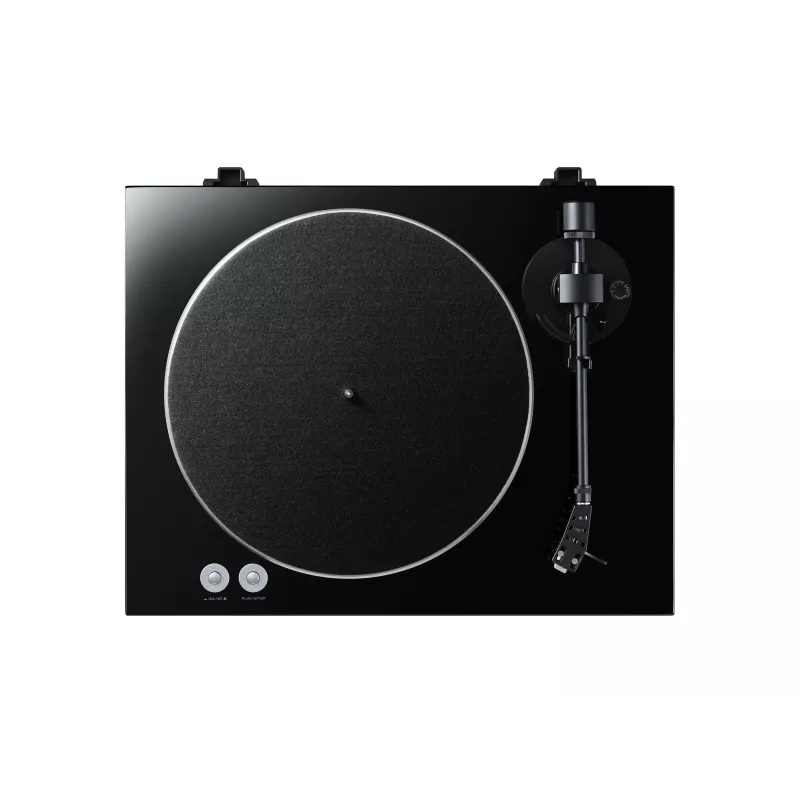

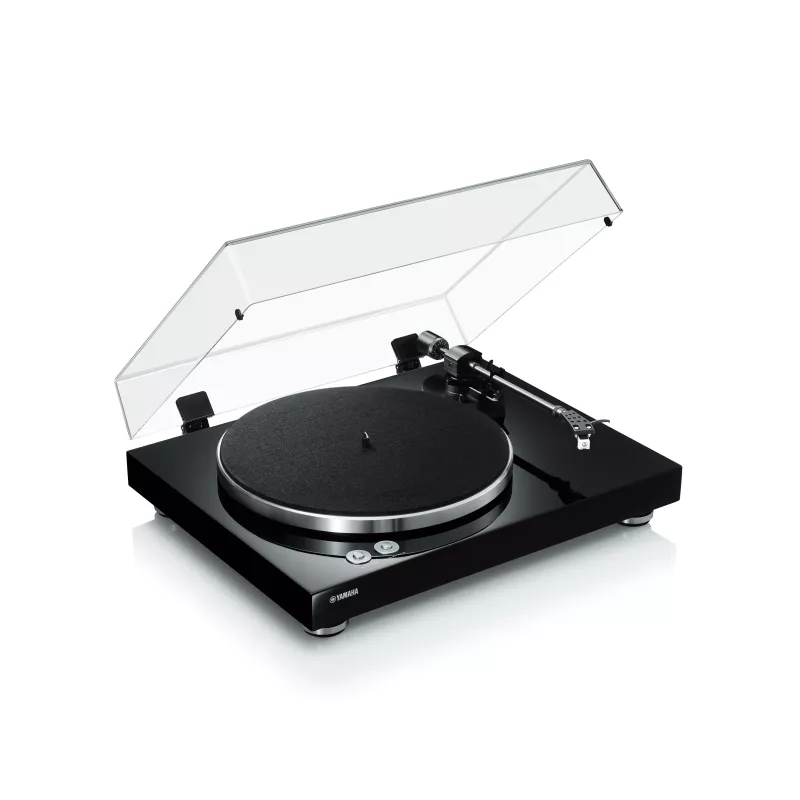

Yamaha belt-driven turntable with a statically balanced straight tonearm. The built-in RIAA phono preamp with a Phono/Line switch allows for direct connection to any amplifier.
The TT-S303 turntable features a belt-drive system that isolates the DC motor from vibrations transmitted to the platter, ensuring faithful reproduction of the groove. The statically balanced straight tonearm promotes sonic transparency and clarity across the entire frequency spectrum. Its 223.5 mm length ensures an optimal tracking angle across the entire record.
The 30-cm die-cast aluminum platter provides the mass and rigidity necessary for smooth rotation. Pitch variation is limited to 0.2%, ensuring playback without any perceptible variations in pitch. The two speeds—33 1/3 and 45 rpm—cover the entire vinyl catalog, from classic 33 rpm albums to 45 rpm singles.
The built-in RIAA phono preamp allows the TT-S303 to be connected directly to any amplifier, even one without a dedicated phono input. A Phono/Line switch selects whether RIAA equalization is active or inactive, depending on the target equipment. The 140 mV output level in RIAA mode ensures seamless integration into any existing audio system.
The TT-S303 comes with a moving-magnet (MM) cartridge delivering 2.5 mV, ready to use right out of the box with a recommended tracking force of 3.5 g. The 67 dB signal-to-noise ratio ensures a quiet background that lets the music take center stage. With a power consumption of 1.5 W, the turntable fits seamlessly into any Hi-Fi rack without overheating issues.
