NAD C 268 | HybridDigital Stereo Power Amplifier | 3 YEAR WARRANTY

Name: NAD C 268 | HybridDigital Stereo Power Amplifier | 3 YEAR WARRANTY
Brand: NAD
SKU: 62709
Price: 990.00 CHF
Availability: BackOrder

Reference 62709

CHF990.00 Tax included

Supplier stock – typically 4 to 7 days

The NAD C 268 is a Classic Series HybridDigital stereo power amplifier rated at 2 x 80 W into 8 and 4 ohms. Its XLR and RCA inputs, level control and 300 W bridged mode make it an easy power block to integrate.

Description
Product Details

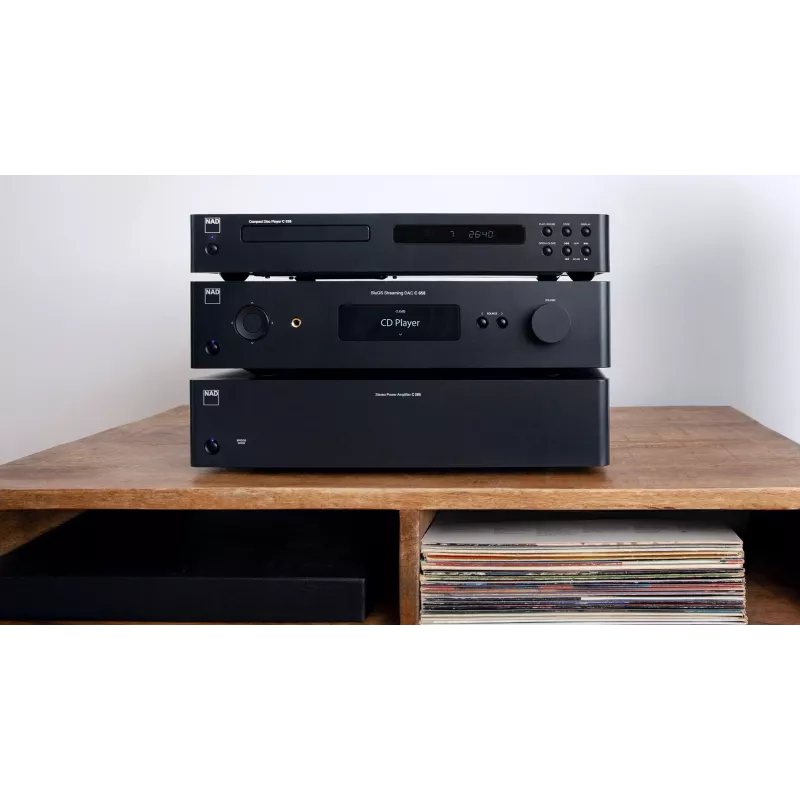

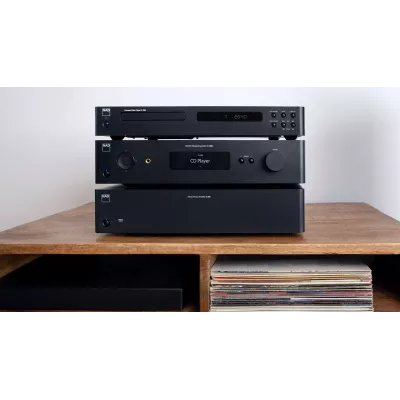

Stack of NAD components on a wooden cabinet, with the C 268 power amplifier at the bottom

HybridDigital UcD power

The C 268 uses a customised version of the Hypex UcD output stage, NAD's HybridDigital platform. It delivers 80 W per channel continuous into 8 and 4 ohms, with very low noise and distortion across the audible band. Dynamic power reaches 120 W into 8 ohms, 200 W into 4 ohms and 250 W into 2 ohms.

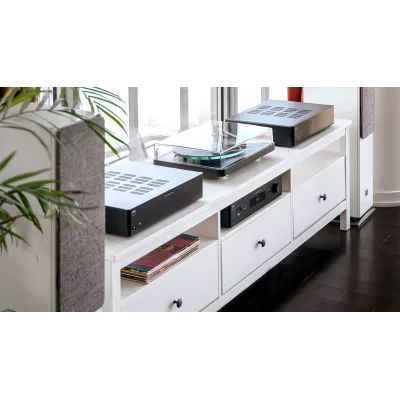

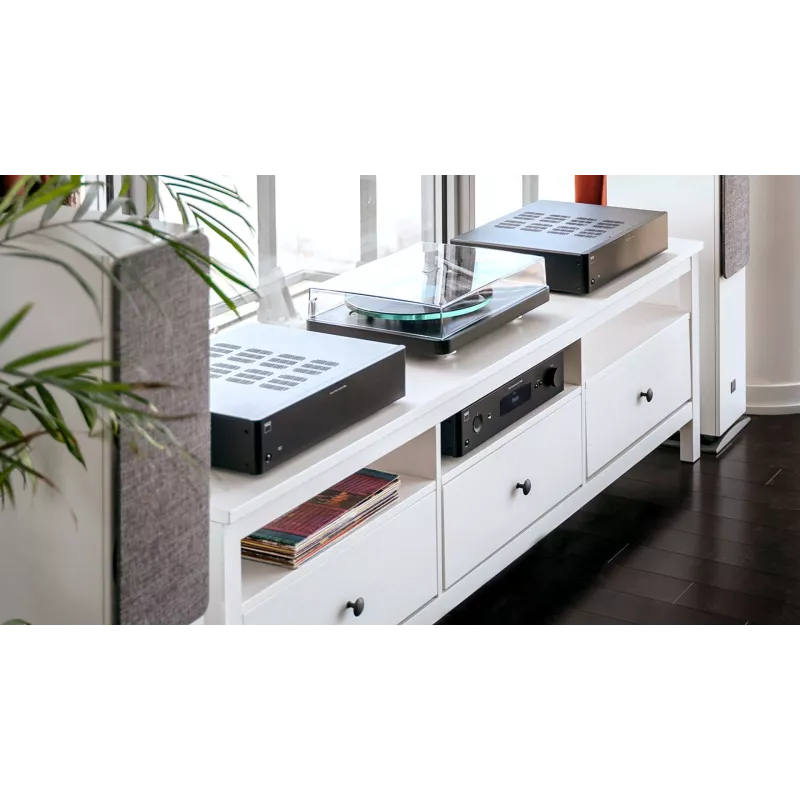

Black components and a turntable on a white cabinet in a bright living room

Flexible integration

Balanced XLR and single-ended RCA inputs connect the C 268 to a preamplifier, processor or DAC. An input level control matches it to the other components, for example when bi-amping. A line output lets you add another amplifier on the same channel for extra speakers or a subwoofer.

Rear panel with XLR and RCA inputs, bridge mode switch and speaker terminals

300 W bridged mode

A switch turns the C 268 into a bridged monoblock delivering 300 W continuous into 8 ohms. This mode suits more demanding speakers or pairing with a compatible NAD component such as the C 379. Auto turn-on with adjustable threshold, 12 V triggers and a ground lug make integration into a complete system easier.

Plain black front panel with power switch and bridge mode indicator

Switch-mode power supply

The high-efficiency switch-mode power supply provides nearly 200 W continuous and over 500 W peak for musical transients. NAD's asymmetrical PowerDrive circuit makes use of this reserve, and the supply accepts any mains voltage from 100 to 240 V. It delivers stable voltage to every stage, a quiet foundation for the amplifier.

Reference 62709

Data sheet

Product Type: Power Amplifier
Features: Automatic power-on (auto-sense)
Ground lug
Input level control
Mode ponté (monobloc)
Switch-mode power supply, 100 to 240 V mains
Brand: NAD
Audio outputs: RCA Line Output
Number of channels: 2 (stereo)
Analog inputs: Balanced XLR (L/R), RCA (L/R)
Output power: 2 x 80 W continuous (8 and 4 Ω)
300 W continuous (8 Ω, bridged mode)
IHF dynamic power: 120 W (8 Ω), 200 W (4 Ω), 250 W (2 Ω)
Color: Black
Series: Classic
Sensitivity: 750 mV / 50 kOhms (input)
Connections: Trigger 12 V
Amplification technology: Custom HybridDigital UcD, stereo and bridged modes
Power consumption: Less than 0.5 W in standby
Frequency response: Speaker output: ±0.3 dB (20 Hz – 20 kHz)
Distortion (THD): Less than 0.03 % (amplifier, 250 mW to 80 W, 8 and 4 Ω)
Width: 43.5 cm
Depth: 39.0 cm
Height: 10.0 cm
Unit weight: 7.3 kg
