66273
CHF2,299.00 Tax included
Quantity
Add to wishlist

Guarantee safe & secure checkout

66273

Data sheet

Product Type

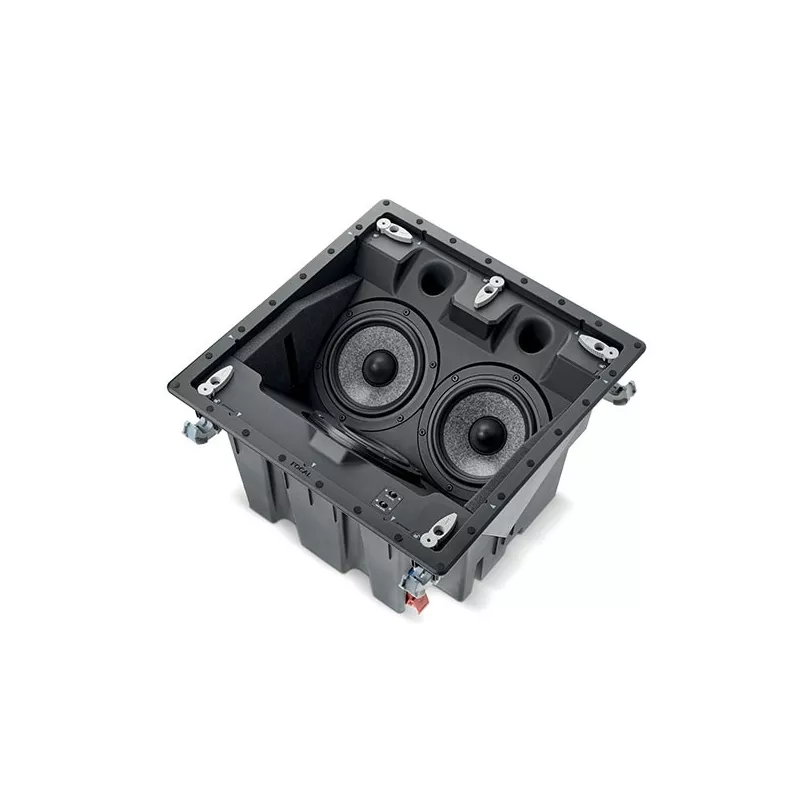

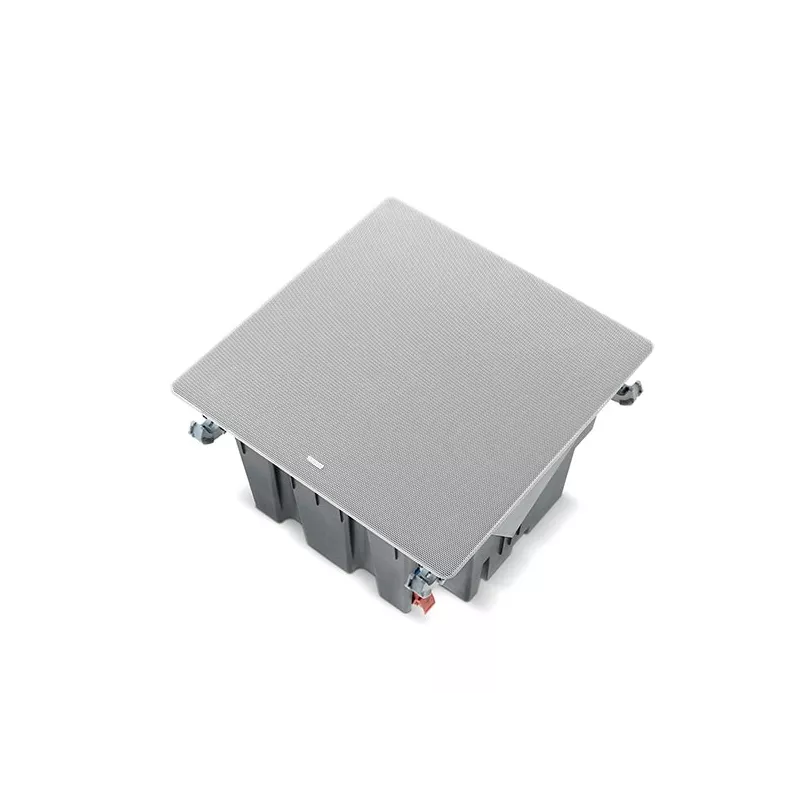

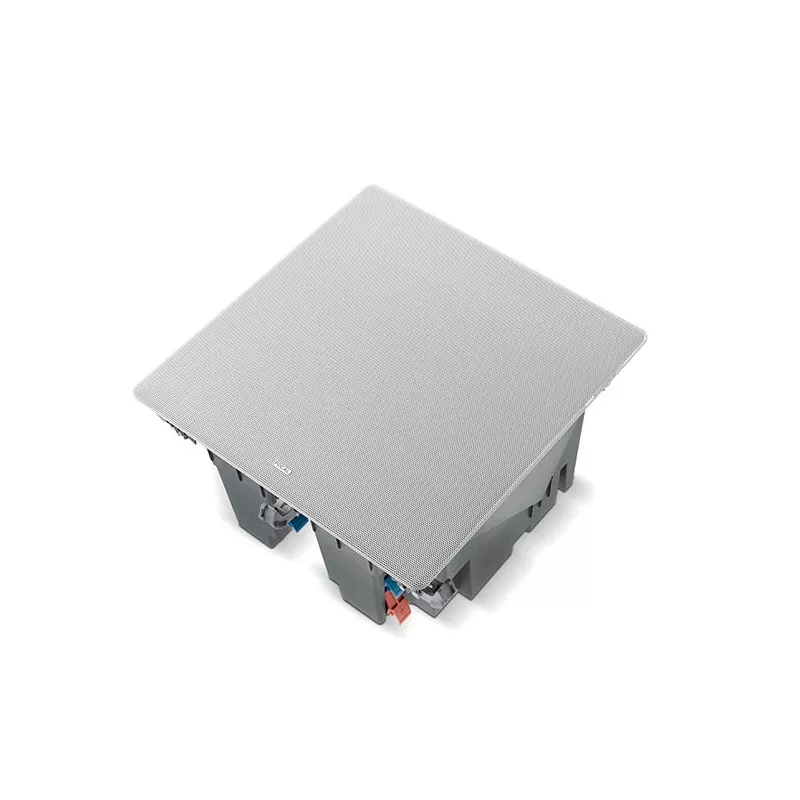

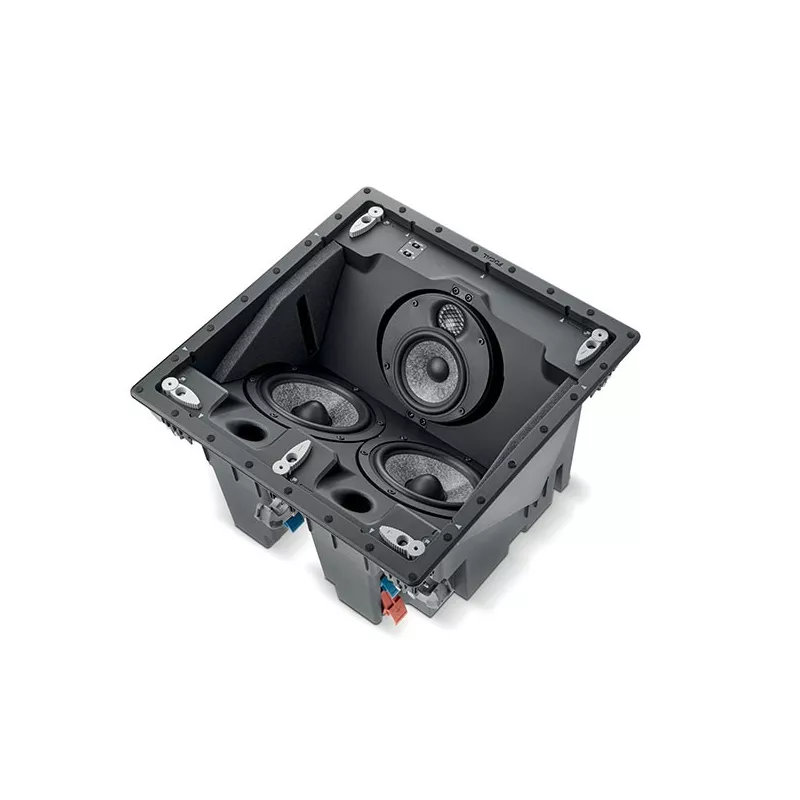

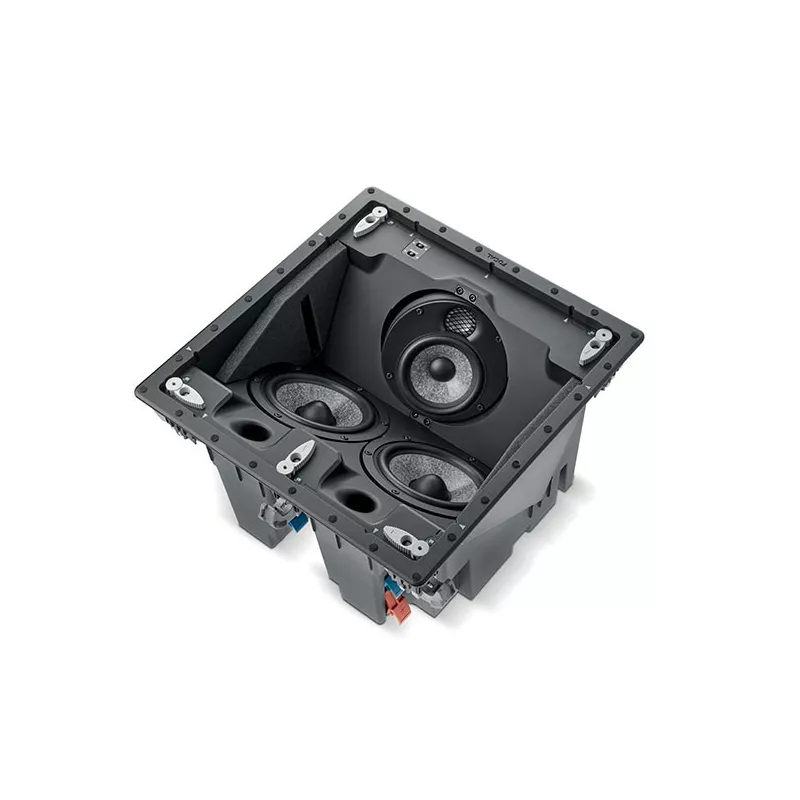

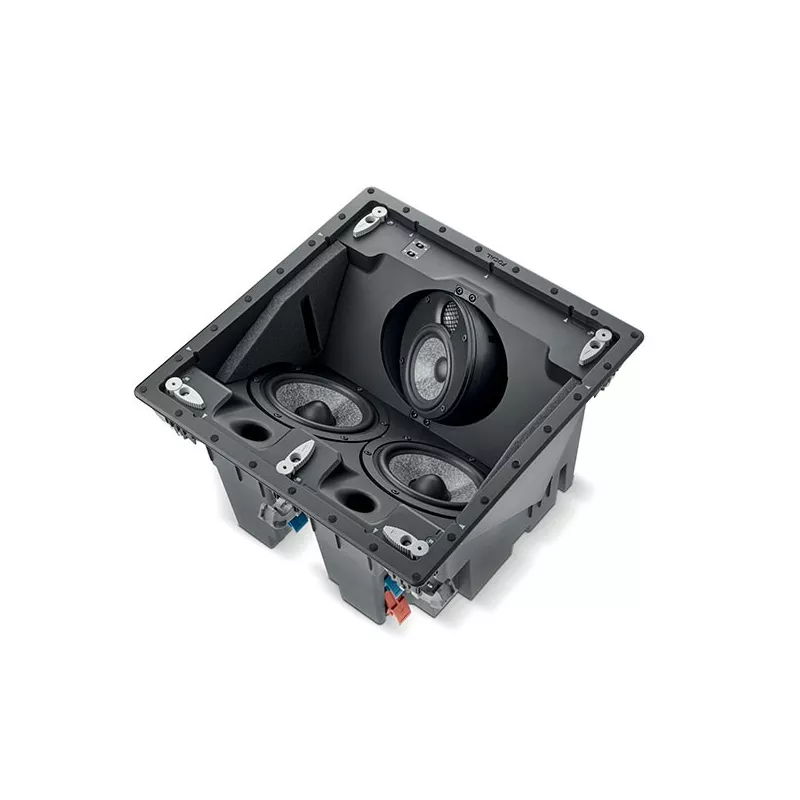

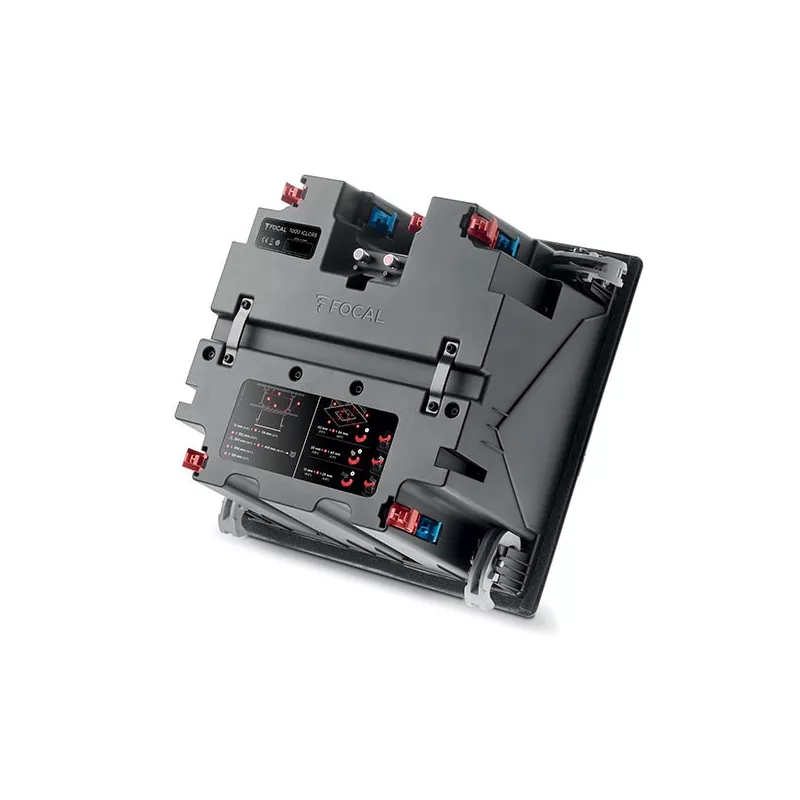

3-way bass-reflex recessed ceiling speaker
Output power
Recommended amplifier power: 50–180 W
Technology

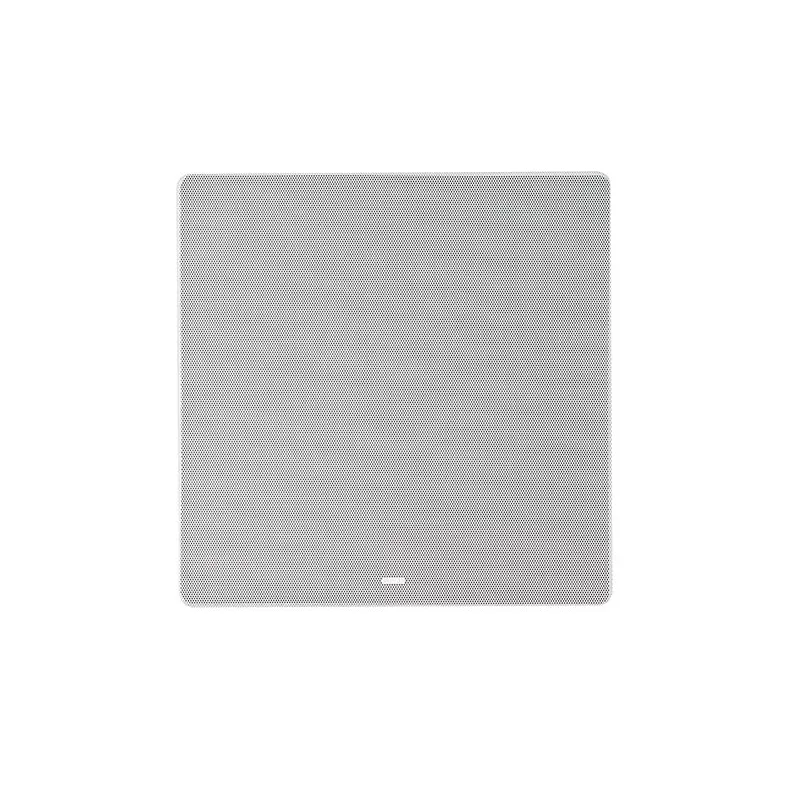

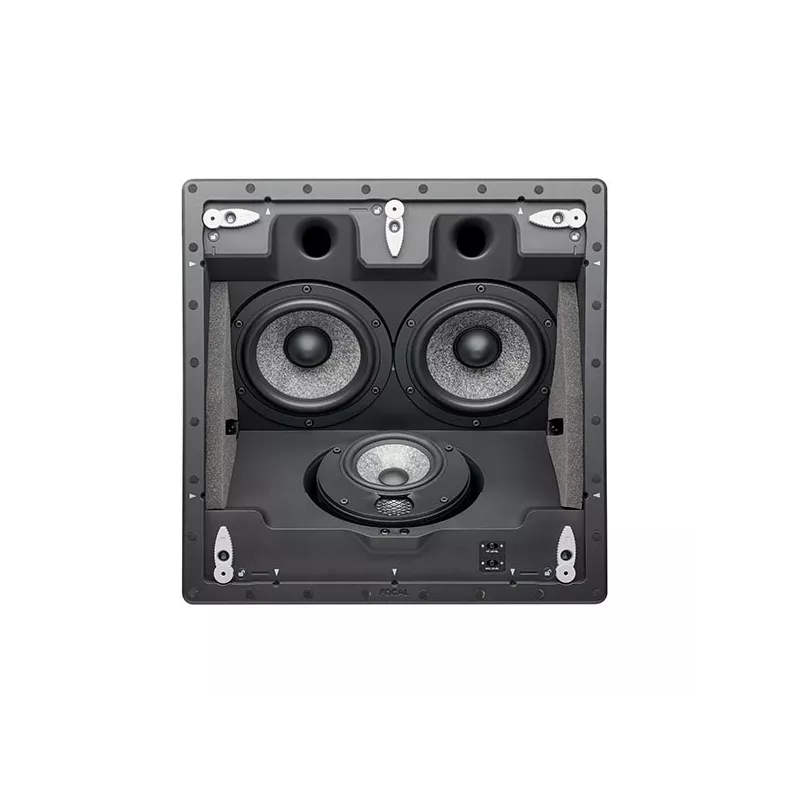

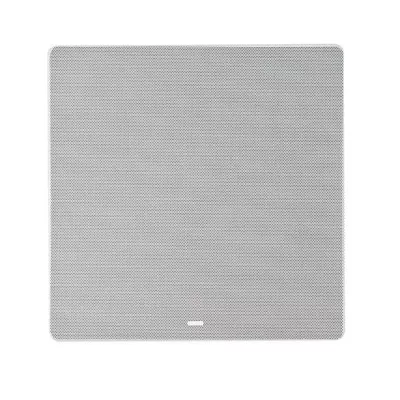

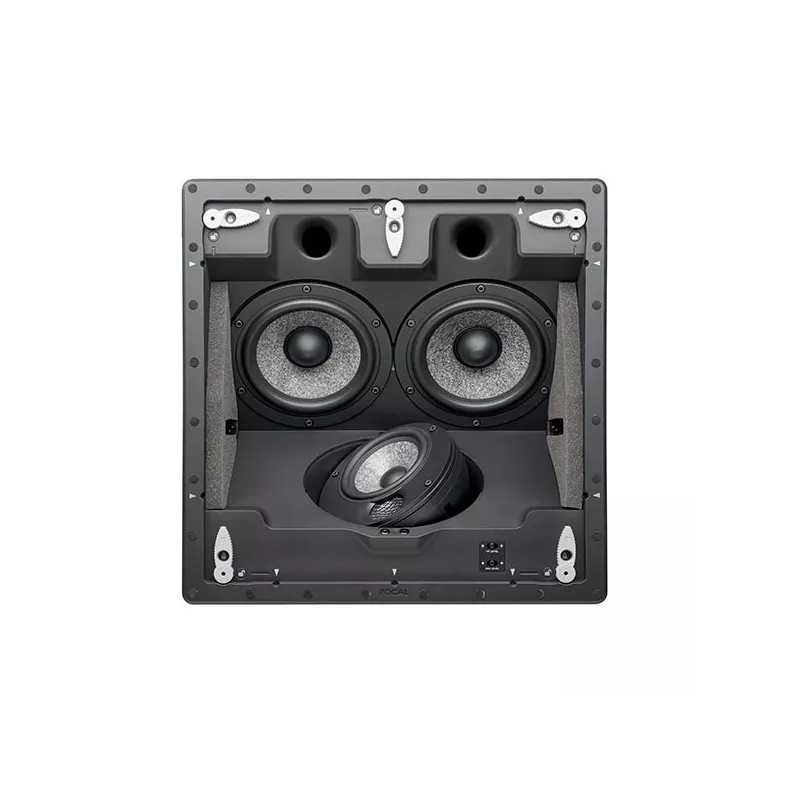

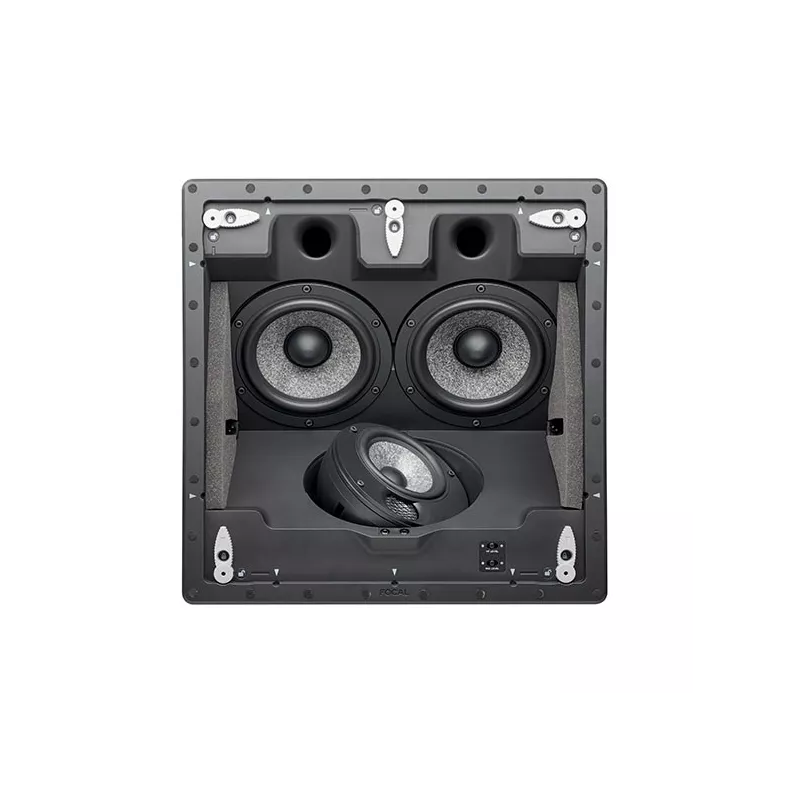

2 x 13 cm cone woofers, 10 cm midrange, 25 mm inverted beryllium dome tweeter; adjustable tweeter and midrange drivers with gain control; 5-position selector switch (front L/C/R, rear L/R); magnetic grilles ready for painting, tool-free installation
Hi-Res Audio
Frequency response: 53 Hz – 40 kHz (+/-3 dB), low-cut frequency: 43 Hz (-6 dB)
Series
1000 Series
Nominal impedance
8 ohms (minimum 2.9 ohms)
Sensitivity
91 dB (2.83 V / 1 m)
Installation type
Recessed ceiling mount (wall/ceiling thickness 8 to 60 mm)
Width
37.0 cm
Depth
19.5 cm
Height
37 cm
Unit weight
8.3 kg

Specific References

UPC
66273
EAN13
0354405169144
New
