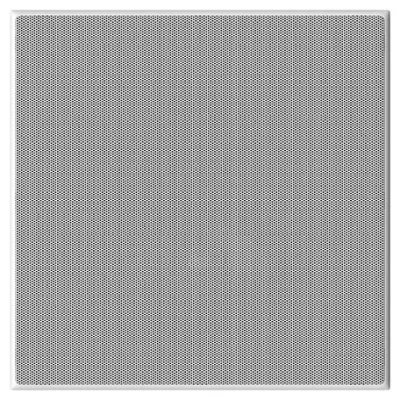

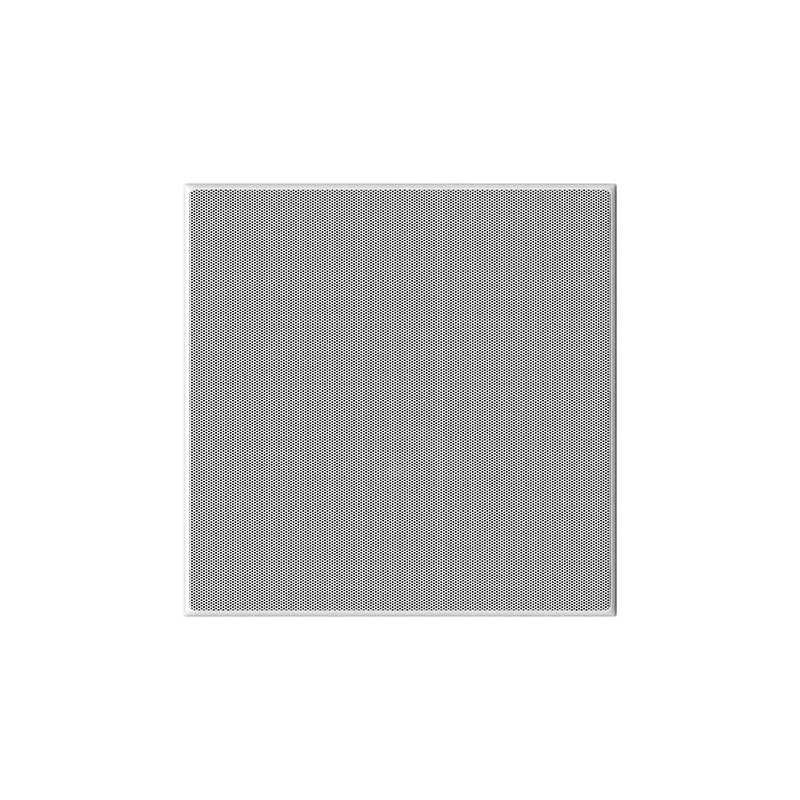

CCM8.5 D IS A Two-Way in-Ceiling Speaker.
| Model | Ccm8.5 d |
| Description | 2-Way in-Ceiling Loudspeaker |
| Technical Features | Aluminum Tweeter 'Wing' Rotatable aluminum Mini Baffle Allows 'Toe-in' Diamond Dome, Nautilus ™ TUBE-LOADED TWEETER Anti-resonance plug Flowport ™ |
| Drive Units | 1x Ø25mm (1in) Diamond Dome, Nautilus ™ Tube-Loaded Tweeter 1x Ø180mm (7in) Continuum CONE BASS / Midrange driver with anti-resonance plug |
| FREQUENCY RANGE (-6DB) | 35Hz - 35kHz |
| Recommended Amplifier Power | 120w |
| Sensitivity | 88db |
| Nominal impedance | 8ω |
| Frame (Width / Height) | 351mm (13.8in) |
| Cut-out (Width / Height) | 331mm (13in) |
| Protrusion | 8mm (0.3in) |
| Net Weight | 5kg |
| Back box | BB CCM8.5 |
CCM8.5 D IS Engineered to Deliver High-Performance Sound From A Relatively Compact Ceiling-Mounted Loudspeaker. IT Features A Decoupled Diamond Dome 25mm (1 Inch) Tweeter and Single 180mm (7-inch) Bass / Mid Continuum Driver.
The Most Accurate High-Frequency Drive Unit Available, The Exceptionally Stiff and Light Diamond Diamond Diaphragm Pure, Distortion-Free Treble. CCM8.5 D ALSO INCLUDES A DARK CONTINUUM BASS / MID Driver for Pristine Midrange and Low End Sound. Both Drivers Are Located in a Continuously Rotable Mini-Baffle Which Allows The User To 'Toe in' The Drivers for The Best Performance.
CCM8.5 Back Box is Fully Matrix ™ Braced, for Extra Rigidity and Improved Performance. The Back Box Also Includes Bi-Wirable Cables That Are Guided Tobs The Terminal Through Tubes and Connect To The Baffle with a multi-pin connector. CCM8.5 D HAS ALSO BEEN DEVELOPED TO FIT INTO EXISTING BACK BOXES Enabling Customers Who Purchased The Original CCM8.5 to Easily Upgrade.
