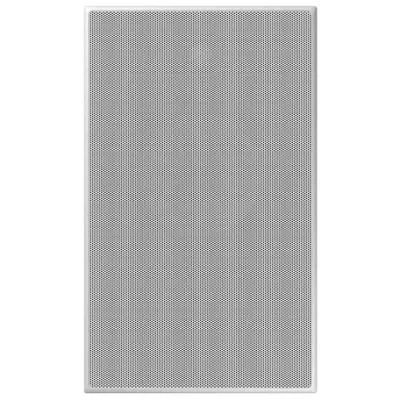

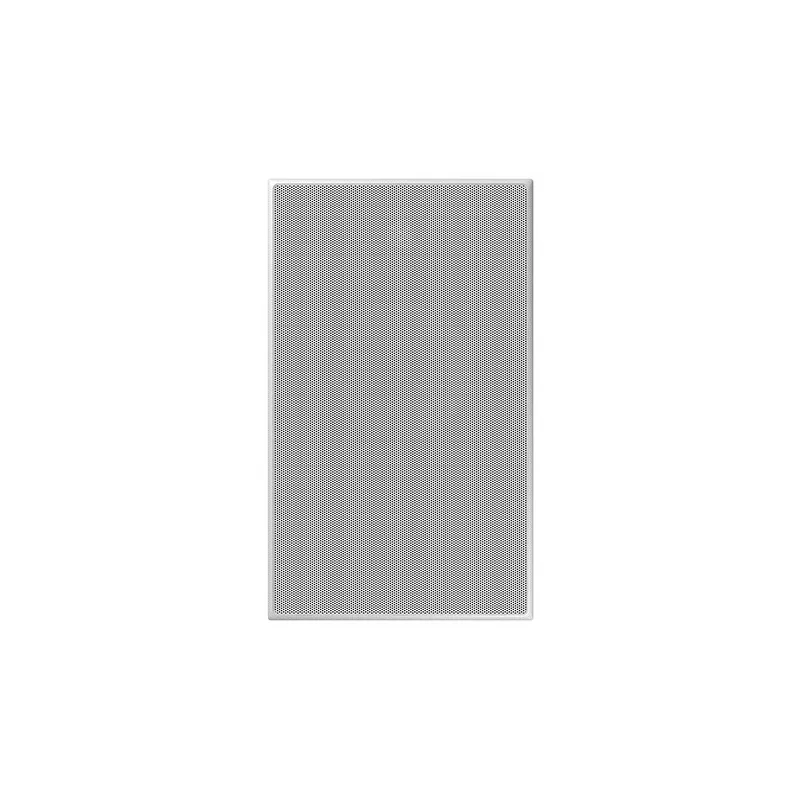

The CWM8.5 D is a two-way "in-Wall" (built-in wall) speakers.
| Model | Cwm8.5 d |
| Description | 2-way acoustic speaker "In-Wall" |
| Technical Cataceristes | Diamond Dome Tweeter Tubular Nautilus ™ load Anti-resonance plug Event FlowPort ™ |
| Speakers | 1x Tweeter tubular load Nautilus ™ Ø25mm (1 inch) 1x Medium / Serious Ø180mm (7 inches) with Continu Membrane with anti-resonance plug |
| Range of frequencies (-6db) | 35Hz - 35kHz |
| Recommended amplifier power | 120w |
| Sensitivity | 89db |
| Nominal impedance | 8ω |
| Frame height | 411mm (16.2 inches) |
| Frame width | 247mm (9.7 inches) |
| Recessed height | 395mm (15.5 inches) |
| Recessed width | 231mm (9.1 inches) |
| Overflow | 8mm (0.3 inch) |
| Net weight | 3.5kg |
| Back box | BB CWM8.5 |
The CWM8.5 D is a two-way "in-Wall" (built-in wall) speakers. It is equipped with a 25 mm (1 inch) diamond dome decoupled tweeter and 180 mm (7 inches) membrane medium / grave.
The CCM8.5D has been designed to deliver the best possible from a relatively compact in-walled enclosure. It incorporates a 25 mm (1 inch) diamond dome tweeter with 180 mm (7 inches) membrane medium / grave / grave.
The most accurate high frequency speakers available. The lightness and the rigidity of the diamond guarantee a perfectly pure and distortional tremor. The CWM8.5 D also has a bass / medium-medium loudspeaker on continuum, for a clear medium and deep bass.
The "back-box" of the CWM8.5D has a full Matrix ™ reinforcement for more rigidity and improved performance. The backbox is also equipped with cables for bicaching, guided to the connection panel via tubes and connected to the baffle by a multiPoint connector. CWM8.5 D has also been developed to be integrated into a back -Box existing, allowing the owners of the original CWM8.5 to evolve more easily.
