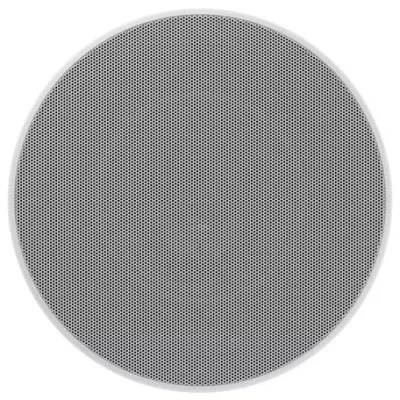

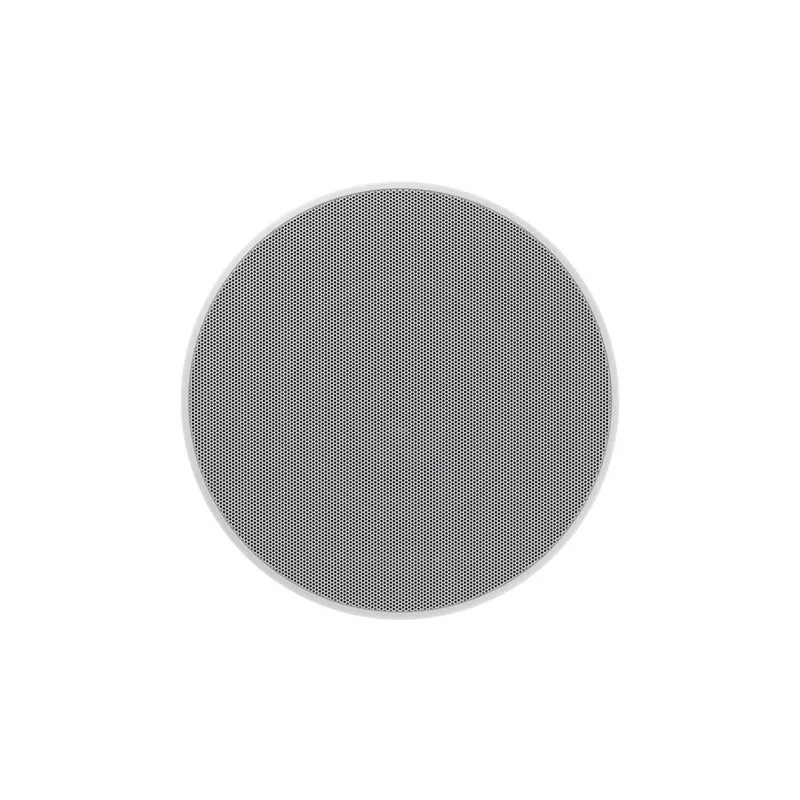

A high performance enclosure built to the ideal ceiling for surround sound in a home cinema installation or stereo sound in small pieces.
A high performance and ideal surround ceiling speaker to provide surround sound of a Home Cinema facility, or to get stereo sound in rooms where space is reduced.
The enclosure is composed of two 150 mm Kevlar Serial Grave / Medium Spreaders and two 25 mm flexible dome tweeters.
These combine the stereo signal, allowing to use a single ceiling chamber without loss of audio channel. You can switch from stereo mode to the surround sound mode by simply actuating a button.
| Description | 2-way ceiling 2-way chamber |
| Speakers | 1 x Tweeter with load "Swirl" Nautilus ® and aluminum dome Ø 25 mm 1 x Medium / Graves Blue Kevlar ® Ø 150 mm ® |
| Frequency range (-6 dB) | 45 Hz-30 kHz48 Hz-30 KHz |
| Recommended amplifier power | 25-80 W (per channel) |
| SPL sensitivity (2.83 V, 1M) | 83 dB (per channel) 89 dB (both channels in service) |
| Nominal impedance (min) | 8 ohms (4 OHMS) (per channel) |
| Frame diameter | 240 mm |
| Recessed diameter | 202 mm |
| Depth under the recessed surface | 133 mm |
| Projecting | 4 mm |
| Pre-assembly kit | C6 |
| Back box | 6c |
