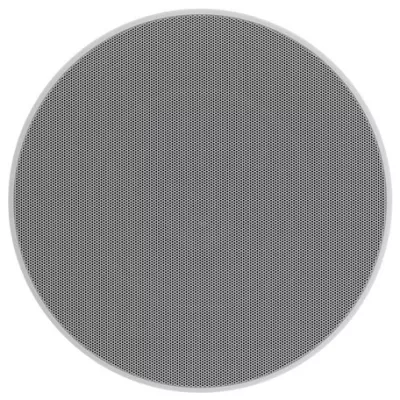

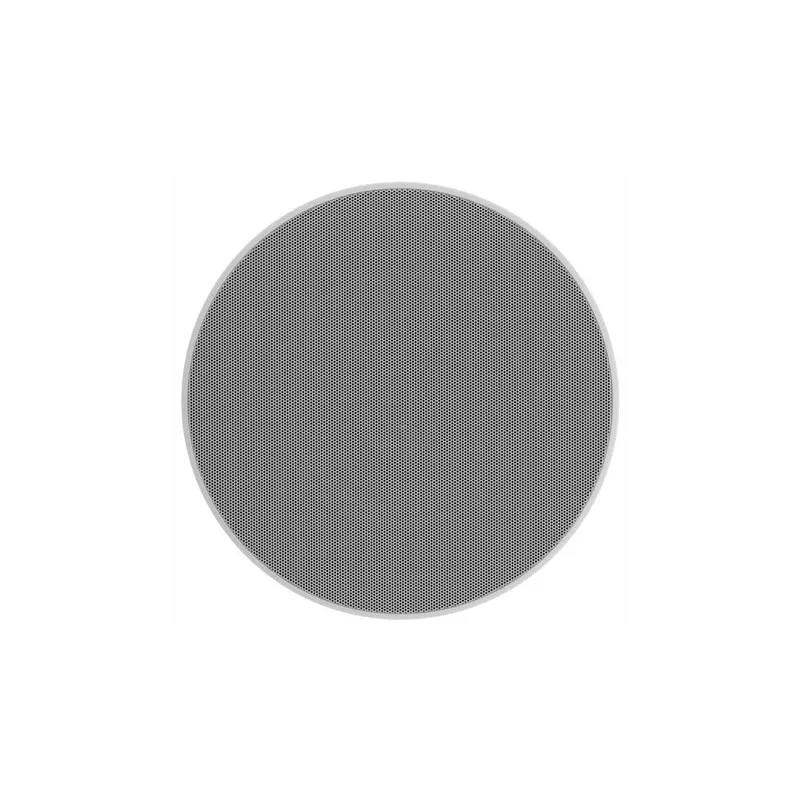

The CCM683 is composed of a KEVLAR® membrane medium / severe medium speaker and a nautilus orientable aluminum dome tweeter for a very precise adjustment of treble.
Guarantee safe & secure checkout
The CCM683 shares most of the high performance features of the CCM682, but it offers a maximum power of 130W, slightly lower.
Like the CCM682, this speaker uses a 200 mm grave / medium speaker with a kevlar membrane and a rigid molded chassis, a swiveling Nautilus aluminum dome tweeter for a very precise adjustment of the AIGUAL AND A THREE POSITION EQUITOR.
| Description | 2-way ceiling 2-way chamber |
| Speakers | 1 x Tweeter with load "Swirl" Nautilus ® and aluminum dome Ø 25 mm 1 x Medium / Graves Blue Kevlar ® Ø 200 mm ® |
| Frequency range (-6 dB) | 35 Hz- 50 kHz |
| Recommended amplifier power | 25 -130 W |
| SPL sensitivity (2.83 V, 1M) | 88 dB |
| Nominal impedance (min) | 8 ohms (4.5 ohms) |
| Frame diameter | 290 mm |
| Recessed diameter | 250 mm |
| Depth under the recessed surface | 133 mm |
| Projecting | 4 mm |
| Pre-assembly kit | C8 |
| Back box | 6c |
Data sheet
