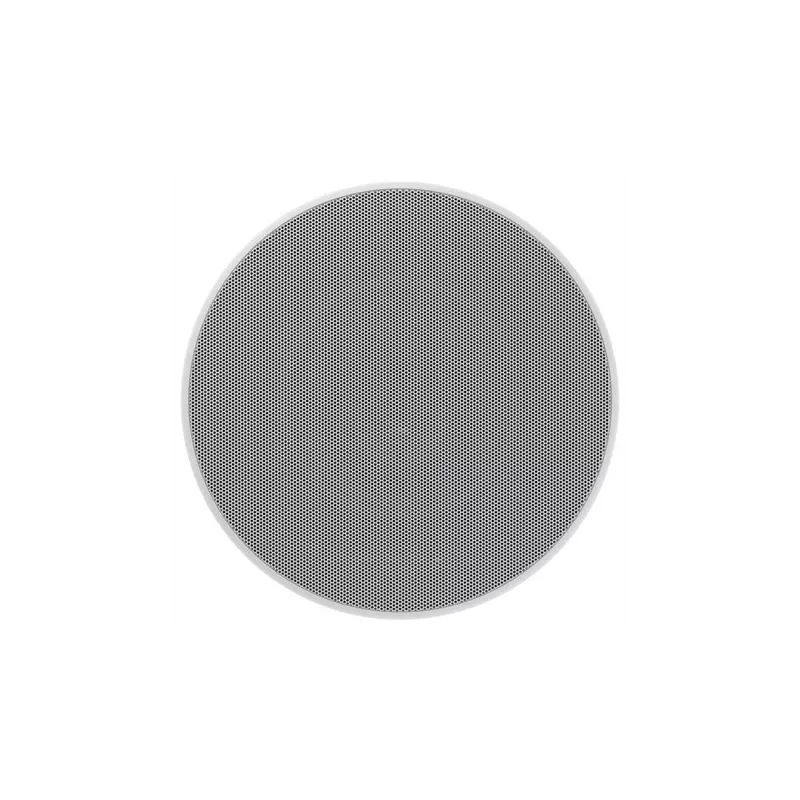

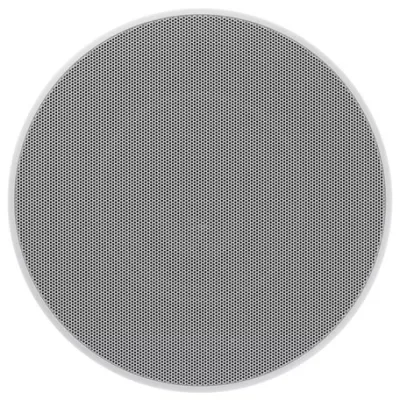

The CCM664 is equipped with a 25 mm tilt-tilt-tilted dome tweeter and a 150 mm browned glass fiber / grave medium speaker.
Guarantee safe & secure checkout
The CCM664 enclosure is equipped with a 2-domestically swiveling dome tweeter and a grave / medium loudspeaker in braided fiberglass. Quick and easy installation, the three-way speaker also includes a three-position equalizer for better fit. An economical solution to get a high quality sound with a ceiling chamber.
| Description | 2-way ceiling 2-way chamber |
| Speakers | 1 x Flexible dome tweeter Ø 25 mm 1 x Medium / Graves Fiberglass Cone Ø 150 mm |
| Frequency range (-6 dB) | 45 Hz-35 kHz |
| Recommended amplifier power | 25- 130 W |
| SPL sensitivity (2.83 V, 1M) | 87 dB |
| Nominal impedance (min) | 8 ohms (4.5 ohms) |
| Frame diameter | 240 mm |
| Recessed diameter | 202 mm |
| Depth under the recessed surface | 133 mm |
| Projecting | 4 mm |
| Pre-assembly kit | C6 |
| Back box | 6c |
Data sheet
