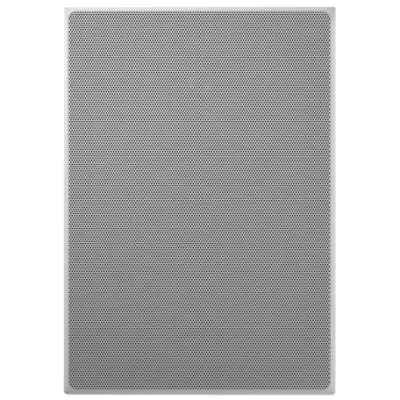

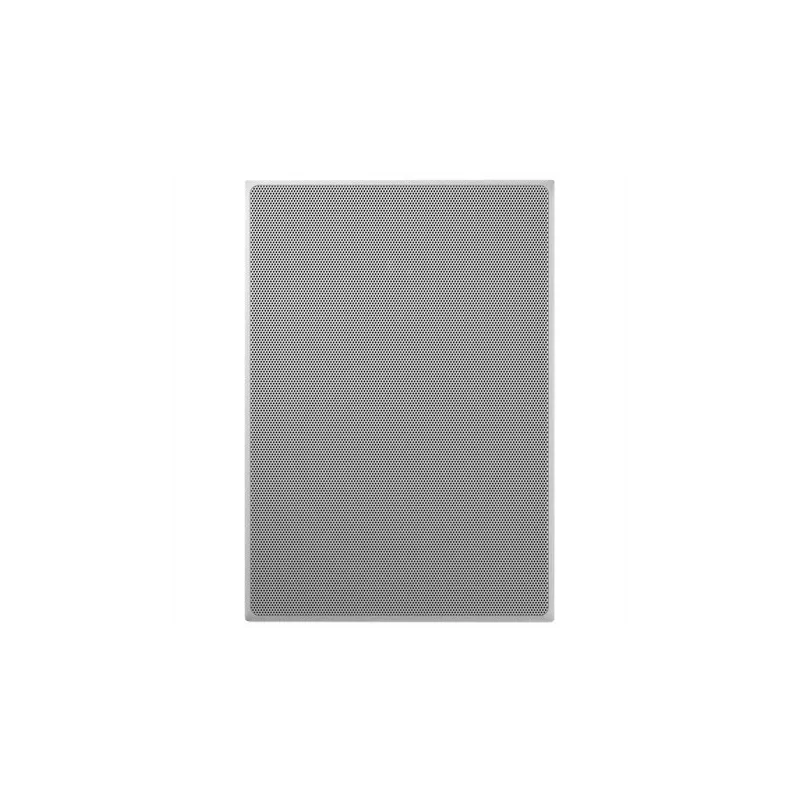

The CWM663 is composed of a blue Kevlar® blue-colored medium / grave speaker, integrated into a molded chassis that ensures increased rigidity for sharper and faster low.
The CWM663 incorporates a 150 mm diaphragic grave / medium speaker in blue Kevlar in a molded chassis that ensures increased rigidity for sharper and faster bass. The speaker also incorporates an aluminum dome tweeter and 25 mm Nautilus tubular loading, as well as a three-position selector to adjust the acute frequencies. The installation is effortless thanks to our new QuickDogs fixing system and a plug-and-play connection.
| Description | 2-way ceiling 2-way chamber |
| Speakers | 1 x Tubular tube tweeter Nautilus ® and aluminum dome Ø 25 mm 1 x Medium / Graves Blue Kevlar ® Ø 150 mm ® |
| Frequency range (-6 dB) | 45Hz - 50kHz |
| Max. amplifier | 25 - 150W |
| SPL sensitivity (2.83 V, 1M) | 88db |
| Nominal impedance (min) | 8 ohms (4.5 ohms) |
| Frame height | 315mm |
| Frame width | 221mm |
| Recessed height | 279mm |
| Recessed width | 183mm |
| Depth under the recessed surface | 95mm |
| Projecting | 4mm |
| Pre-assembly kit | PMK W6 |
| Back box | BB 6W |
Data sheet
