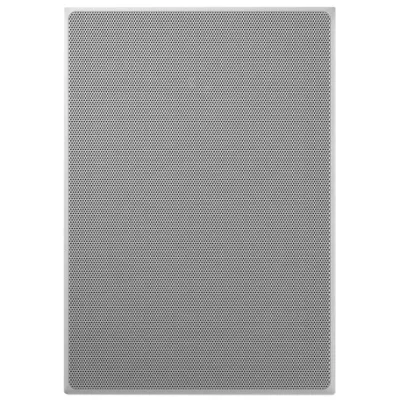

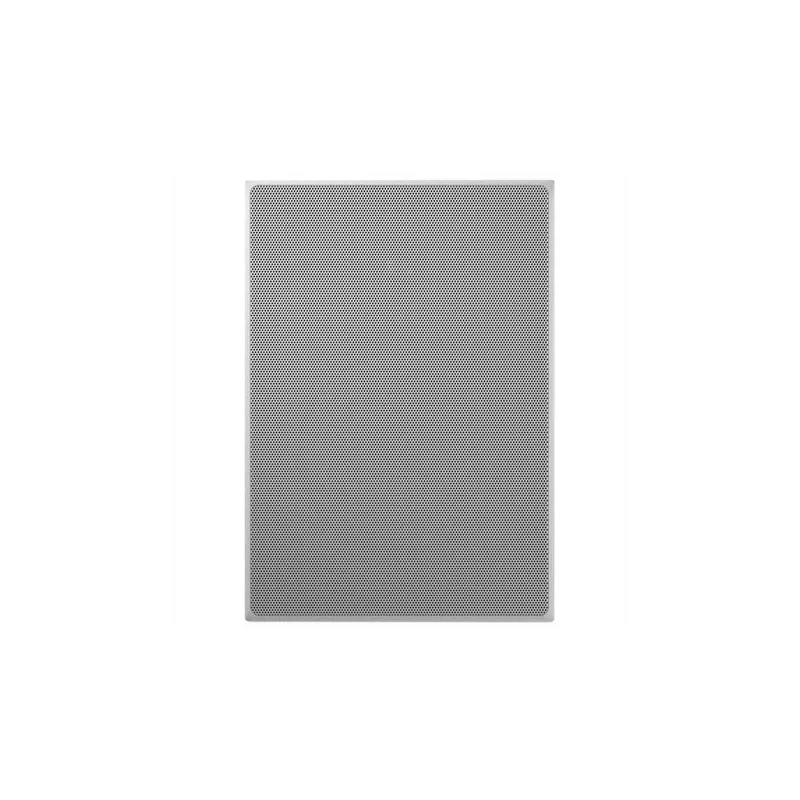

The CWM664 has the same basic characteristics and dimensions as the CWM663, but it incorporates a soft and tubular tubular tweeter Nautilus.
The CWM664 has the same basic characteristics and dimensions as the CWM663, but it uses a flexible (non-aluminum) and tubular tubular tube tweeter, as well as a grave / medium speaker diaphragm in black fiberglass (and not in blue kevlar). The installation is effortless thanks to our new QuickDogs fixing system and a plug-and-play connection.
| Description | 2-way in-Wall system |
| Speakers | 1x Tweeter Ø25mm (1 inch) with aluminum dome and tubular load Nautilus 1x Serious / Medium Ø150mm (6 inches) Black fiberglass |
| Range of frequency (-6db) | 45Hz - 35kHz |
| Recommended amplifier power | 25 - 130W |
| SPL yield (2.83V, 1M) | 87.5db |
| Impedance Nomin ALE (min) | 8Ω (4.5Ω) |
| Frame height | 315mm |
| Frame width | 221mm |
| Recessed height | 279mm |
| Recessed width | 183mm |
| Recessed depth | 95mm |
| Overflow | 4mm |
| Mounting kit | PMK W6 |
| Back box | BB 6W |
| Pre-assembly kit | PMK W6 |
Data sheet
