DALI PHANTOM E-60 S | In-Ceiling Speaker (each)

62034
CHF349.00 Tax included
Supplier stock – typically 4 to 7 days

DALI PHANTOM E-60 S stereo in-ceiling speaker, 6.5-inch dual voice coil woofer and two 20 mm domes. Carries both channels on its own.

Quantity
Add to wishlist
Supplier stock – typically 4 to 7 days

Ceiling fitted with round DALI PHANTOM speakers

One Speaker, Two Channels

The E-60 S carries both channels of a stereo system. Its 6.5-inch woofer uses a dual voice coil and two 20 mm domes radiate on either side. A single cut-out is enough in a kitchen, a hallway or a bathroom.

Front of the E-60 S with its white grille

Two Inputs, Two Times 8 Ohms

Two separate terminals take the left and the right channel, each at 8 ohms. Power handling is 2 x 20 to 80 W, sensitivity 90 dB for both channels together and maximum output 105 dB at one metre.

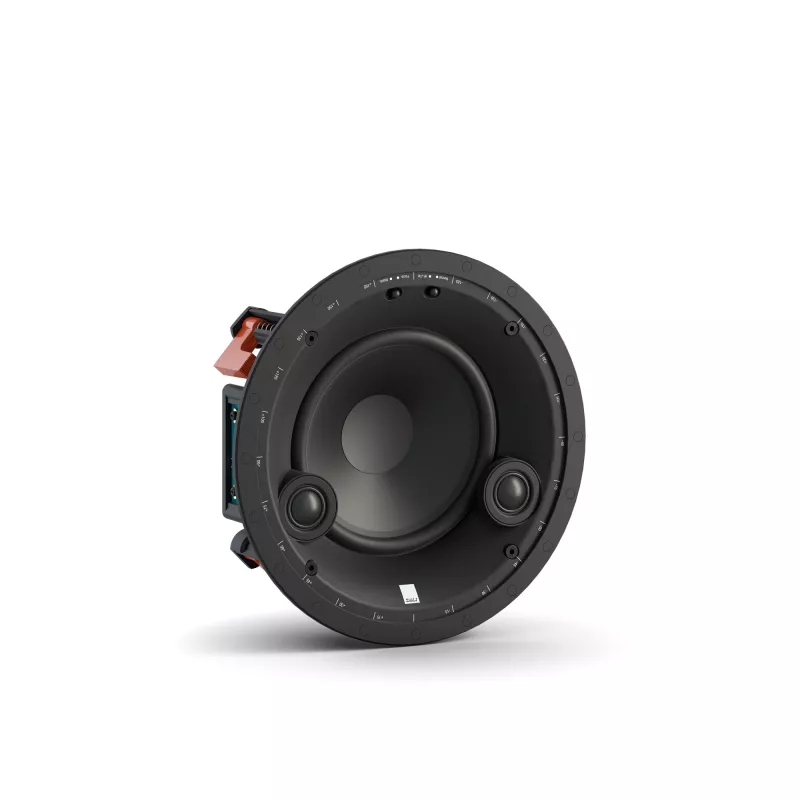

Three-quarter view of the baffle and the two domes

Normal and High+ Settings

One switch per channel lifts the treble in the High+ position. The graduated ring around the bezel marks how the speaker is turned within the ceiling, so the left and right channels end up on the right side of the room. The crossover sits at 2600 Hz.

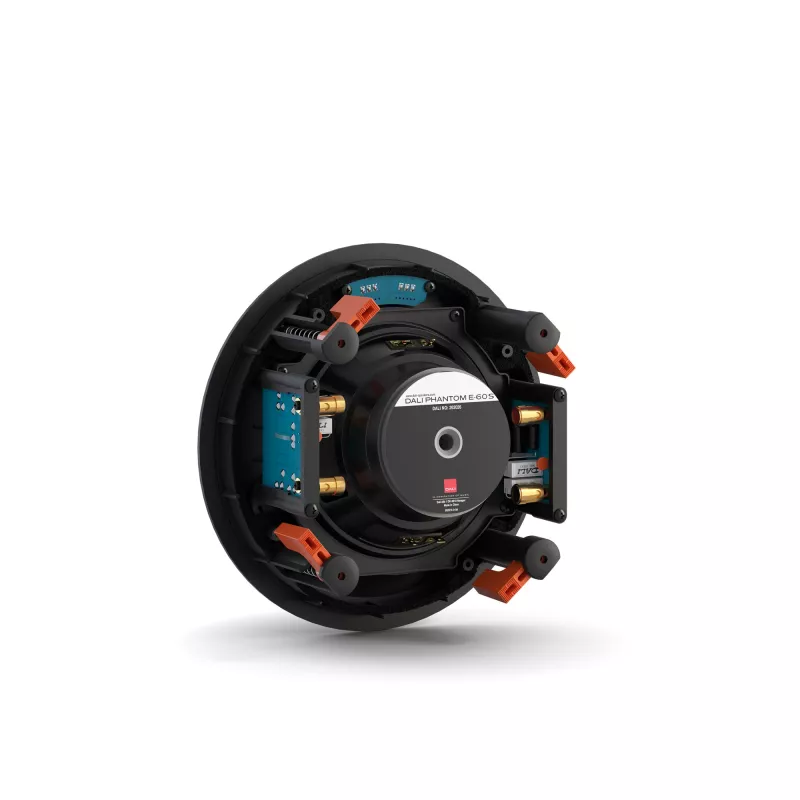

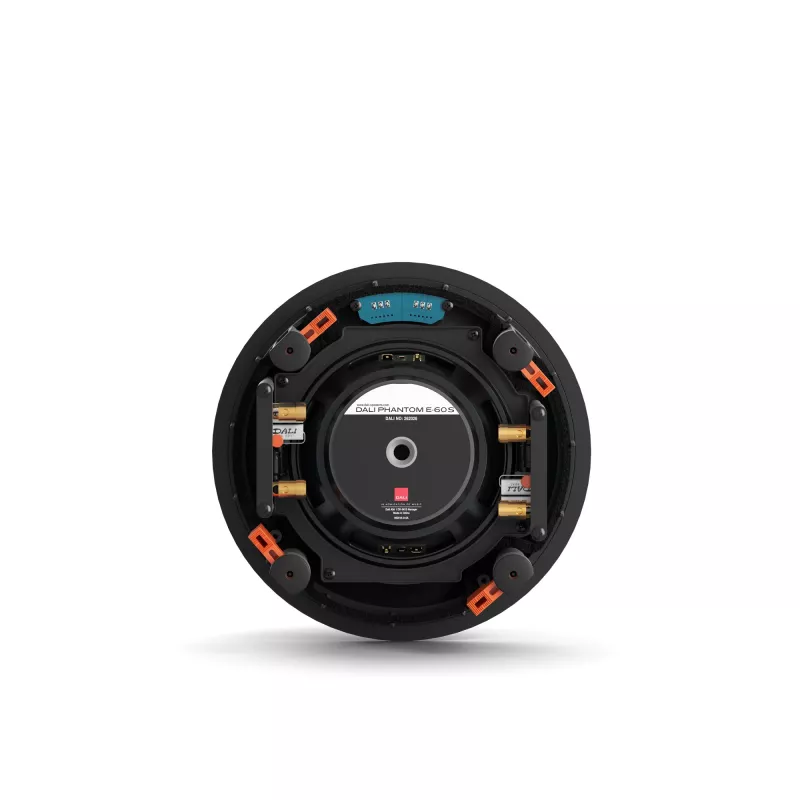

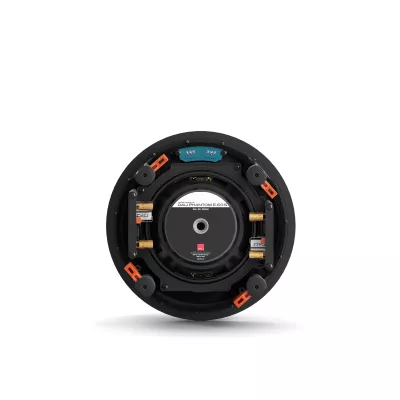

Back of the speaker, clamps and terminals

Installation

Round cut-out of 225 mm, mounting depth of 101 mm, ceiling from 10 to 70 mm. Overall 258 mm across by 109 mm with its grille, for 2 kg. The cabinet is open at the back, with a recommended volume of 5 to 35 litres.

62034

Data sheet

Product Type
In-wall speaker
Brand
DALI
Nominal impedance
8 + 8 ohms
Sensitivity
90 dB
Connections
2 x single wire
Tweeter
2 x 20 mm soft dome
Woofer
1 x 6.5-inch dual voice coil
Frequency response
57 Hz - 25 kHz (±3 dB)
Recommended amplifier power
2 x 20 - 80 W
Maximum SPL
105 dB
Width
25.8 cm
Depth
10.9 cm
Height
25.8 cm
Unit weight
2.0 kg

Specific References

EAN13
5703120110493
