DALI PHANTOM H-60 R | In-Wall Speaker (each)

69449
CHF449.00 Tax included
Supplier stock – typically 4 to 7 days

DALI PHANTOM H-60 R rectangular flush-mount speaker, 6.5-inch woofer and 28 mm soft dome. Wall or ceiling mounting, sold individually.

Quantity
Add to wishlist
Supplier stock – typically 4 to 7 days

Home cinema room fitted with DALI PHANTOM in-wall speakers

Rectangular Format

The H-60 R holds a 6.5-inch woofer in a rectangular 414 x 244 mm chassis. The shape follows the lines of a ceiling or a wall and takes horizontal or vertical mounting, as front, centre or surround.

Front of the H-60 R with its white grille

6.5-inch Wood Fibre Woofer

The wood fibre cone reaches down to 51 Hz at plus or minus 3 dB. Sensitivity is 89 dB, nominal impedance 6 ohms, power handling 30 to 150 W and maximum output 107 dB at one metre.

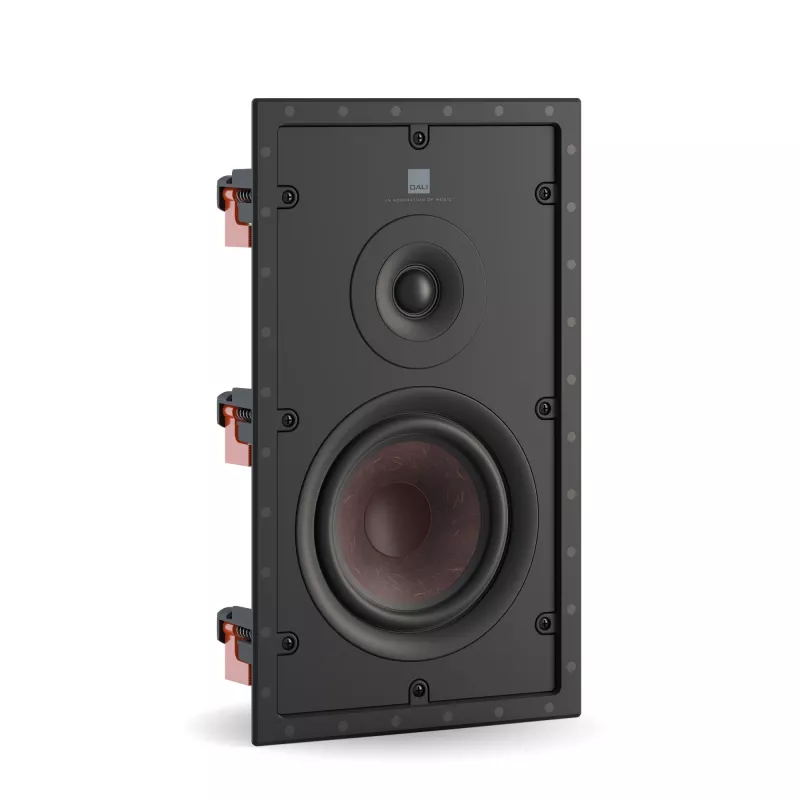

Three-quarter view of the baffle and the dome

Aimable Soft Dome

The 28 mm soft dome turns within the baffle and can be aimed at the listening area, which matters when the speaker sits in the ceiling. The two-way crossover sits at 1900 Hz. The cabinet is open at the back, for a wall cavity of 10 to 35 litres, with 20 litres as the optimum.

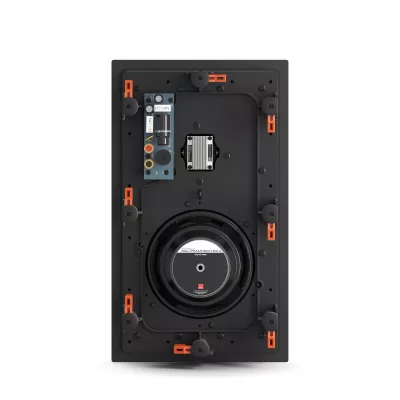

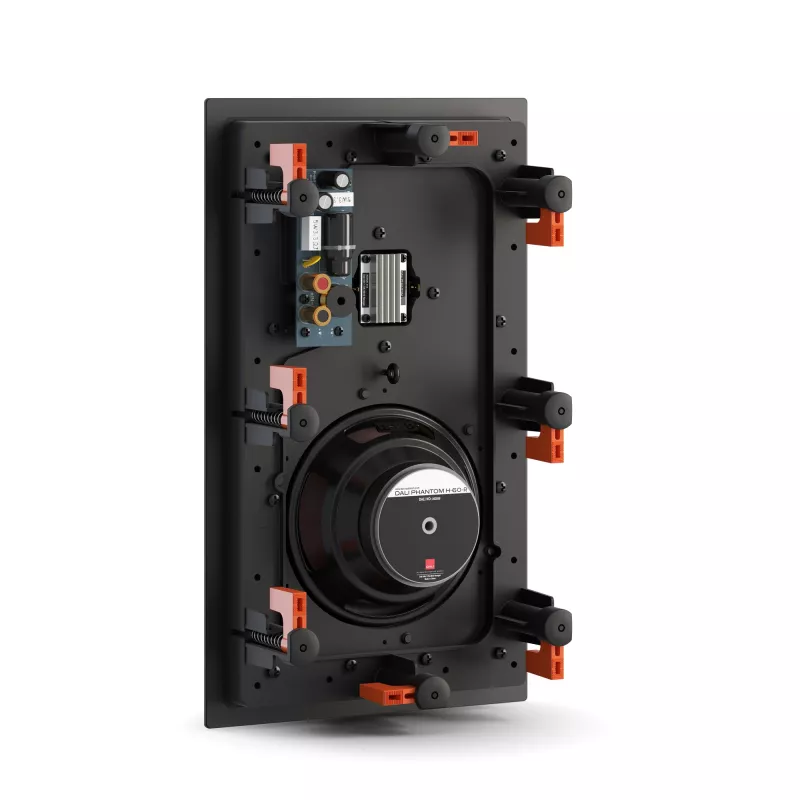

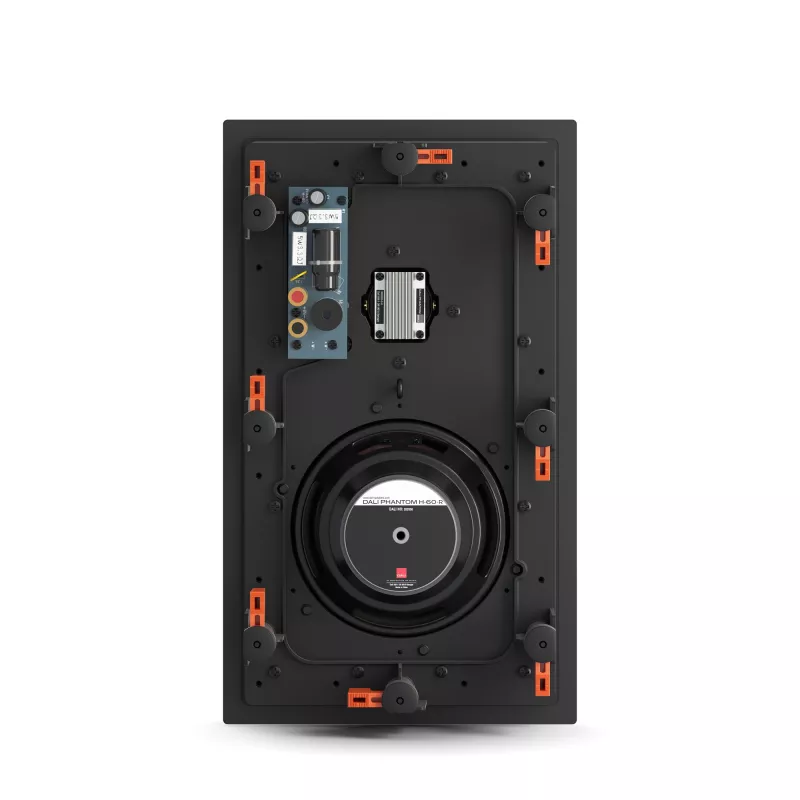

Back of the speaker, clamps and terminal

Installation

Cut-out of 390 x 220 mm, mounting depth of 92 mm, wall or ceiling from 10 to 70 mm. The dog-leg clamps tighten with a screwdriver. The speaker weighs 3.5 kg with its grille.

69449

Data sheet

Product Type
In-wall speaker
Brand
DALI
Nominal impedance
6 ohms
Sensitivity
89 dB
Tweeter
28 mm soft dome
Woofer
1 x 6.5-inch
Frequency response
51 Hz - 25 kHz (±3 dB)
Recommended amplifier power
30 - 150 W
Maximum SPL
107 dB
Width
24.4 cm
Depth
9.7 cm
Height
41.4 cm
Unit weight
3.5 kg

Specific References

EAN13
5703120112800
New
