DALI PHANTOM H-80 R | In-Wall Speaker (each)

69448
CHF549.00 Tax included
Supplier stock – typically 4 to 7 days

DALI PHANTOM H-80 R rectangular flush-mount speaker, 8-inch woofer and 28 mm soft dome. Wall or ceiling mounting, sold individually.

Quantity
Add to wishlist
Supplier stock – typically 4 to 7 days

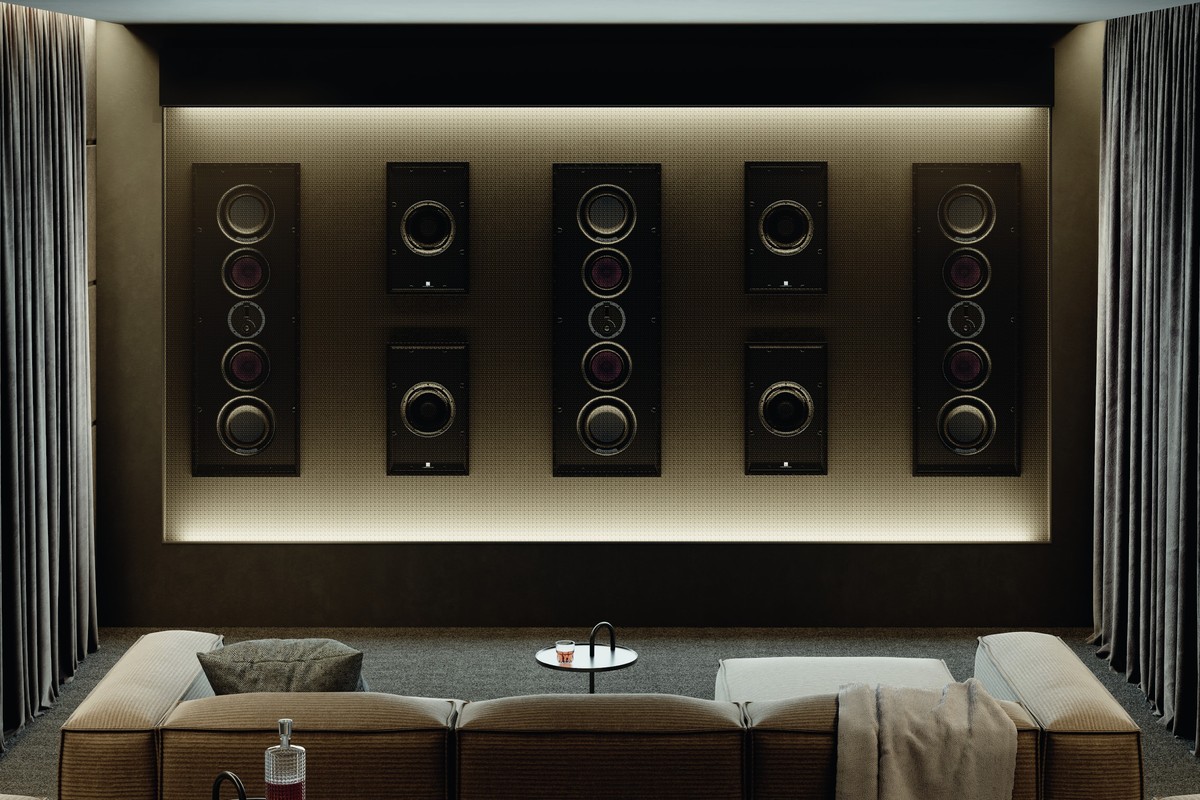

Home cinema room fitted with DALI PHANTOM in-wall speakers

Rectangular Format

The H-80 R carries the 8-inch driver of the H series in a rectangular 452 x 284 mm chassis. That shape follows the lines of a ceiling or a wall better than a circle and mounts either horizontally or vertically.

Front of the H-80 R with its white grille

8-inch Wood Fibre Woofer

The wood fibre cone reaches down to 46 Hz at plus or minus 3 dB. Sensitivity of 90 dB and a nominal impedance of 6 ohms suit home cinema amplifiers; power handling runs from 30 to 200 W and maximum output reaches 109 dB at one metre.

Three-quarter view of the baffle and the dome

Aimable Soft Dome

The 28 mm woven fabric soft dome turns within the baffle and can be aimed at the listening area. The two-way crossover sits at 2350 Hz. The cabinet is open at the back: the wall cavity acts as the load, from 15 to 100 litres, with 30 litres as the optimum.

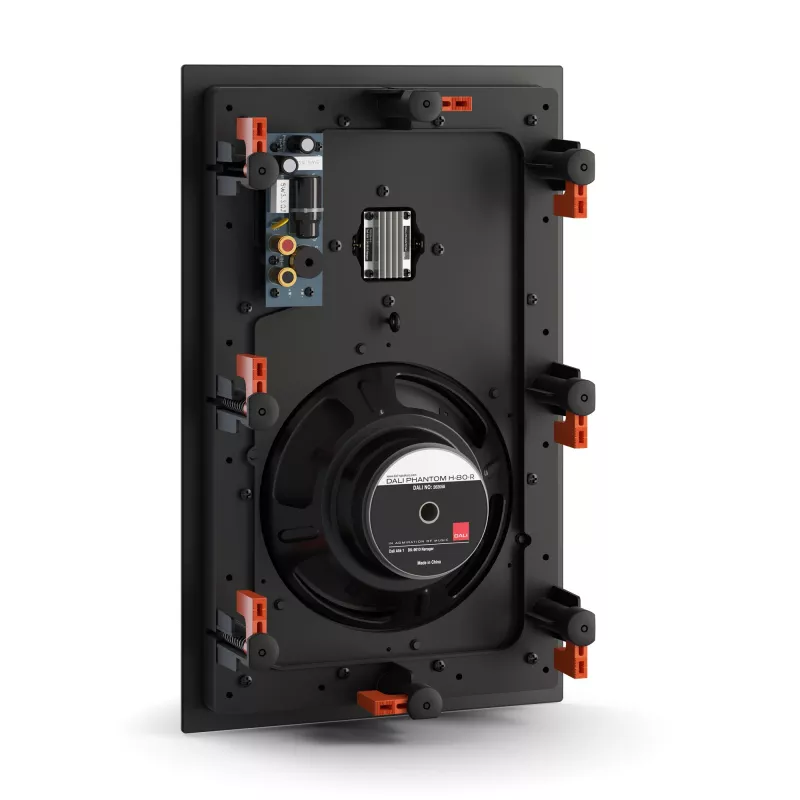

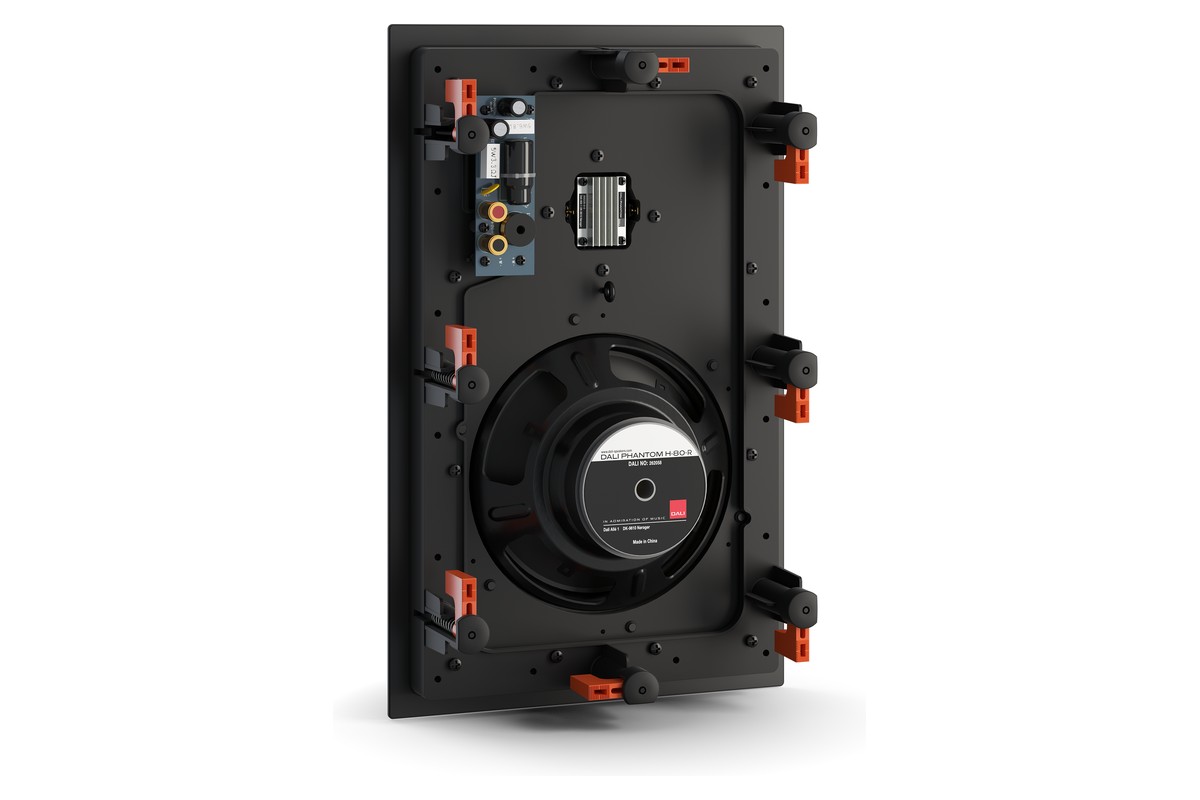

Back of the speaker, clamps and terminal

Installation

Cut-out of 427 x 260 mm, mounting depth of 102 mm, wall or ceiling from 10 to 70 mm. The dog-leg clamps tighten with a screwdriver. The speaker weighs 4 kg with its grille.

69448

Data sheet

Product Type
In-wall speaker
Brand
DALI
Nominal impedance
6 ohms
Sensitivity
90 dB
Tweeter
28 mm soft dome
Woofer
1 x 8-inch
Frequency response
46 Hz - 25 kHz (±3 dB)
Recommended amplifier power
30 - 200 W
Maximum SPL
109 dB
Width
28.4 cm
Depth
10.7 cm
Height
45.2 cm
Unit weight
4.0 kg

Specific References

EAN13
5703120113005
New
