DALI PHANTOM M-675 | In-Wall Speaker (each)

69444
CHF2,199.00 Tax included
Supplier stock – typically 4 to 7 days

DALI PHANTOM M-675 in-wall speaker, two 7-inch woofers, four passive radiators and a rotatable hybrid tweeter module. Sold individually.

Quantity
Add to wishlist
Supplier stock – typically 4 to 7 days

Home cinema room fitted with DALI PHANTOM in-wall speakers

Four Passive Radiators

The M-675 holds two 7-inch woofers and four 7-inch passive radiators in a closed, mass-tuned cabinet 1324 mm tall. The radiators extend the bass to 49 Hz at plus or minus 3 dB, with no port and no air noise inside the wall.

Baffle with its white grille, front view

Three Crossover Points

The crossover sits at 1000, 2800 and 15000 Hz, two and a half ways: one woofer stops early, the other carries into the midrange, then the 28 mm soft dome and the 17 x 45 mm ribbon take over. Nominal impedance is 4 ohms and power handling runs from 40 to 300 W.

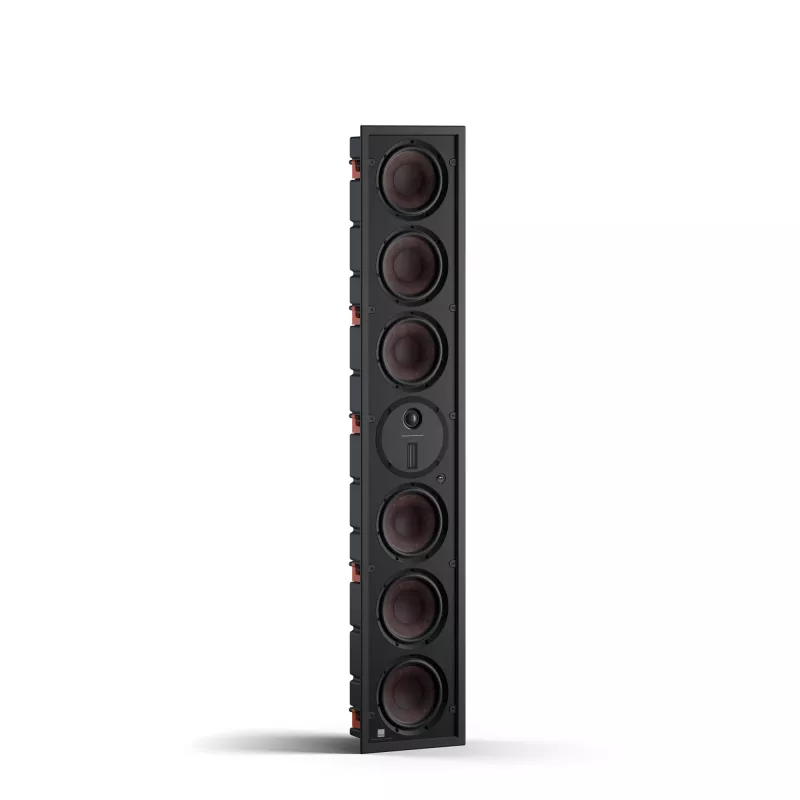

Three-quarter view of the baffle and the tweeter module

Aimable Treble and HF+ Mode

The tweeter module turns within the baffle and a Normal / HF+ switch lifts the treble by a few decibels. In a heavily furnished room, or behind a projection screen, that setting makes up for absorption. Maximum output reaches 110 dB at one metre.

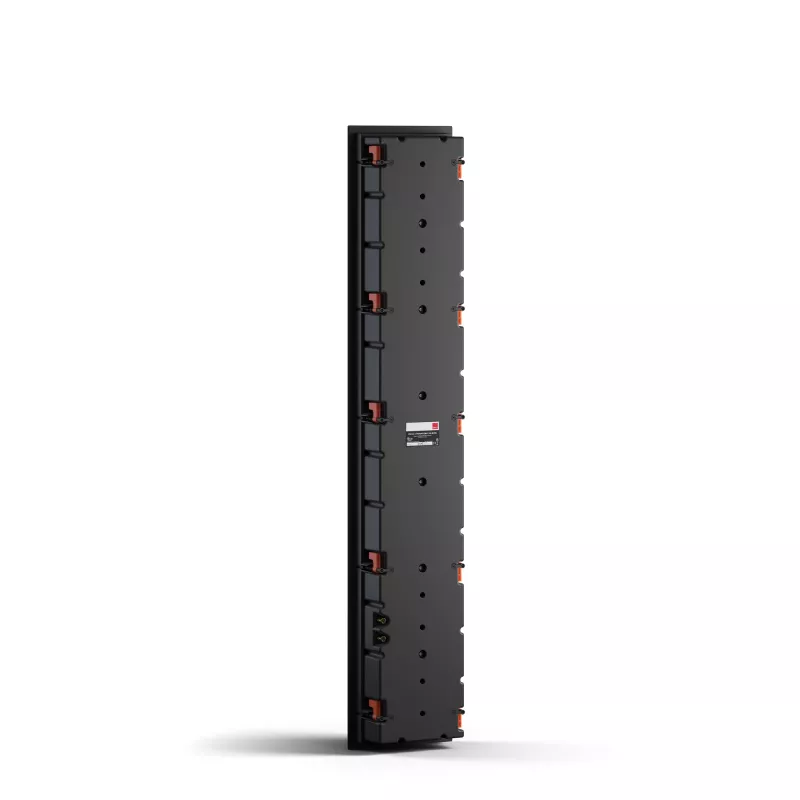

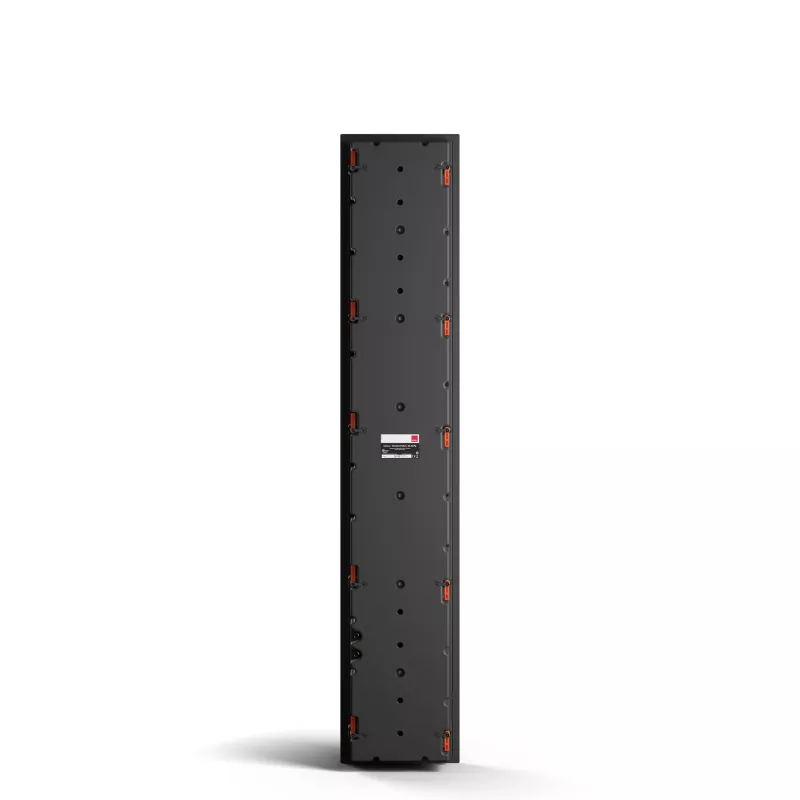

Back of the speaker, passive radiators and terminal

Installation

Cut-out of 1298 x 226 mm, mounting depth of 100 mm, wall thickness from 8 to 68 mm. The speaker weighs 15 kg with its grille. A PHANTOM M-675 FRAME is available for surface mounting.

69444

Data sheet

Product Type
In-wall speaker
Brand
DALI
Nominal impedance
4 ohms
Sensitivity
90 dB
Tweeter
28 mm soft dome + 17 x 45 mm planar ribbon
Woofer
2 x 7-inch wood fibre
Frequency response
49 Hz - 25 kHz (±3 dB)
Recommended amplifier power
40 - 300 W
Maximum SPL
110 dB
Width
25.4 cm
Depth
10.6 cm
Height
132.4 cm
Unit weight
15.0 kg

Specific References

EAN13
5703120113296
