DALI PHANTOM S-180 | In-Wall Speaker (each)

60566
CHF2,999.00 Tax included
Supplier stock – typically 4 to 7 days

DALI PHANTOM S-180 in-wall speaker, 8-inch woofer, 10-inch passive radiator and a rotatable hybrid tweeter module. Sold individually.

Quantity
Add to wishlist
Supplier stock – typically 4 to 7 days

Home cinema room fitted with DALI PHANTOM in-wall speakers

One Woofer and a Radiator

The S-180 pairs an 8-inch wood fibre woofer with a 10-inch passive radiator in a closed, mass-tuned enclosure. The radiator extends the bass without a port, so without air noise behind the wall. Response reaches down to 49 Hz at plus or minus 3 dB.

Baffle with its white grille, front view

Hybrid Tweeter Module

A 28 mm soft dome and a 17 x 45 mm ribbon share the top of the spectrum, crossing at 2800 and 15000 Hz. The module turns within the baffle, so it can be aimed at the listening area once the speaker is in place.

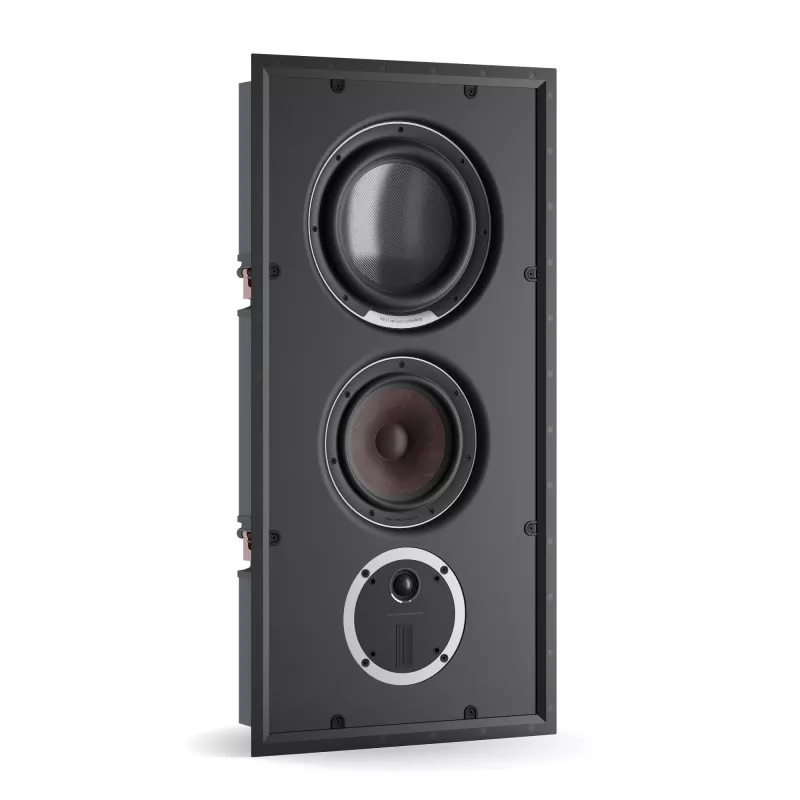

Three-quarter view of the baffle and the tweeter module

Front-Channel Format

At 907 mm tall and 462 mm wide for 108 mm of depth, the S-180 covers the front channel without taking a floorstander's volume. Its 89 dB sensitivity at 6 ohms and 40 to 200 W handling keep it easy to drive.

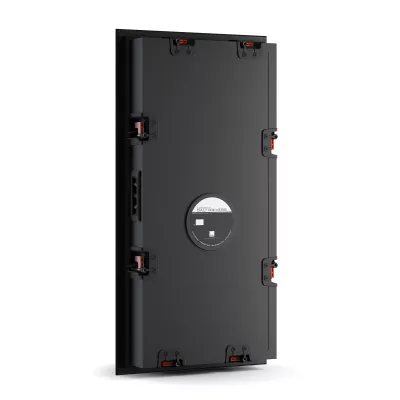

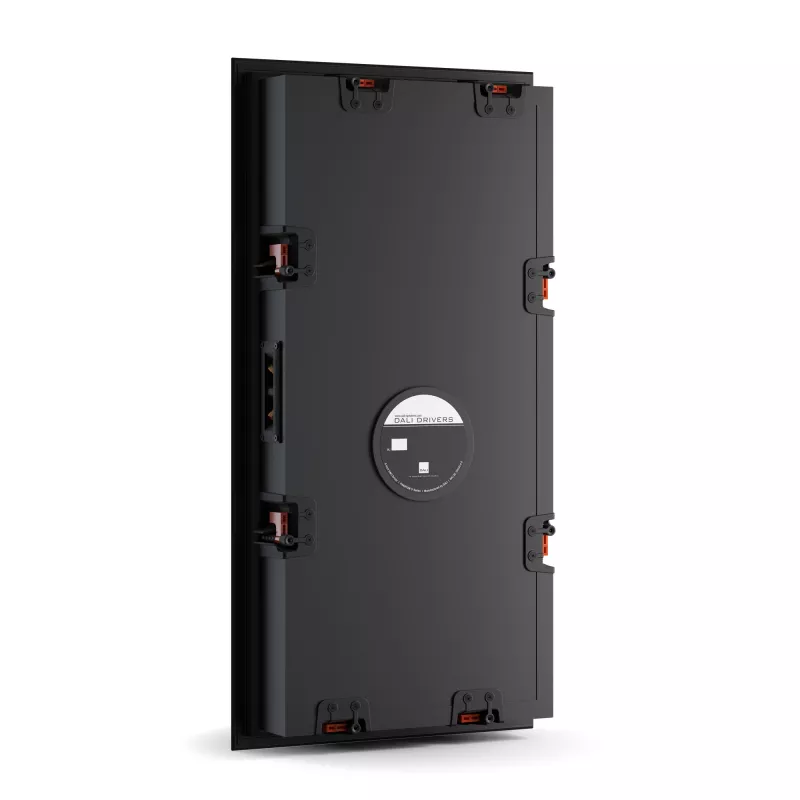

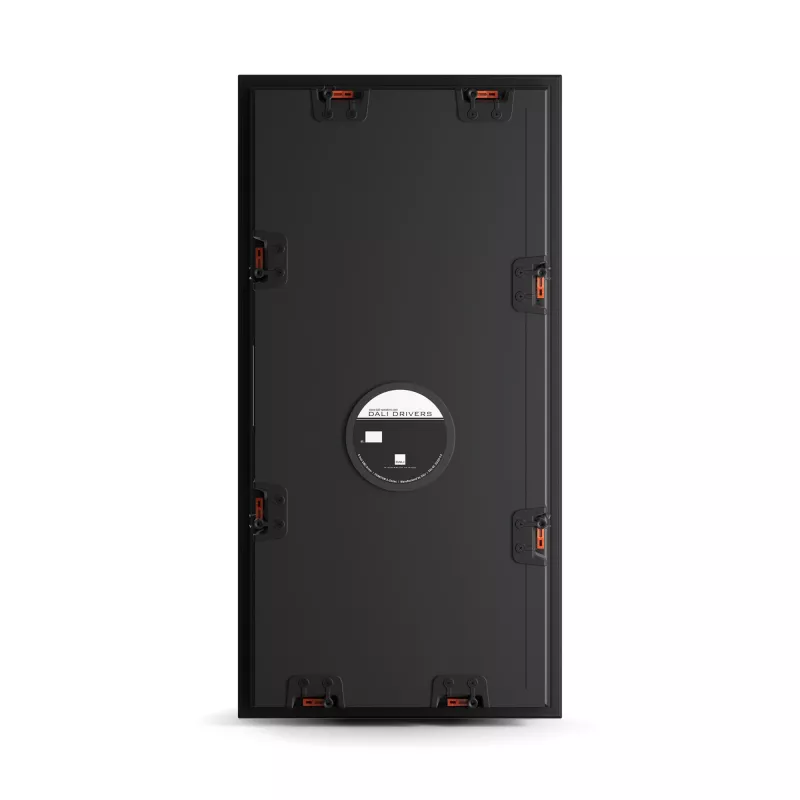

Back of the speaker, passive radiator and terminal

Installation

The cut-out measures 865 x 420 mm, mounting depth is 103 mm, and wall thickness can run from 10 to 70 mm. The speaker weighs 19.5 kg with its grille. A PHANTOM OW FRAME S-180 is available for surface mounting.

60566

Data sheet

Product Type
In-wall speaker
Brand
DALI
Nominal impedance
6 ohms
Sensitivity
89 dB
Tweeter
28 mm soft dome + 17 x 45 mm planar ribbon
Woofer
1 x 8-inch
Frequency response
49 Hz - 25 kHz (±3 dB)
Recommended amplifier power
40 - 200 W
Maximum SPL
109 dB
Width
46.2 cm
Depth
10.8 cm
Height
90.7 cm
Unit weight
19.5 kg

Specific References

EAN13
5703120108674
New
