DALI PHANTOM S-280 | In-Wall Speaker (each)

60565
CHF4,999.00 Tax included
Supplier stock – typically 4 to 7 days

DALI PHANTOM S-280 in-wall speaker, two 8-inch woofers, two 10-inch passive radiators and a rotatable hybrid tweeter module. Sold individually.

Quantity
Add to wishlist
Supplier stock – typically 4 to 7 days

Home cinema room fitted with DALI PHANTOM in-wall speakers

Tuned Mass Enclosure

The S-280 is not a bare baffle in a wall: the enclosure is closed and mass-tuned, with two 10-inch passive radiators extending the bass without a port. Response reaches down to 48 Hz at plus or minus 3 dB for only 108 mm of depth.

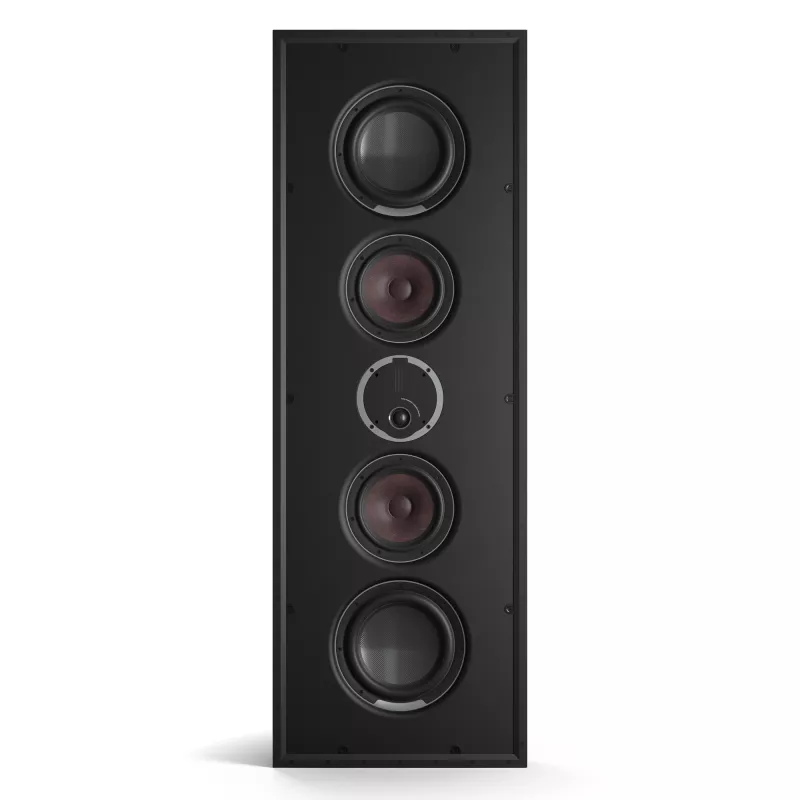

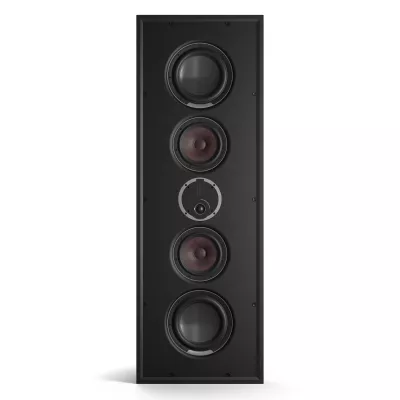

Baffle with its white grille, front view

Two Eight-Inch Woofers

The two 8-inch wood fibre cones work with the hybrid tweeter module, a 29 mm soft dome paired with a 17 x 45 mm ribbon. The crossover sits at 3000 and 15000 Hz, two and a half ways. Nominal impedance is 8 ohms and power handling runs from 40 to 400 W.

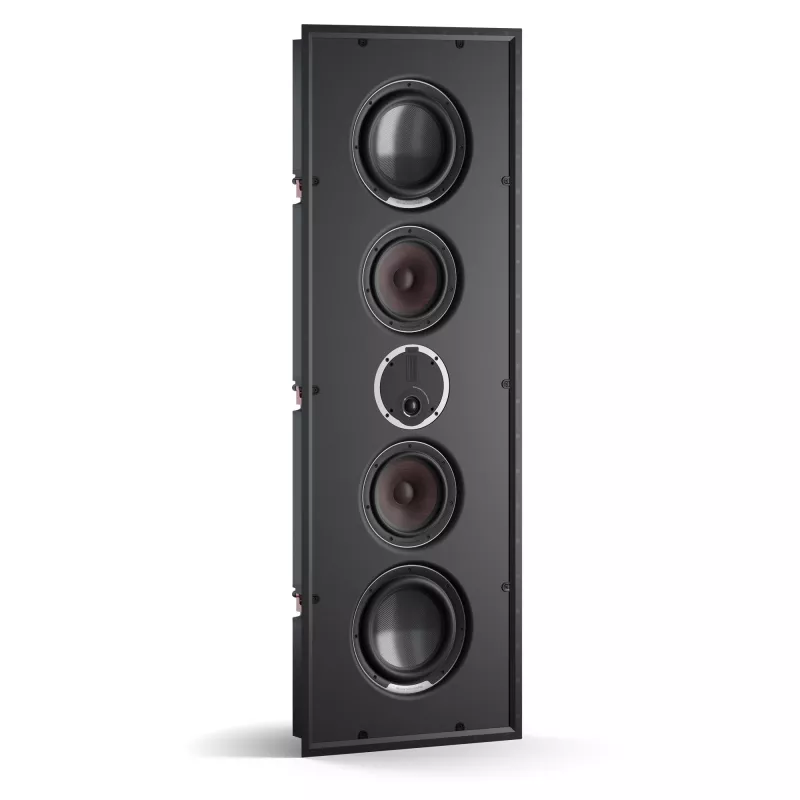

Three-quarter view of the baffle and the tweeter module

Rotatable Tweeter Module

The tweeter module turns within the baffle, so the treble can be aimed at the listening area once the speaker is flush in the wall. On a front pair mounted high, that adjustment is what brings the image back to seated height. Maximum output reaches 112 dB at one metre.

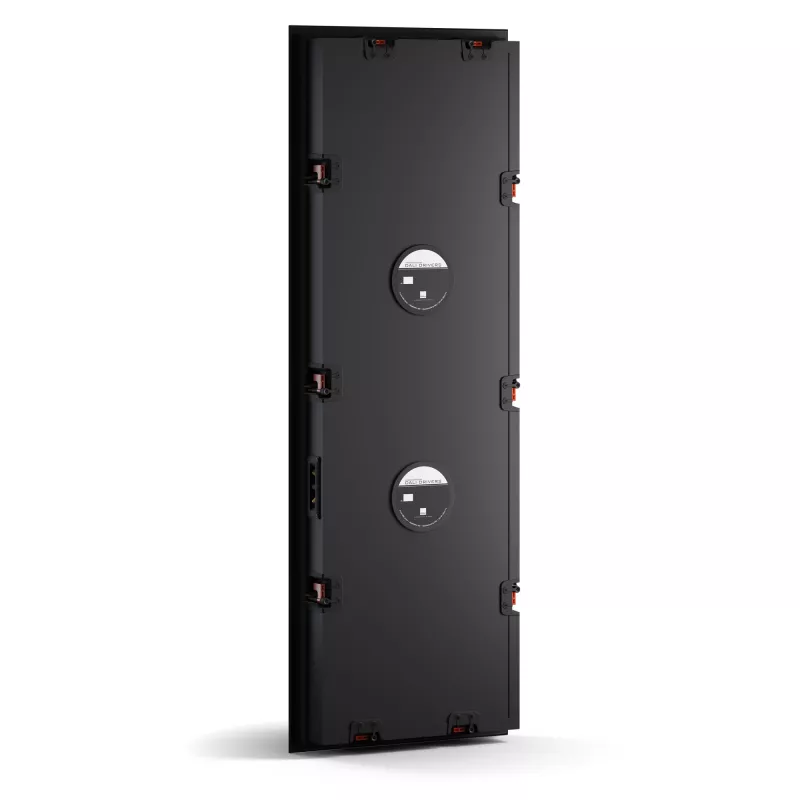

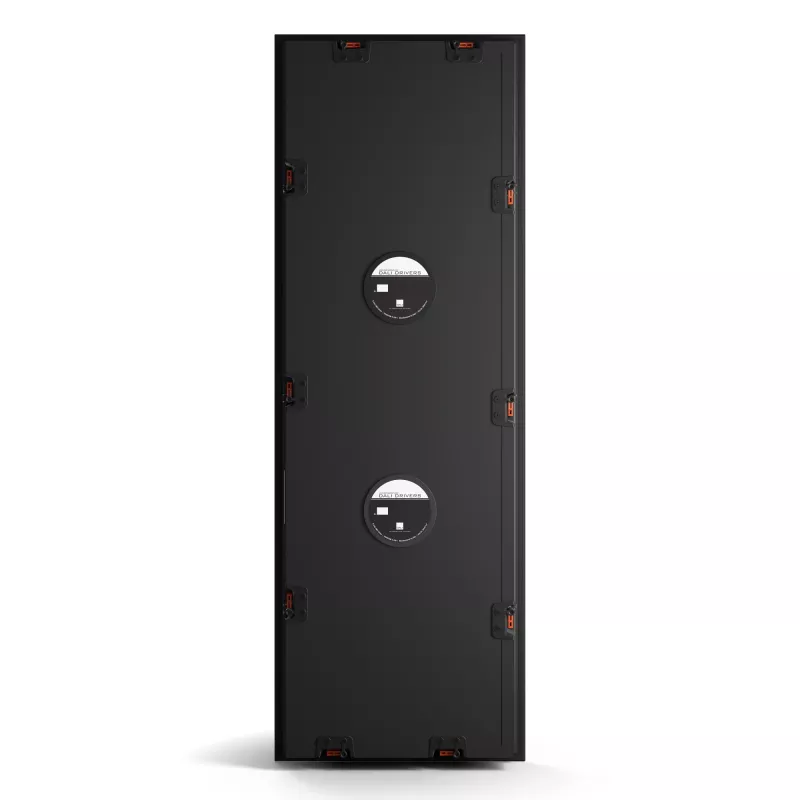

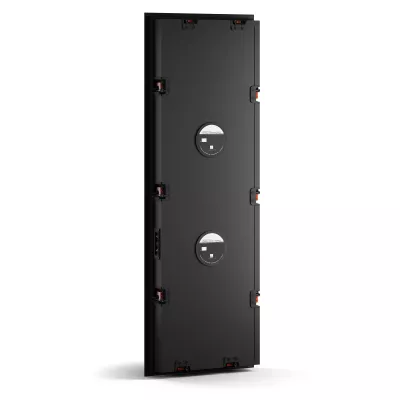

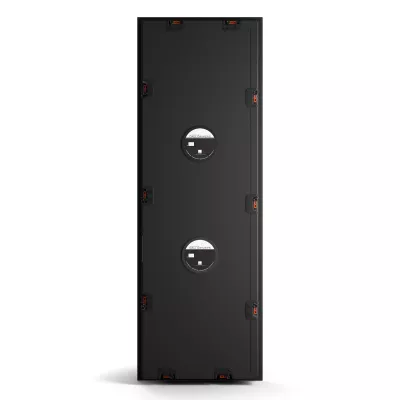

Back of the speaker, passive radiators and terminal

Installation

The cut-out measures 1495 x 495 mm, with a 103 mm mounting depth and a wall thickness range of 10 to 70 mm. The speaker weighs 36.5 kg with its grille. A PHANTOM OW FRAME S-280 is available for surface mounting.

60565

Data sheet

Product Type
In-wall speaker
Brand
DALI
Nominal impedance
8 ohms
Sensitivity
89 dB
Tweeter
29 mm soft dome + 17 x 45 mm planar ribbon
Woofer
2 x 8-inch
Frequency response
44 Hz - 25 kHz (±3 dB)
Recommended amplifier power
40 - 350 W
Maximum SPL
112 dB
Width
53.7 cm
Depth
10.8 cm
Height
153.7 cm
Unit weight
36.5 kg

Specific References

EAN13
5703120108681
