DALI PHANTOM K-60 LP | Low Profile In-Ceiling Speaker (each)

69452
CHF399.00 Tax included
Supplier stock – typically 4 to 7 days

DALI PHANTOM K-60 LP in-ceiling speaker, 36.5 mm mounting depth and a 6-inch aluminium woofer. Sold individually.

Quantity
Add to wishlist
Supplier stock – typically 4 to 7 days

DALI PHANTOM K-60 LP in-ceiling speaker seen from the front with its white grille

36.5 mm Mounting Depth

The K-60 LP needs 36.5 mm behind the ceiling, against roughly ten centimetres for a conventional ceiling speaker. It therefore fits under a concrete slab, in a shallow false ceiling or between low joists. This is the case where available space decides before sound quality does.

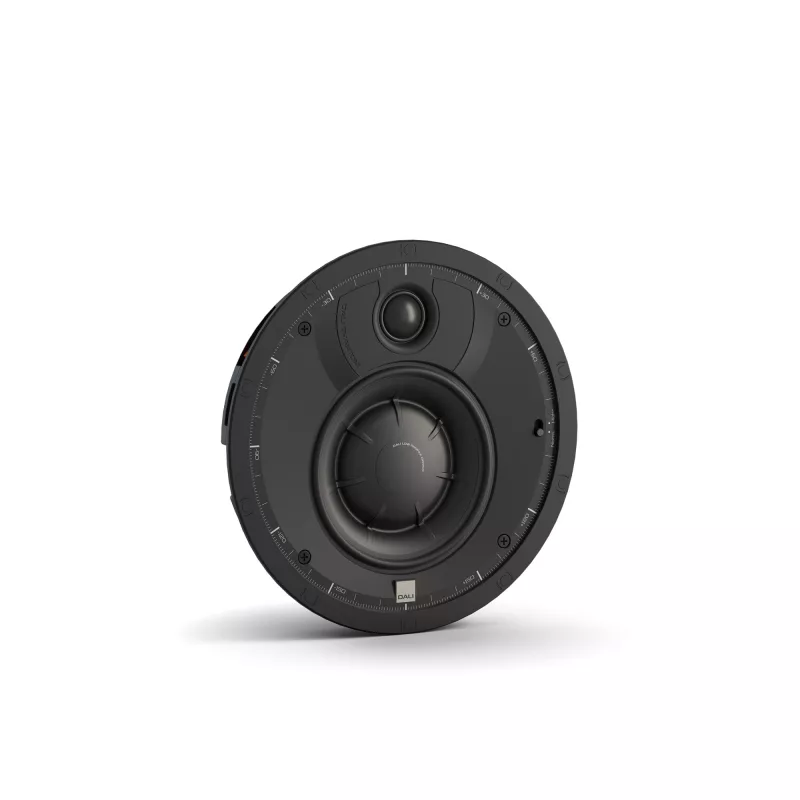

Three-quarter view of the shallow cabinet and its magnetic grille

Six-Inch Aluminium Woofer

The anodised aluminium cone stays rigid despite the short travel the flat format imposes. The speaker reaches down to 52 Hz at plus or minus 3 dB and up to 26 kHz, with a low 2400 Hz crossover that hands the treble early to the 25 mm dome. Its 84 dB sensitivity asks for an amplifier with something in reserve.

Design grille in black seen from the front

Grille Options

The grille lifts off by hand, with no visible screw. Design and classic versions come in white and black, so several rooms with different ceilings can be matched. The frame takes paint when the speaker has to be forgotten.

Light design grille, ready to be fitted

Single Cable Run

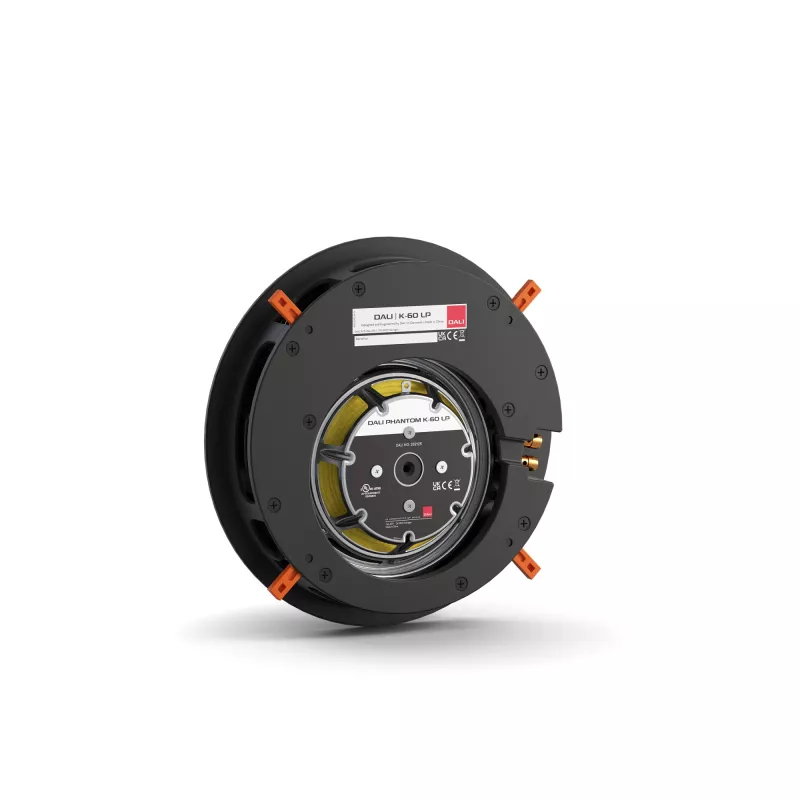

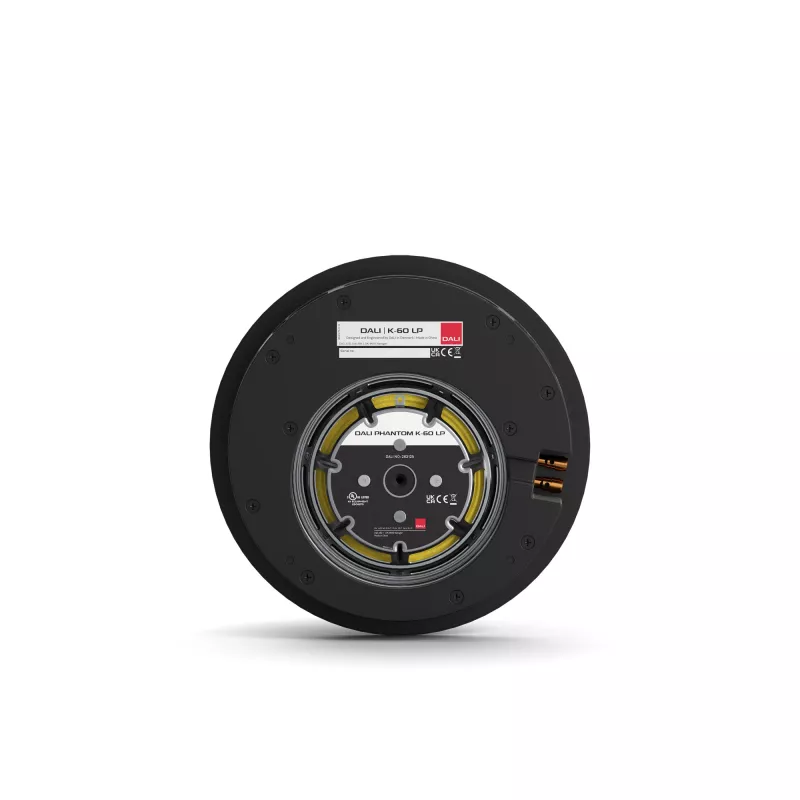

Connection is a single-cable terminal, which limits the wiring pulled through an already crowded ceiling. The dog-leg clamps tighten from the front, so installation finishes without access from above. On a multizone system the 8 ohm impedance makes parallel wiring simpler.

69452

Data sheet

Product Type
In-wall speaker
Brand
DALI
Nominal impedance
8 ohms
Sensitivity
84 dB
Connections
Single wire
Tweeter
25 mm Flexible Dome
Woofer
1 x 6-inch anodised aluminium, low profile
Frequency response
52 Hz - 26 kHz (±3 dB)
Recommended amplifier power
40 - 150 W
Maximum SPL
103 dB
Width
26.5 cm
Depth
4.3 cm
Height
26.5 cm
Unit weight
1.2 kg

Specific References

EAN13
5703120113500
