Bose Professional DM 5C White | Ceiling flush-mount loudspeaker

Reference 63113

CHF310.00 Tax included

Supplier stock – typically 4 to 7 days

Ceiling flush-mount loudspeaker Bose Professional DM 5C White. Discreet false-ceiling installation for retail, offices and reception areas.

Description
Product Details

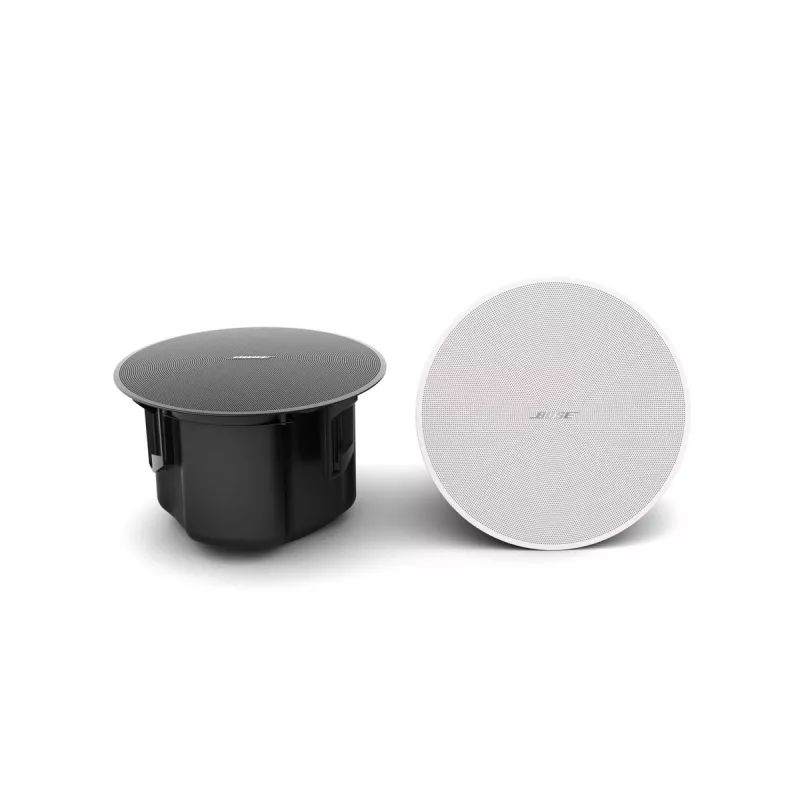

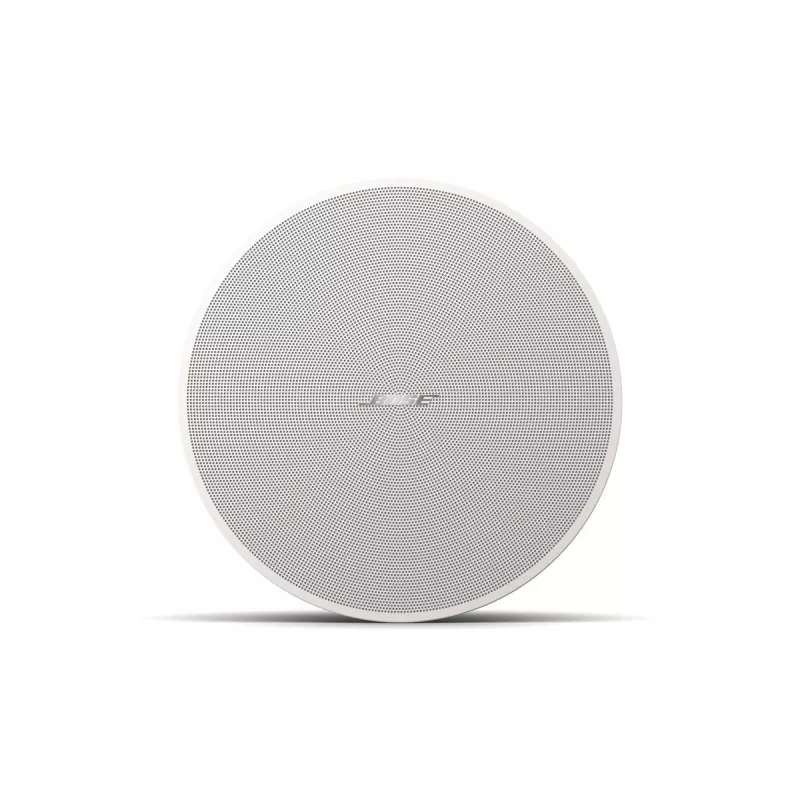

Bose Professional DM 5C recessed ceiling loudspeaker, grille attached

Two-way coaxial 5.25 inches

The 5.25-inch woofer and 1-inch tweeter mount on the same axis. Dispersion Alignment aligns the bass coverage to the tweeter pattern so the upper spectrum doesn't drop off-axis. Response extends from 73 Hz to 17 kHz at -3 dB.

5.25-inch woofer and coaxial tweeter, grille removed

Conical coverage 160°

Coverage tightens to 160°, versus 170° for the 3-inch. The gain shows in sensitivity: 87 dB SPL/1 W/1 m, 4 dB higher than the 3-inch. At equal power, the DM5C plays four times the coverage area per unit. Maximum SPL 105 dB at 1 m.

Stamped-steel rear enclosure, three-quarter rear view

250 mm cutout

Cutout is 250 mm, external diameter 303 mm, and 192 mm above the suspended ceiling. Three QuickHold spring arms hold 4.45 kg with no visible fasteners. The perforated-steel grille magnets to the frame in black or white, logo removable.

Recessed loudspeakers in a retail suspended ceiling

Four 100 V taps

Four taps—6, 12, 25, and 50 W—distribute power across the 100 V line, and bypass returns the loudspeaker to 8 Ω for 60 W AES continuous. One ceiling mixes both modes: 50 W near the entrance, 12 W in the hall, same model throughout.

Reference 63113

Data sheet
