Thorens TP 92 OEM 10" Aluminium

72563
CHF1,040.00 Tax included
Supplier stock – typically 4 to 7 days
Thorens TP 92 OEM tonearm in cold-forged aluminium, cardanic with Loefgren geometry, with full adjustment of overhang, azimuth, VTA and magnetic anti-skating.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

Tonearm seen from above

Cardanic, Loefgren geometry

The TP 92 is a cardanic tonearm following Loefgren geometry. It was developed alongside the TD 309 turntable, which gives it a studied compatibility. Its horizontal bearing, a high-precision Japanese ball bearing running on a specially developed oil, sits under the tube, level with the stylus.

Bearing and counterweight

Cold-forged aluminium tube

The tube is cold-forged aluminium. Its resonances were analysed with a laser vibrometer, letting the designers target specific frequencies. The counterweight, decoupled by two rubber rings, also sits exactly level with the stylus.

Aluminium headshell

Full adjustment

The aluminium headshell is tightly coupled to the tube. Overhang is set by sliding the headshell along the tube or the tube in its bearing block; azimuth is corrected by rotating the tube on its axis. VTA is set by loosening the collar lock nut, and anti-skating comes from two ferrite magnets with an adjustment screw.

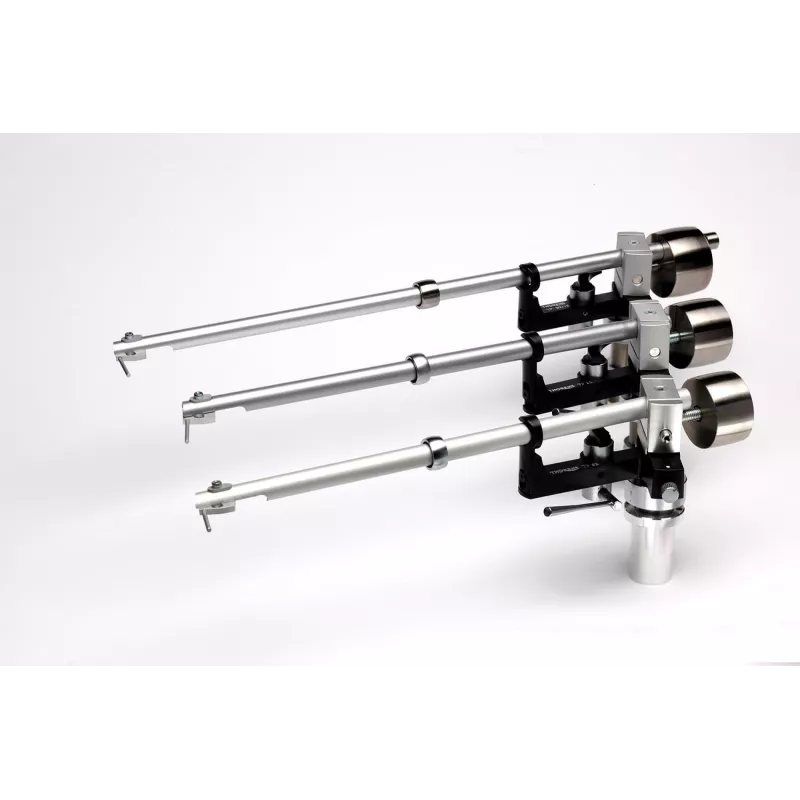

Overall view of the arm

10-inch OEM, loose cables

This OEM version is 10 inches and comes out with loose tonearm cables, to be wired directly. The shape of the headshell puts the cartridge's centre of gravity right under the tube, which keeps torsional vibration away.

72563

Specific References

EAN13
4260623201000
