Barco ClickShare CS-100 PACK | Wireless presentation system with 1 Button

57801
CHF1,200.00
CHF1,140.35 Tax included Save CHF59.65
Supplier stock – typically 4 to 7 days

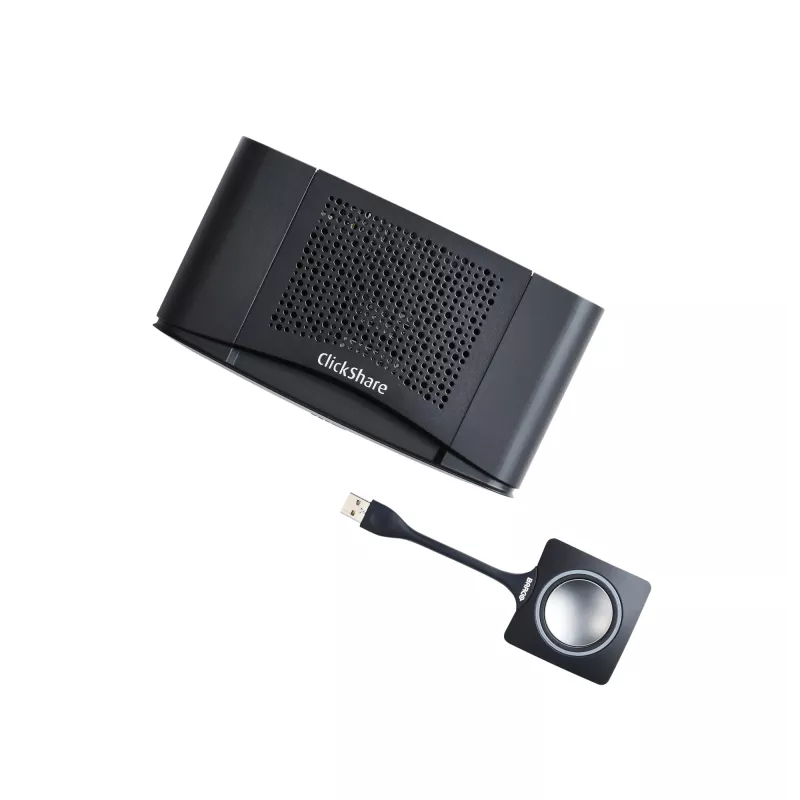

Barco ClickShare CS-100 pack with Base Unit and one ClickShare Button, a wireless presentation system for small meeting rooms. One click on the Button puts a computer's screen on the large display, with no cables and no setup.
Quantity
Add to wishlist
Supplier delivery time usually between 4 and 7 days

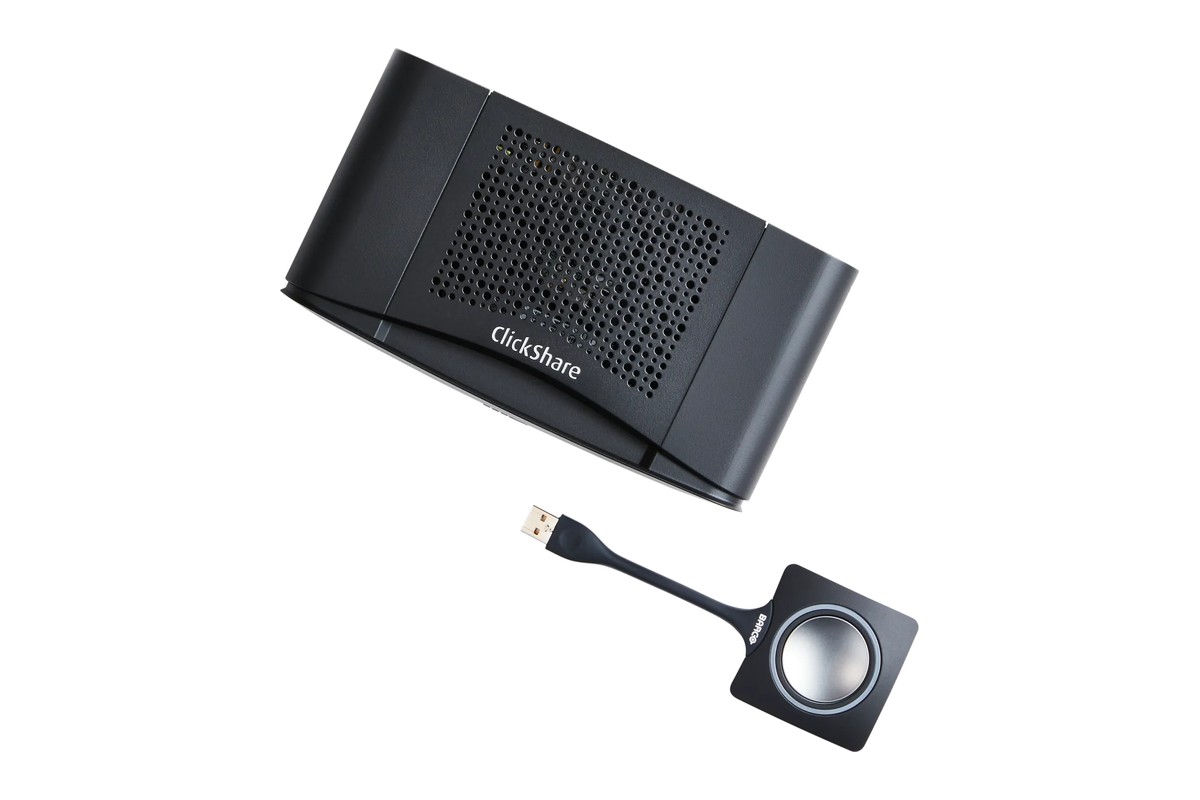

Black ClickShare Base Unit seen from above, with a USB Button in front

One-click screen sharing

The pack combines the CS-100 Base Unit with one ClickShare Button. Plugged into the USB port of a PC or Mac, the Button sends the computer's screen to the room display with a single click, with no cables or training, guests included. Up to 8 users connect to the Base Unit, which shows one source at a time at 1920x1080 through its HDMI output. Encryption, login management, https and a hideable SSID protect the wireless network.

57801

Data sheet

Product Type
Presentation System
Features
1 source on screen simultaneously
8 simultaneous connections
Extended desktop on Windows (requires ClickShare Extension Pack)
FCC/CE certifications
Fanless
Operating 0 to +40 °C (max. 35 °C at 3000 m), storage -20 to +60 °C
Relative humidity 0 to 85% operating, 0 to 90% storage, non-condensing
Security slot: Kensington compatible
Supplied with 1 ClickShare Button
Up to 30 fps
USB ports
1x USB (rear) + 1x USB (front)
Brand
Barco
WiFi
2.4 GHz and 5 GHz (DFS channels not supported)
IEEE 802.11 a/g/n
Audio outputs
Analog line out on 3.5 mm mini jack
Via HDMI, analog via 3.5 mm audio jack
Wireless connectivity
Range adjustable by signal strength modulation, max. 30 m (100 ft) between Button and Base Unit
Color
Black
Resolution
1920x1080 @60Hz
Series
ClickShare
Operating system (OS)
Windows 10 32 & 64 bit, macOS 10.14/10.15 (Catalina), Android 9 & 10 (ClickShare app), iOS 11, 12 & 13 (ClickShare app)
Wireless transfer
Sharing of documents, browser and camera (Android and iOS) via the ClickShare app
Network connectivity
1x Ethernet LAN 100 Mbit
WPA2-PSK in stand-alone mode; WPA2-PSK or IEEE 802.1X via the ClickShare Button in network integration mode
Video outputs
1x HDMI 1.2
Power consumption
0.4 W (deep standby)
2.6 W (ECO standby)
6 W (typical)
18 W (max.)
Width
20.5 cm
Depth
11.5 cm
Height
4.5 cm
Unit weight
0.6 kg

Specific References

UPC
57801
EAN13
5400503000036
