Trinnov Trinnov Amethyst

Reference 53461

Description
Product Details

Specifications

High performance audio
Resolution / Sampling Frequency Section A / N	24 bits / 96 kHz
Resolution / Sampling Frequency DAC Section	24 bits / 192 kHz
Signal / noise report A / N	119 dB (Weighted a)
N / A signal / noise ratio	118 dB (Weighted a)
Clock / Jitter	The variations under 25PPs are corrected, beyond 100Hz the jitter attenuation is greater than 50dB
Food	Separate for audio and PC sections
Safety components	Antipop relay on each analog output
Design and assembly	All audio cards are designed and manufactured in France by Trinnov Audio

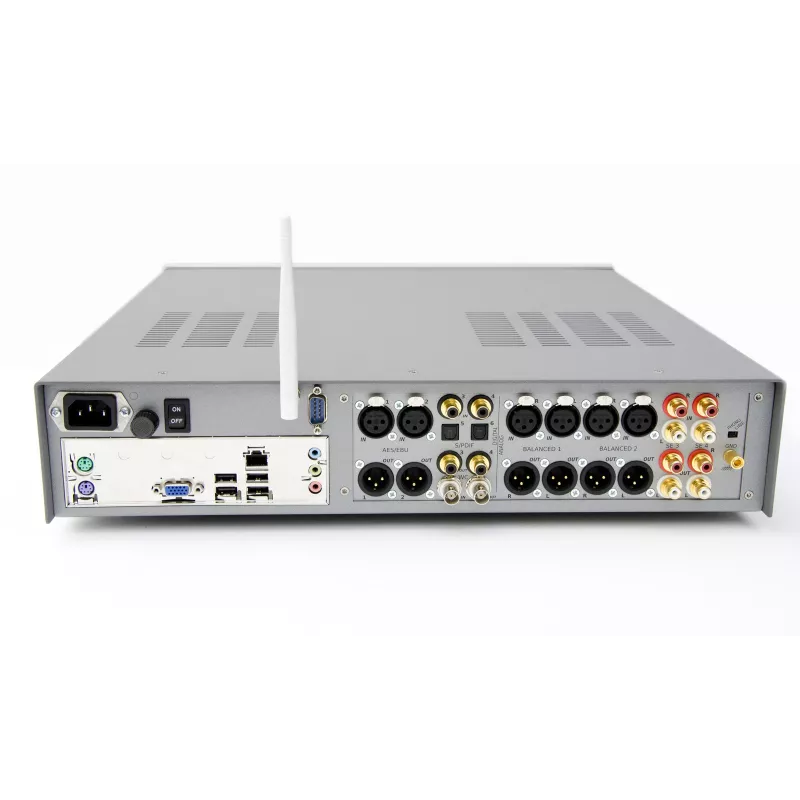

Connectors
Analog inputs / outputs	2 Asymmetrical analog inputs on RCA / Cinch connectors (75K OHMS)
	2 Asymmetrical Line / Phono Inputs on RCA / Cinch Connectors (75K OHMS)
	4 Asymmetric Analog Outputs Stereo on RCA / Cinch Connectors
	4 stereo symmetrical analog inputs on XLR connectors (20K OHMS)
	4 stereo symmetrical analog outputs on XLR connectors (20K ohms)
AES entries / outputs	4 AES / EBU inputs on 2 x XLR (110 ohms)
AES entries / outputs	4 AES / EBU outputs on 2 x XLR (110 ohms)
SPDIF inputs / outputs	4 SPDIF coaxial inputs on 2 x RCA (75 ohms)
	4 SPDIF inputs on 2 x Toslink
	4 coaxial SPDIF outputs on 2 x RCA (75 ohms)
Word Clock	1 Input via BNC Connector (75 OHMS)
Word Clock	1 Output via BNC Connector (75 OHMS)

Processor section
Processor	Intel Dual-Core 1.8 GHz
Calculation details	64-bit floating point
RAM	1 GB DDR3
Storage	Flash Drive 1 GB
Cooling system	Optimized heats and slow fans ensure silent operation

Chassis: 2u
Food: 240V AC / 50-60 Hz. OPTION: 130V AC
Consumption: 90 W max.
Weight: ~10kg
Environmental conditions:
- Temperature: 0 ° C - 40 ° C (32 ° F - 104 ° F)
- Moisture: 20% - 80% relative humidity (without condensation)

Introduction

True concentrate of technology, the amethyst is the high-end stereo preamplifier of Trinnov.

It combines a preamplifier 11 sources with an optimizer pregnant / integrated piece, a phono preamp hybrid innovative designed by Trinnov, a network renderer, a 24-bit / 192KHz NA converter and a 2-way active filtering intelligent engine.

The Amethyst also offers WiFi connectivity to facilitate its use. This is the centerpiece of any traditional or modern HiFi installation.

Features

Stereo Preamp 11 Sources

4 analog sources:

2 symmetrical analog stereo sources (XLR).
1 Asymmetric Analog Stereo Source (CINCH / RCA).
1 Filly Input Stereo Phono Input (CINCH / RCA).

6 digital sources:

2 stereo sources in AES / EBU (XLR) format.
2 stereo sources in S / PDIF coaxial format (Cinch / RCA).
2 stereo sources in optical S / PDIF format (toslink).

1 network source, the UPnP / DLNA compatible protocol (Ethernet and WiFi).

Phono mm hybrid preampli

Technology Trinnov Hybrid Riaa: The Riaa filter combines an analog circuit in the grave with a digital algorithm in the treble.

High resolution network drive

Reading dematerialized files in high resolution.
UPnP Protocol (DLNA compatible).
Supported codecs: WAV, AIFF, OGG, FLAC until 24 bits / 192 kHz.

COMBERNERS AN / NA 24BITES / 192KHZ

Signal / Noise Report A / N: 119 DBA and N / A: 118 dBA.
Rejection of the high performance jitter greater than 50 dB above 100 Hz.
Supported sampling frequencies:
on the floor A / N and on the floor N / A: 44.1 / 48/88.2 / 96 kHz;
Digital: 44.1 / 48/88.2 / 176.4 / 192 KHz.
Supported resolutions: 16 and 24 bits.
4 simultaneous outputs.
Entrance and output Word Clock.

Ease of installation

Insert the system between your sources and the amps and connect the 3D microphone
Follow the calibration wizard step by step
Listen to one of the 5 optimizations generated automatically
Change the optimization settings and establish a target curve
Record up to 29 user presets.

Pregnant optimization / piece

Multi-point acoustic measurements (microphone 3D Trinnov optional).
Acoustic analysis time / frequency by measuring impulse responses.
Pregnant optimization / room.
Target curves parameterizable.
Enlargement of the zone of listening.
Improvement of the response in phase.
Improved tonal equilibrium.
REMAPPING 2D / 3D: Virtual repositioning of the speakers.
Processing carried out in floating comma 64bits.

2-way active filtering

Active filtering 2 x smart ways.
Filters available: 2nd, 3rd and 4th Orders; Butterworth filters; 2nd, 3rd and 4th Orders Bessel Filters; Linkwitz-Riley filters of 2nd and 4th.
Measurement and alignment at the point of listening.

Exit formats

1 stereo listening systems
1 bi-amplified stereo listening system;
1 listening system 2.1;
1 listening system 3.0 (LCR);
1 listening system 3.1;
1 4-channel listening system (LCRS);
1 quadriphonic listening system.

Food

2 separate power supplies:

Linear power supply with toric transformer on analogues.
Cutting feeding on the digital floors.

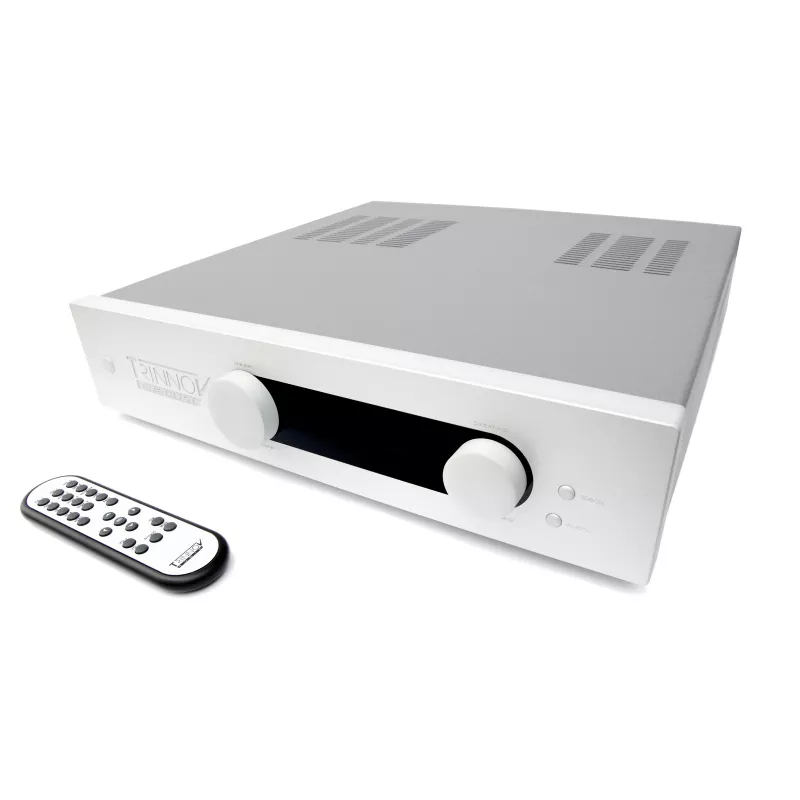

Remote control

IR remote control provided.
VNC: Ethernet or WiFi network control via PC, Mac, iPad, iPhone or Android.
Keypad - Mouse: Connecting a VGA / DVI screen, keyboard and PS2 / USB mouse.
Gigabit Ethernet Port: Crestron compatibility (module available for download on this site in the Downloads menu) http://www.trinnov.com/downloads-type/downloads/
Telnet and RS-232 protocols.

Reference 53461

Data sheet

Product Type: Preamplifier
Features: Built-in DAC
Built-in turntable
Speaker/Room Optimizer

Specific References

UPC: 53461

Condition New
