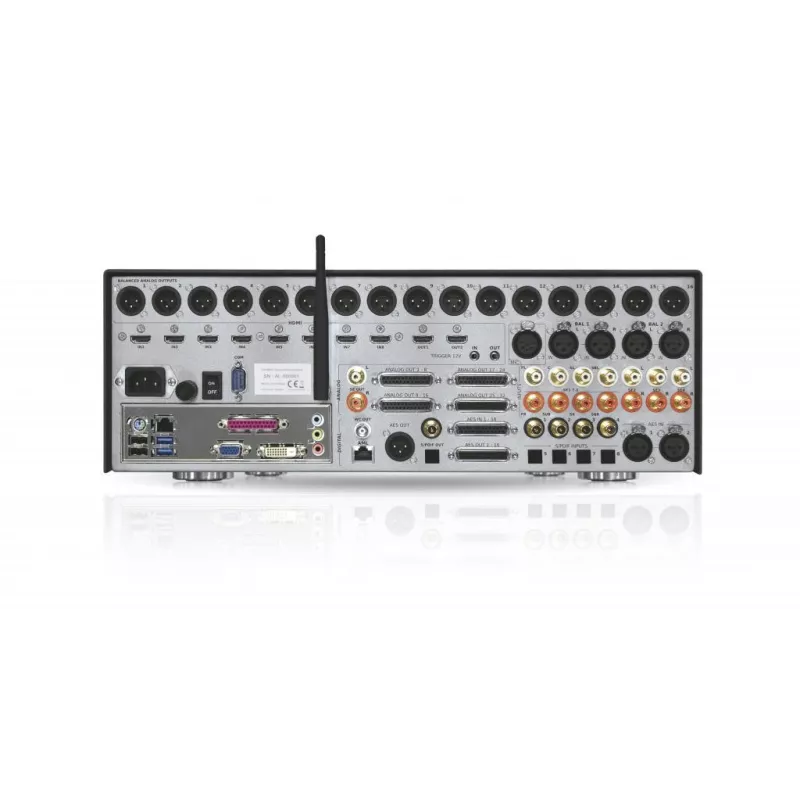

Trinnov Trinov Altitude32

53443

Live the immersive experience of the best movie theaters in your own home theater
Color : Black
Quantity
Add to wishlist

SPECIFICATIONS

COMPARISON OF PRODUCTS Altitude328-8 Altitude328-16 Altitude3216-24 Altitude3216-32
SD / HD AUDIO
DOLBY DIGITAL®, DOLBY DIGITAL PLUS®, DOLBY TRUEHD®
DTS DIGITAL SURROUNDTM, DTS-HD HIGH RESOLUTION AUDIOTM, DTS-HD MASTER AUDIOTM
PCM UP TO 24 BITS / 192 KHZ
3D AUDIO
DOLBY ATMOS® DECODING AND UPMIX NATIVE (DOLBY SURROUND® PROCESSING) Optional Optional Optional
DECODING AND UPMIX NATIVE AURO-3D® (AROMATIC) Optional Optional Optional
DECODING AND UPMIX NATIVE DTS: X® (DTS® NEURAL-X PROCESSING) Optional Optional Optional
SOFTWARE UPDATE FOR FUTURE 3D DECODERS
DOLBY ATMOS® / AURO-3D® / DTS: X® MANUAL MAPPING
RELAPPING 3D TRINNOV PATENTED (MEASURES THE ACTUAL POSITION OF THE SPEAKERS AND OBTAINS A PRECISE 3D LOCATION)
AUDIO PROCESSING
RESOLUTION OF TREATMENT
SUPPORTS 24 BITS / 192 KHZ, NO SUB-SAMPLING UP TO 16 CHANNELS AT 192KHZ AND 24 CHANNELS AT 96KHZ (currently 24-ch @ 96) (currently 32-ch @ 96)
64-BIT FLOATING POINT
MANAGEMENT OF THE LATENCY OF TREATMENTS
AUTOCORRECT
TRINNOV OPTIMIZER TECHNOLOGY (PREGNANT / AUTOPLAY OPTIMIZATION)
MULTIPOINT IMPULSIVE RESPONSE MEASURES. ACOUSTIC ANALYSIS, PDF REPORTS
TARGET CURVE & MODIFIABLE PARAMETERS
CHANGES ON THE FLY
AUTOMATIC CALIBRATION OF ACTIVE FILTER (ADJUSTABLE FILTERS)
MULTIPLE GRAVEYARD MANAGEMENT
INDIVIDUAL HIGH PASS FILTERS FOR EACH SATELLITE
3D TRINNOV MICROPHONE Optional Optional Optional Optional
INSTALLATION KIT Requires Certification Requires Certification Requires Certification Requires Certification
MANUAL CORRECTION
EQ / DELAY / GAIN / POLARITY PER INDIVIDUAL CHANNEL
OVERALL DELAY, LATENCY CONTROL
FRONT BALANCE / SURROUND / TOP Available soon Available soon Available soon Available soon
MANAGEMENT OF EXIT CHANNELS
NB MAX OF TREATMENT CHANNELS 8 16 24 32
NB MAX OF OPTIMIZER CHANNELS 8 16 24 32
NUMBER OF GRASS BOXES 0 – 8 0 – 16 0 – 24 0 – 32
NB MAX OF ACTIVE FILTERS 2/3/4 WAYS 4/2/2 8/5/4 12/8/6 16/10/8
COMPLETE MATRIX INPUTS / OUTPUTS
MEMORIZABLE PRESETS 29 29 29 29
AUDIO ENTRIES
DIGITAL INPUTS
HDMI 1.4A 3D READY 8 8 8 8
AES INPUTS ON DB25 8 channels (upgradable at 16) 8 channels (upgradable at 16) 16 channels 16 channels
STEREO ENTRANCE AES3 ON XLR 2 2 2 2
S / PDIF ENTRIES ON RCA 4 4 4 4
S / PDIF INPUTS ON TOSLINK 4 4 4 4
PCM 7.1 SPDIF INPUTS MODE (RCA OR TOSLINK)
UPNP / DLNA COMPLIANT AUDIO
ANALOG INPUTS
STEREO: XLR 2 2 2 2
STEREO: RCA 3 3 3 3
7.1: RCA 1 1 1 1
3D MICROPHONE INPUT 1 1 1 1
AUDIO OUTPUTS
DIGITAL OUTINGS
AES3 EXIT: DB25 16 channels 16 channels 16 channels 16 channels
STEREO OUTPUT AES3 1 1 1 1
S / PDIF OUTPUT: RCA 1 1 1 1
S / PDIF OUTPUT: TOSLINK 1 1 1 1
LINK AND EXTENSION AML 1 1 1 1
ANALOG OUTINGS
XLR OUTPUT 8 16 16 16
DB25 EXIT 8 16 24 32
RCA STEREO OUTPUT 1 1 1 1
HEADPHONE OUTPUT: JACK 6.35 1 1 1 1
HDMI SPECIFICATIONS
HDMI 1.4A COMPLIANT DIGITAL AUDIO WITH 3D VIDEO PASS-HOT (HDMI 2.0 UPDATE SUPPORTED)
SUPPORTS 192 KHZ
PARTIAL COMPLIANCE HDMI 2.0 (UP TO 4K 60FPS IN 4: 2: 0)
DISTANCE CONFIGURATION & CONTROL
USER INTERFACE
INTEGRATED USER ENVIRONMENT (PREAMP SETTINGS, ROOM OPTIMIZATION… )
ACCESS AND COMPLETE CONTROL VIA IP
SUPPORTS TABLETS, SMARTPHONES AND LAPTOPS
REMOTE ASSISTANCE
REMOTE UPDATE
ADVANCED USER MANAGEMENT Available soon Available soon Available soon Available soon
CONTEXTUAL HELP Available soon Available soon Available soon Available soon
WEB USER INTERFACE Available soon Available soon Available soon Available soon
REMOTE CONTROL & AUTOMATION
WI-FI, ETHERNET GIGABIT AND RS232 DB9 INTEGRATED
CRESTRON MODULE
RS232 & IP PROTOCOLS
12V TRIGGER IN / OUT
DESCRIPTION OF THE CHASSIS
BLACK ALUMINUM VERSION By default
LIGHT GRAY ALUMINUM VERSION Optional
RACK 19 " 3.5 U
FULL HDMI 2.0 Complete HDMI 2.0 specifications as soon as they are announced by flea manufacturers, scheduled for 2015
AUDIO SPECIFICATIONS
RESOLUTION ADC / SAMPLING FREQUENCY 24 bits / 96 kHz
DAC RESOLUTION / SAMPLING FREQUENCY 24 bits / 192 kHz
SIGNAL REPORT ON NOISE A / N 119 dB (Weighted a)
NOISE SIGNAL RATIO N / A 118 dB (Weighted a)
IMPEDANCE OF ANALOG OUTPUTS Symmetrical: 20 kohms
Asymmetric: 10 Kohms
REFERENCE LEVEL + 18dbu @ 0dbMSDS (Symmétrique)
CLOCK / JITTER High performance clock recovery (Jitter attenuation> 50 dB above 100Hz)
POWER DEVICES Independent for the audio section and for the processor section
COMPONENT SAFETY Antipop relay on each analog output
DESIGN AND ASSEMBLY All audio cards are designed and manufactured by Trinnov Audio in France
PROCESSOR SECTION
PROCESSOR Intel i7
DATA ACCURACY 64-bit floating point
RAM 2Gb
STORAGE Flash Drive
COOLING SYSTEM Dedicated radiators + additional silent fans
Altitude32 dimensions

Chassis: 3.5U
Food: 240V AC / 50-60 Hz. OPTION: 130V AC
Consumption: 90 W max.
Weight: ~14.5kg
Environment:
– Operation: 0 ° C – 40 ° C (32 ° F – 104 ° F)
– Moisture: 20% – 80% relative humidity (without condensation)

Since 2014, altitude32 became the reference preamp for the luxury 3D cinemas, thanks to its revolutionary hardware platform who integrates the last 3d audio technologies.

The only preamplifier with its own implementation of the last 3D audio decoders: Dolby Atmos, Auro-3D and DTS: x.
  1. Trinnov is the only manufacturer that does not depend on third party DSPS to support the latest 3D audio formats.
  2. Sustainability assured by software updates via the Internet, no need for additional DSPS.
  3. Supports all 3D speaker configurations regardless of the format and decodes up to 32 discrete channels in Dolby Atmos.
  4. Exclusive tool for configuring the speaker system.

The only home cinema preamplifier to manage up to 24 and 32 discrete channels

  1. Revolutionary new generation hardware platform based on an Intel multi-core processor.
  2. Completely scalable solution.
  3. High performance year / Na converters designed and manufactured by Trinnov, used daily by the most demanding mastering studios.
  4. Native processing in 64-bit floating point and 24 bits / 192 kHz.
  5. Multi Link Audio Ethernet (AML) exit for audio via the network.

The only preamplifier equipped with

exclusive treatment technologies developed by Trinnov.
  1. Restitution of 3D audio with high precision spatial, thanks to the patented 3D speaker remapping technology.
  2. 3D measuring microphone and 3D calibration tools of speakers and the exclusive part to Trinnov.
  3. Optimization of frequency and phase response for all speakers and subwoofers.
  4. Sophisticated bass management that can handle from 0 to 32 gramps of grave.
  5. Automatic calibration of 2-way active filters, 3 channels or 4 lanes.

Remote control via the network and easy to integrate with an automation system.

  1. Adaptive web interface accessible from a smartphone, tablet or computer.
  2. Ethernet gigabit and integrated WiFi.
  3. Modules: Amx, Control4, Crestron, RTI, scholar.
  4. Infra-red remote control included.

THE NEW GENERATION 32-CHANNEL AUDIO-VIDEO PREAMPLI

ELEVATE YOUR SOUND

By designing the altitude32, we have left nothing at random to ensure unquestionable leadership in 3D sound: a high number of unprecedented channels and treatment capabilities to meet the most demanding specifications, exclusive patented technologies to unbridle all the Potential of immersive sound, regardless of audio formats and loudspeaker configurations, thus alleviate32 a real reference of 3D sound and a reference for the coming years.

THE NEW 3D SOUND REFERENCE

The standard version of the altitude32 natively decodes Dolby Digital Plus®, Dolby TrueHD®, DTS-HD Master Audio®, Dolby TrueHD®, DTS-HD Master Audio® formats. With the 3D audio option, you can make the incredible experience of immersive sound with Dolby Atmos®, Auro-3D® and DTS-X®. For existing content, altitude32 also supports Dolby Surround®, Auro-Matic® and UPMix DTS: Neural X® .

Thanks to the technology Trinnov patented 3D spatial remapping, altitude32 is the only processor to provide a 3d sound reproduction that is universal and consistent in space. This technology offers outstanding spatial resolution to ensure an immersive experience previously unknown. It proposes the only viable solution to the inherent problem of the incompatibility of the formats of its current and future 3D.

THE NEW 3D SOUND PARADIGM

Trinnov means 3OF Innovation.

From 2001, Trinnov succeeded the first complete chain of its 3D, since the 3D plug to 3D reproduction on 24 speakers. Trinnov continues to contribute to 3D sound at the highest scientific level, with a portfolio of more than 50 patents.

World-renowned universities and laboratories trust Trinnov and equip yourself with the Optimizer for 3D sound research, including NHK for its system 22.2. That's why Trinnov, as an undisputed pioneer and leader in the field, seized the new 3D sound paradigm in all its complexity, and provides all the technologies needed to ensure a truly high performance 3D reproduction.

Altitude32 is the new 3D sound reference.

OUTSTANDING TREATMENT CAPACITY

A REVOLUTIONARY MATERIAL PLATFORM

At the heart of this new generation of processors, there is a new approach to digital signal processing based on a revolutionary material architecture, highly scalable and easy to update.

Instead of using multiple DSPS in a complex and rigid architecture, Trinnov Audio has developed a versatile platform based on a multi-core intel processor that provides excluding treatment capabilities.
Used daily in demanding professional environments, this architecture meets the most restrictive reliability criteria. Despite his extreme sophistication, the altitude32 is easy to handle with an intuitive and user-friendly web user interface.

THE NEW REFERENCE

Erect unprecedented treatment capabilities and of exclusive technologies, altitude32 opens the way to a new generation of luxury home cinema processors, designed for ultimate performance and durability within a home cinema industry pushed by 3D audio, ultra high definition 4K and HDMI 2.0.

Altitude32 is one easy to update solution. The basic model supports the latest HD audio and video formats, while the most complete model incorporates a 3D audio decoding option and offers up to 32 discrete channels of his immersive with unprecedented quality.

From the revolutionary hardware platform, up to the software environment, the specifications are without compromise to provide a time test solution and ensure a unique user experience that Trinnov is committed to improving over the years.

THE FUTURE ON LINE OF SIGHT

PERMANENT INNOVATION

Since 2003, Trinnov Audio is engaged in innovation as a way to provide high quality sound and time-proof technologies. The hardware platform and the environment of the altitude software32 they were both designed to open endless perspectives, via regular updates. Our leitmotiv: Provide a user experience constantly improved by constant innovation.

TRINNOV AUDIO, THE EXPERT ON ACOUSTIC OPTIMIZATION

OPTIMIZER: THE CHOICE OF PROFESSIONALS

For almost 10 years, Trinnov team of prestigious customers in the world of professional sound with its acoustic correction solutions. In reality, optimizer technology is used throughout the cinematographic production chain, mixing studios to movie theaters.

53443

Data sheet

Product Type
Home Theater Processor
Features
4K UHD
Advanced Calibration
IP Control
Speaker/Room Optimizer
Number of channels
8

Specific References

UPC
53443
New
