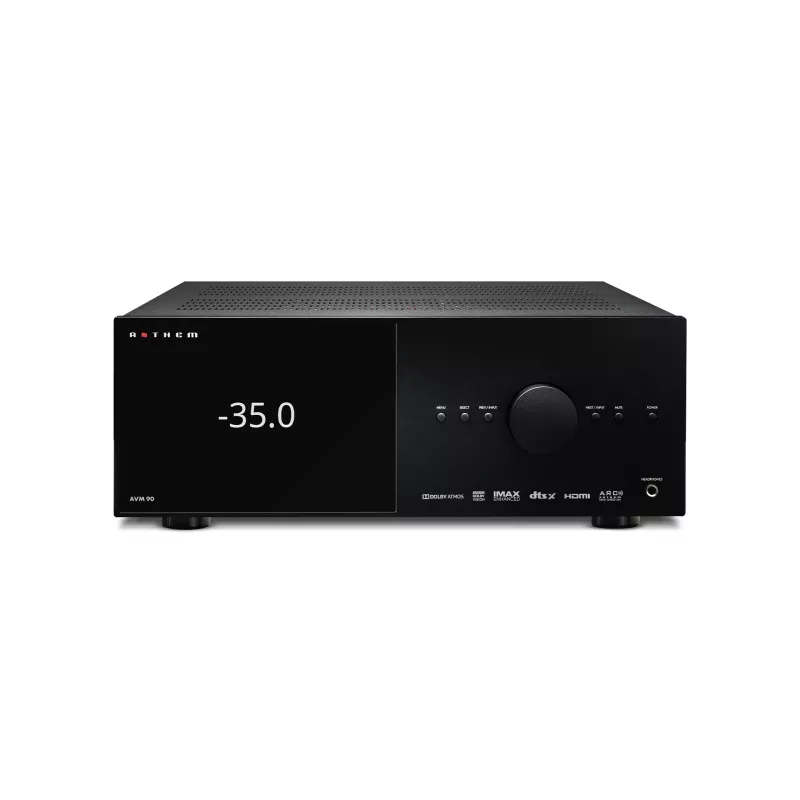

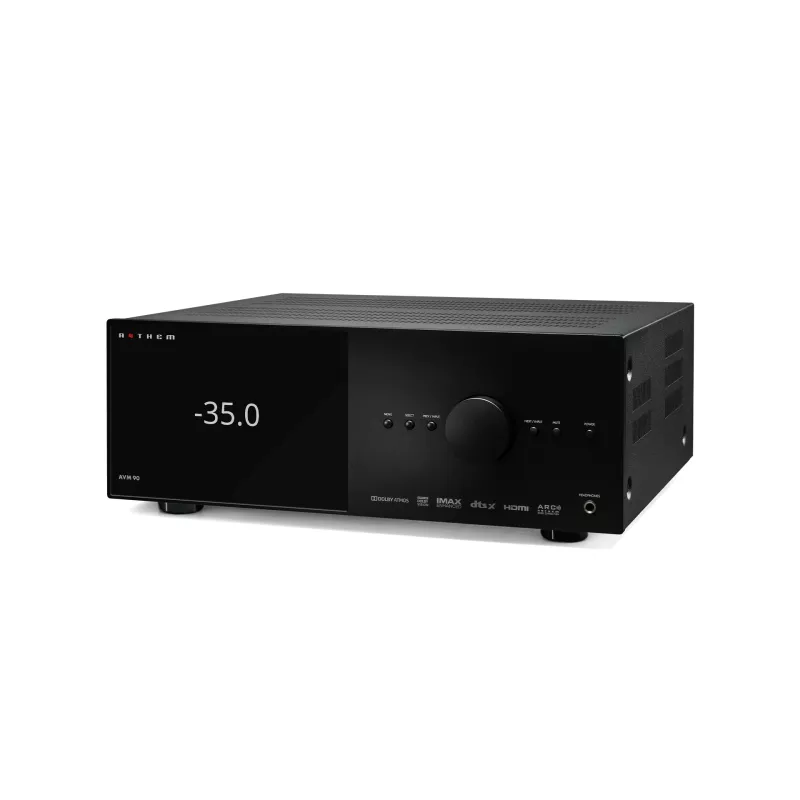

Anthem AVM 90 8K | 15.4-channel A/V processor

Name: Anthem AVM 90 8K | 15.4-channel A/V processor
Brand: Anthem
SKU: 68782
Price: 8999.00 CHF
Availability: BackOrder

Reference 68782

CHF8,999.00

Supplier stock – typically 4 to 7 days

The Anthem AVM 90 8K is a 15.4-channel A/V processor with HDMI 2.1 for 8K and ARC Genesis room correction. Its 32-bit / 768 kHz DACs and seven HDMI inputs pair with MCA amplifiers for a Dolby Atmos system.

Description
Product Details

Relaxed man on a sofa in front of a black A/V processor surrounded by red sound waves

32-bit 768 kHz DAC

The AVM 90 converts every digital signal with 32-bit / 768 kHz ESS Sabre converters, selected one by one. An oversized toroidal power supply backs them up. The 1.6 GHz dual-core DSP computes in 64-bit double-precision floating point.

Modern living room with a screen and a laptop showing the room correction software

ARC Genesis room correction

ARC Genesis measures the room with a precision microphone, then corrects the frequency response instead of masking it. Four profiles can be stored. The processor handles up to 15 speakers and four subwoofers.

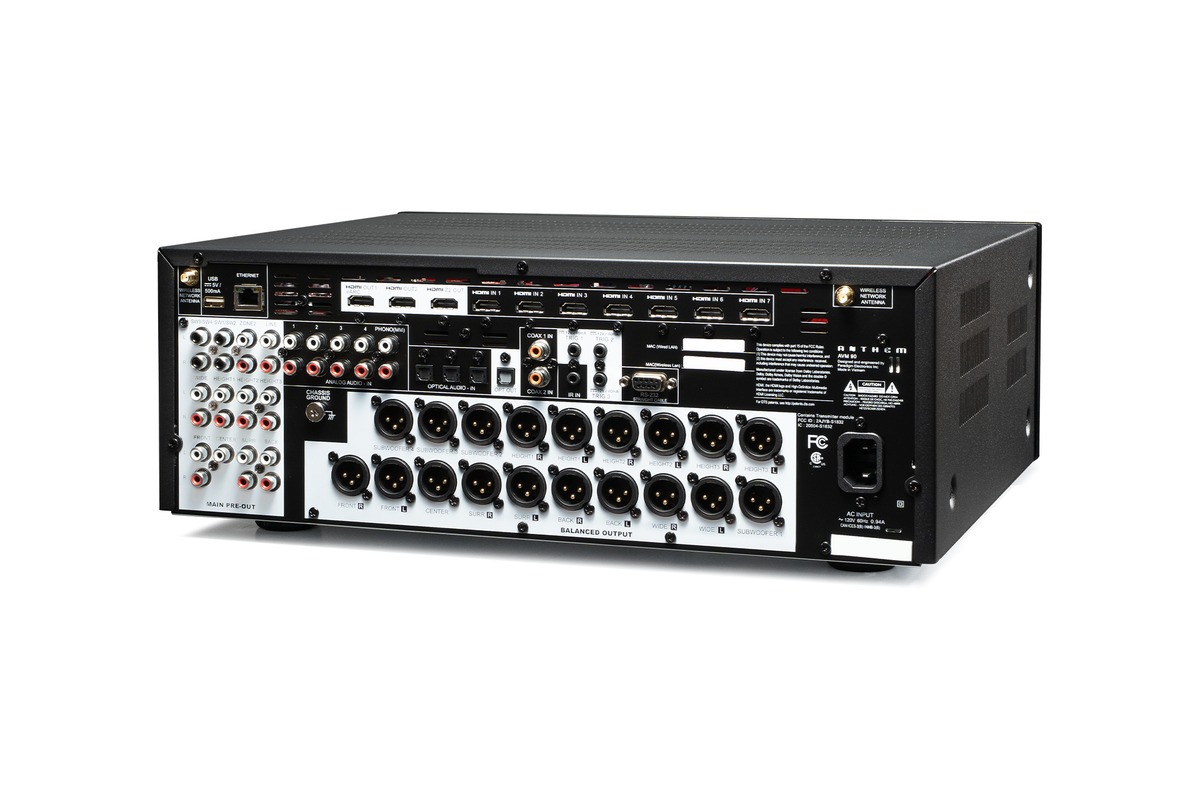

A/V processor seen from the rear three-quarter, with its HDMI inputs, RCA jacks and XLR outputs

8K HDMI platform

Seven inputs and three HDMI 2.1 outputs, eARC included, with HDCP 2.3. 8K/60 Hz and 4K/120 Hz pass through. HDR10+, Dolby Vision, VRR, ALLM and QFT are supported for the latest game consoles.

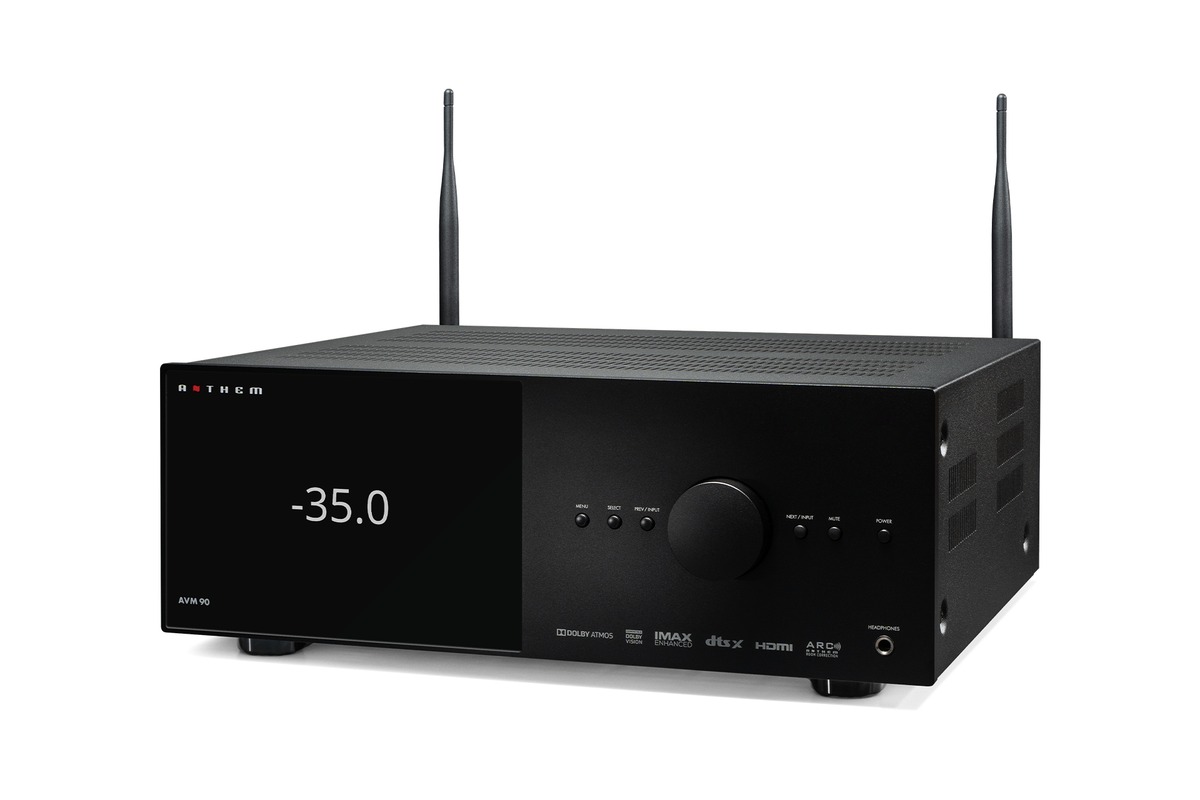

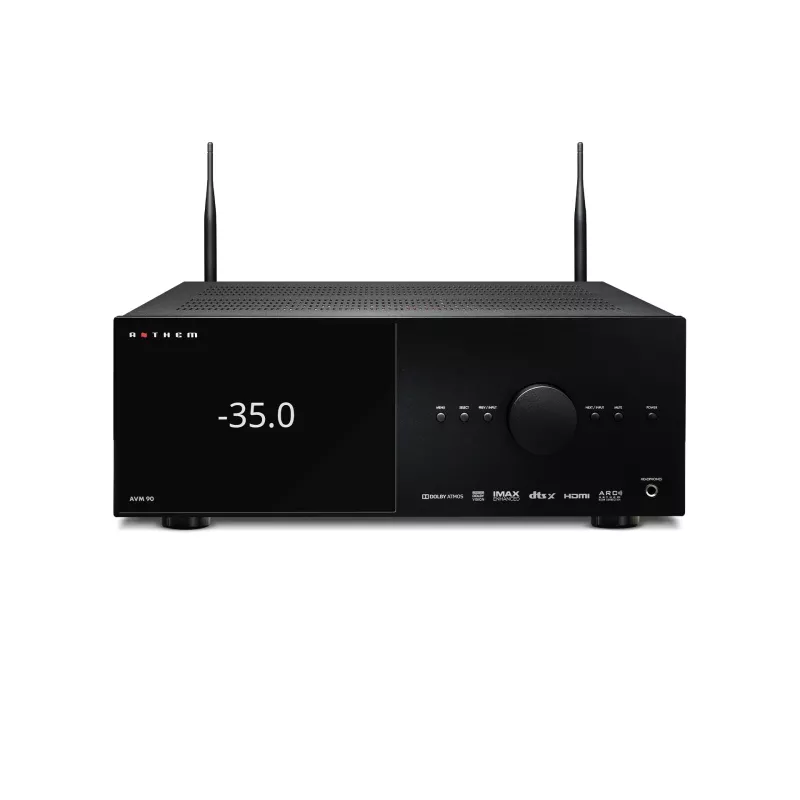

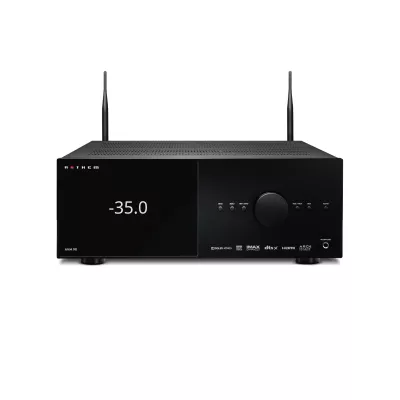

Anthem AVM 90 8K seen from three-quarters with its two antennas

Streaming and IP control

The AVM 90 streams via AirPlay, Google Cast, Spotify Connect and Bluetooth. A web interface adjusts volume, audio mode and channel trims from a phone, tablet or computer. IP control integrates with Savant, Control4, RTI, URC, Crestron and ELAN.

Reference 68782

Data sheet

Product Type: AV Preamplifier / Processor
USB ports: 1 USB-A 5 V/500 mA (service)
Brand: Anthem
Audio outputs: Pre-amp outputs: 15.4
Integrated phono: Yes
Number of channels: 15.4
Digital inputs: Optical: 3 inputs / 1 output
HDMI ARC: Yes
Analog inputs: 4 inputs
Subwoofer output: 4
Wireless connectivity: Yes
Number of HDMI ports: 7 inputs / 3 outputs
Streaming services: Apple AirPlay, Google Chromecast Audio, Bluetooth, Spotify Connect
Video optimization: HDR10, HDR10+, Dolby Vision, HLG, Dynamic HDR
Hi-Res Audio: Yes: FLAC, ALAC, WAV, DSD
Gaming optimization: VRR, ALLM, QFT
Network connectivity: Yes
Installation format: 4U
Room correction: Yes
Power consumption: 60 W
Width: 43.2 cm
Depth: 36.4 cm
Height: 15.2 cm
Unit weight: 10.1 kg
