Anthem AVM 70 8K | 15.2-channel A/V processor

Name: Anthem AVM 70 8K | 15.2-channel A/V processor
Brand: Anthem
SKU: 68781
Price: 5399.00 CHF
Availability: BackOrder

Reference 68781

CHF5,399.00

Supplier stock – typically 4 to 7 days

The Anthem AVM 70 8K is a 15.2-channel A/V processor with HDMI 2.1 for 8K and ARC Genesis room correction. Its 32-bit / 768 kHz DACs and seven HDMI inputs pair with MCA amplifiers for a Dolby Atmos system.

Description
Product Details

Relaxed man on a sofa in front of a black A/V processor surrounded by red sound waves

32-bit 768 kHz DAC

The AVM 70 8K converts every digital signal with 32-bit / 768 kHz DACs. It is powered by a toroidal transformer. It decodes the Dolby Atmos, DTS:X and IMAX Enhanced object formats to place each sound in space.

Modern living room with a screen and a laptop showing the room correction software

ARC Genesis room correction

ARC Genesis measures the room with a precision microphone, then corrects the frequency response instead of masking it. Four profiles can be stored. The processor handles up to 15 speakers and two subwoofers, on two independent outputs.

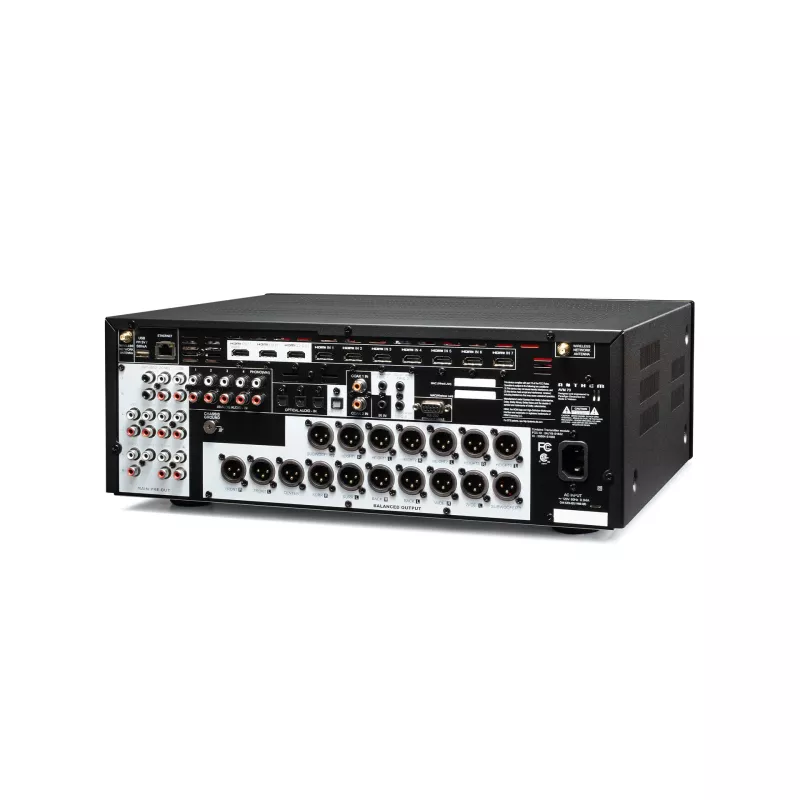

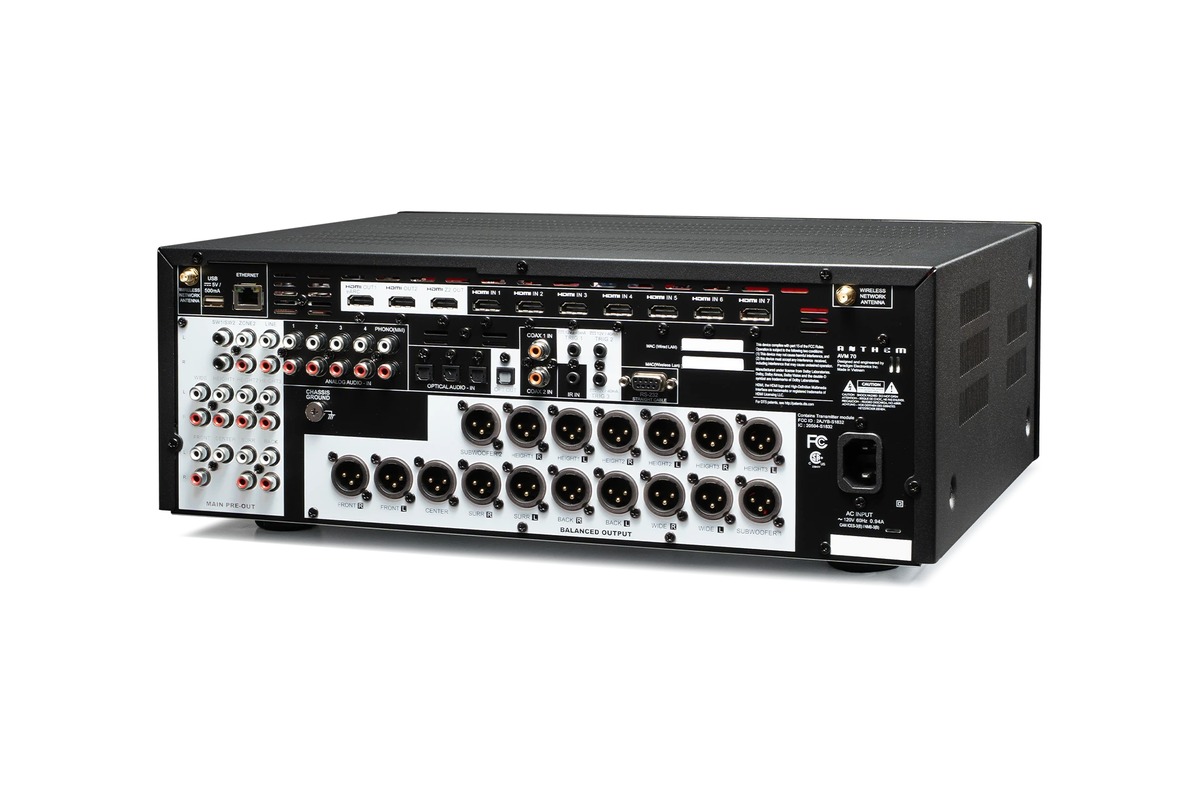

A/V processor seen from the rear three-quarter, with its HDMI inputs, RCA jacks and XLR outputs

8K HDMI platform

Seven HDMI 2.1 inputs accept 8K/60 Hz and 4K/120 Hz pass-through. Three HDMI outputs are available, one of them for zone 2, and eARC is supported. The processor also handles HDCP 2.3, HDR10+, Dolby Vision, VRR, ALLM and QFT.

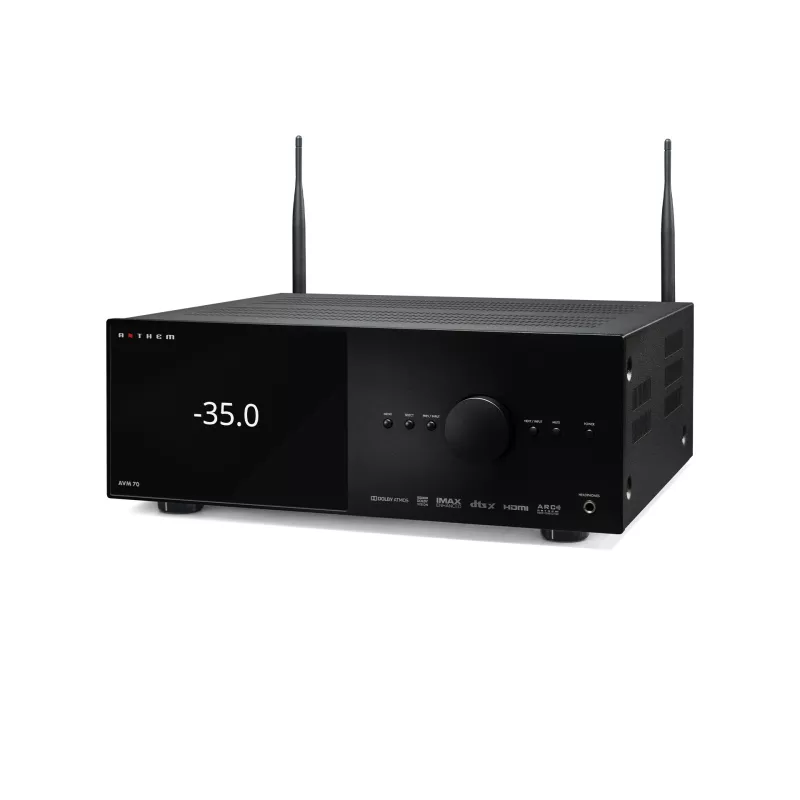

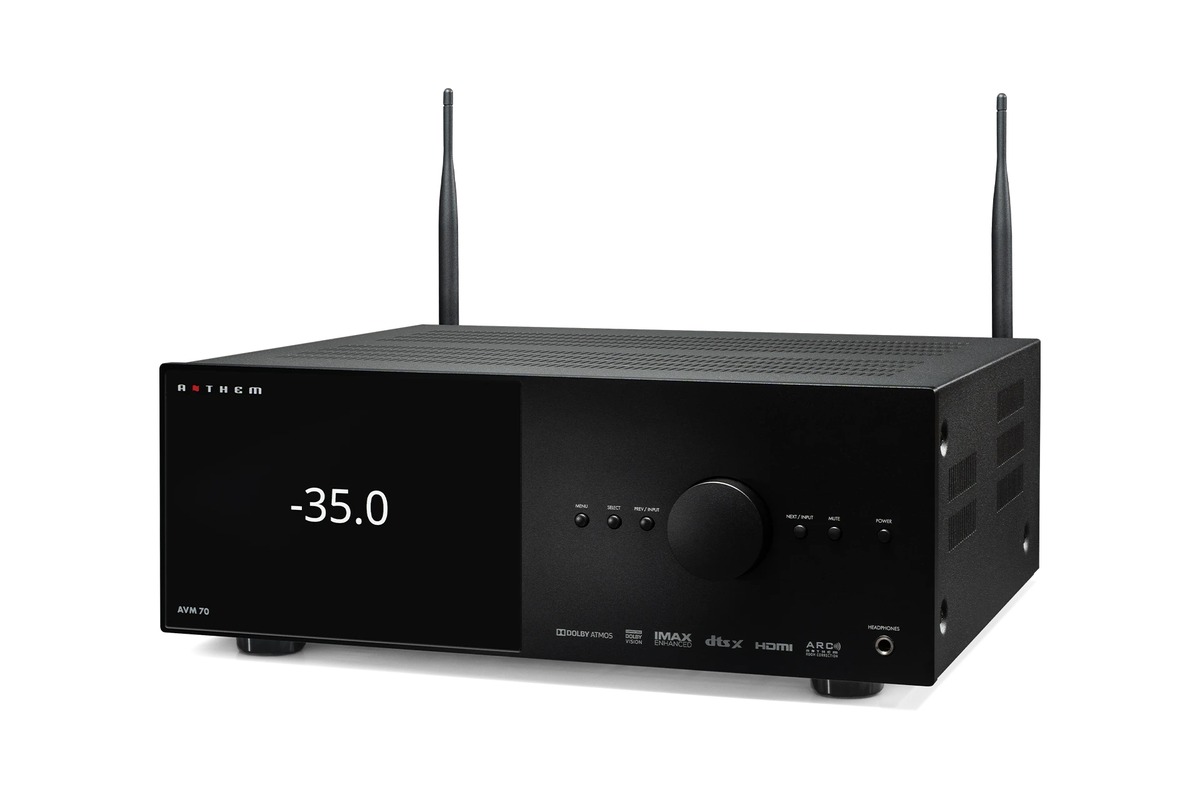

Anthem AVM 70 8K seen from three-quarters with its two antennas

Streaming and IP control

The AVM 70 8K streams via AirPlay 2, Google Chromecast (audio), Bluetooth 4.2 and Spotify Connect. A web interface switches zone 2 on and adjusts volume, audio mode and channel trims from a phone, tablet or computer. IP and RS232 control integrates with Savant, Control4, RTI, URC, Crestron and ELAN.

Reference 68781

Data sheet

Product Type: AV Preamplifier / Processor
USB ports: 1 USB-A 5 V/500 mA (service)
Brand: Anthem
Audio outputs: Pre-amp outputs: 15.2
Integrated phono: Yes
Number of channels: 15.2
Digital inputs: Optical: 3 inputs / 1 output
HDMI ARC: Yes
Analog inputs: 4 inputs
Subwoofer output: 2
Multiroom: Yes
Wireless connectivity: Yes
Number of HDMI ports: 7 inputs / 2 outputs
Streaming services: Apple AirPlay, Google Chromecast Audio, Bluetooth, Spotify Connect
Video optimization: HDR10, HDR10+, Dolby Vision, HLG, Dynamic HDR
Hi-Res Audio: Yes: FLAC, ALAC, WAV, DSD
Gaming optimization: VRR, ALLM, QFT
Network connectivity: Yes
Video outputs: HDMI 2.1
Installation format: 4U
Room correction: Yes
Signal-to-noise ratio: 110 dB
Power consumption: 60 W
Frequency response: 20 Hz - 35 kHz (±0.2 dB)
Niveau de sortie: 10.7 Vrms; subwoofer 11 Vrms
Distortion (THD): -100 dB (THD+N, 4 Vrms output)
Width: 43.2 cm
Depth: 36.4 cm
Height: 15.2 cm
Unit weight: 10.1 kg
