REL Airship Direct | Wireless kit for Serie S subwoofers | 3 YEAR WARRANTY

73821
CHF350.00 Tax included
Supplier stock – typically 4 to 7 days
REL Airship Direct, a wireless kit made of a transmitter and a receiver that plugs straight into Serie S subwoofers. It sends the bass without compression, with no cable or power supply at the subwoofer end.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

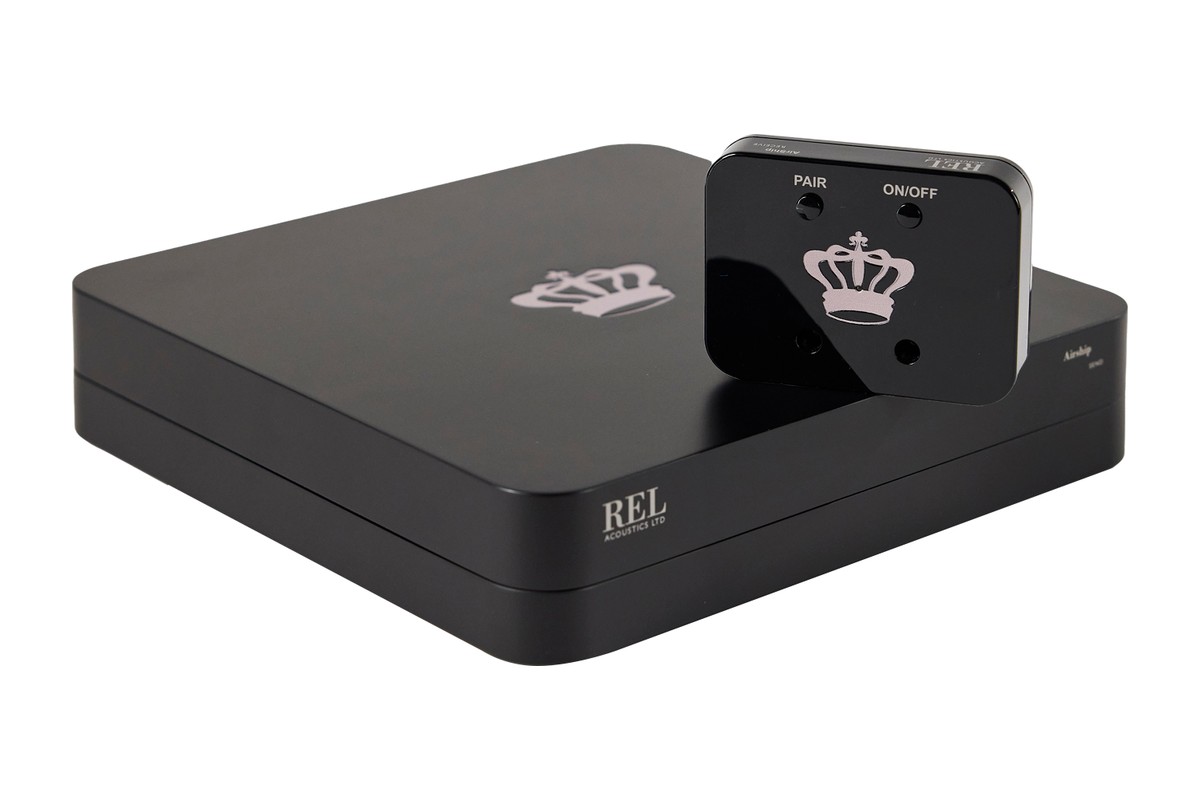

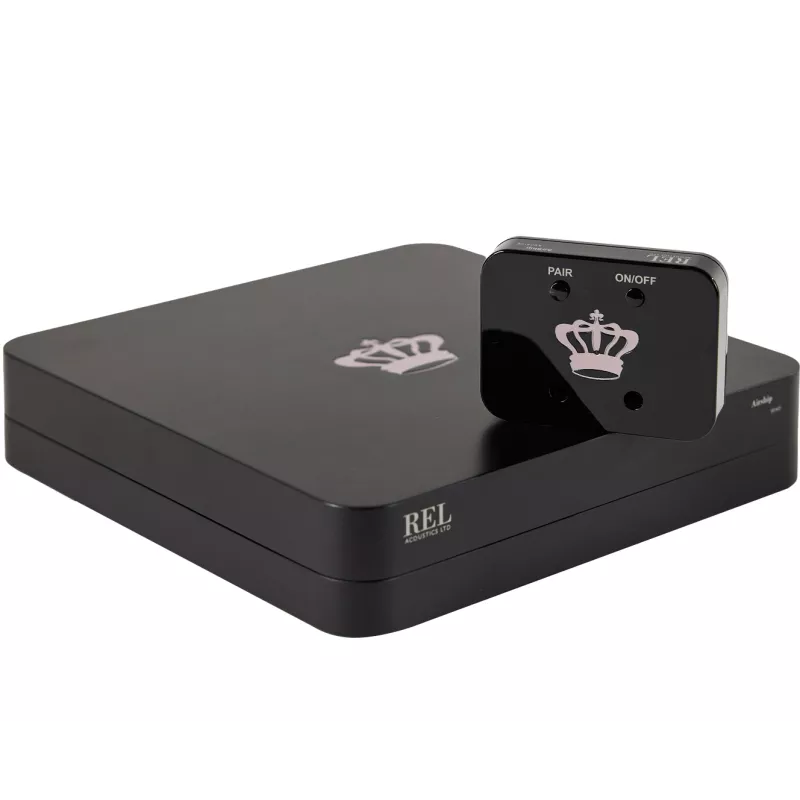

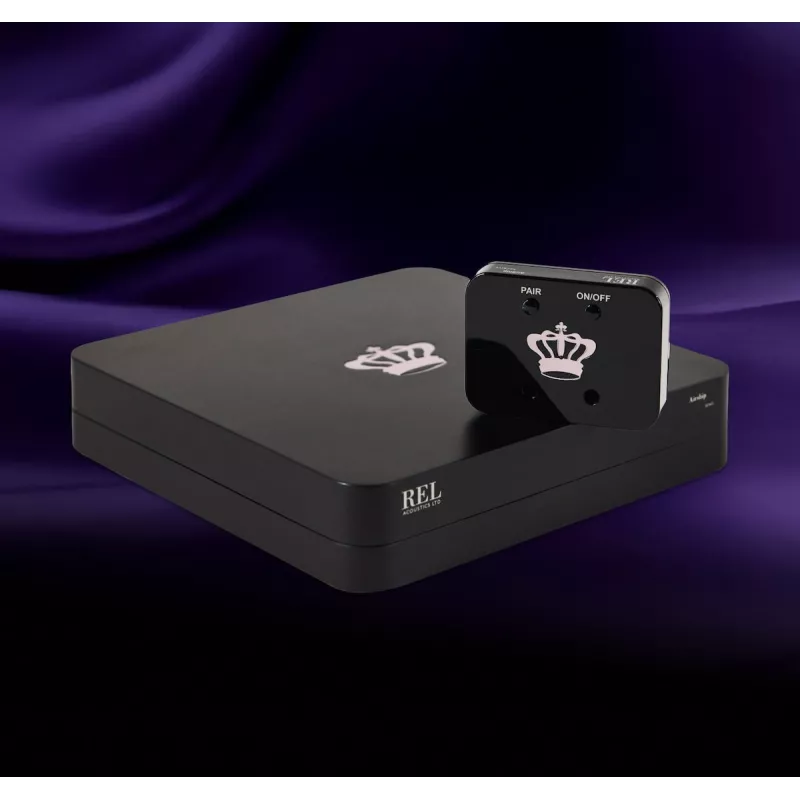

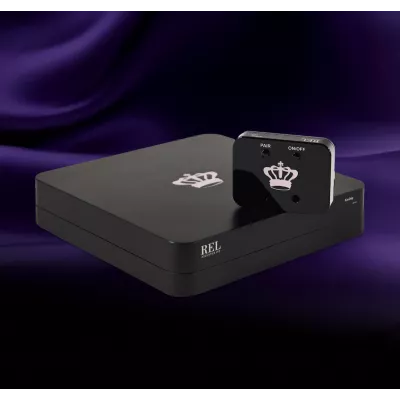

Flat black transmitter with the small crown-logo receiver on top

Transmitter and receiver

The Airship Direct links a REL Serie S subwoofer to the amplifier or processor without a cable. The kit pairs a transmitter, which takes the signal, with a compact receiver that fits onto the subwoofer. It uses the same wireless protocol as the Airship II, with wide bandwidth, low latency and no signal compression.

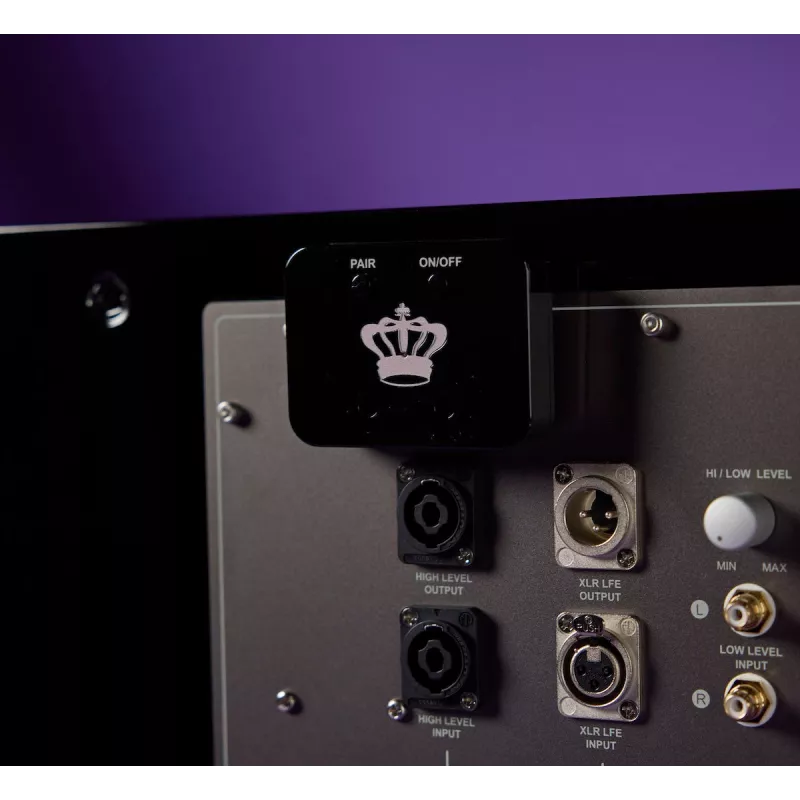

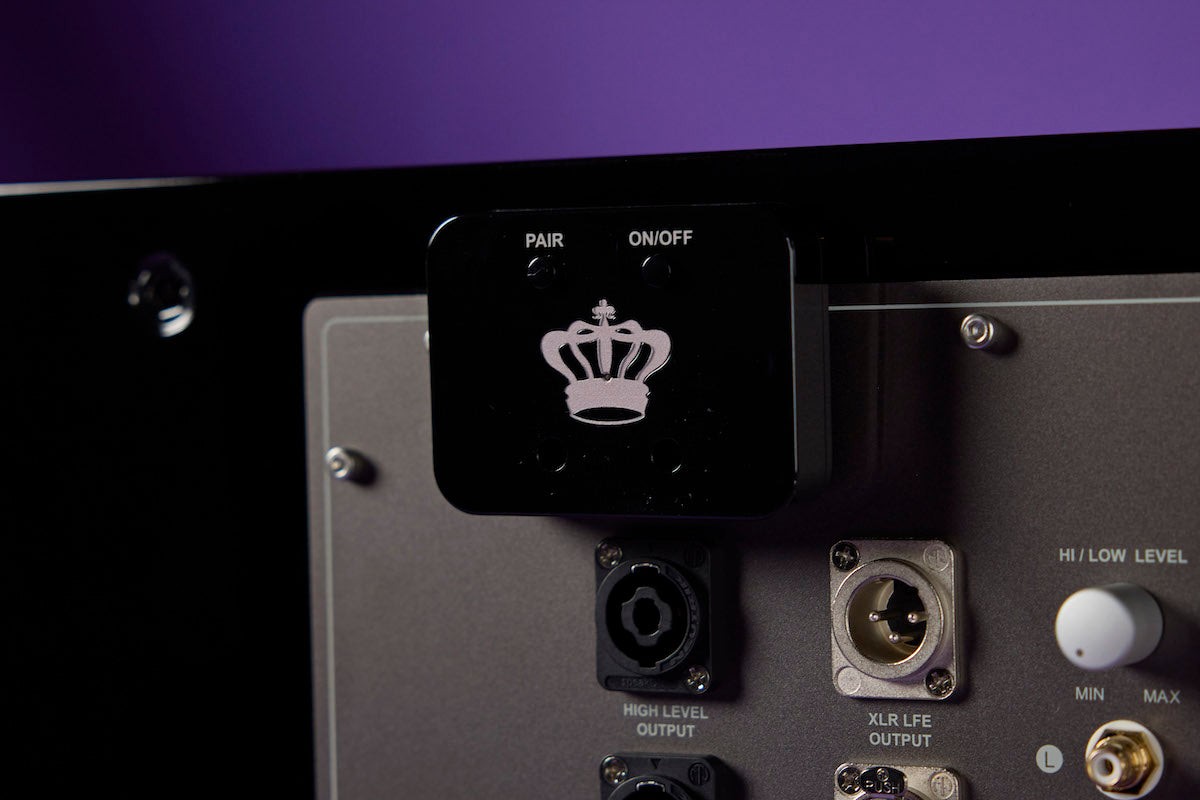

Wireless receiver plugged into the back of a subwoofer, above the sockets

Direct connection to the subwoofer

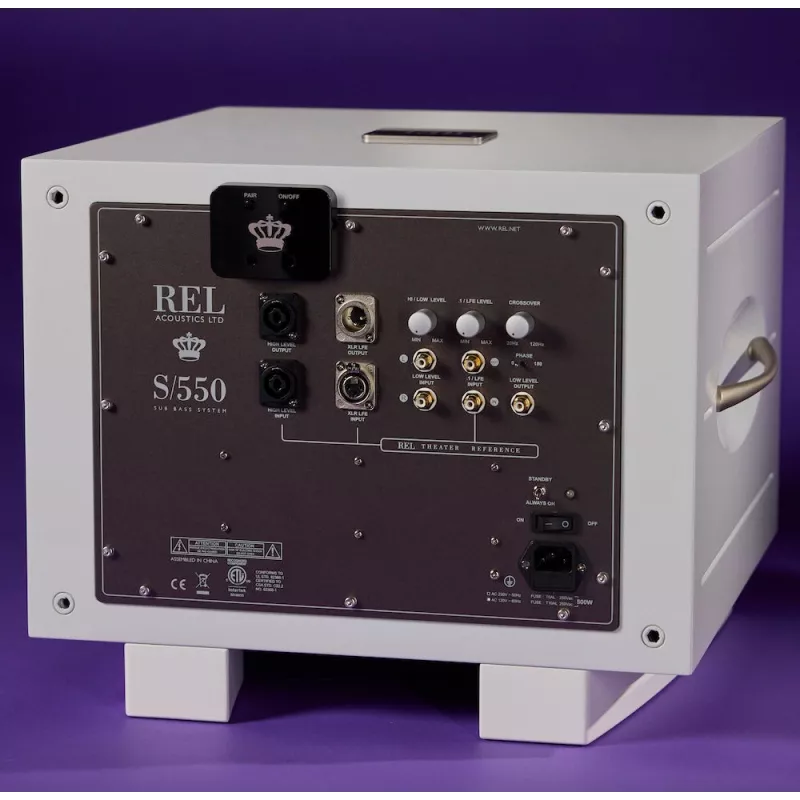

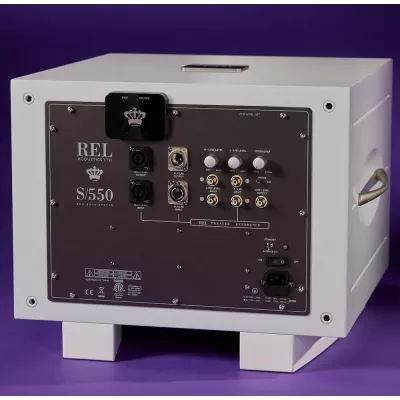

The receiver plugs straight into the dedicated port on the back of the Carbon Special Black Label, S/850, S/550 and 212 Black Label. Unlike the Airship II receiver, it needs no RCA cable and no separate power supply. Setup takes a few minutes, with no small box to hide behind the subwoofer.

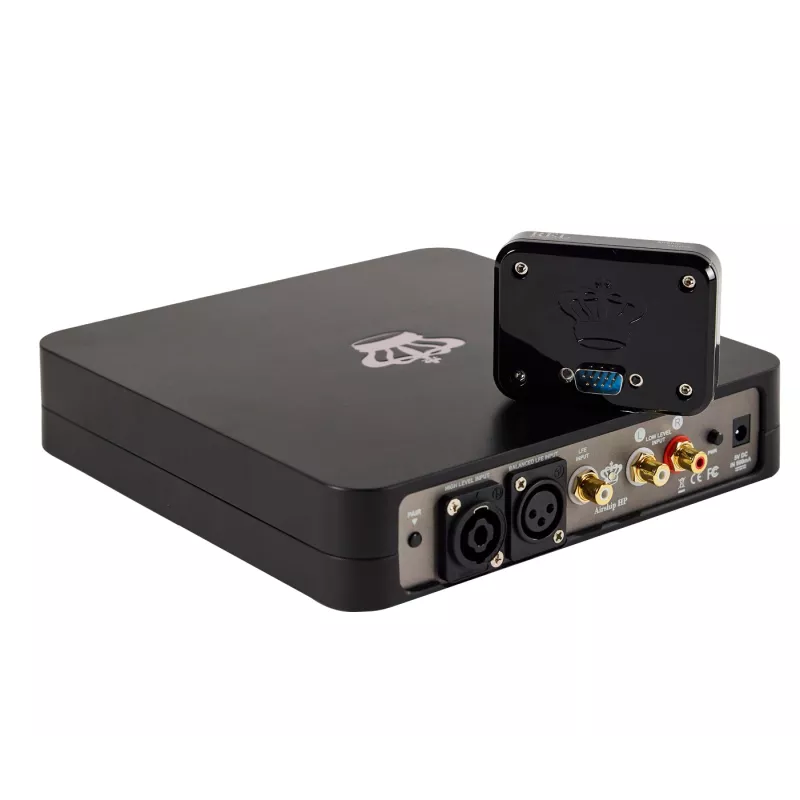

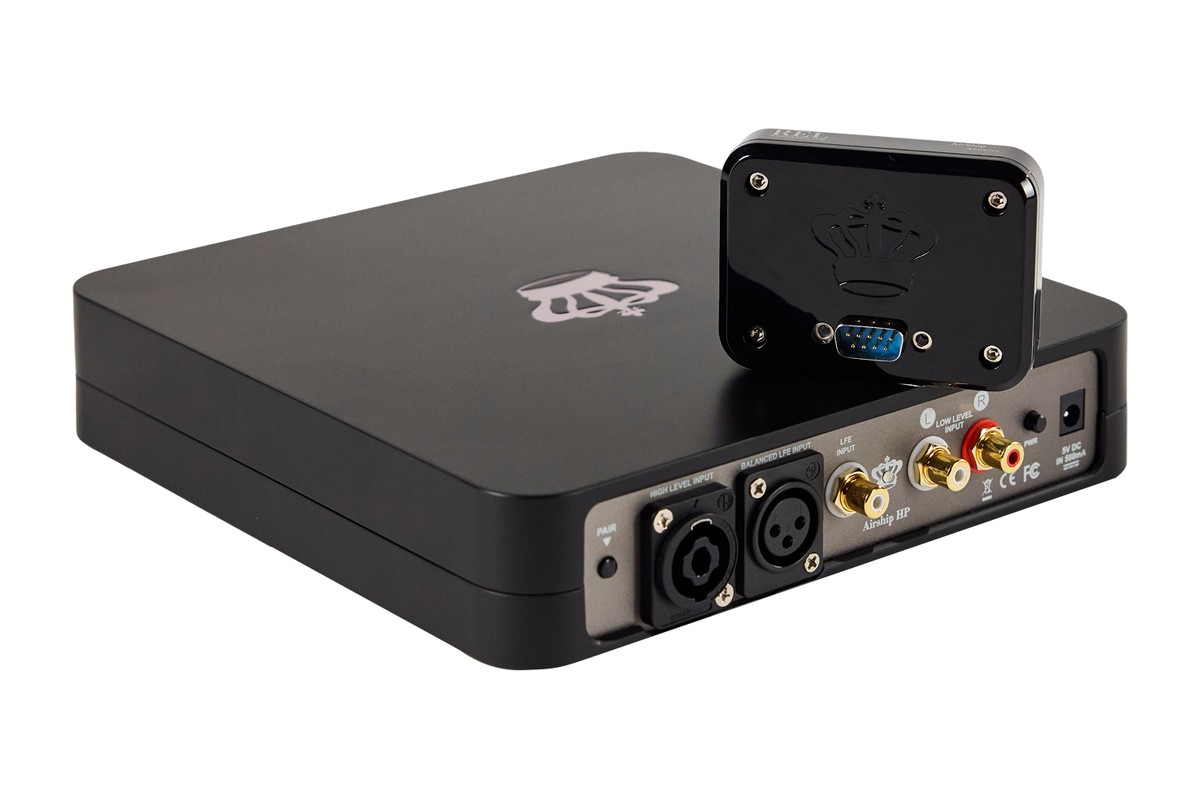

Back of the transmitter with Speakon, XLR and RCA sockets, receiver and its connector

Transmitter inputs

The transmitter accepts a high level signal on a Speakon socket, LFE on balanced XLR or RCA, and stereo low level on RCA. It runs on 5 V DC, 500 mA. You keep the high level connection REL integration is known for, without running a cable to the subwoofer.

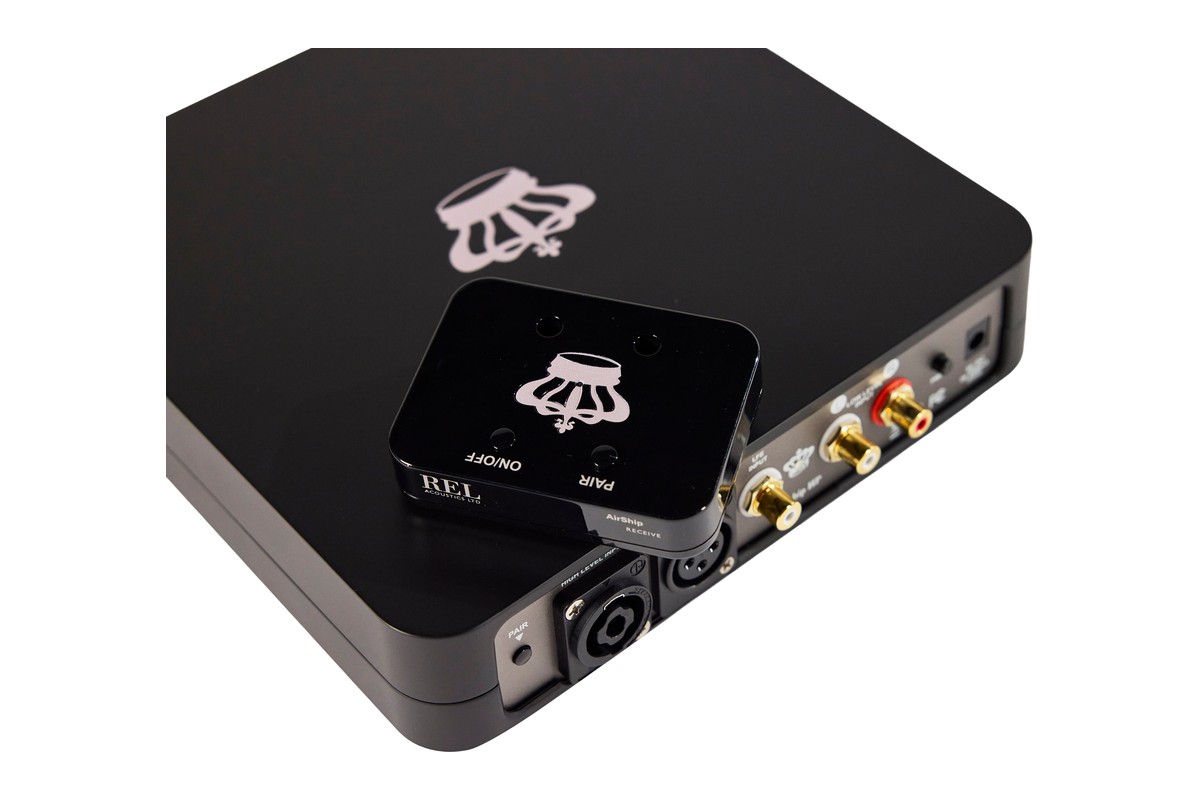

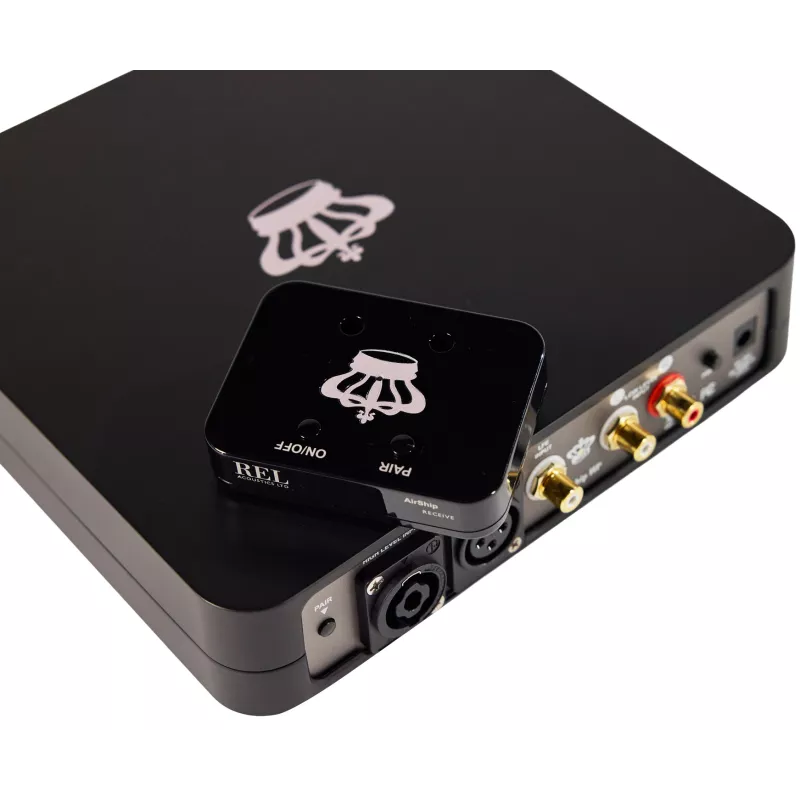

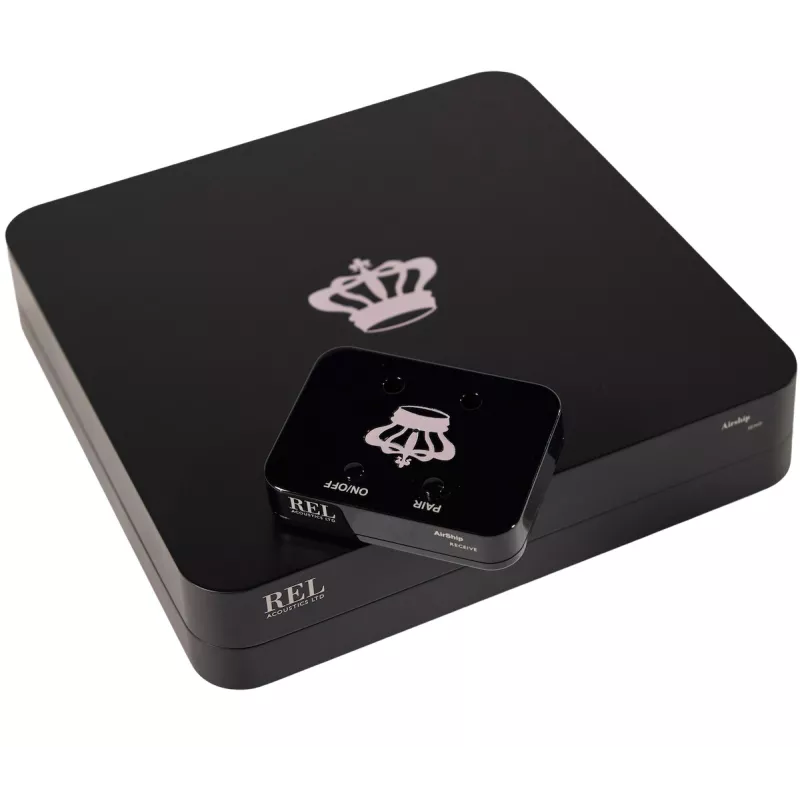

Receiver with PAIR and ON/OFF buttons resting on the transmitter

Pairing and multiple receivers

Pairing the transmitter and receiver takes less than a second with the PAIR button. A single transmitter can serve several receivers, which makes stereo pairs and Line Arrays simpler. The range reaches 10 m with a clear line of sight. The kit is sold individually.

73821

Data sheet

Product Type
Wireless transmission kit
Features
Compatible with 212 Black Label, Carbon Special Black Label, S/850 and S/550
Input impedance: High Level 150 kΩ, Low Level 10 kΩ, .1/LFE RCA and XLR 10 kΩ
One transmitter for several receivers, pairing in under one second
Receiver: 80 x 60 x 17.5 mm (W x H x D)
Receiver plugs straight into the Airship port of Serie S models, no cable or power supply
Supplied: power adapter, 1.5 m High Level cable, 2 x 2 m RCA cables
Wireless output power below -3 dBm
Brand
REL Acoustics
Analog inputs
Transmitter: High Level (Speakon), balanced LFE XLR, LFE RCA, stereo low level RCA
Wireless connectivity
Wireless transmission without compression, low latency
Color
Black
Wireless transfer
Range 10 m with clear line of sight
Power consumption
Transmitter: 5 V DC, 500 mA
Width
21.55 cm
Depth
4.65 cm
Height
21.55 cm

Specific References

EAN13
7612245928235
