Cabasse Eole 4 | In-ceiling adapter | 2 YEAR WARRANTY

62219
CHF149.00 Tax included
Supplier stock – typically 4 to 7 days
Cabasse in-ceiling adapter for the Eole 4 satellite speaker, sold without the speaker. It holds the sphere half-recessed in a 175 mm cut-out and lets it swivel 24 degrees either way.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

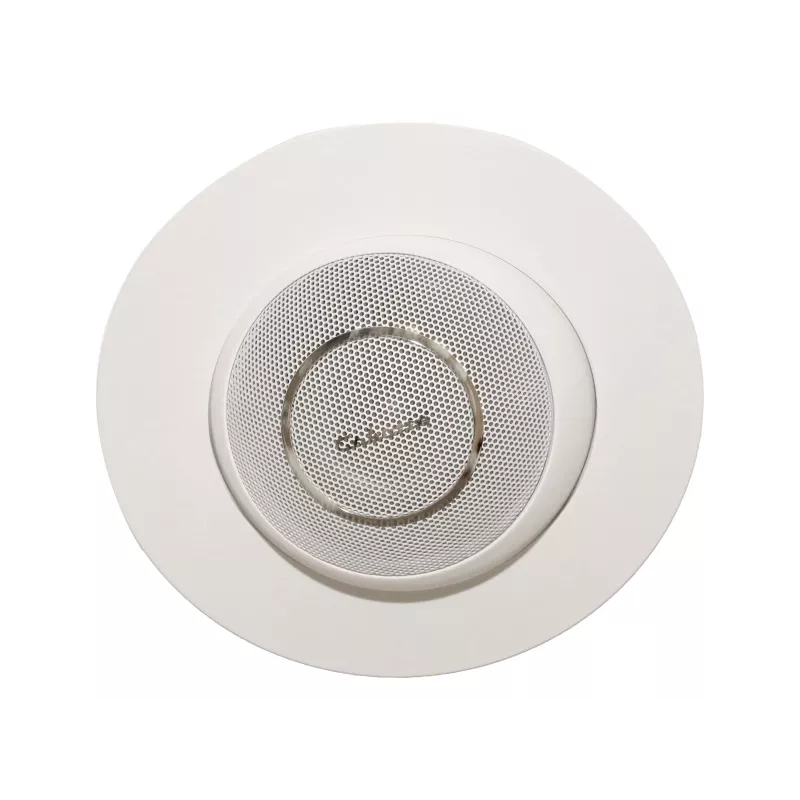

Round white trim ring seen from the front, perforated metal grille in the centre

Adapter for Eole 4

This adapter takes an Eole 4 satellite and mounts it in a ceiling: it includes the frame and the trim ring, but not the speaker. The satellite shown in the picture is ordered separately. The trim ring has a textured finish made to take the ceiling paint and attaches to the frame with magnets, with no visible screw. At 3.6 mm thick it sits almost flush with the surface.

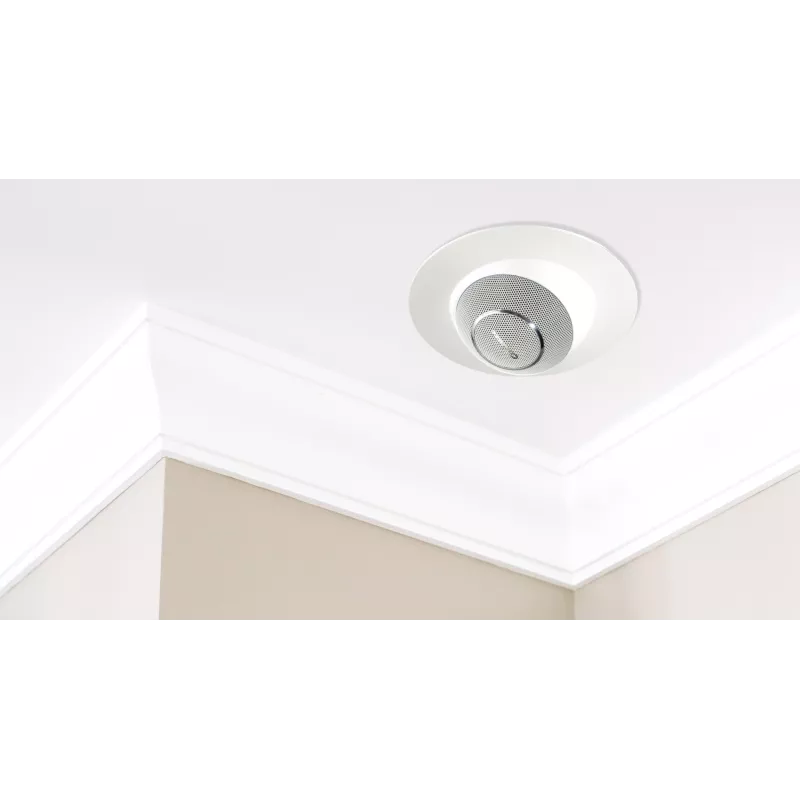

White sphere semi-recessed in a ceiling, next to a moulded cornice

175 mm cut-out

The manual calls for a 175 mm diameter cut-out, then covered by a 200 mm trim ring, and only the lower part of the sphere protrudes from the ceiling. Inside its frame, the sphere swivels 24 degrees either side of vertical to aim at the listening position rather than the floor. The coaxial driver covers 150 to 22,000 Hz, with a 29 mm tweeter and a 10 cm midbass driver.

62219

Data sheet

Brand
Cabasse
Color
White
Installation type
Ceiling-mounted
Width
20.0 cm

Specific References

EAN13
3700035112767
