Amina Guardian8 | Active 8-channel protection in a 1U rack

71549
CHF560.00 Tax included
Supplier stock – typically 4 to 7 days
The Amina Guardian8 is a eight-channel active protection unit for Amina invisible speakers in a 19-inch 1U rack format. Each channel is set by dip-switch and handles up to 275 W of amplifier power.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

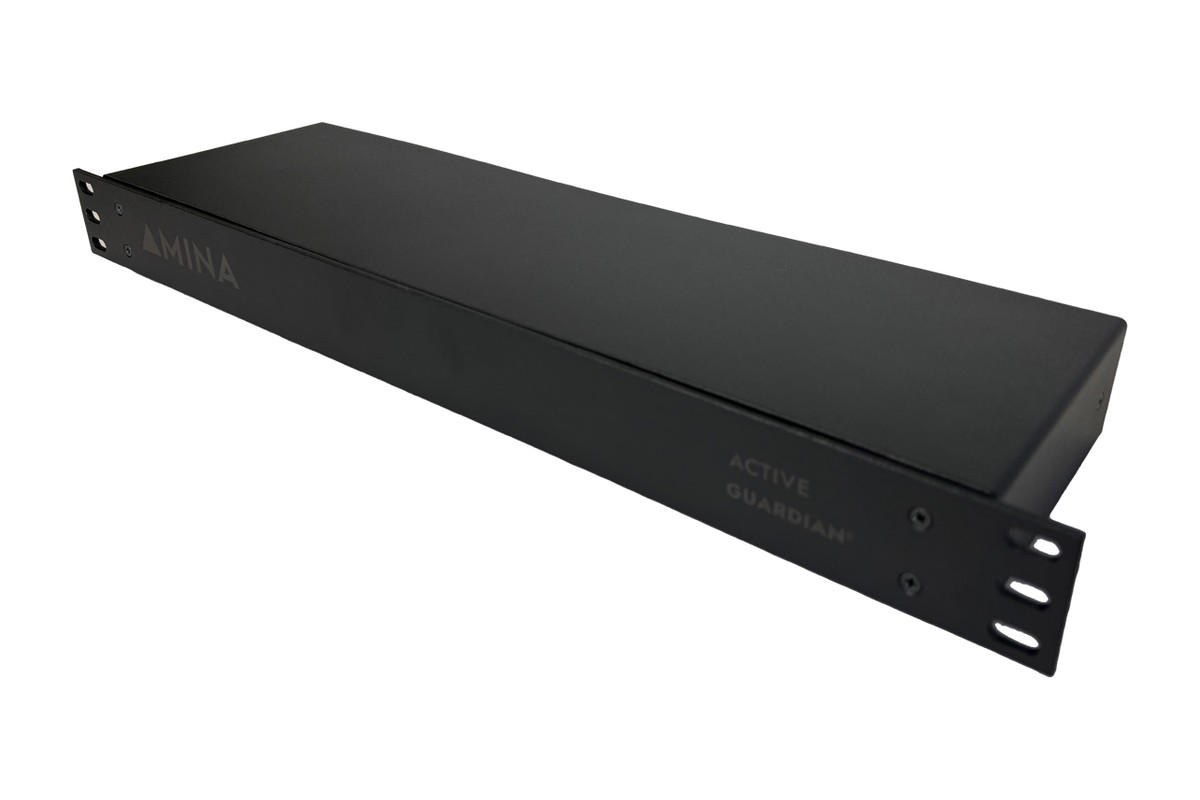

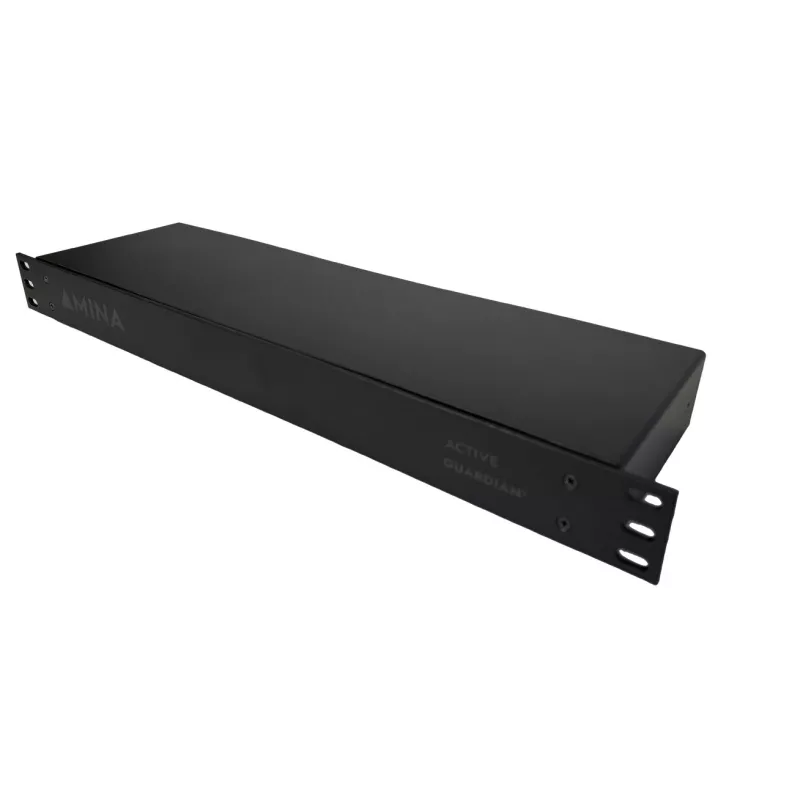

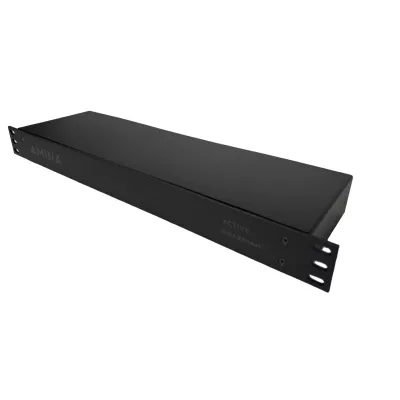

Amina Guardian8 in three-quarter view, black 19-inch rack unit with ears

Eight channels in 1U

The Guardian8 protects up to eight Amina invisible speakers from the AV rack, in a single 1U space, with rack ears supplied. Each channel is set by its own dip-switches to one of Amina's three tiers, 30, 50 or 75 W RMS into 4 Ω, starting from a 6.25 W factory setting. The signal path stays fully analogue; only the RMS and peak sensing is digital. Speakers connect to Phoenix terminals at the rear, and if the 5 V supply drops, every channel goes into protection.

71549

Data sheet

Product Type
Active loudspeaker protection system
Features
Threshold configurable per channel via internal DIP switch (factory setting 6.25 W into 4 Ω)
Brand
Amina
Number of channels
8
Technology
Fully analogue signal path, digital detection, 2-stage RMS and peak protection
Installation type
19" rack mount
Connections
Phoenix connectors (2.5 mm to 1 mm conductor / 10-18 AWG)
Power consumption
5 V / 1 A
Connector
Female Micro-USB (1 m USB-A to Micro-USB cable supplied)
Power handling
275 W max. per amplifier channel
Width
48.1 cm
Depth
20.5 cm
Height
4.4 cm
Unit weight
1.9 kg
