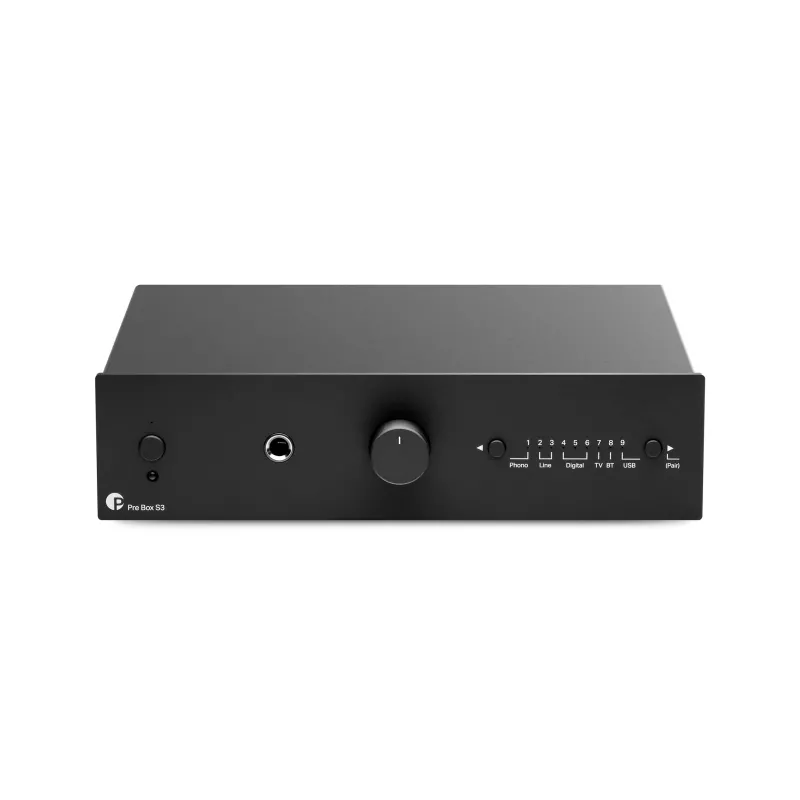

Pro-Ject Pre Box S3 | Stereo preamplifier

73920
CHF579.00 Tax included
Supplier stock – typically 4 to 7 days
Pro-Ject Pre Box S3, a compact stereo preamplifier that brings analogue, digital and wireless sources together. MM phono, eARC, USB-C, aptX HD Bluetooth and a headphone output make it the hub of a modern system.
Color : Black
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

Silver preamp between a turntable and a black speaker

All-in-one control centre

The Pre Box S3 brings analogue, digital and wireless sources together in a compact case. It is designed as the control centre of a modern hi-fi system with a turntable, streamer and TV. Its low-noise analogue circuit favours short signal paths.

Silver and black versions side by side

24-bit DAC and eARC

The Cirrus Logic CS4344 DAC converts digital sources up to 24-bit/192 kHz, with precise internal clocking and separate digital and analogue sections. The TV connects via eARC, and a CD transport via the coaxial or optical inputs. An asynchronous USB-C input and Bluetooth 5.0 with aptX HD complete the list.

Close-up of the black front and its buttons

Phono, line and headphones

Two RCA line inputs and an MM phono input, with 45 dB of gain, take analogue sources. The 6.3 mm headphone output drives headphones from 16 to 600 ohms. Signal-to-noise ratio reaches 120 dB A-weighted, and distortion stays below 0.007%.

Rear panel with RCA, digital and eARC inputs and RS232 terminal

Outputs and integration

A variable RCA output feeds the power amplifier, a fixed 3.5 mm jack output serves a headphone amp or a second zone, and a dedicated output takes the subwoofer. A 12 V trigger and an RS232 port make integration into an installation easier. The case measures 20.6 x 5.5 x 15.3 cm, weighs 1.02 kg and comes in black or silver.

Black = Black; Silver = Silver
73920

Data sheet

Product Type
Preamplifier
Features
Depth including sockets: 176 mm
Headphone amplifier: 2 x 70 mW at 32 ohms (1% THD)
Line preamp gain: 4.5 dB
Phono preamp gain: 45 dB
Power supply: 18 V / 500 mA DC, 100 - 240 V, 50/60 Hz
Bluetooth
5.0, aptX, aptX HD, A2DP profile
Brand
Pro-Ject
Integrated DAC
Cirrus Logic CS4344 24-bit/192 kHz
Headphone output
6.3 mm jack (16 - 600 ohms)
Audio outputs
1 x variable RCA, 1 x fixed 3.5 mm jack, 1 x sub RCA
Digital inputs
RCA coaxial, 2 x Toslink, Bluetooth, asynchronous USB-C, eARC
Analog inputs
2 pairs RCA, 1 phono MM (RCA)
Phono inputs
MM
Color
Black
Silver
Connections
RS232 on pluggable 3-pin terminal block
Trigger 12 V DC, 2-pole coaxial 2.5 mm jack
Signal-to-noise ratio
110 dB (120 dB A-weighted)
Power consumption
Less than 0.5 W in standby
Frequency response
20 Hz - 20 kHz (-0.4 dB)
Séparation des canaux
-72 dB at 10 kHz
Distortion (THD)
less than 0.007%
Width
20.6 cm
Depth
15.3 cm
Height
5.5 cm
Unit weight
1.02 kg

Specific References

EAN13
9120122290354
