Naim New Classic NSC 222 | Network streaming preamplifier

Name: Naim New Classic NSC 222 | Network streaming preamplifier
Brand: Naim
SKU: 69010
Price: 6999.00 CHF
Availability: InStock

Reference 69010

CHF6,999.00 Tax included

24‑hour delivery

The Naim New Classic NSC 222 is a streaming preamplifier from the New Classic 200 Series. It combines network playback up to 32 bit/384 kHz, an MM phono input and a headphone output in a single chassis.

Description
Product Details

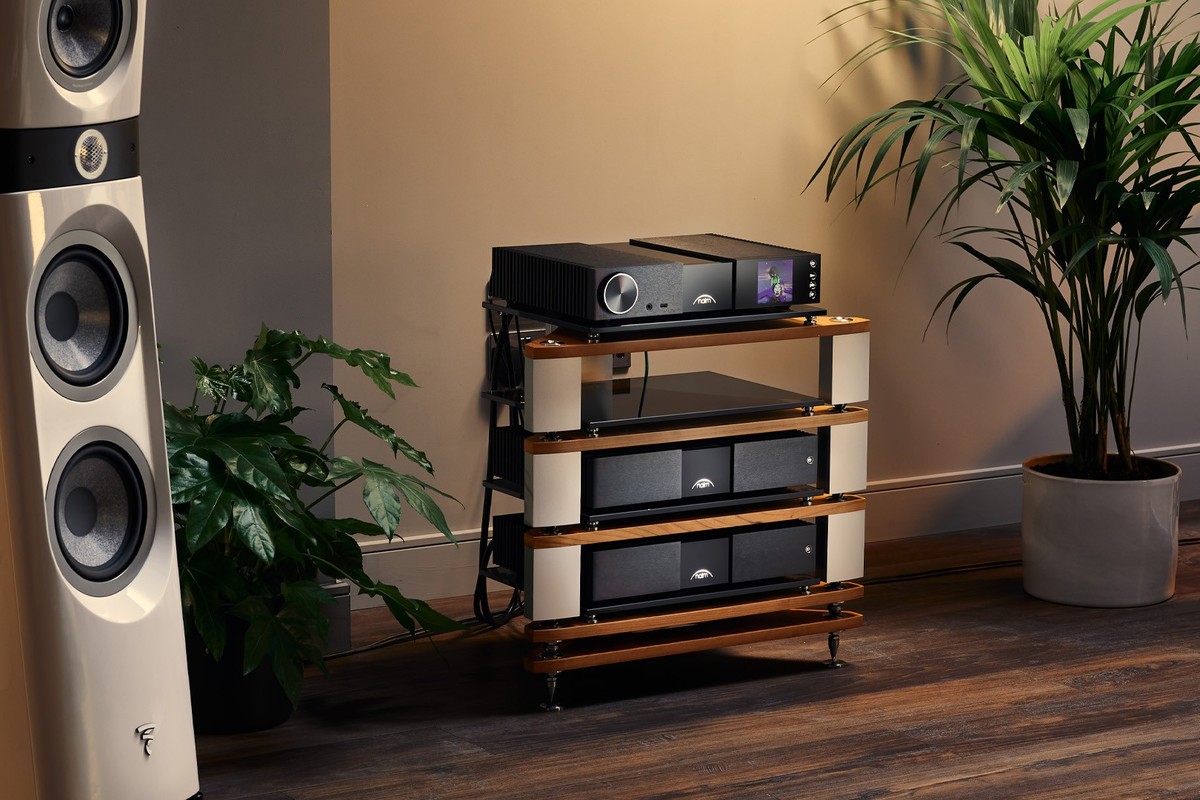

Naim New Classic NSC 222 streaming preamplifier on a hi-fi rack

Naim streaming platform

The NSC 222 plays WAV files up to 32 bit/384 kHz as well as DSD 64 and 128 Fs streams. Supported sources include Qobuz, TIDAL, Spotify Connect, Roon Ready, AirPlay 2, Chromecast, UPnP and internet radio. Networking runs over 10/100 Ethernet or 802.11ac Wi-Fi, with the antenna housed inside the heatsink. The digital stage covers 3 Hz to 27 kHz at -3 dB.

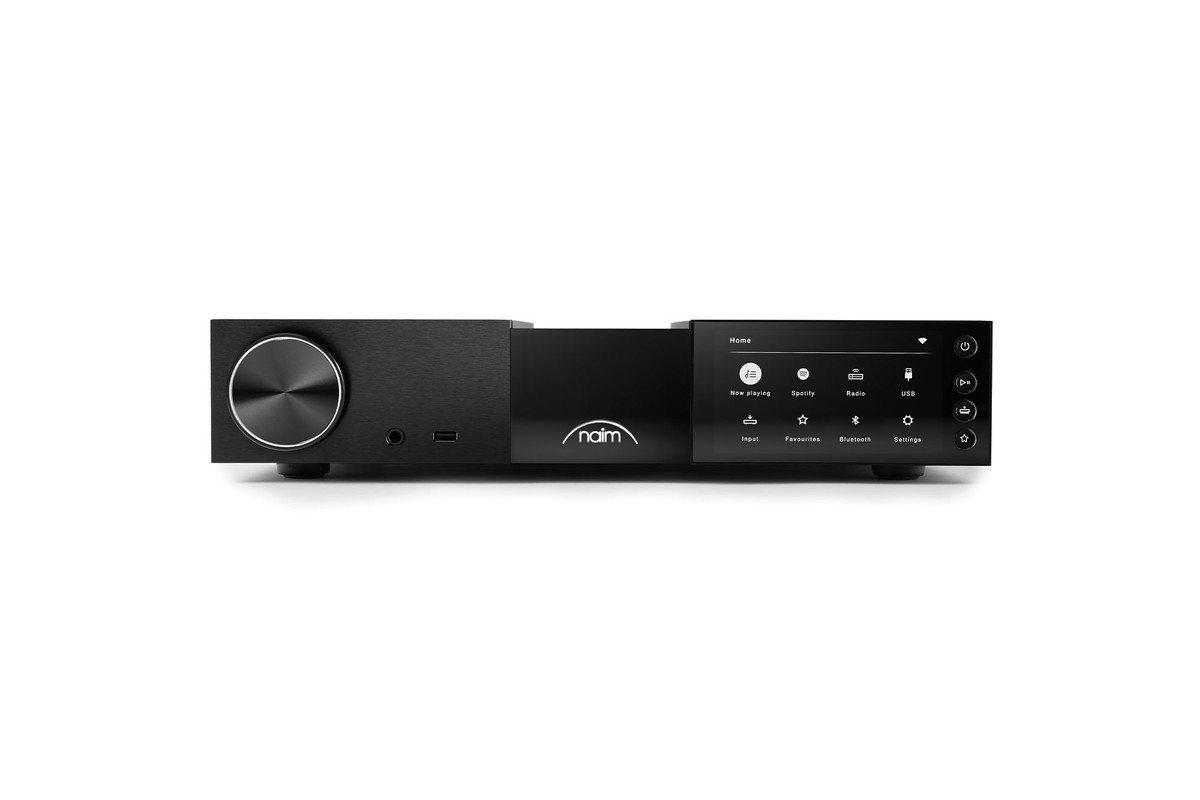

Backlit volume knob and colour display seen from the front

Phono and headphone section

The MM phono stage is built into the preamplifier: 47 kΩ/470 pF load, 5 mV sensitivity and 40 dB gain. The RIAA curve is held to ±0.1 dB, with 23 dB of overload margin, or 75 mV peak. The 6.35 mm headphone jack delivers 1.5 W into 16 Ω.

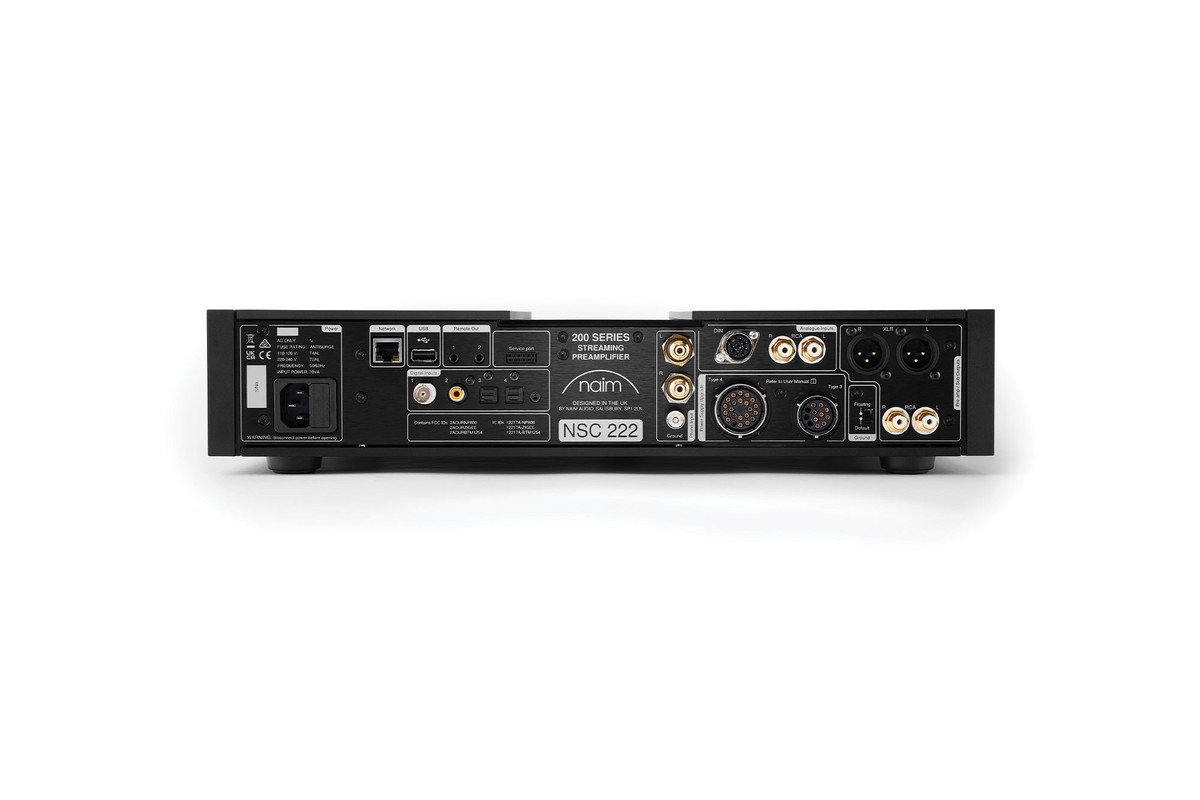

Rear panel and connections of the aluminium unit

Digital and analogue connections

Two TOSLINK optical inputs accept up to 24 bit/96 kHz, while the RCA and BNC coaxial inputs reach 24 bit/192 kHz and handle DoP 64 Fs. On the analogue side, an 8-pin DIN socket that also takes 5-pin DIN cables sits alongside a stereo RCA pair loaded at 47 kΩ. Preamplifier outputs are provided on both XLR and RCA, at up to 7 Vrms. Two USB type A ports, front and rear, supply 1.6 A.

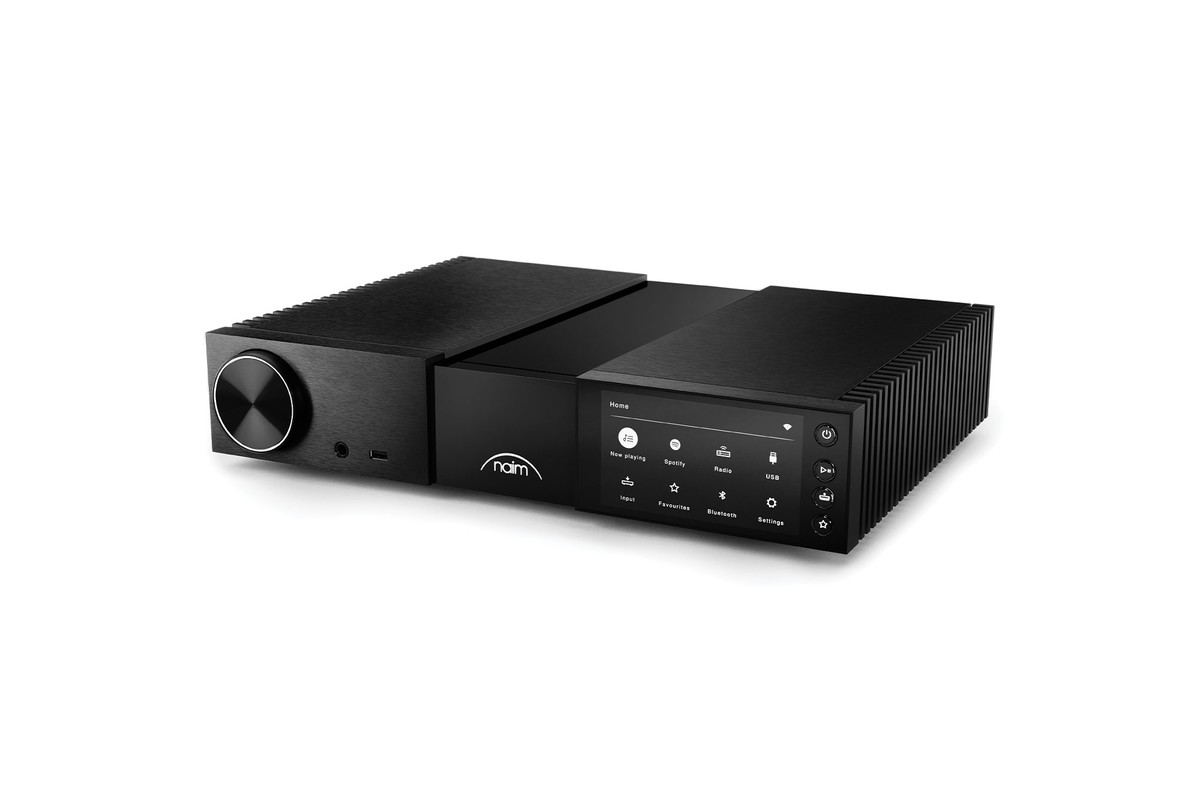

New Classic 200 Series aluminium chassis seen from three quarters

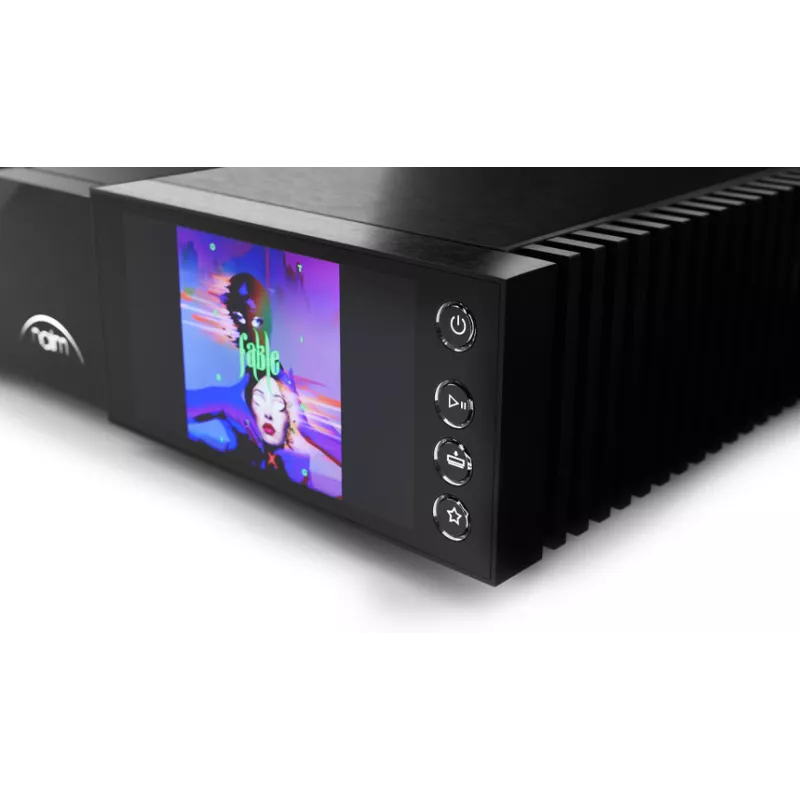

Colour display and controls

A 5.5-inch colour display shows the track playing, and four buttons give access to standby, playback, inputs and favourites. The Zigbee RF4CE remote control is supplied, and the Focal & Naim app controls the unit from iOS or Android. Multiroom mode synchronises up to six Naim streamers. The aluminium chassis measures 43.2 × 31.75 × 9.15 cm and weighs 11 kg, with a consumption of 25 W in normal use.

Reference 69010

Data sheet

Product Type: Streamer Preamplifier
Features: 5.5-inch colour display and four buttons (standby, play/pause, inputs, favourites)
Focal & Naim app
Gapless playback on all formats
Power supply upgrade: NPX 300
Wireless updates via the Focal & Naim app
Zigbee RF4CE remote control
USB ports: 2x USB-A (front and rear, 1.6 A charging)
Bluetooth: Yes (aptX Adaptive)
Brand: Naim
Integrated DAC: Yes
Headphone output: 6.35 mm jack (1.5 W into 16 Ω)
WiFi: Yes
Audio outputs: XLR + RCA (7 Vrms max)
Digital inputs: 2x optical TOSLINK (24-bit/96 kHz), 1x coaxial RCA and 1x coaxial BNC (24-bit/192 kHz, DoP 64 Fs)
Analog inputs: 1x 8-pin DIN (5-pin DIN compatible), 1x RCA pair (47 kΩ, 2.2 V typ., 7.5 Vrms max)
Multiroom: Yes
Phono inputs: Yes (MM)
Color: Black
Streaming services: AirPlay 2
Chromecast
Internet Radio
Spotify Connect / TIDAL / Qobuz / Roon Ready
UPnP
Audio format: Internet radio: Windows Media, MP3, AAC, Ogg Vorbis, MMS
MP3 / AAC / OGG / WMA / M4A
WAV / FLAC / AIFF / ALAC / DSD
Hi-Res Audio: WAV up to 32-bit/384 kHz, FLAC/AIFF/ALAC up to 24-bit/384 kHz, DSD 64 and 128 Fs
Series: New Classic 200
Network connectivity: Ethernet 10/100 Mbps, Wi-Fi 802.11 a/b/g/n/ac, BLE 4.2
Connections: 3.5 mm optical system-control output (NAP 250/350)
Signal-to-noise ratio: MM 80 dB, line 104 dB, digital 102 dB (A-weighted)
Power consumption: 25 W
Less than 0.5 W in standby
Less than 2 W (network standby)
Frequency response: Digital: 3 Hz to 27 kHz (-3 dB)
Line: 3 Hz to 40 kHz (-3 dB)
MM phono: -3 dB at 10 Hz, RIAA ±0.1 dB
Séparation des canaux: MM 90 dB, line 90 dB (70 dB at 20 kHz), digital 90 dB, at 1 kHz
Distortion (THD): Digital: 0.0035% (0 dBFS, 1 kHz)
Line: 0.0025% at 1 kHz, 0.015% at 20 kHz (2.2 V, volume at 0 dB)
MM phono: below the noise floor
Width: 43.2 cm
Depth: 31.75 cm
Height: 9.15 cm
Unit weight: 11 kg
