Marantz AMP 30 | 6-channel power amplifier | 4 YEAR WARRANTY

Name: Marantz AMP 30 | 6-channel power amplifier | 4 YEAR WARRANTY
Brand: Marantz
SKU: 72123
Price: 3649.00 CHF
Availability: BackOrder

Reference 72123

CHF3,649.00 Tax included

Supplier stock – typically 4 to 7 days

The Marantz AMP 30 is a slim 6-channel power amplifier rated at 200 W per channel into 8 ohms, with HDAM and Class D. Just 11.1 cm high, it extends a home cinema system built around the AV 30 or a Marantz AV receiver.

Description
Product Details

Marantz AMP 30 power amplifier beneath an AV processor in a wooden cabinet

Six 200 W channels

The AMP 30 delivers 200 W per channel into 8 ohms and 400 W into 4 ohms on each of its six channels. With five channels driven at once, every channel still holds 200 W into 8 ohms. It extends the AV 30, a Marantz AV receiver or another AMP 30, AMP 20 or AMP 10 as the speaker count grows.

Slim black amplifier in a dark wooden cabinet recess

Slim format

The chassis is only 111 mm high for 442 mm in width and depth, and weighs 10 kg. It slides into a low cabinet, under the processor or AV receiver. Marantz HDAM technology is paired here with high-efficiency, low-distortion Class D amplification, which draws 300 W in operation and 70 W at idle with no signal.

Processor and amplifier stacked in a TV cabinet beneath a screen

Control from the processor

Connected to a Marantz AV separate with the supplied link cable, the AMP 30 is controlled from the preamplifier. Power and lighting then stay in sync with it. The RS-232C port, IR flasher input, Marantz Remote Bus and DC trigger input and output serve installations run by a home automation system.

Living room with a large wall-mounted TV and electronics in a low cabinet

XLR inputs, Bi-Amp and BTL

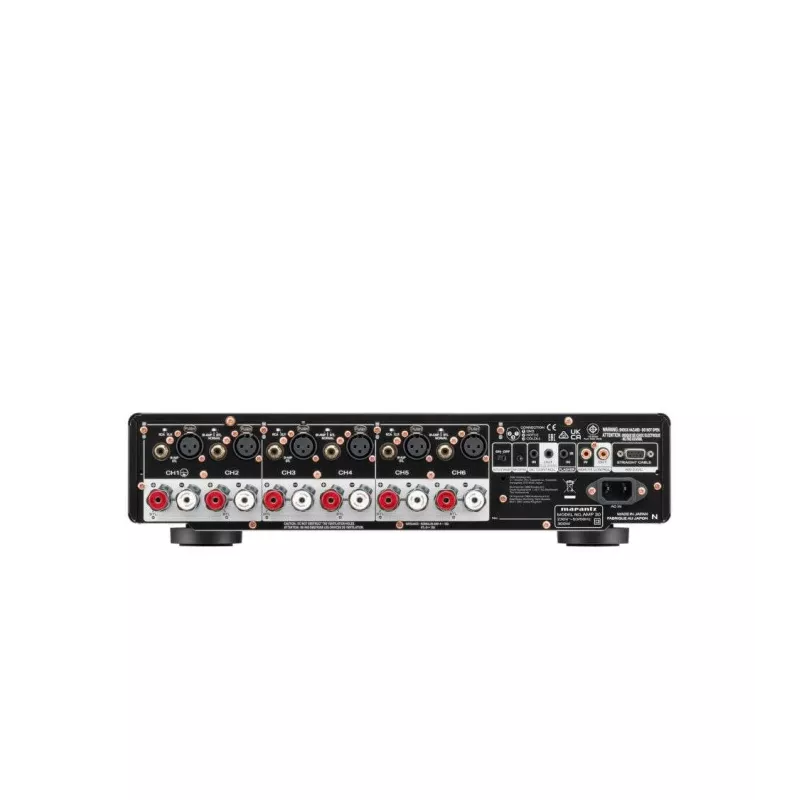

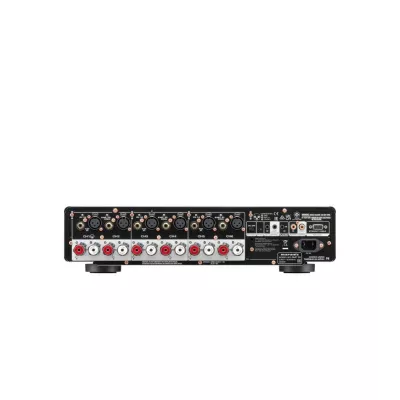

Each channel accepts an RCA or a balanced XLR input, chosen with a selector. Bi-Amp mode powers the bass and treble sections of a speaker separately, while BTL mode bridges two channels into a single 400 W channel into 8 ohms. The six outputs use SPKT-1+ terminals, and the Marantz level meter on the front shows the output level.

Reference 72123

Data sheet

Product Type: Power Amplifier
Features: Auto Standby
BTL (bridged) mode
Bi-amp Capable
Front-panel level meter
Metal front panel
System remote function
Brand: Marantz
Number of channels: 6
Analog inputs: Balanced XLR and RCA, 6 channels (selector)
Output power: 200 W (8 Ω)
200 W (8 Ω, 5 channels driven)
400 W (4 Ω)
400 W in BTL (8 Ω)
Color: Black
Technology: Class D + HDAM, slim
Series: 30
Connections: 6 speaker terminals
DC trigger in / out (1 / 1)
IR flasher input
Marantz SPKT-1+ speaker terminals
RS-232C
Amplification technology: Class D
Power consumption: 0.2 W standby
70 W (no signal)
300 W
Width: 44.2 cm
Depth: 44.2 cm
Height: 11.1 cm
Unit weight: 10.0 kg
