Naim SuperLine | Moving coil phono preamplifier

Name: Naim SuperLine | Moving coil phono preamplifier
Brand: Naim
SKU: 65717
Price: 3299.00 CHF
Availability: BackOrder

Reference 65717

CHF3,499.00

CHF3,299.00 Save CHF200.00

Supplier stock – typically 4 to 7 days

The Naim SuperLine is a phono preamplifier for moving coil cartridges, housed in Naim's aluminium case. It offers 20 load combinations and takes its 24 V supply from a compatible Naim component.

Description
Product Details

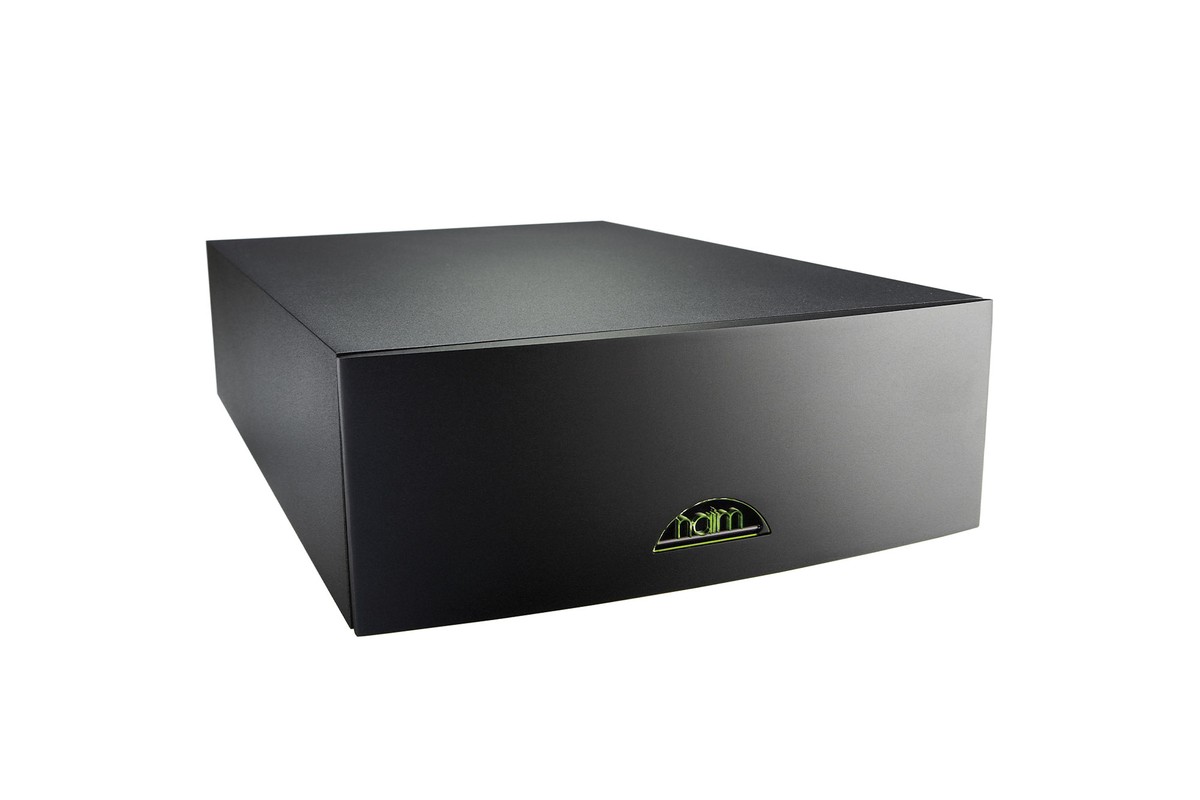

Naim SuperLine phono preamplifier seen from three quarters

Moving coil phono stage

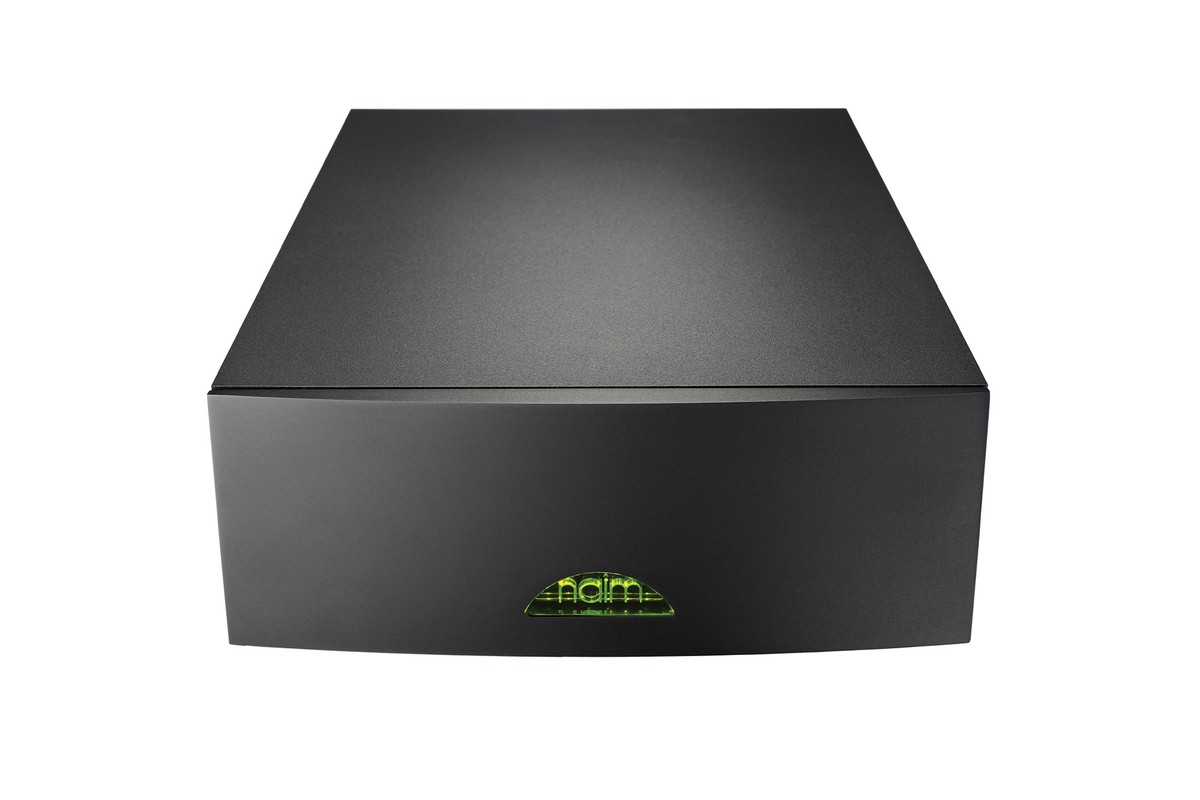

The SuperLine is a phono preamplifier dedicated to moving coil (MC) cartridges. It is built into Naim's reference aluminium case, closed by a bead-blasted black anodised front panel. The circuitry sits on a suspension system taken from Naim's 500 Series.

Adjustable cartridge loading

Two 5-pin DIN sockets take loading plugs that match the stage to the cartridge, with 20 possible combinations. The published values range from 10 kΩ to 100 Ω in resistance and from 100 pF to 10 nF in capacitance. Gain reaches 64 dB at 1 kHz, 58 dB on the SuperLine E version, and the RIAA curve is held to ±0.1 dB from 20 Hz to 20 kHz.

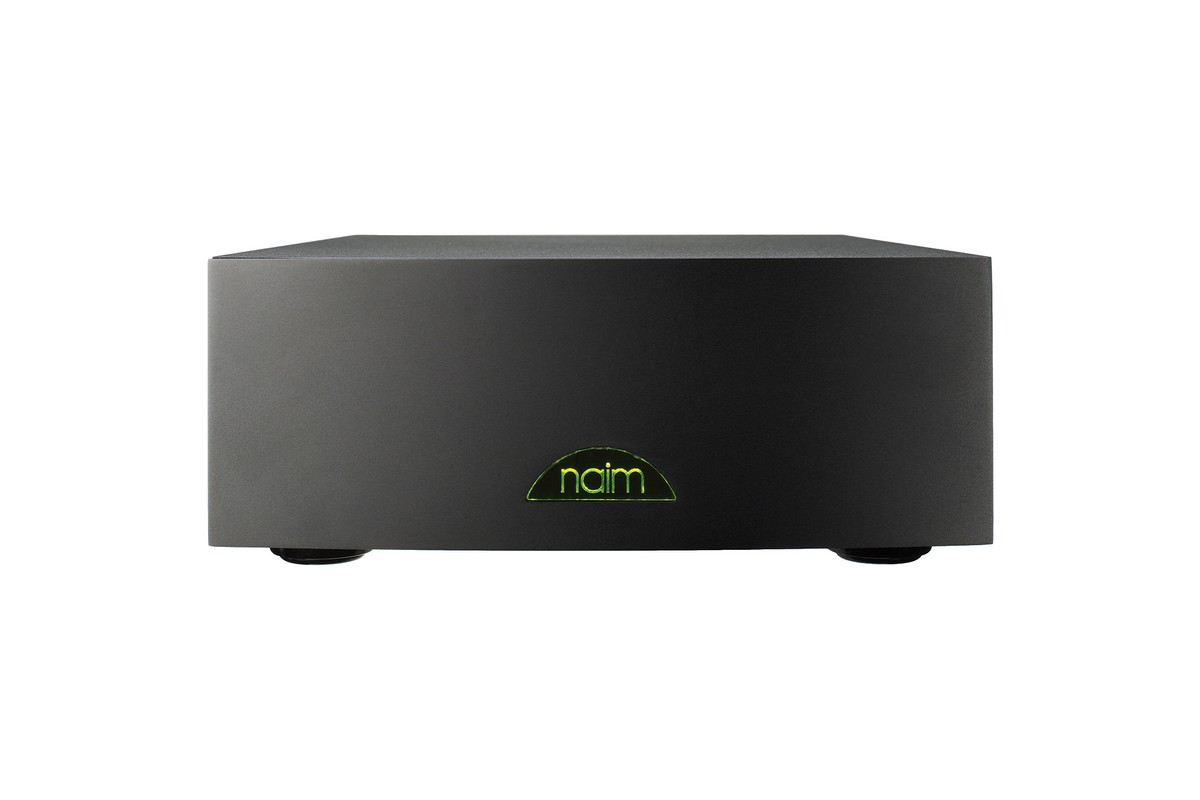

Black aluminium case seen from the front

Inputs and power supply

The turntable connects to RCA or BNC inputs. The SuperLine runs from an external 24 V supply: NaimUniti 2, NAIT XS 2 or XS 3, SUPERNAIT 2 or 3, Hi-Cap DR, a Naim preamplifier other than the NAC-N 172 XS, or the FlatCap XS, HiCap and SuperCap power supplies. The case measures 207 × 314 × 87 mm and weighs 7.7 kg.

Reference 65717

Data sheet

Product Type: Phono Preamplifier
Features: Power supply options: NaimUniti, NAIT XS, SuperNait, 152XS, 202, 282, 252, 552, FlatCap XS, HiCap, SuperCap
Brand: Naim
Analog inputs: BNC, RCA
Phono inputs: Yes (MC)
Color: Black
Connections: 2x 5-pin DIN for loading plugs
Frequency response: RIAA ±0.1 dB (20 Hz - 20 kHz)
Impédance de charge recommandée: 10 kΩ, 1 kΩ, 500 Ω, 220 Ω, 100 Ω, 100 pF, 1 nF, 5.6 nF, 10 nF
Width: 20.7 cm
Depth: 31.4 cm
Height: 8.7 cm
Unit weight: 7.7 kg
