Cardas Clear Digital (SPDIF) | Coaxial S/PDIF digital cable

54583
CHF825.00 Tax included
Supplier stock – typically 4 to 7 days
The Cardas Clear Digital is a 75-ohm coaxial S/PDIF digital cable, with RCA SRCA or BNC plugs. Its Matched Propagation conductors make it, according to Cardas, the brand's most neutral and detailed coaxial cable.
Length : 0.5m
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

Coiled Clear Digital coaxial S/PDIF cable on a white background

75-ohm Clear coaxial

The Clear Digital links a transport or streamer to a DAC over the coaxial S/PDIF connection, at 75 ohms. It uses the Matched Propagation conductors, Cardas' most accomplished, and measures 8.89 mm in diameter under its very flexible TPR jacket. Cardas describes it as the most neutral, most detailed and most revealing coaxial cable it has produced.

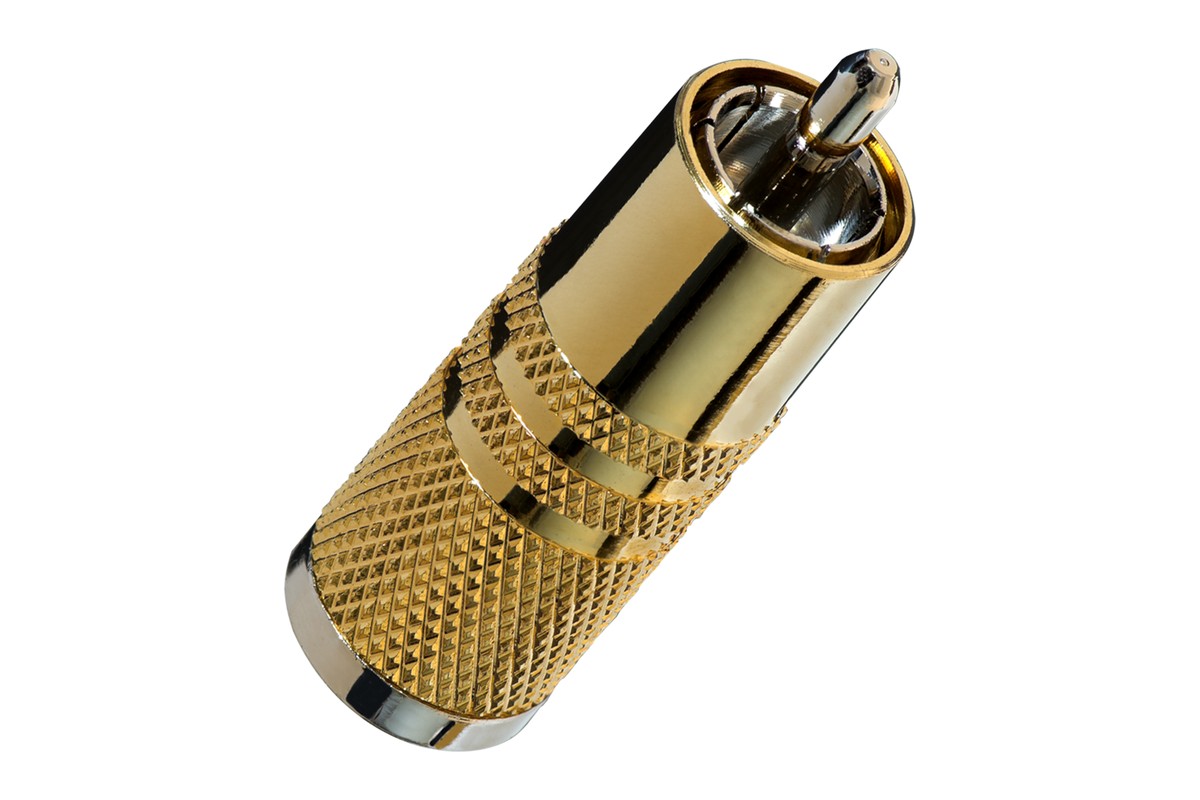

Cardas SRCA male RCA plug

Cardas SRCA RCA plugs

The Clear Digital is fitted as standard with Cardas SRCA RCA plugs, or with BNC for inputs of that type. Every cable is terminated by hand in Bandon, Oregon.

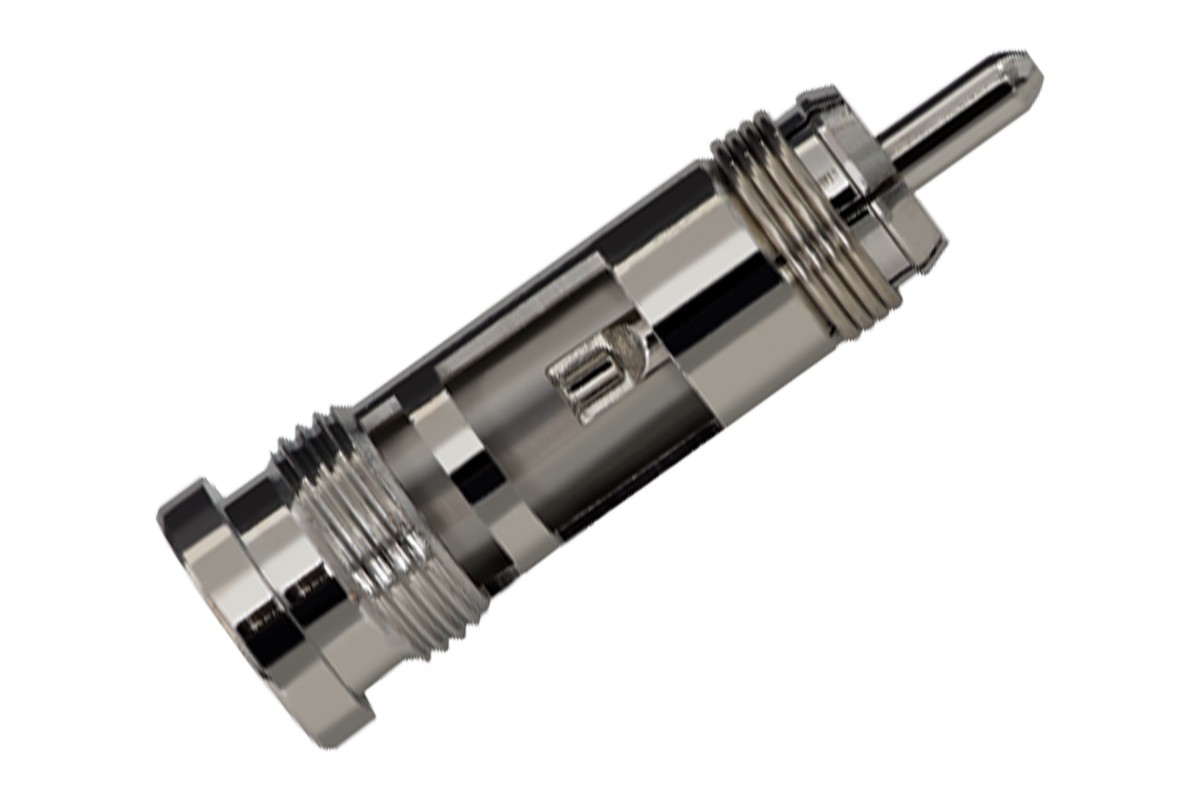

Inside of the Cardas SRCA RCA plug

The SRCA from the inside

A single 25.5 AWG conductor runs into the SRCA plug, built around a Kevlar core. Its ultra-fine strands of Grade 1 oxygen-free copper, 99.9999% pure, range from 41 to 39 AWG, carry an SPN enamel and are insulated in extruded PTFE. Antistatic LDPE air tubes, held by a PTFE tape, surround them.

54583

Data sheet

Product Type
Digital Coaxial Cable
Features
Coaxial single conductor with anti-static LDPE air-tubes bound with PTFE tape wrap. Finished in an ultra soft extruded TPR jacket
Brand
Cardas
Technology
Matched Propagation Kevlar core, ultra fine Grade 1, 99.9999% pure oxygen free copper with SPN clear coat (Litz), gauges 41 to 39 AWG scaled to Golden Ratio. Cross-field layer geometry, ultra thin extruded PTFE jacket
Nominal impedance
75 Ohm
Connector
Cardas SRCA or BNC. Hand terminated in Bandon, Oregon

Specific References

UPC
54583
