Unison Research Reference | 845 mono tube power amplifier (piece) | 2 YEAR WARRANTY

Name: Unison Research Reference | 845 mono tube power amplifier (piece) | 2 YEAR WARRANTY
Brand: Unison Research
Price: 18999.00 CHF
Availability: BackOrder

Reference 73769

CHF18,999.00 Tax included

Supplier stock – typically 4 to 7 days

Unison Research Reference, mono tube power amplifier sold per unit; a stereo system needs two. Each unit delivers 80 W in pure class A from four 845 triodes in a double parallel single-ended configuration.

Color : Red

Red
Walnut

Quantity

Add to wishlist

Supplier delivery time usually 4 to 7 days

Description
Product Details

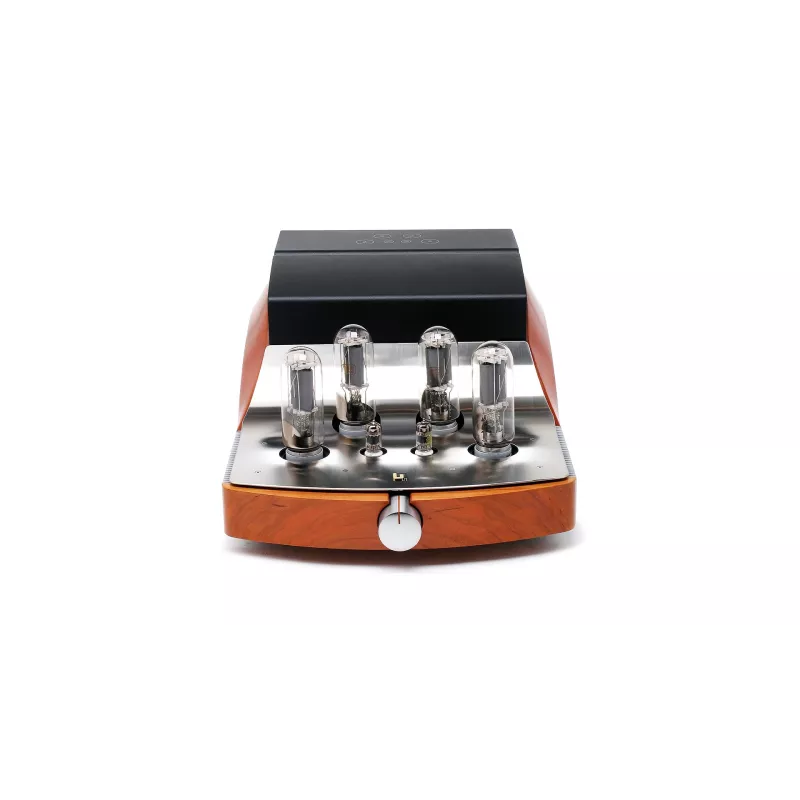

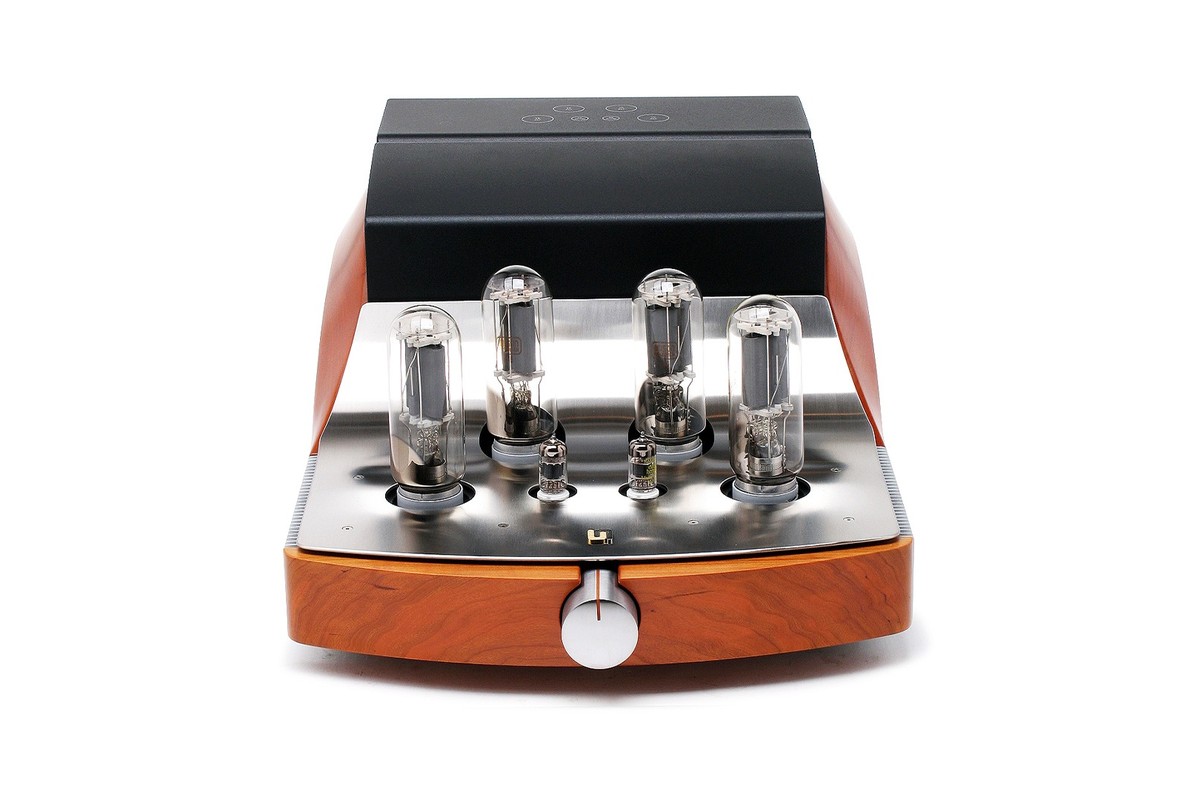

Tube power amplifier seen from the front, four large triodes and cherry wood cheeks

Top of the range

The Reference monoblocks came from customers asking for a tube amplifier with far more power than the brand's previous models. Unison Research presents them as the culmination of its years of tube amplifier design. They are sold per unit, in a Cherry or Walnut finish; a stereo system needs two.

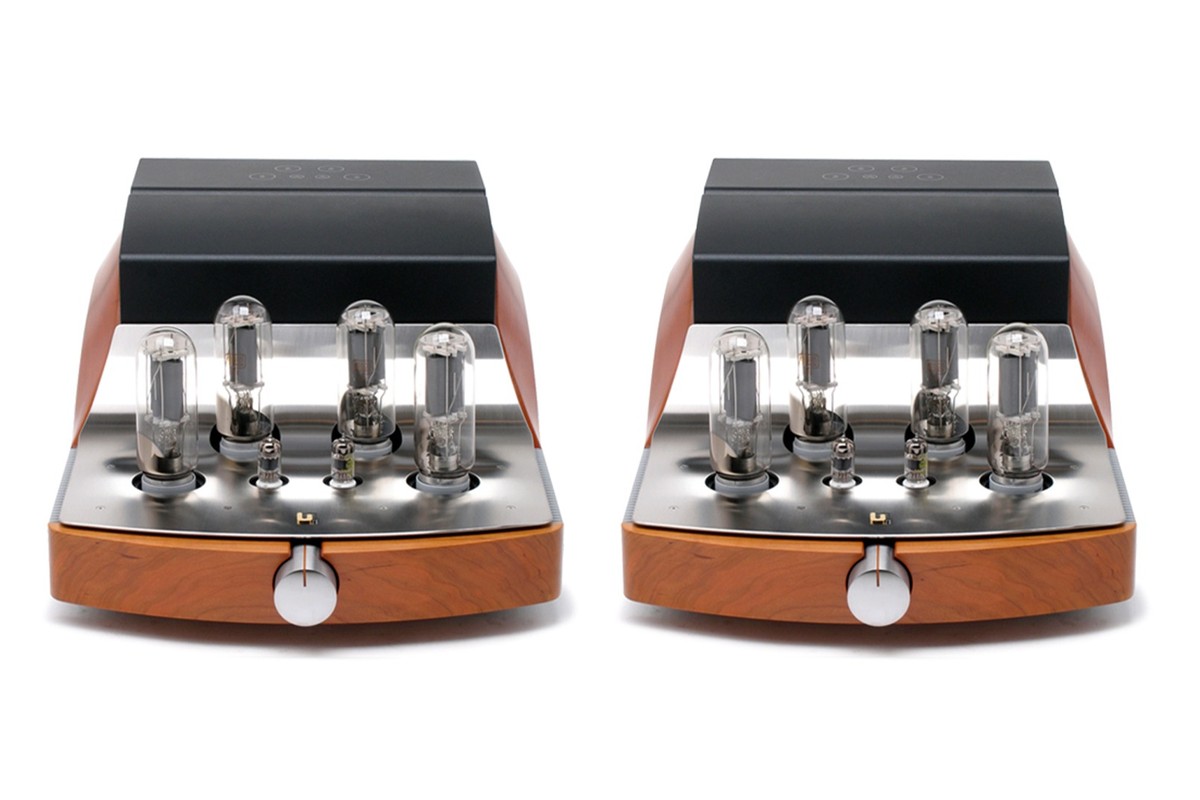

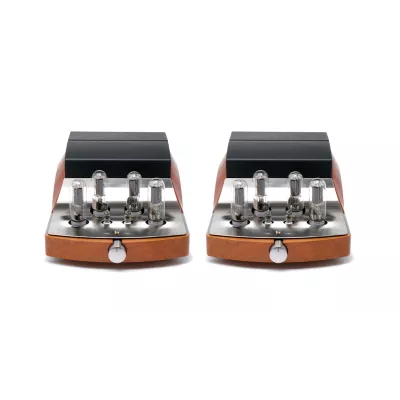

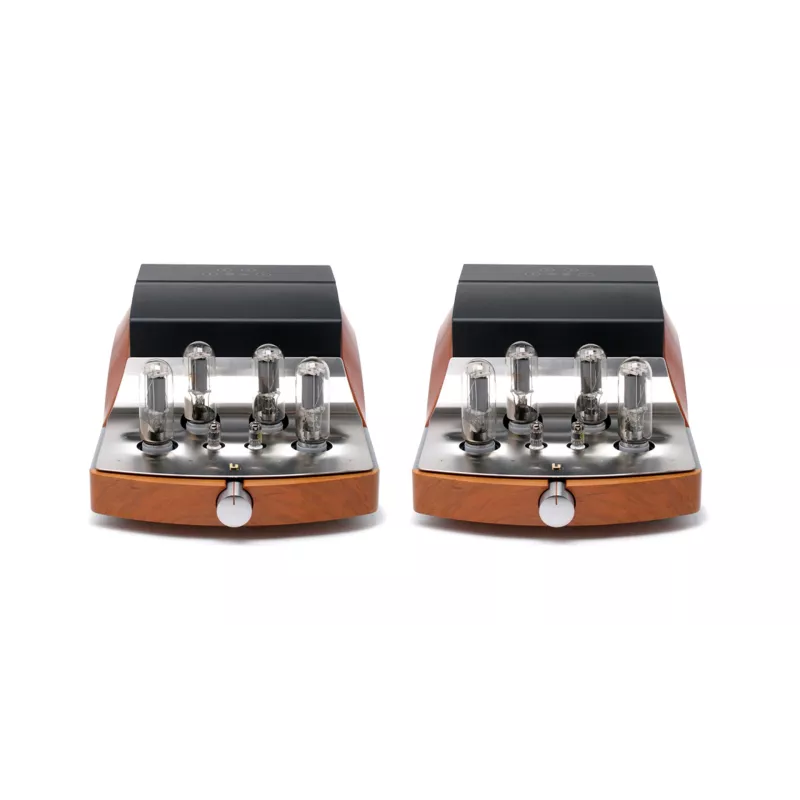

Pair of mono tube amplifiers side by side, front view

Four 845 triodes per unit

Each mono unit lines up four 845 triodes with one ECC82 and one ECC83 in a double parallel single-ended output stage. It works in pure class A and delivers 80 W. Frequency response covers 20 Hz to 30 kHz, with 14 dB of feedback.

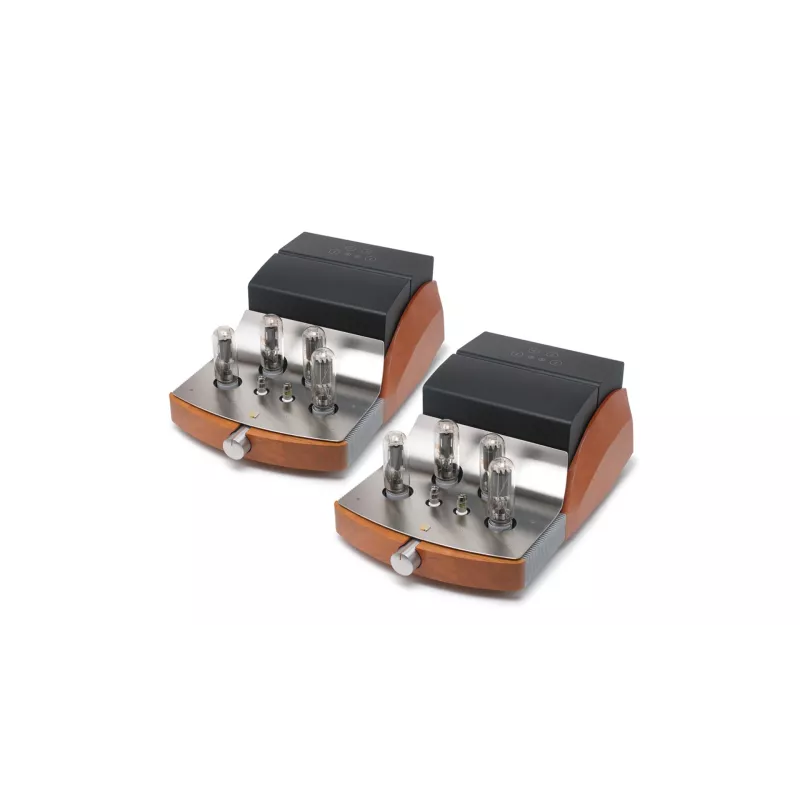

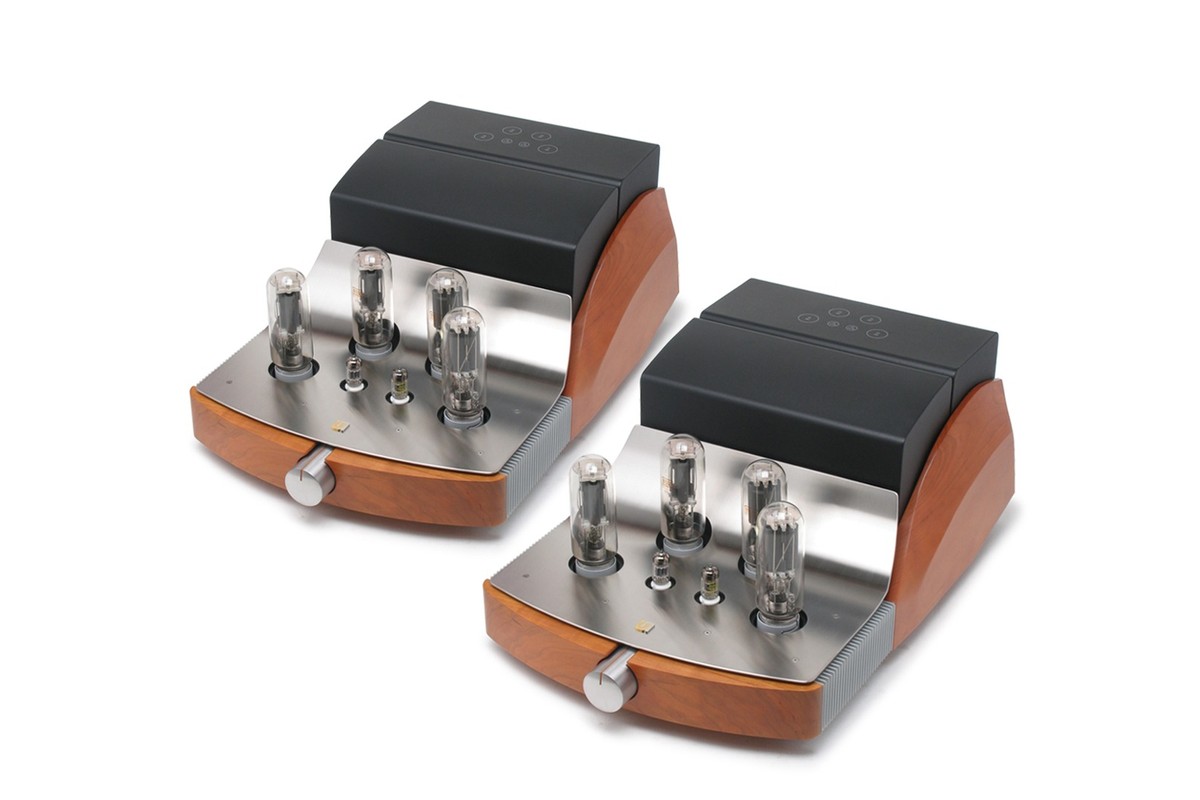

Two power amplifiers with wooden cheeks, three-quarter view

RCA and XLR inputs

Each unit has one RCA input at 47 kΩ and one XLR input at 10 kΩ. The loudspeaker outputs accept bi-wiring and offer 4 Ω and 8 Ω taps.

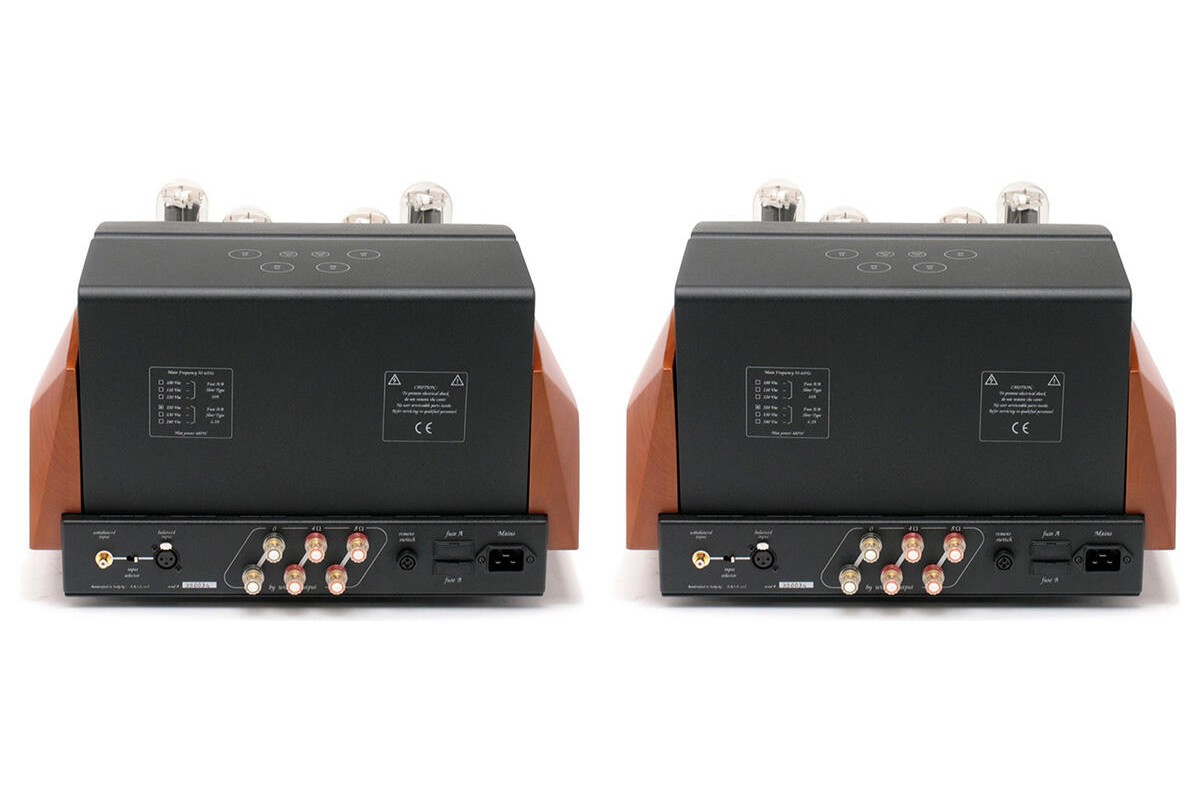

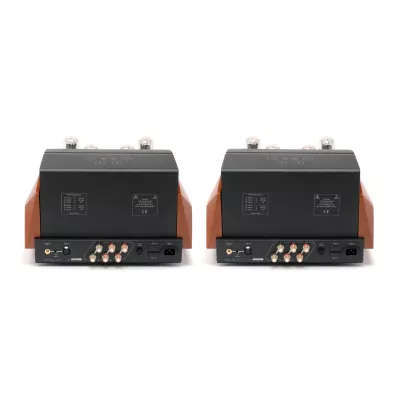

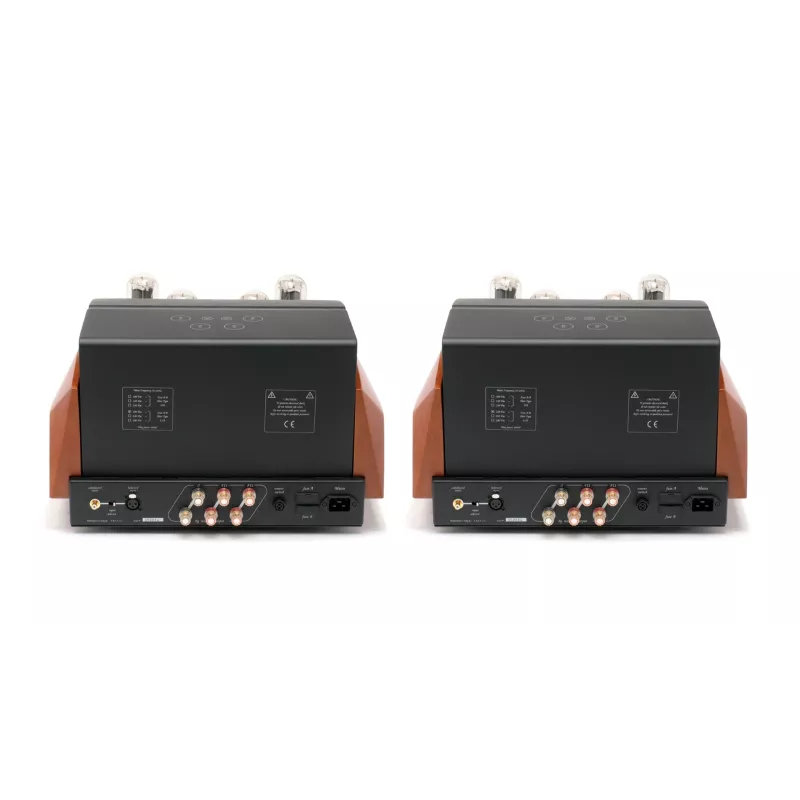

Rear panels of both units with terminals, input sockets and mains inlets

Footprint and consumption

Each unit draws about 400 VA, measures 49 x 77.5 x 28.5 cm (W x D x H) and weighs 70 kg. 2-year warranty, 3 months on the tubes.

Red = Cherry; Walnut = Walnut

Reference 73769

Data sheet

Product Type: Power Amplifier
Tube amplifier
Brand: Unison Research
Audio outputs: Bi-wiring loudspeaker outputs
Number of channels: Mono
Analog inputs: 1x RCA, 1x XLR
Output power: 80 W
Color: Cherry Tree
Walnut
Technology: Feedback: 14 dB
Input impedance: 47 kΩ RCA, 10 kΩ XLR
Tubes: 4 x 845, 1 x ECC82, 1 x ECC83
Series: Reference Series
Amplification technology: Double parallel single-ended
Pure class A
Power consumption: Approx. 400 VA
Frequency response: 20 Hz - 30 kHz
Impédance de charge recommandée: 4 and 8 Ω
Width: 49.0 cm
Depth: 77.5 cm
Height: 28.5 cm
Unit weight: 70.0 kg
