Naim New Classic NAP 350 | Monobloc power amplifier

Name: Naim New Classic NAP 350 | Monobloc power amplifier
Brand: Naim
SKU: 70442
Price: 6999.00 CHF
Availability: InStock

Reference 70442

CHF6,999.00 Tax included

24‑hour delivery

The Naim New Classic NAP 350 is a 175 W monobloc power amplifier into 8 Ω, used one per loudspeaker. Its output stage relies on Statement NA009 transistors and regulated DR power supplies.

Description
Product Details

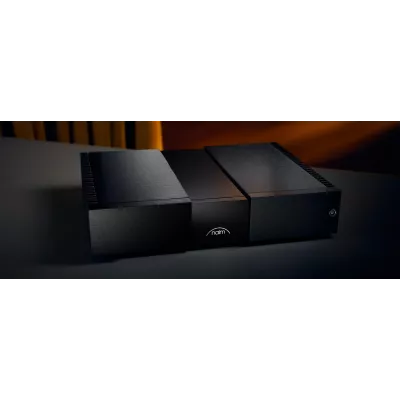

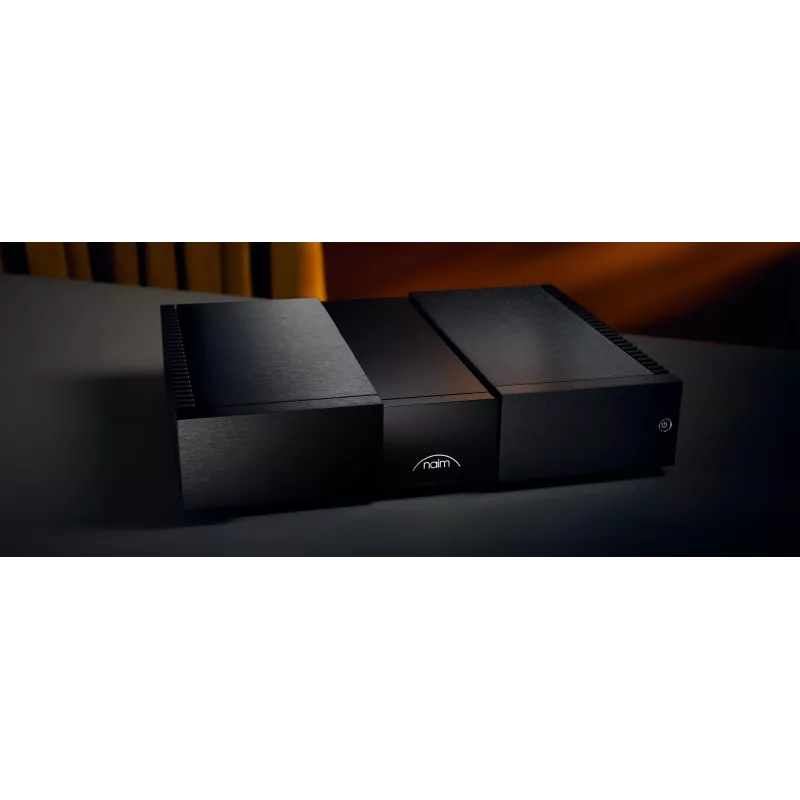

Naim New Classic NAP 350 monobloc amplifier seen from above

175-watt monobloc

The NAP 350 is a monobloc: one channel per chassis, with one unit per loudspeaker. It delivers 175 W into 8 Ω at 0.1% THD+N, and 345 W into 4 Ω at 1%. The damping factor is 36 into 8 Ω.

NA009 output stage

The output stage, designed for high current, relies on matched pairs of Statement NA009 transistors developed by Naim. The circuit works in linear class A/B and draws its energy from fully regulated DR power supplies. The heatsinks use an aluminium alloy chosen for its thermal conductivity.

Dynamic headroom and measurements

Burst power reaches 610 W into 2 Ω at 1% THD+N, and peak current into 1 Ω climbs to ±42 A, or 1.7 kW of peak power. Total harmonic distortion plus noise is quoted at 0.006%, with a signal-to-noise ratio of 114 dB referenced to 175 W into 8 Ω. Frequency response covers 1.4 Hz to 100 kHz at -3 dB.

Side view of the casing and its cooling fins

Balanced input and supplied cables

The main input is a balanced XLR loaded at 47 kΩ, and a 34 kΩ single-ended connection remains possible with an adaptor lead. Input clipping occurs at 1.33 Vrms, for a gain of +29 dB. The Power-Line Lite mains cable, an XLR-XLR interconnect and an optical automation cable are supplied. The unit measures 43.2 × 31.75 × 9.15 cm, weighs 16.5 kg and draws 24 W in everyday use.

Reference 70442

Data sheet
