Pro-Ject Align it PRO | Precision cartridge alignment tool

69935
CHF149.00 Tax included
Supplier stock – typically 4 to 7 days
Pro-Ject Align it PRO, an acrylic cartridge alignment tool fixed to the tonearm pivot for fast and accurate overhang setting. It uses the Baerwald geometry.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

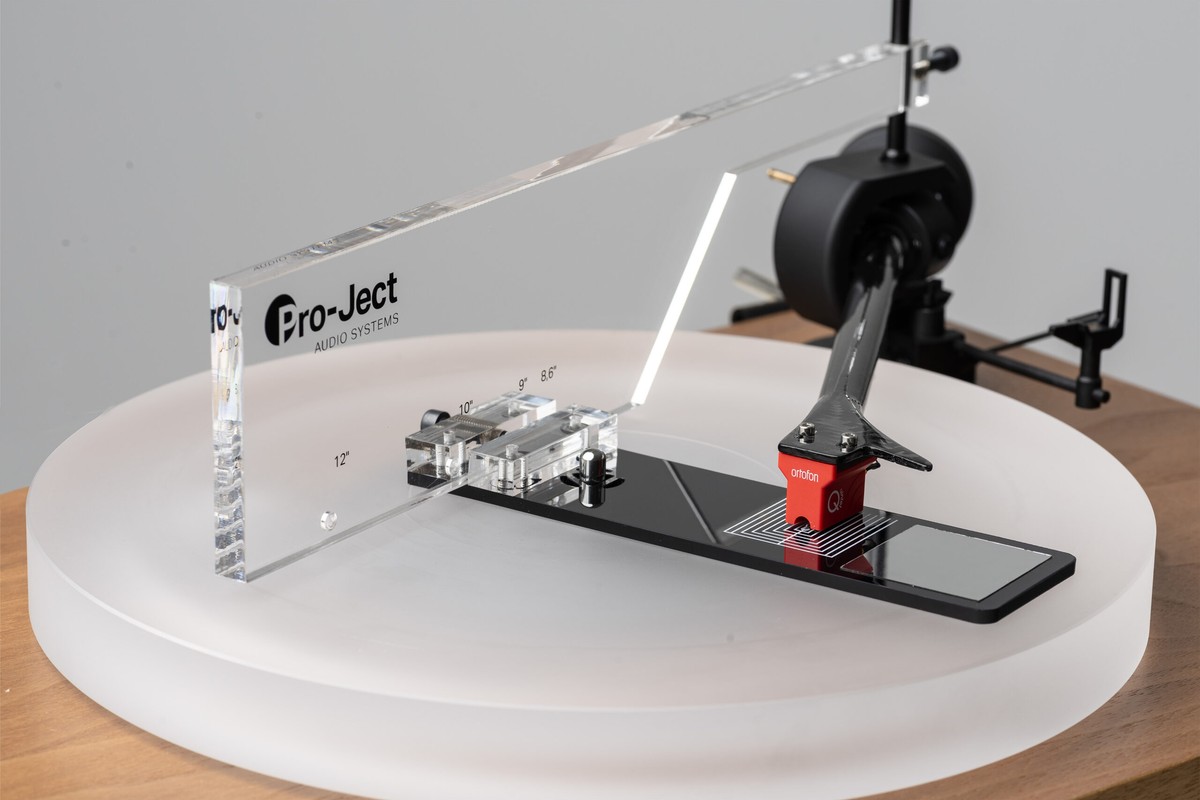

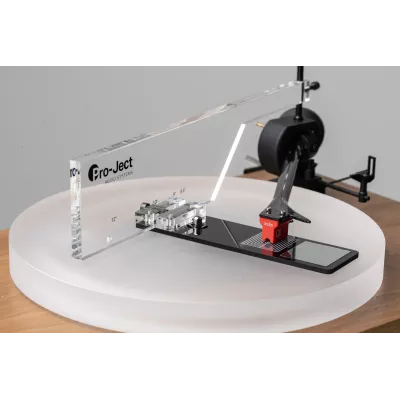

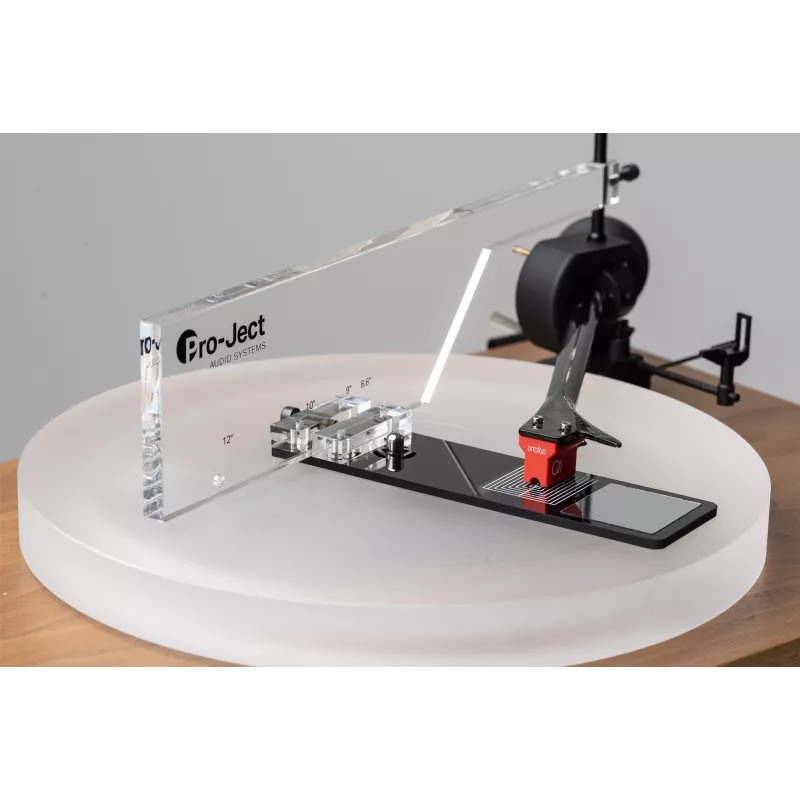

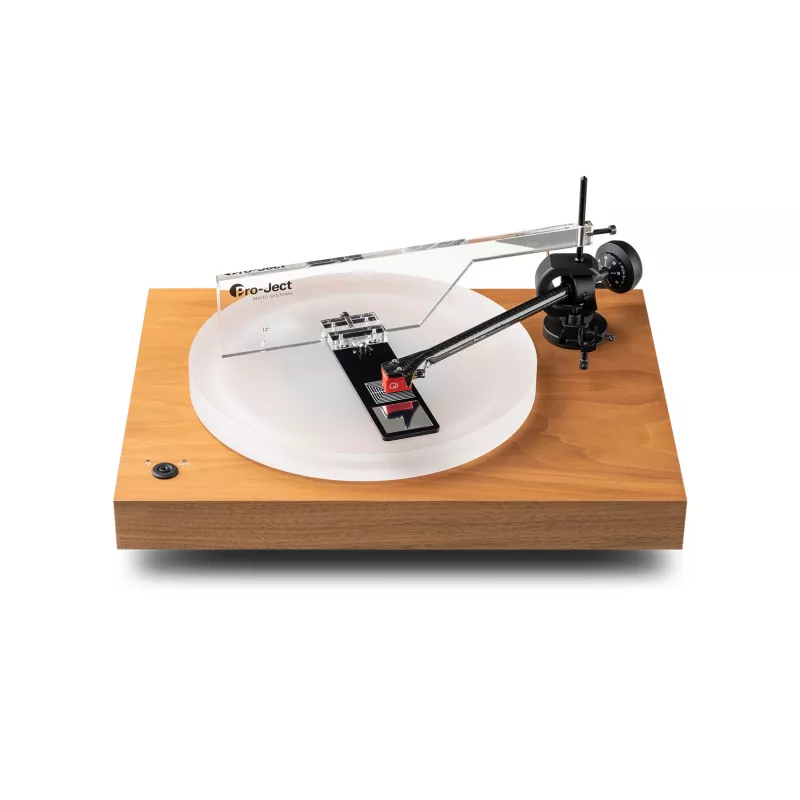

Acrylic alignment tool mounted on a frosted platter

Fixed to the tonearm pivot

The Pro-Ject Align it PRO is set to the exact length of the tonearm and fixed to the centre of its pivot. Its fixing rod has two ends: a pointed one for any type of tonearm, and a flat one that fits the centre screw of higher-end Pro-Ject tonearms (X1, X2, CC and CC Evo).

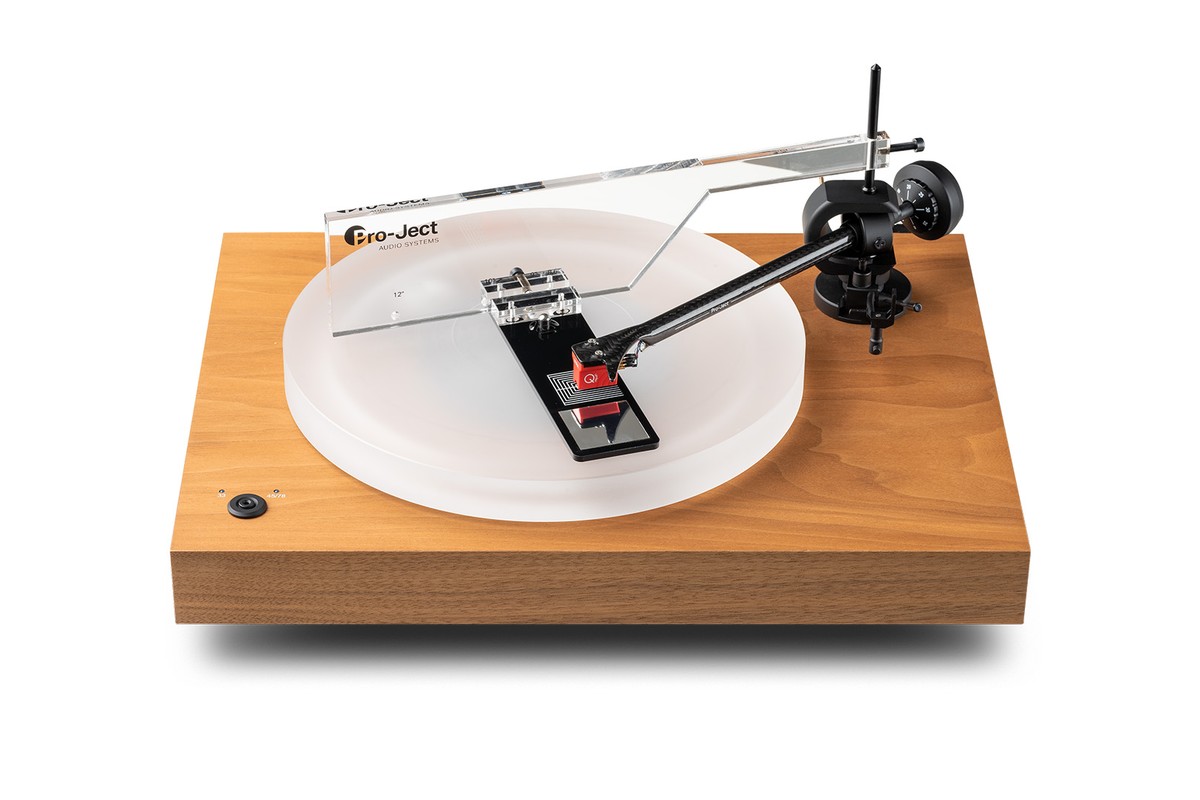

Tool fixed to the tonearm pivot on a wooden turntable

Overhang set first time

The overhang distance is therefore set in no time, with great accuracy. There is no need to go back and forth between the inner and outer null points as with other protractors. This is why only the inner null point is printed on the tool.

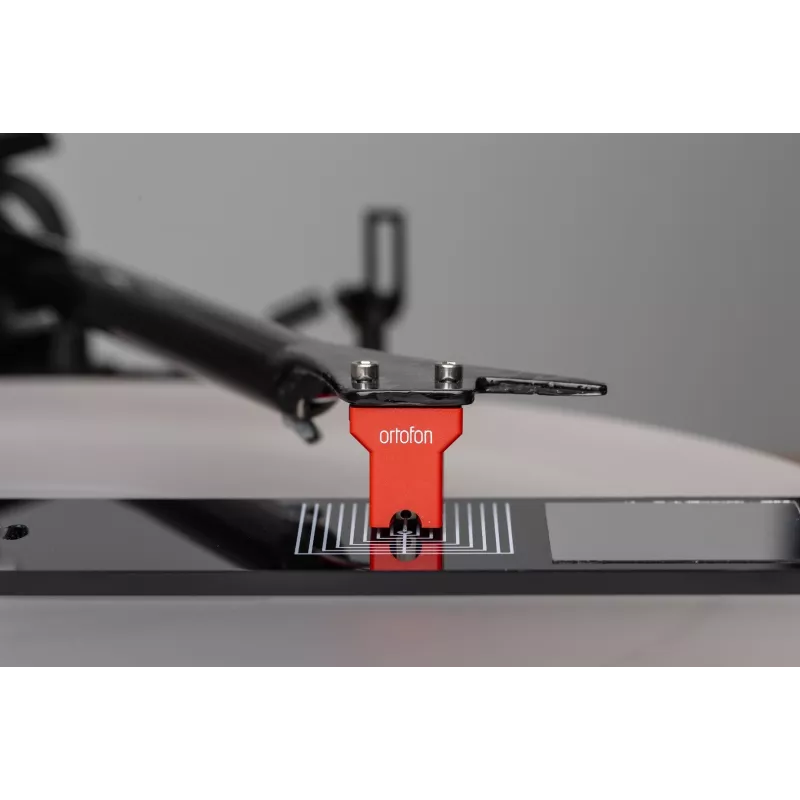

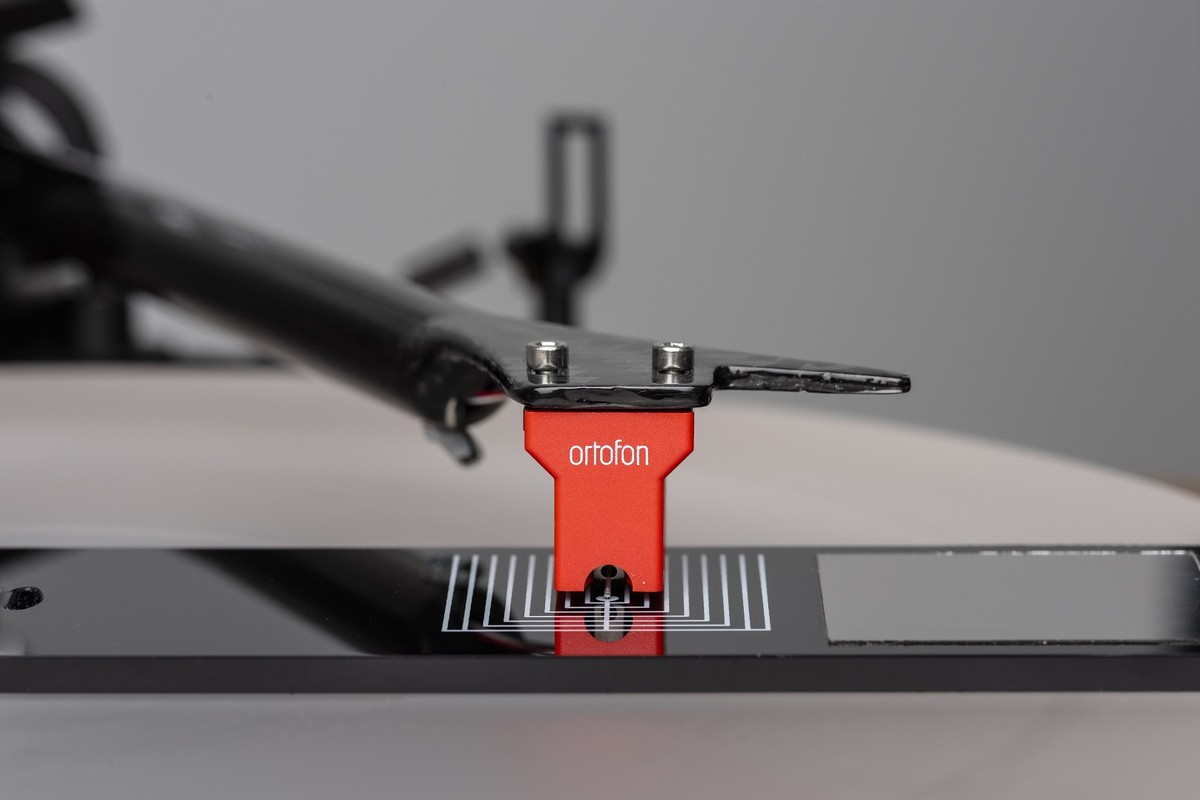

Red cartridge resting on the sighting plate

Baerwald geometry

The Align it PRO uses the Baerwald geometry, a versatile balance between outer and inner grooves with excellent linearity in the middle of the record. It suits the short sides of 20 minutes or less found on many recent releases. One tool covers overhang, azimuth and tangentiality.

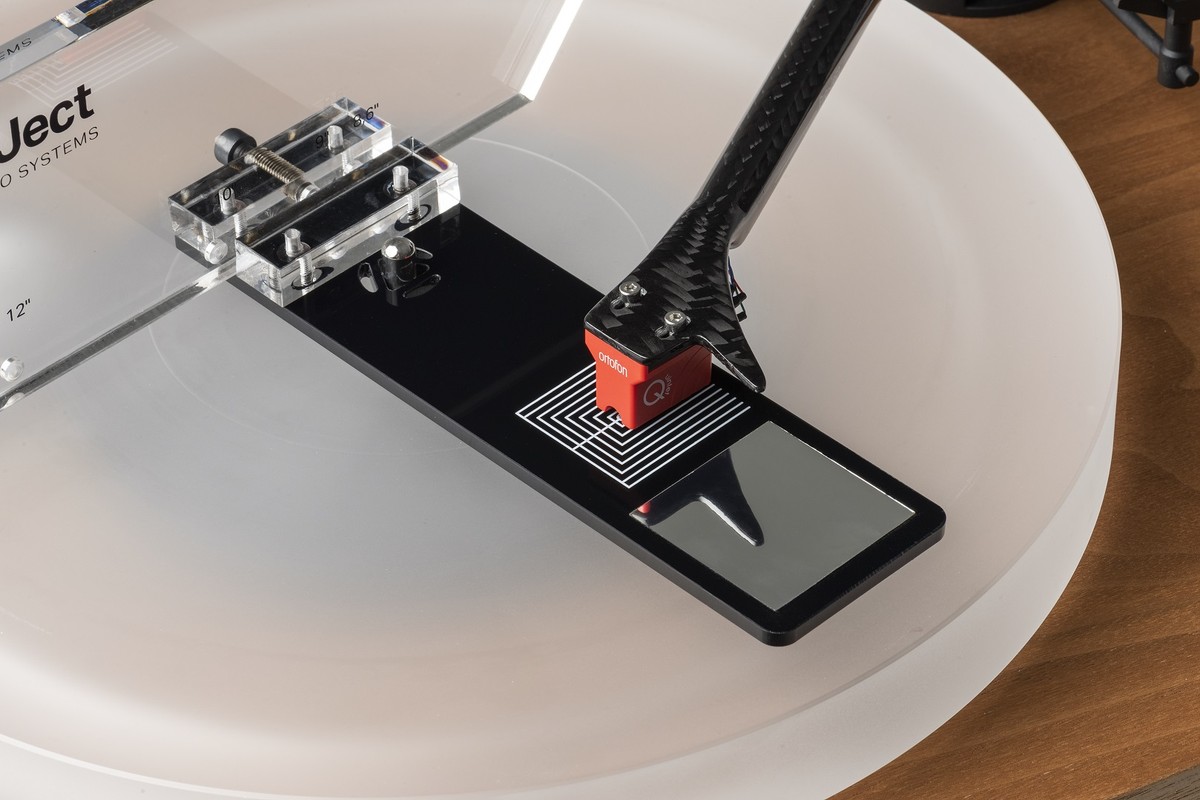

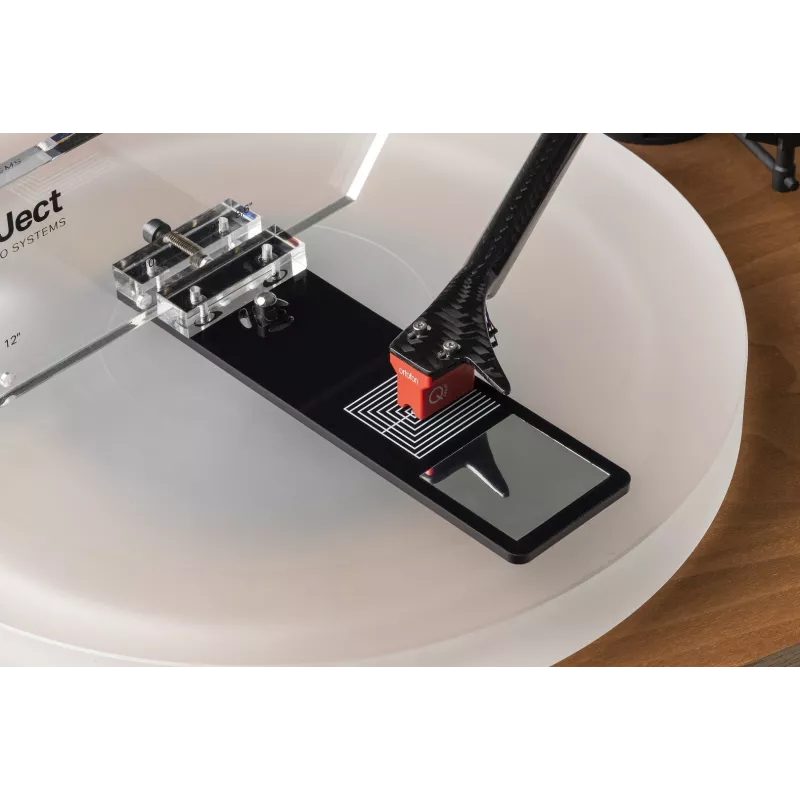

Close-up of the cartridge above the inner null point

Four tonearm lengths

The tool covers Pro-Ject 8.6, 9, 10 and 12 inch tonearms, i.e. 200, 212, 238 and 291.6 mm between pivot and spindle. It suits all Pro-Ject turntables and many tonearms from other brands. Made in Europe, it comes with detailed instructions.

69935

Data sheet

Product Type
Cartridge alignment protractor
Features
Geometry: Baerwald
Made in Europe
Material: acrylic
Pivot to spindle distance: 200 mm (8.6" arms), 212 mm (9"), 238 mm (10"), 291.6 mm (12")
Brand
Pro-Ject

Specific References

EAN13
9120122296554
