Pro-Ject Align it DS3 | Alignment protractor with three geometries

69934
CHF79.00 Tax included
Supplier stock – typically 4 to 7 days
Pro-Ject Align it DS3, an acrylic cartridge alignment protractor with three geometries: Baerwald, Löfgren B and Stevenson. It traces the whole tonearm arc and suits all Pro-Ject turntables.
Quantity
Add to wishlist
Supplier delivery time usually 4 to 7 days

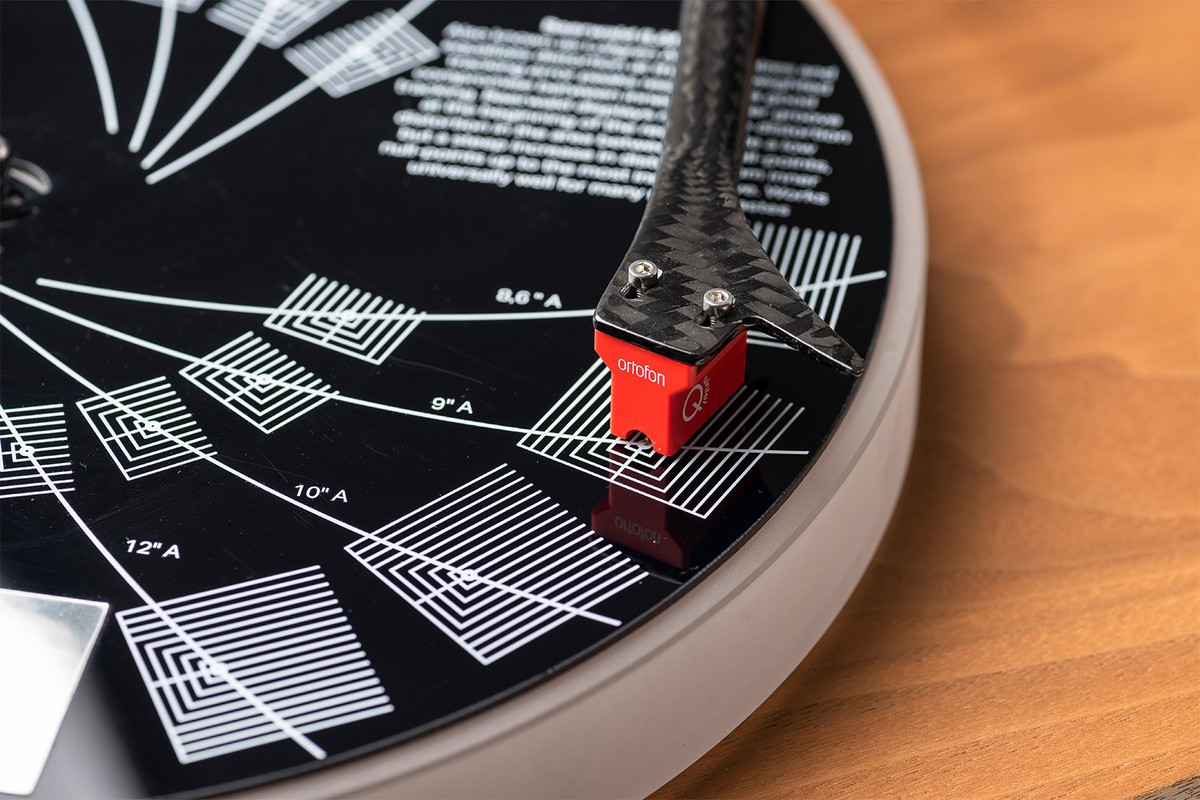

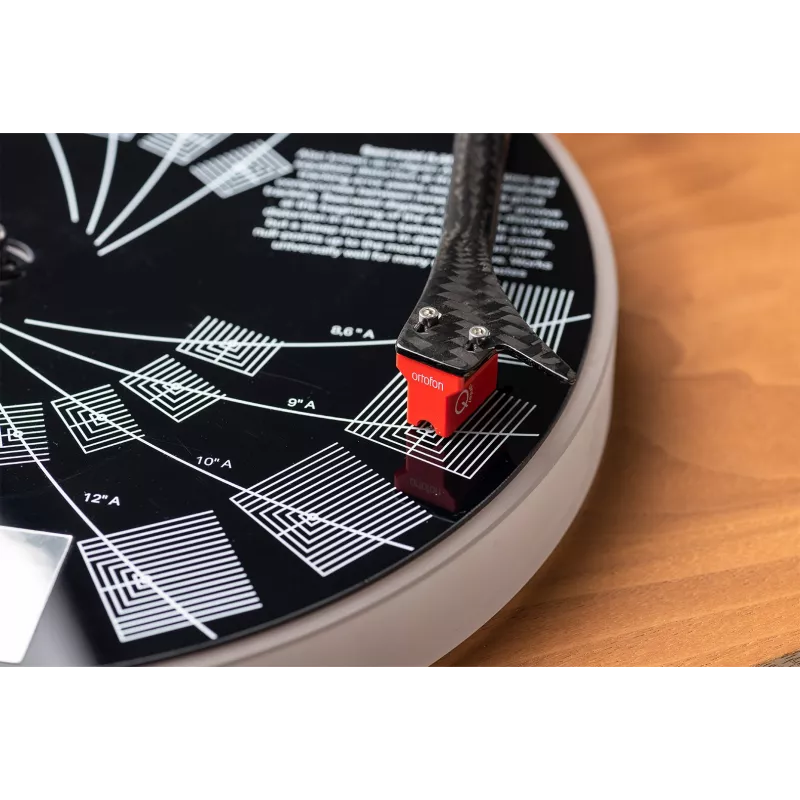

Red cartridge aligned on the printed marks of the protractor

The whole arm arc traced

Unlike many protractors, the Pro-Ject Align it DS3 traces the whole path of the tonearm, from the outer to the inner null point. The protractor stays fixed during alignment, so there is no need to rotate the platter between the two points. Beginners and experienced users alike gain in comfort.

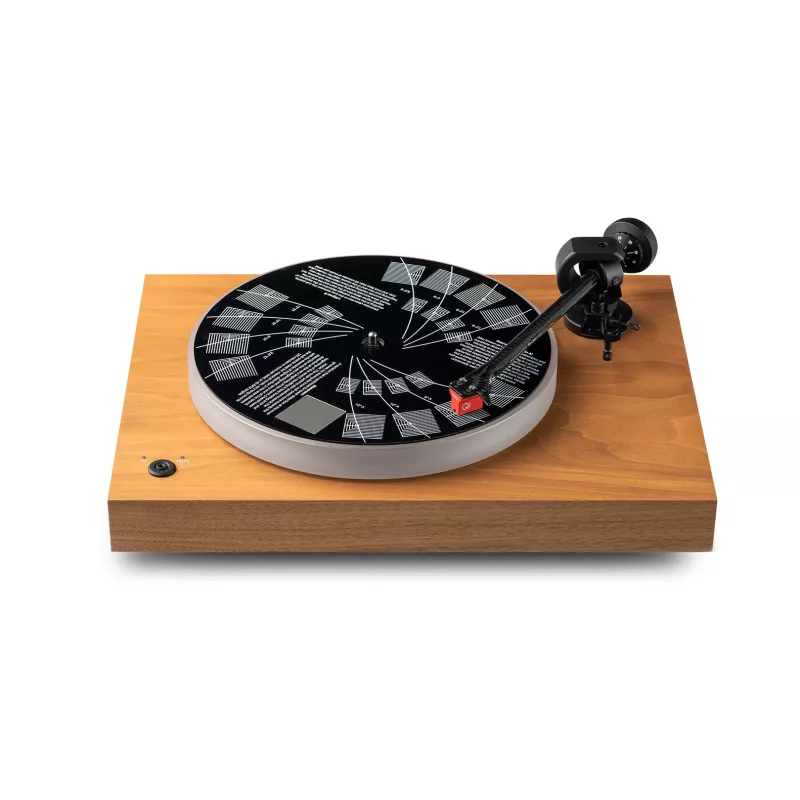

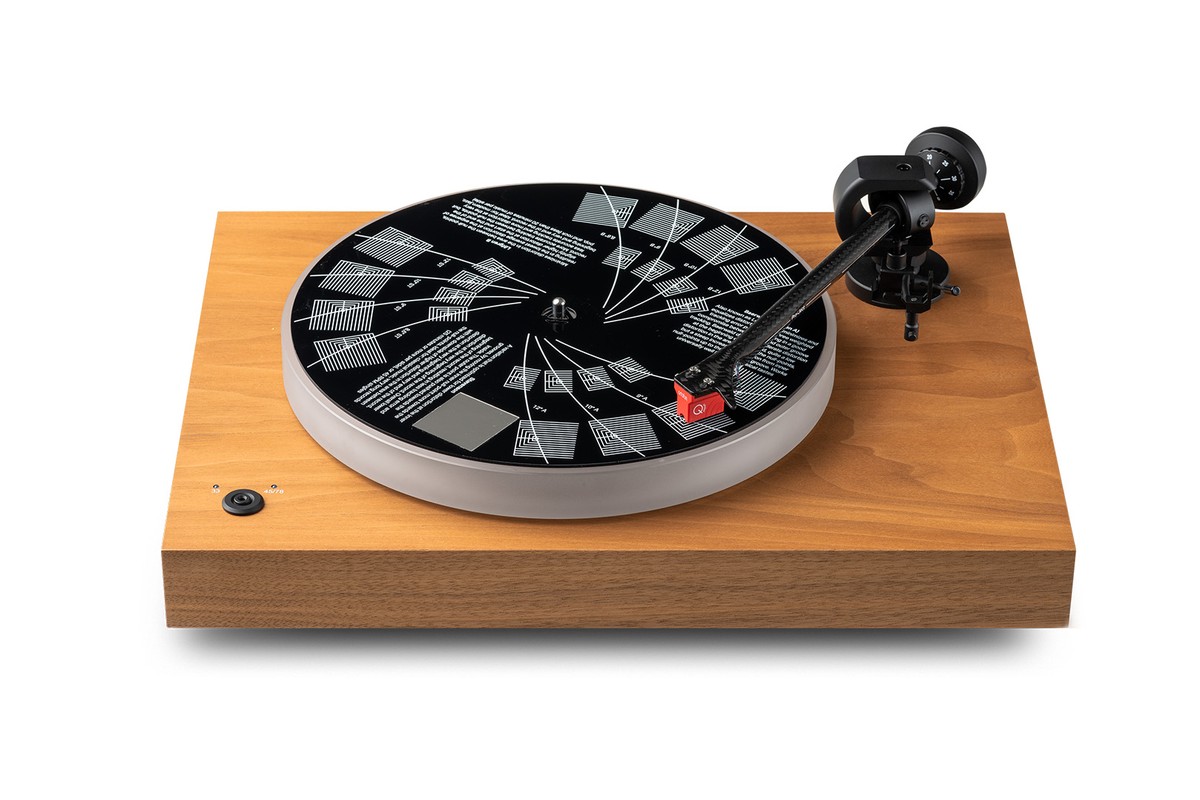

Black protractor on the platter of a wooden turntable

Three geometries to choose

Baerwald is an excellent all-rounder to start with. Löfgren B favours the middle area of the record and gives the lowest average distortion. Stevenson favours the start and the very end of a side, useful for long sides and classical music.

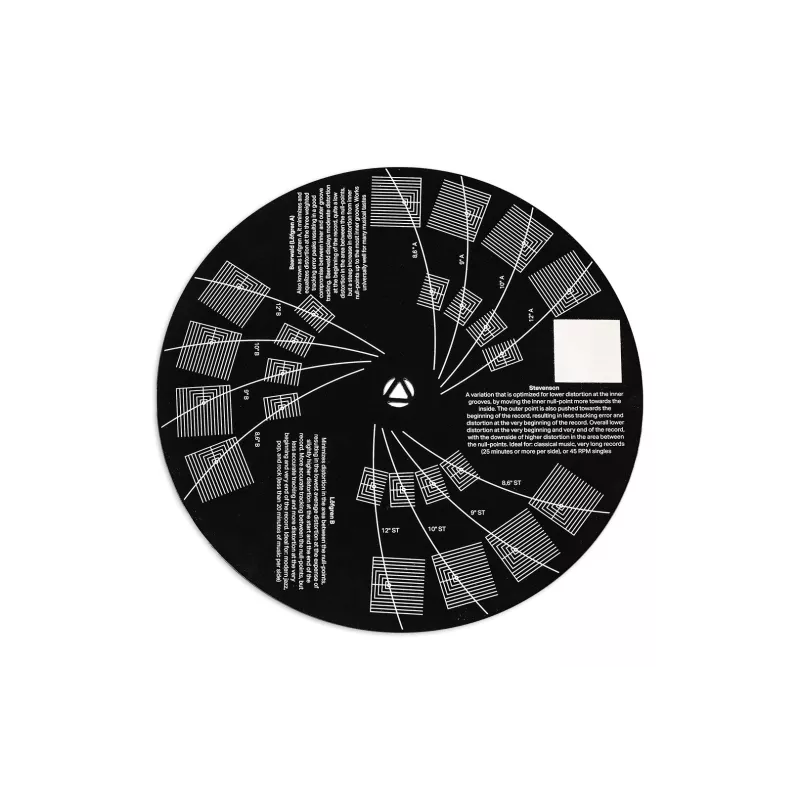

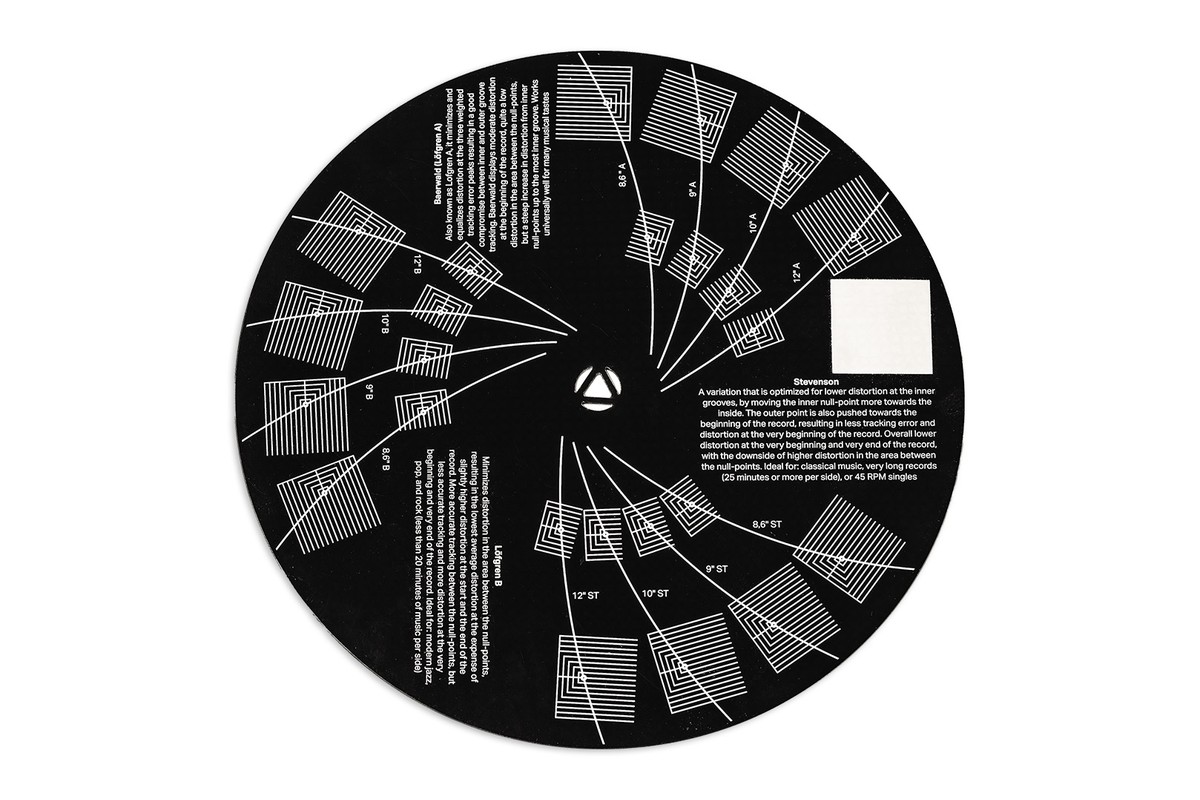

Front of the protractor with curves for 8.6 to 12 inch arms

Four tonearm lengths

The protractor features curves for Pro-Ject 8.6, 9, 10 and 12 inch tonearms, i.e. pivot to spindle distances of 200, 212, 238 and 291.6 mm. It also suits tonearms from other brands with these distances. One tool covers overhang, azimuth and tangentiality.

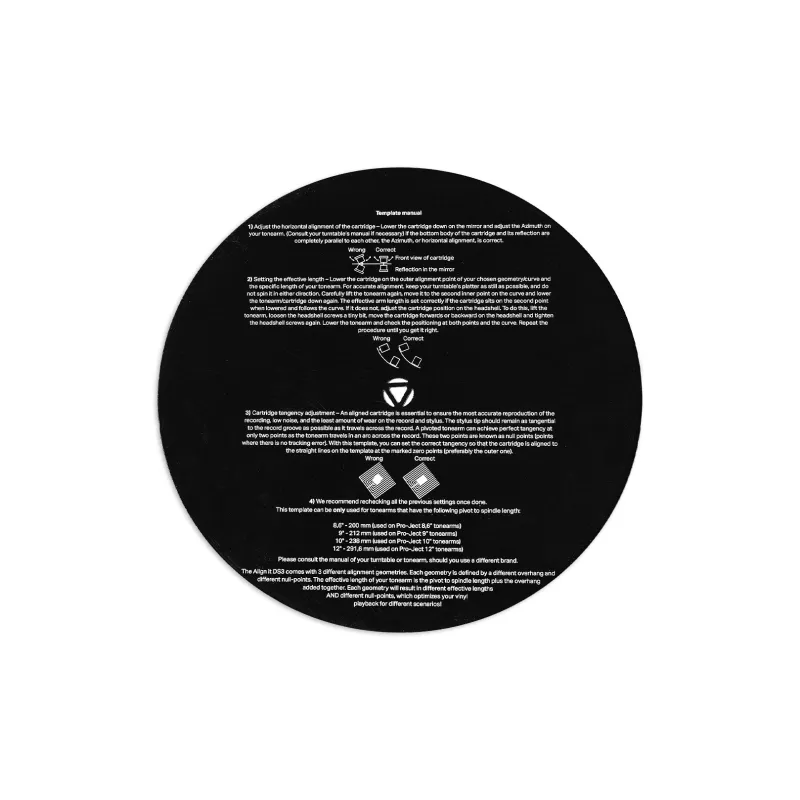

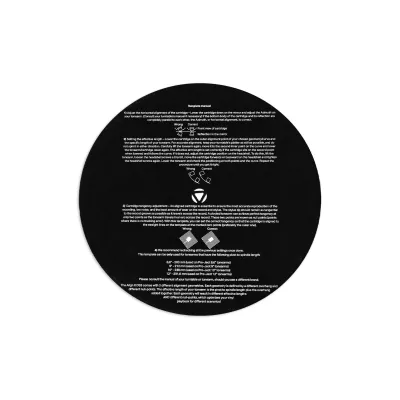

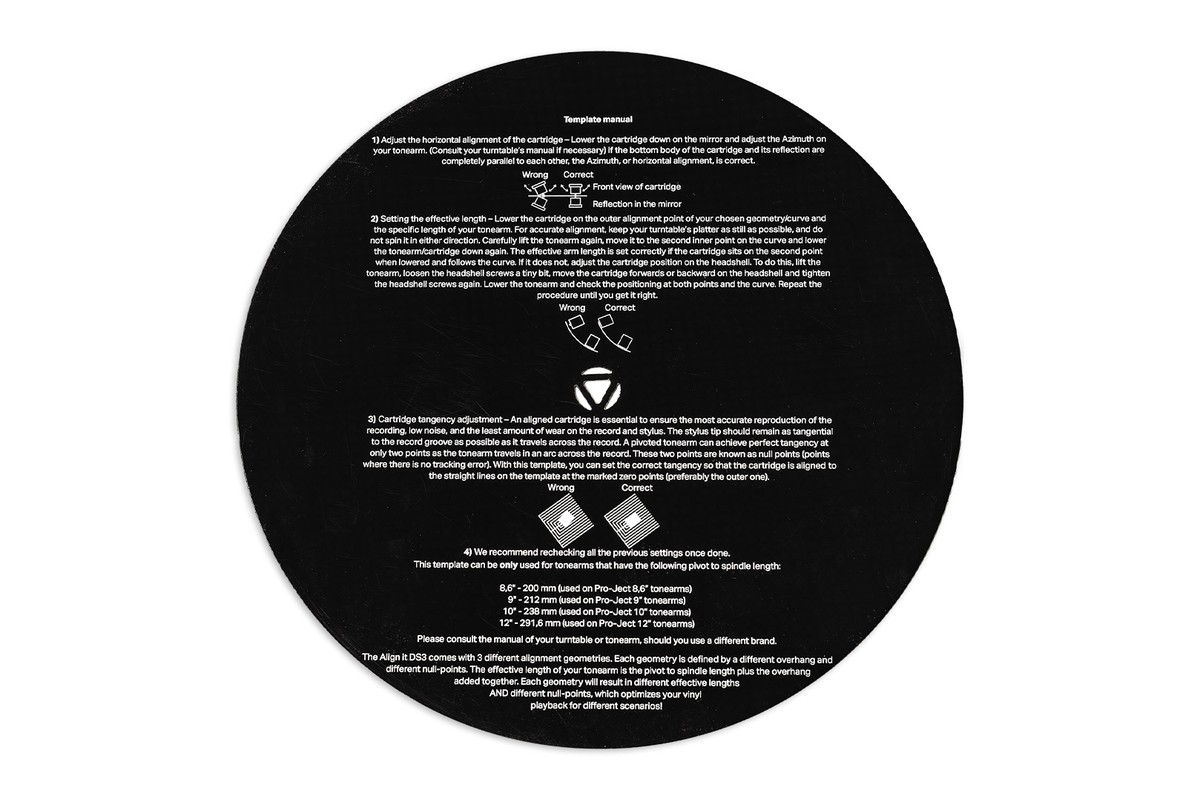

Back of the protractor with printed instructions

Acrylic, made in Europe

The Align it DS3 is cut from 2 mm thick acrylic and made in Europe. It comes with detailed instructions and guidance on choosing the geometry that suits your listening habits. It suits all Pro-Ject turntables.

69934

Data sheet

Product Type
Cartridge alignment protractor
Features
Geometries: Baerwald, Löfgren B, Stevenson
Made in Europe
Material: acrylic
Pivot to spindle distance: 200 mm (8.6" arms), 212 mm (9"), 238 mm (10"), 291.6 mm (12")
Thickness: 2 mm
Brand
Pro-Ject

Specific References

EAN13
9120122298008
